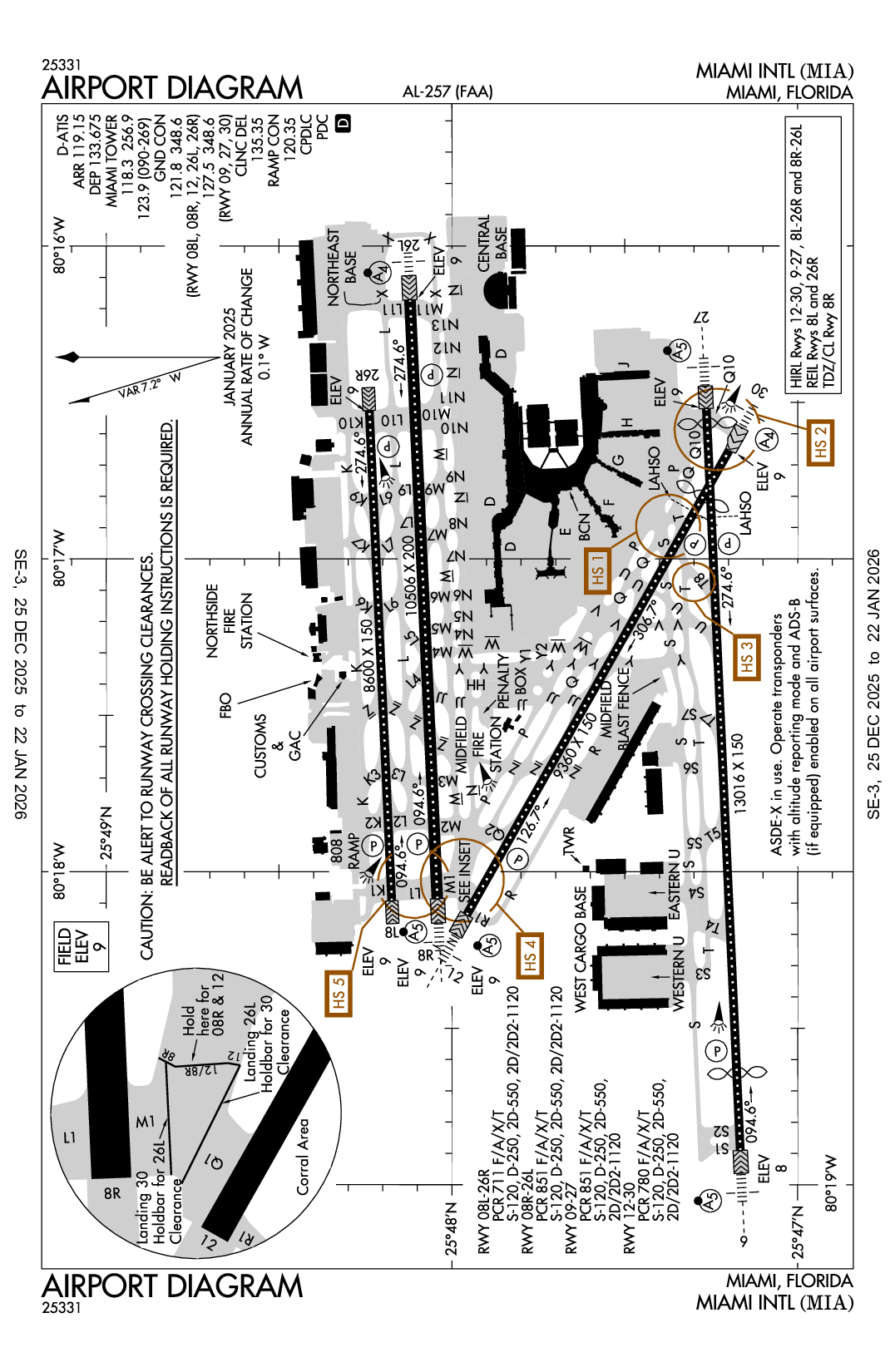

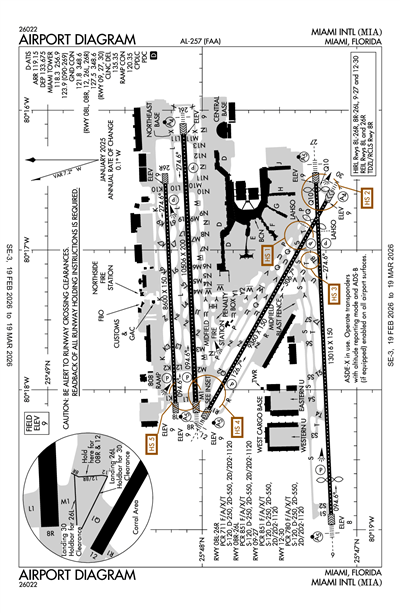

MIAMI INTL - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KMIA
MIAMI INTL
PublicPUB

8 miles NW of MIAMI, FL
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
25° 47' 43"N 80° 17' 24"W
9' MSL
1009' MSL
05W
Jet A, 100
MIAMI (MIA)
MIAMI
MIAMI (ZMA)
5/16/24-6/13/24
KMIA VFR
1:53 AM EDT
Clear
10sm
83°F
76°F
29.97"Hg
170° 4kts
AO2 SLP148 T02830244 10300 20283 51004 $
KMIA 180553Z 17004KT 10SM CLR 28/24 A2997 RMK AO2 SLP148 T02830244 10300 20283 51004 $
List Your Business

KMIA FBOs, Flight Schools and Ground Support

Promote Listing
Signature Aviation
Freq: 128.9
Phone: (305) 874-1477
No Rating Available
0 Reviews (Read | Sign In To Write)
Titan
As of 5/17
 100LL Jet A Jet A+ Mogas UL94
Self Serve
Full Serve 10.90 9.96
Promote Listing
Tursair Fueling
Freq: 123.0
Phone: (305) 869-4833
Other: (305) 869-4880
No Rating Available
0 Reviews (Read | Sign In To Write)

KMIA Ground Transportation (Taxi, Limo, Car Service)

No ground transportation services are listed for this airport.

KMIA Hotels

No hotels are listed for this airport.

KMIA Restaurants

No restaurants are listed for this airport.

KMIA Other Airport-Related Businesses

No other airport-related businesses are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
123.0 --

ATIS

D-ATIS
305-869-5445
 119.15
D-ATIS
305-869-5445
 133.675

ASOS

ASOS
305-870-0235
 119.15

Approach

APCH/P IC
270-089
 124.85
APCH/S
 125.75

Departure

DEP/P
090-269
 125.5
DEP/P IC
270-089
 119.45

Approach/Departure

APCH/P DEP/P
090-269
 120.5
APCH/P DEP/P
270-089
 125.75

Clearance Delivery

CD/P
 135.35

Emergency

EMERG
 121.5

Ground

GND/P IC
RWY 08L/26R, 08R/26L, 12
 121.8
GND/P IC
RWY 09/27, 30
 127.5

Tower

LCL/P
090-269
 123.9
LCL/P IC
270-089
 118.3

Other

ALTNN DP
 119.45
ANNEY STAR
 125.75
BLUFI STAR
 125.75
BNFSH STAR
 124.85
BNGOS DP
 119.45
CLASS B
090-269
 120.5
CLASS B
270-089
 125.75
CSTAL STAR
 124.85
DORRL DP
 119.45
DVALL STAR
 120.5
FLMGO DP
 119.45
FOLZZ DP
 119.45
FOWEE STAR
 120.5
FOWEE STAR
 124.85
FROGZ STAR
 120.5
GLADZ DP
DEPARTING EAST
 119.45
GLADZ DP
DEPARTING WEST
 125.5
GWAVA DP
 125.5
HURCN DP
 119.45
HUSIL DP
 119.45
KLADA DP
 125.5
LIFRR DP
 119.45
LUUCE STAR
9000 FT
 126.05
LUUCE STAR
7000 FT
 133.775
MAYNR DP
 125.5
MIAMI DP
ALTNN,BEECH,BNGOS,DORRL,FLMGO,HURCN,
 119.45
MIAMI DP
GWAVA, KETLL, MAYNR TRANSITIONS
 125.5
NNOCE DP
 125.5
PALMZ STAR
 120.5
RAMP CTL
 120.35
RTIS
120-300 WITHIN 25 NM
 125.25
SNDBR STAR
 120.5
TARPN STAR
9000 FT
 126.05
TARPN STAR
7000 FT
 133.775
VIICE STAR
 120.5

Terminal Area Forecast

KMIA
Sat, 5/18 1:22 AM EDT
Sat, 5/18 2:00 AM EDT - Sun, 5/19 8:00 AM EDT
VFR
2:00 AM EDT - 10:00 AM EDT
Few 25,000'
Few 5,000'
6sm
VRB° 4kts
VFR
10:00 AM EDT - 2:00 PM EDT
Scattered 5,000'
Few 3,000'
6sm
170° 10kts
VFR
2:00 PM EDT - 8:00 PM EDT
Thunderstorm in vicinity
Broken 5,000'
Scattered 3,000'
6sm
160° 12kts
Gusts 19kts
VFR
8:00 PM EDT - 12:00 AM EDT
Scattered 8,000'
Few 3,000'
6sm
150° 6kts
VFR
12:00 AM EDT - 8:00 AM EDT
Few 25,000'
Few 3,000'
6sm
VRB° 4kts
KMIA 180522Z 1806/1912 VRB04KT P6SM FEW050 FEW250
   FM181400 17010KT P6SM FEW030 SCT050
   FM181800 16012G19KT P6SM VCTS SCT030CB BKN050
   FM190000 15006KT P6SM FEW030 SCT080
   FM190400 VRB04KT P6SM FEW030 FEW250
KMIA
Domestic
5/23/241200Z !MIA 05/253 MIA OBST CRANE (ASN UNKNOWN) 254823N0801714W (0.64NM WNW APCH END RWY 26R)
206FT (200FT AGL) FLAGGED 2405231200-2405232000
5/20/240930Z !MIA 05/252 MIA RWY 09/27 CLSD 2405200930-2405201100
5/20/240930Z !MIA 05/251 MIA RWY 12/30 CLSD 2405200930-2405201100
5/20/240300Z !MIA 05/250 MIA RWY 08L/26R CLSD 2405200300-2405200900
5/18/240300Z !MIA 05/249 MIA TWY M, N WIP INSPECTION 2405180300-2405181100
5/16/242300Z !MIA 05/219 MIA AIRSPACE SEE VKZ 05/218 UAS
DLY 2300-0600 2405162300-2405190600
5/16/241507Z !MIA 05/226 MIA OBST TOWER LGT (ASR 1054749) 254943.00N0802150.20W (4.4NM WNW MIA) 167.0FT (159.1FT AGL) U/S 2405161507-2405310400
5/14/241636Z !MIA 05/202 MIA RWY 09 PAPI LOW INTST U/S 2405141636-2406272000EST
5/6/241100Z !MIA 04/343 MIA OBST CRANE (ASN UNKNOWN) 254752N0801633W (0.39NM SW APCH END RWY 26L)
147FT (139FT AGL) FLAGGED 2405061100-2407130100
5/6/241000Z !MIA 05/026 MIA TWY P BTN TWY V AND TWY U CLSD 2405061000-2405271400
5/5/241643Z !MIA 05/067 MIA OBST TOWER LGT (ASR 1283176) 254345.70N0801857.20W (4.2NM SSW MIA) 176.2FT (159.1FT AGL) U/S 2405051643-2405212359
5/2/241100Z !MIA 04/342 MIA OBST CRANE (ASN 2024-ASO-5693-OE) 254725N0801537W (1.6NM E MIA) 117FT (110FT AGL) FLAGGED AND LGTD 2405021100-2410012100
5/2/241100Z !MIA 04/341 MIA OBST CRANE (ASN 2024-ASO-5694-OE) 254717N0801540W (1.6NM ESE MIA) 117FT (110FT AGL) FLAGGED AND LGTD 2405021100-2410012100
5/2/241100Z !MIA 04/340 MIA OBST CRANE (ASN 2024-ASO-5695-OE) 254717N0801549W (1.5NM ESE MIA) 117FT (110FT AGL) FLAGGED AND LGTD 2405021100-2410012100
5/2/241100Z !MIA 04/339 MIA OBST CRANE (ASN 2024-ASO-5696-OE) 254732N0801550W (1.4NM E MIA) 117FT (110FT AGL) FLAGGED AND LGTD 2405021100-2410012100
4/22/241616Z !MIA 04/257 MIA RWY 09/27 CL MARKINGS OBSC 2404221616-2405312100
4/17/242210Z !MIA 04/207 MIA OBST TOWER LGT (ASR 1054611) 254936.70N0802331.00W (5.8NM WNW MIA) 202.8FT (194.9FT AGL) U/S 2404172210-2408152210
4/16/240100Z !MIA 04/168 MIA AIRSPACE HIGH INTST SIX BEAM SEARCH LGT WI AN AREA DEFINED AS 0.1NM RADIUS OF VKZ306002 (1NM SW X44) SFC-12000FT AGL DLY 0100-0230 2404160100-2407010230
4/11/240400Z !MIA 04/093 MIA OBST CRANE (ASN 2024-ASO-651-NRA) 254737N0801635W (0.8NM E MIA) 258FT (250FT AGL) FLAGGED AND LGTD 2404110400-2601050500
4/11/240400Z !MIA 04/092 MIA OBST CRANE (ASN 2024-ASO-650-NRA) 254738N0801627W (0.9NM E MIA) 258FT (250FT AGL) FLAGGED AND LGTD 2404110400-2601050500
4/11/240400Z !MIA 04/091 MIA OBST CRANE (ASN 2024-ASO-649-NRA) 254744N0801627W (0.9NM E MIA) 258FT (250FT AGL) FLAGGED AND LGTD 2404110400-2601050500
4/11/240400Z !MIA 04/090 MIA OBST CRANE (ASN 2024-ASO-648-NRA) 254743N0801635W (0.7NM E MIA) 258FT (250FT AGL) FLAGGED AND LGTD 2404110400-2601050500
4/9/241826Z !MIA 04/109 MIA OBST TOWER LGT (ASR 1027235) 255040.00N0802510.00W (7.5NM WNW MIA) 292.0FT (287.1FT AGL) U/S 2404091826-2406072359
3/4/241300Z !MIA 03/009 MIA OBST CRANE (ASN 2023-ASO-27986-OE) 254653N0801652W (0.9NM SSE MIA) 178FT (172FT AGL) FLAGGED 2403041300-2405312100
1/30/241000Z !MIA 01/346 MIA OBST CRANE (ASN UNKNOWN) 254704N0801137W (4.47NM E APCH END RWY 27)
549FT (538FT AGL) FLAGGED 2401301000-2410140200
1/15/240900Z !MIA 01/185 MIA OBST CRANE (ASN UNKNOWN) 254718N0801122W (4.4NM ESE APCH END RWY 26L)
674FT (671FT AGL) FLAGGED AND LGTD 2401150900-2503062359
1/15/240900Z !MIA 01/184 MIA OBST CRANE (ASN UNKNOWN) 254720N0801121W (4.4NM ESE APCH END RWY 26L)
714FT (711FT AGL) FLAGGED AND LGTD 2401150900-2503062359
12/4/230500Z !MIA 11/572 MIA OBST CRANE (ASN UNKNOWN) 254547N0801149W (4.5NM SE MIA)
841FT (834FT AGL) FLAGGED AND LGTD 2312040500-2409152300
12/4/230500Z !MIA 11/571 MIA OBST CRANE (ASN UNKNOWN) 254545N0801148W (4.5NM SE MIA)
874FT (891FT AGL) FLAGGED AND LGTD 2312040500-2409152300
11/30/231118Z !MIA 11/603 MIA COM GRAND BAHAMA REMOTE COM OUTLET 126.9 U/S 2311301118-2406072000EST
10/11/231000Z !MIA 10/098 MIA OBST CRANE (ASN UNKNOWN) 254648N0801137W (4.45NM E APCH END RWY 27)
465FT (452FT AGL) FLAGGED 2310111000-2408132300
9/5/231707Z !MIA 09/062 MIA OBST CRANE (ASN UNKNOWN) 254616N0801153W (4.32NM ESE MIA)
549FT (544FT AGL) FLAGGED 2309051707-2409092200
9/5/231700Z !MIA 09/060 MIA OBST CRANE (ASN UNKNOWN) 254614N0801153W (4.32NM ESE MIA)
536FT (531FT AGL) FLAGGED 2309051700-2409092200
7/18/231000Z !MIA 07/184 MIA OBST CRANE (ASN UNKNOWN) 254609N0801127W (4.5NM E APCH END RWY 27)
553FT (551FT AGL) FLAGGED 2307181000-2501210100
7/18/231000Z !MIA 07/183 MIA OBST CRANE (ASN UNKNOWN) 254609N0801128W (4.5NM E APCH END RWY 27)
591FT (589FT AGL) FLAGGED 2307181000-2501210100
7/1/230900Z !MIA 06/468 MIA OBST CRANE (ASN UNKNOWN) 254809N0801211W (4.8NM E MIA)
291FT (275FT AGL) FLAGGED 2307010900-2405192200
7/1/230900Z !MIA 06/467 MIA OBST CRANE (ASN UNKNOWN) 254806N0801211W (4.79NM E MIA)
294FT (275FT AGL) FLAGGED 2307010900-2405192200
5/19/231000Z !MIA 05/233 MIA OBST CRANE (ASN UNKNOWN) 254700N0801133W (4.37NM ESE APCH END RWY 26L)
749FT (737FT AGL) FLAGGED DLY 1000-2200 2305191000-2503282200
5/19/231000Z !MIA 05/231 MIA OBST CRANE (ASN UNKNOWN) 254701N0801135W (4.37NM ESE APCH END RWY 26L)
749FT (737FT AGL) FLAGGED DLY 1000-2200 2305191000-2503282200
3/1/231100Z !MIA 02/276 MIA OBST CRANE (ASN UNKNOWN) 254648N0801137W (4.61NM E APCH END RWY 27)
465FT (452FT AGL) FLAGGED 2303011100-2408132300
2/15/230900Z !MIA 02/187 MIA OBST CRANE (ASN UNKNOWN) 254651N0801151W (4.31NM E APCH END RWY 27)
459FT (450FT AGL) FLAGGED DLY 0900-2359 2302150900-2411152359
2/2/231200Z !MIA 01/338 MIA OBST CRANE (ASN 2022-ASO-5790-OE) 254426N0801741W (3.3NM S MIA) 281FT (274FT AGL) FLAGGED AND LGTD 2302021200-2406142000
5/21/221738Z !MIA 05/282 MIA OBST CRANE (ASN UNKNOWN) 254744N0801124W (4.4NM E APCH END RWY 26L)
527FT (518FT AGL) FLAGGED AND LGTD 2205211738-2504012200
FDC
4/25/241131Z !FDC 4/5029 MIA ODP MIAMI INTL, MIAMI, FL.
TAKEOFF MINIMUMS AND (OBSTACLE) DEPARTURE PROCEDURES AMDT 18...
ADD TAKEOFF OBSTACLE NOTES: RWY 8R, TEMPORARY CRANES BEGINNING 1351FT FROM DER, 613FT RIGHT OF CENTERLINE, 100FT AGL/106FT MSL (2019-ASO-982, 984, 985-NRA). RWY 9, TEMPORARY CRANE 3844FT FROM DER, 59FT RIGHT OF CENTERLINE, 110FT AGL/ 117FT MSL (2024-ASO-5695-OE), TEMPORARY CRANE 3841FT FROM DER, 1427FT LEFT OF CENTERLINE, 110FT AGL/ 117FT MSL (2024-ASO-5696-OE). RWY 27, TEMPORARY CRANES BEGINNING 2279FT FROM DER, BEGINNING 606FT LEFT OF CENTERLINE, 90FT AGL/ 95FT MSL (2023-ASO-10900 THRU 10904-OE). ALL OTHER DATA REMAINS AS PUBLISHED. 2404251131-2508231131EST
4/12/241248Z !FDC 4/0160 MIA IAP MIAMI INTL, MIAMI, FL.
RNAV (GPS) Y RWY 26L, AMDT 4...
LPV DA 266/HAT 257 ALL CATS.
TEMPORARY CRANES BEGINNING 106FT MSL 1483FT SOUTHEAST OF RWY 26L (2019-ASO-982, 984, 985-NRA).
2404121248-2406151248EST
4/12/241248Z !FDC 4/0159 MIA IAP MIAMI INTL, MIAMI, FL.
ILS OR LOC RWY 26L, AMDT 18...
S-ILS 26L DA 266/HAT 257.
TEMPORARY CRANES BEGINNING 106FT MSL 1483FT SOUTHEAST OF RWY 26L (2019-ASO-982, 984, 985-NRA).
2404121248-2406151248EST
4/12/241150Z !FDC 4/0112 MIA SID MIAMI INTL, MIAMI, FL.
MIAMI NINE DEPARTURE...
ADD TAKEOFF OBSTACLE NOTES: RWY 27, TEMPORARY CRANES BEGINNING 2279FT FROM DER, BEGINNING 606FT LEFT OF CENTERLINE, 90FT AGL/ 95FT MSL (2023-ASO-10900 THRU 10904-OE). ALL OTHER DATA REMAINS AS PUBLISHED. 2404121150-2508231150EST
2/21/231520Z !FDC 3/7754 MIA SID MIAMI INTL, MIAMI, FL.
MIAMI NINE DEPARTURE...
FLMGO TRANSITION NA EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS.
HURCN TRANSITION NA EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS.
RSW VORTAC RESTRICTED.
ALL OTHER DATA REMAINS AS PUBLISHED. 2302211520-2502211520EST
Yes
ALL
DADE COUNTY AVIATON DEPT
PO BOX 025504
MIAMI, FL 33102-5504
Phone: 305-876-7077
RALPH CUTIE
MIAMI-DADE AVIATION DEPARTMENT, P.O. BOX 025504
MIAMI, FL 33102-5504
Phone: 305-876-7038
MIAMI FSS (MIA)
Toll Free: 1-800-WX-BRIEF
MIA
--
--
N/A
Yes - Lighted
No
Yes
Hanger, Tie-Down
NOT a Landing Rights Airport
Airport of Entry
0
13
15
0
0
0
Major
Major
High & Low Pressure
High & Low Pressure
Air Freight
Crop Dusting
Cargo Handling
Charter Service

Runway 08L/26R

8600 ft. x 150 ft.
ASPH
Good
GRVD
HIGH

120,000lbs
250,000lbs
550,000lbs
1,120,000lbs
  Runway 08L Runway 26R
True Heading 87°267°
Traffic Pattern
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 25° 48' 10"N 25° 48' 14"N
Longitude 80° 18' 06"W 80° 16' 32"W
Elevation 9' 9'
Threshold Crossing Height 60 ft. AGL 60 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights
Centerline Lights Yes Yes
Runway End Identifier Lights Yes Yes

Runway 08R/26L

10506 ft. x 200 ft.
ASPH
Good
GRVD
HIGH

120,000lbs
250,000lbs
550,000lbs
1,120,000lbs
  Runway 08R Runway 26L
True Heading 87°267°
Traffic Pattern Left Right
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 25° 48' 03"N 25° 48' 07"N
Longitude 80° 18' 05"W 80° 16' 10"W
Elevation 8' 9'
Threshold Crossing Height 77 ft. AGL 73 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights MALSR MALSF
Centerline Lights Yes Yes
Runway End Identifier Lights

Runway 09/27

13016 ft. x 150 ft.
ASPH
Good
GRVD
HIGH

120,000lbs
250,000lbs
550,000lbs
1,120,000lbs
  Runway 09 Runway 27
True Heading 87°267°
Traffic Pattern Right Left
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 25° 47' 10"N 25° 47' 16"N
Longitude 80° 18' 53"W 80° 16' 31"W
Elevation 8' 9'
Threshold Crossing Height 72 ft. AGL 71 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights MALSR MALSR
Centerline Lights Yes Yes
Runway End Identifier Lights

Runway 12/30

9360 ft. x 150 ft.
ASPH
Good
GRVD
HIGH

120,000lbs
250,000lbs
550,000lbs
1,120,000lbs
  Runway 12 Runway 30
True Heading 119°299°
Traffic Pattern
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 25° 47' 57"N 25° 47' 12"N
Longitude 80° 18' 08"W 80° 16' 39"W
Elevation 9' 9'
Threshold Crossing Height 72 ft. AGL 71 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4R P4L
Approach Lights MALSR MALS
Centerline Lights Yes Yes
Runway End Identifier Lights
A110-1CLSD NON ENG ACFT.
A110-18PPR 3 HRS PRIOR TO ALL ARRIVALS ON THE GENERAL AVIATION CENTER (GAC) RAMP 305-876-7550 CTC RAMP CONTROL UPON ARRIVAL ON FREQUENCY 131.600. ACFT WITH WINGSPAN GREATER THAN 78 FT ARE PROHIBITED FROM ENTERING THE GAC RAMP.
A110-19ALL MEDICAL EMERGENCIES ARRIVALS, WITH THE EXCEPTION OF AIR AMBULANCE FLIGHTS, MUST SECURE DOORS UNTIL ARFF IS ON SCENE.
A110-20ASDE-X IN USE. OPERATE TRANSPONDERS WITH ALTITUDE REPORTING MODE AND ADS-B (IF EQUIPPED) ENABLED ON ALL AIRPORT SURFACES.
A110-21PPR FOR INBOUND MILITARY FLIGHTS 100 NM ON FREQ 130.5.
A110-22ALL DIVERSION CTC FREQ 130.5 UPON ARR.
A110-23AIRPORT MANAGER: 305-876-7038.
A110-24NO INT DEP AUTH WO PPR FM AMGR.
A110-25AIRPORT OPS 305-876-7550.
A110-26US CBP AND EAPIS AVBL.
A110-27RWY 12-30 CLSD 0300-1200Z++ WHEN RWY 08R-26L AND RWY 09-27 ARE IN USE.
A110-28RWY 08L-26R CLSD 0300-1200Z++ WHEN RWY 08R-26L AND RWY 09-27 ARE IN USE.
A110-29CLOSE-IN NOISE ABATEMENT DEP PROFILE TO BE USED BY A319/320/321, A330-200/300, B727-200, B737-800/900, B767-200/300/400/700, B747-800, B777-300/77L/77W, AND MD-11. DSNT NOISE ABATEMENT DEP PROFILE TO BE USED BY ALL OTHER TURBOJET ACFT.
A110-3ACFT WITH A WINGSPAN GTR THAN 171 FT ARE PROHIBITED FM TXG ON TWY P EAST OF TWY U.
A110-30ALL TURBOJET ACFT USE DSNT NOISE ABATEMENT DEP PROFILE FM ALL RWYS EXC A320, B727, B737/800, B767/400, AND DC9. WHICH SHOULD USE CLOSE/IN NOISE ABATEMENT PROFILE.
A110-5BIRDS ON & INVOF ARPT.
MIAMI INTL (ICAO: KMIA, IATA: MIA) is a public airport located in MIAMI, FL.
