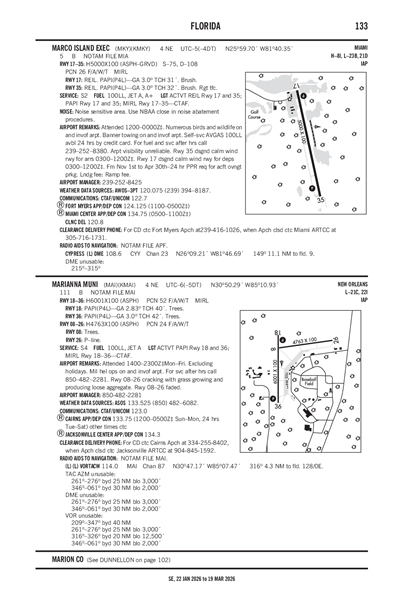

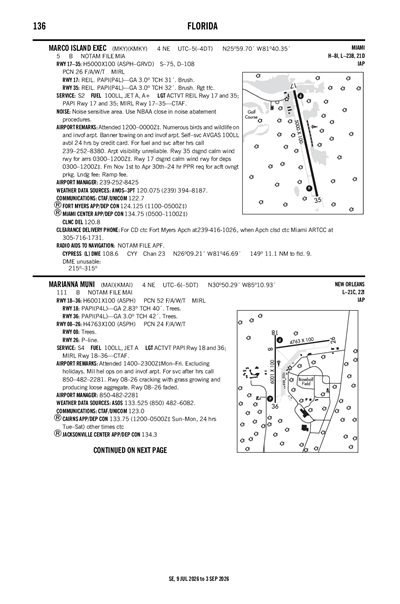

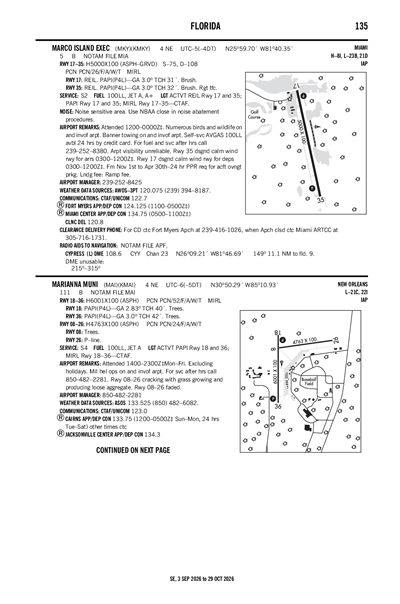

MARCO ISLAND EXEC - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KMKY
MARCO ISLAND EXEC
PublicPUB

4 miles NE of MARCO ISLAND, FL
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
25° 59' 42"N 81° 40' 21"W
5' MSL
1005' MSL
03W
Jet A, Jet A+, 100LL
MIAMI (MIA)
MIAMI
MIAMI (ZMA)
5/16/24-6/13/24
KAPF (11nm) VFR
3:53 AM EDT
Clear
10sm
80°F
77°F
29.94"Hg
120° 5kts
AO2 SLP136 T02670250
KAPF 180753Z AUTO 12005KT 10SM CLR 27/25 A2994 RMK AO2 SLP136 T02670250
List Your Business

KMKY FBOs, Flight Schools and Ground Support

Promote Listing
Marco Island Executive Airport
Freq: 122.7
Phone: (239) 394-3355
No Rating Available
0 Reviews (Read | Sign In To Write)
Avfuel
As of 5/6
 100LL Jet A Jet A+ Mogas UL94
Self Serve 5.13
Full Serve 7.13 5.90 6.00

KMKY Ground Transportation (Taxi, Limo, Car Service)

No ground transportation services are listed for this airport.

KMKY Hotels

No hotels are listed for this airport.

KMKY Restaurants

No restaurants are listed for this airport.

KMKY Other Airport-Related Businesses

No other airport-related businesses are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.7 122.7

AWOS-3PT

AWOS-3PT
239-394-8187
 120.075

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

Departure Procedures

Hotspot

  • No Documents

Standard Term. Arrival

Instrument Approach

Terminal Area Forecast

KAPF (11nm)
Sat, 5/18 1:22 AM EDT
Sat, 5/18 2:00 AM EDT - Sun, 5/19 2:00 AM EDT
VFR
2:00 AM EDT - 9:00 AM EDT
Few 4,000'
6sm
VRB° 4kts
VFR
9:00 AM EDT - 11:00 AM EDT
Few 6,000'
Few 3,000'
6sm
170° 6kts
VFR
11:00 AM EDT - 5:00 PM EDT
Scattered 6,000'
Few 3,000'
6sm
210° 11kts
Gusts 18kts
VFR
5:00 PM EDT - 9:00 PM EDT
Few 5,000'
Few 3,000'
6sm
250° 10kts
VFR
9:00 PM EDT - 2:00 AM EDT
Few 25,000'
Few 3,000'
6sm
VRB° 4kts
KAPF 180522Z 1806/1906 VRB04KT P6SM FEW040
   FM181300 17006KT P6SM FEW030 FEW060
   FM181500 21011G18KT P6SM FEW030 SCT060
   FM182100 25010KT P6SM FEW030 FEW050
   FM190100 VRB04KT P6SM FEW030 FEW250
KMKY
Domestic
5/21/240400Z !MIA 05/241 MKY SVC AUTOMATED WX BCST SYSTEM NOT AVBL 2405210400-2405211000
5/17/242225Z !MIA 05/254 MKY SVC AUTOMATED WX BCST SYSTEM NOT AVBL 2405172225-2405312359EST
5/16/242206Z !MIA 05/240 MKY COM REMOTE TRANS/REC 120.8 U/S 2405162206-2405202000EST
5/16/242050Z !MIA 05/239 MKY OBST TOWER LGT (ASR 1247123) 260311.30N0814210.40W (3.8NM NNW MKY) 530.8FT (526.9FT AGL) U/S 2405162050-2408140400
FDC
5/4/230448Z !FDC 3/1093 MKY IAP MARCO ISLAND EXEC, MARCO ISLAND, FL.
RNAV (GPS) RWY 17, ORIG-B...
NOTE: WHEN LOCAL ALTIMETER SETTING NOT RECEIVED, USE NAPLES ALTIMETER SETTING AND INCREASE LPV DA TO 326 FEET; INCREASE LNAV/VNAV DA TO 484 FEET AND ALL VISIBILITIES 1/4 SM; INCREASE ALL MDAS 40 FEET AND VISIBILITY CAT C 1/4 SM.
2305040448-2505030448EST
8/22/221433Z !FDC 2/4372 MKY IAP MARCO ISLAND EXEC, MARCO ISLAND, FL.
RNAV (GPS) RWY 17, ORIG-B...
RNAV (GPS) RWY 35, ORIG-C...
CHANGE PBN REQUIREMENTS NOTE TO READ: RNP APCH - GPS.
2208221433-2408221433EST
No
0700-1900
COLLIER COUNTY AIRPORT AUTHORITY
2005 MAINSAIL DRIVE
NAPLES, FL 34114
Phone: 239-252-8400
HEATHER MEYER
2005 MAINSAIL DRIVE, SUITE 1
NAPLES, FL 34114
Phone: 239-252-1059
MIAMI FSS (MIA)
Toll Free: 1-800-WX-BRIEF
MIA
--
ACTVT REIL RWY 17 & 35; PAPI RWY 17 & 35; MIRL RWY 17/35 - CTAF.
N/A
Yes - Lighted
Yes
No
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
30
5
1
1
0
0
Minor
Minor
None
None
Charter Service
Pilot Instruction
Aircraft Rental

Runway 17/35

5000 ft. x 100 ft.
ASPH
Good
GRVD
MED
26 /F/A/W/T
75,000lbs
108,000lbs
--
--
  Runway 17 Runway 35
True Heading 168°348°
Traffic Pattern Left Right
Markings NPI NPI
Markings Condition FAIR FAIR
Latitude 26° 00' 06"N 25° 59' 18"N
Longitude 81° 40' 27"W 81° 40' 15"W
Elevation 5' 5'
Threshold Crossing Height 31 ft. AGL 32 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes
A110-10FOR CD CTC FORT MYERS APCH AT239-416-1026, WHEN APCH CLSD CTC MIAMI ARTCC AT 305-716-1731.
A110-11RWY 35 DSGND CALM WIND RWY FOR ARRS 2200-0700. RWY 17 DSGND CALM WIND RWY FOR DEPS 2200-0700.
A110-4ARPT VSBY UNRELIABLE.
A110-5NOISE SENSITIVE AREA. USE NBAA CLOSE IN NOISE ABATEMMENT PROCEDURES.
A110-6BANNER TOWING ON AND INVOF ARPT.
A110-8FOR FUEL AND SVC AFTER HRS CALL 239-394-3355.
A110-9NUMEROUS BIRDS & WILDLIFE ON AND INVOF ARPT.
MARCO ISLAND EXEC (ICAO: KMKY, IATA: MKY) is a public airport located in MARCO ISLAND, FL.
