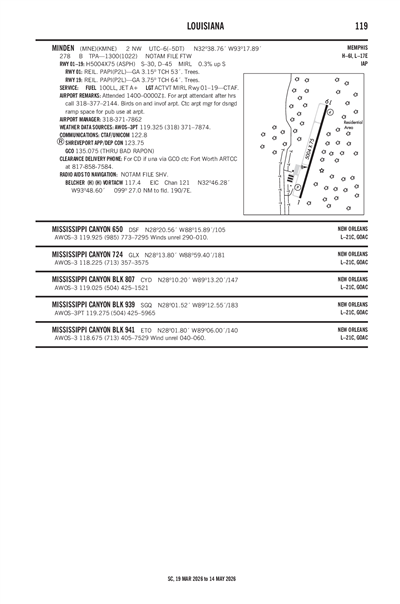

MINDEN - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KMNE
MINDEN
PublicPUB

2 miles NW of MINDEN, LA
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
32° 38' 46"N 93° 17' 53"W
278' MSL
1300' MSL
04E
Jet A+, 100LL
FORT WORTH (FTW)
MEMPHIS
FORT WORTH (ZFW)
5/16/24-6/13/24
KMNE VFR
11:15 PM CDT
Clear
10sm
70°F
64°F
29.81"Hg
Calm
AO2
KMNE 180415Z AUTO 00000KT 10SM CLR 21/18 A2981 RMK AO2
List Your Business

KMNE FBOs, Flight Schools and Ground Support

Promote Listing
Minden Airport
Freq: 122.8
Phone: (318) 371-7862
No Rating Available
0 Reviews (Read | Sign In To Write)
Titan
As of 5/6
 100LL Jet A Jet A+ Mogas UL94
Self Serve 4.95 4.39
Full Serve 5.35 5.08

KMNE Ground Transportation (Taxi, Limo, Car Service)

No ground transportation services are listed for this airport.

KMNE Hotels

No hotels are listed for this airport.

KMNE Restaurants

No restaurants are listed for this airport.

KMNE Other Airport-Related Businesses

No other airport-related businesses are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.8 122.8

AWOS-3PT

AWOS-3PT
318-371-7874
 119.325

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KBAD (21nm)
Fri, 5/17 4:57 PM CDT
Fri, 5/17 4:00 PM CDT - Sat, 5/18 9:00 PM CDT
VFR
4:00 PM CDT - 9:00 PM CDT
Broken 4,000'
6sm
29.73"Hg
VRB° 5kts
TAF AMD KBAD 172157Z 1721/1902 VRB05KT 9999 BKN040 QNH2974INS TX28/1721Z TN18/1812Z LAST NO AMDS AFT 1722 NEXT 2012
KMNE
Domestic
5/17/240153Z !FTW 05/501 MNE OBST TOWER LGT (ASR 1022774) 324440.00N0932253.00W (7.2NM NW MNE) 714.2FT (499.3FT AGL) U/S 2405170153-2406162359
5/13/241613Z !FTW 05/386 MNE OBST TOWER LGT (ASR 1225820) 323827.80N0931439.60W (2.7NM E MNE) 530.8FT (272.0FT AGL) U/S 2405131613-2405290400
5/12/241850Z !FTW 05/359 MNE OBST TOWER LGT (ASR 1059291) 323442.00N0931355.00W (5.2NM SE MNE) 647.0FT (356.0FT AGL) U/S 2405121850-2405270400
5/7/241427Z !FTW 05/221 MNE RWY 19 PAPI U/S 2405071427-2405242200
4/20/241820Z !FTW 04/580 MNE OBST TOWER LGT (ASN 2017-ASW-15569-OE) 323116N0931805W (7.5NM S MNE) 553FT (357FT AGL) U/S 2404201820-2406041819
4/20/241800Z !FTW 04/577 MNE OBST TOWER LGT (ASN 2017-ASW-4022-OE) 324755N0931728W (9.1NM NE MNE) 700FT (365FT AGL) U/S 2404201800-2406041759
4/17/240928Z !FTW 04/476 MNE OBST TOWER LGT (ASR 1023878) 323451.00N0931636.00W (4.0NM SSE MNE) 533.1FT (303.1FT AGL) U/S 2404170928-2407160400
4/6/240610Z !FTW 04/124 MNE OBST TOWER LGT (ASR 1300755) 323822.80N0933049.50W
(10.92NM W MNE) 568FT (308FT AGL) U/S 2404060610-2405212359
3/18/241300Z !FTW 03/393 MNE TWY NORTH TURNAROUND CLSD 2403181300-PERM
2/26/241400Z !FTW 02/530 MNE RWY 19 RWY END ID LGT U/S 2402261400-2405312200
8/21/231648Z !FTW 08/584 MNE AD AP ALL SFC WIP CONST W SIDE
2308211648-2405312100EST
FDC
5/15/240731Z !FDC 4/4110 MNE IAP MINDEN, MINDEN, LA.
VOR/DME-A, AMDT 5A...
ALTERNATE MINIMUMS NA EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
EMG VORTAC UNMONITORED. 2405150731-2406150731EST
5/15/240729Z !FDC 4/4106 MNE IAP MINDEN, MINDEN, LA.
VOR/DME-A, AMDT 5A...
ALTERNATE MINIMUMS NA EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
EIC VORTAC UNMONITORED. 2405150729-2406150729EST
3/28/231351Z !FDC 3/3143 MNE IAP MINDEN, MINDEN, LA.
VOR/DME-A, AMDT 5A...
DISREGARD NOTE: WHEN VGSI INOPERATIVE, PROCEDURE NA AT NIGHT.
2303281351-2503281351EST
3/28/231351Z !FDC 3/3142 MNE IAP MINDEN, MINDEN, LA.
RNAV (GPS) RWY 1, ORIG-B...
DISREGARD NOTE: WHEN VGSI INOP, PROCEDURE NA AT NIGHT.
CHANGE NOTE FROM: HELICOPTER VISIBILITY REDUCTION BELOW 1 SM NA TO: RWY 01 HELICOPTER VISIBILITY REDUCTION BELOW 3/4 SM NOT AUTHORIZED.
2303281351-2503281351EST
No
0800-1800
FOR ARPT ATTENDANT AFT HRS CALL 318-377-2144.
CITY OF MINDEN
PO BOX 580
MINDEN, LA 71055-0580
Phone: 318-377-2144
STEVEN BURDEAUX
100 AVIATION DRIVE
MINDEN, LA 71055
Phone: 318-371-7862
FORT WORTH FSS (FTW)
Toll Free: 1-800-WX-BRIEF
FTW
--
ACTVT MIRL RY 01/19 - CTAF.
N/A
Yes - Lighted
No
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
30
1
0
2
0
0
None
None
None
None
Pilot Instruction

Runway 01/19

5004 ft. x 75 ft.
ASPH
Excellent
NONE
MED

30,000lbs
45,000lbs
--
--
  Runway 01 Runway 19
True Heading 16°196°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition FAIR FAIR
Latitude 32° 38' 22"N 32° 39' 09"N
Longitude 93° 18' 01"W 93° 17' 45"W
Elevation 278' 262'
Threshold Crossing Height 53 ft. AGL 64 ft. AGL
Visual Glide Path Angle 3.15° 3.75°
Visual Slope Indicator P2L P2L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes
A110-1GCO AVBL ON FREQ 135.075 THRU BAD RAPCON.
A110-2BIRDS ON & INVOF ARPT.
A110-3FOR CD IF UNA VIA GCO CTC FORT WORTH ARTCC AT 817-858-7584.
MINDEN (ICAO: KMNE, IATA: MNE) is a public airport located in MINDEN, LA.
