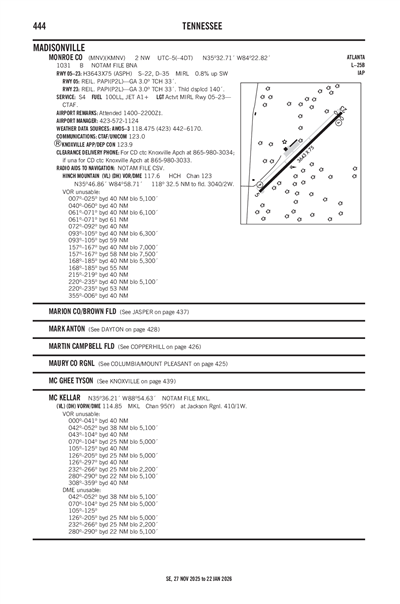

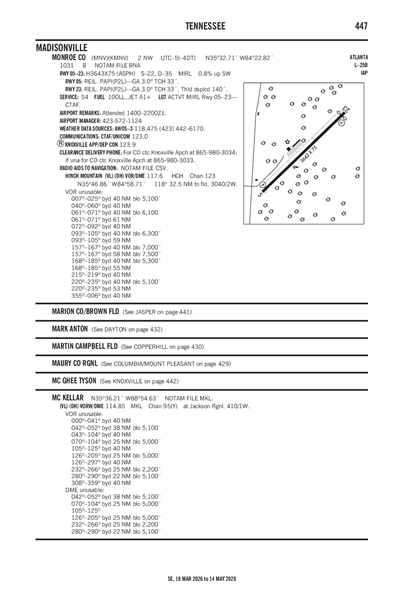

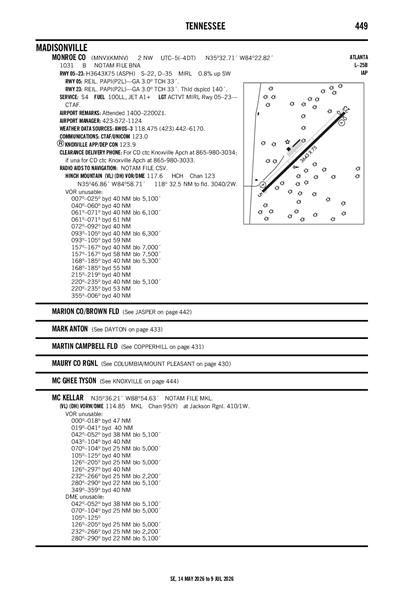

MONROE COUNTY - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KMNV
MONROE COUNTY
PublicPUB

2 miles NW of MADISONVILLE, TN
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
35° 32' 43"N 84° 22' 49"W
1031' MSL
2031' MSL
04W
Jet A-1+, 100LL
NASHVILLE (BNA)
ATLANTA
ATLANTA (ZTL)
5/16/24-6/13/24
KMNV LIFR
2:55 AM EDT
Mist
Overcast 300'
1sm
66°F
66°F
29.86"Hg
190° 3kts
A01 P0001
KMNV 180655Z AUTO 19003KT 1SM BR OVC003 19/19 A2986 RMK A01 P0001
List Your Business

KMNV FBOs, Flight Schools and Ground Support

Promote Listing
Monroe County Airport
Freq: 123.0
Phone: (423) 420-0563
No Rating Available
0 Reviews (Read | Sign In To Write)
Titan
As of 5/7
 100LL Jet A Jet A+ Mogas UL94
Self Serve 5.25 4.69
Full Serve

KMNV Ground Transportation (Taxi, Limo, Car Service)

No ground transportation services are listed for this airport.

KMNV Hotels

No hotels are listed for this airport.

KMNV Restaurants

No restaurants are listed for this airport.

KMNV Other Airport-Related Businesses

No other airport-related businesses are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
123.0 123.0

AWOS-3

AWOS-3
423-442-6170
 118.475

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KTYS (25nm)
Sat, 5/18 1:34 AM EDT
Sat, 5/18 2:00 AM EDT - Sun, 5/19 2:00 AM EDT
MVFR
2:00 AM EDT - 12:00 PM EDT
Overcast 2,500'
Scattered 1,200'
6sm
VRB° 2kts
MVFR
Temporary 4:00 AM EDT - 8:00 AM EDT
Mist
Overcast 1,200'
Scattered 700'
4sm
Calm
VFR
12:00 PM EDT - 9:00 PM EDT
Showers in vicinity
Broken 3,500'
6sm
VRB° 5kts
MVFR
3:00 PM EDT - 9:00 PM EDT
Light Thunderstorm and Rain and Mist
Overcast 2,500'
4sm
Calm
VFR
9:00 PM EDT - 2:00 AM EDT
Thunderstorm in vicinity
Broken 6,000'
Scattered 3,500'
6sm
VRB° 3kts
KTYS 180534Z 1806/1906 VRB02KT P6SM SCT012 OVC025
   TEMPO 1808/1812 4SM BR SCT007 OVC012
   FM181600 VRB05KT P6SM VCSH BKN035
   PROB30 1819/1901 4SM -TSRA BR OVC025CB
   FM190100 VRB03KT P6SM VCTS SCT035CB BKN060
KMNV
Domestic
5/9/240533Z !BNA 05/274 MNV OBST TOWER LGT (ASR 1286701) 353950.90N0843226.90W (10.5NM NW MNV) 1307.1FT (253.9FT AGL) U/S 2405090533-2409060533
4/24/242124Z !BNA 04/470 MNV OBST TOWER LGT (ASR 1216842) 352137.80N0841822.80W (11.6NM SSE MNV) 1403.9FT (319.9FT AGL) U/S 2404242124-2406082123
4/20/241619Z !BNA 04/417 MNV OBST TOWER LGT (ASR 1226081) 353722.20N0841233.30W (9.6NM ENE MNV) 1334.0FT (290.0FT AGL) U/S 2404201619-2407190400
4/16/241908Z !BNA 04/311 MNV OBST TOWER LGT (ASN 2018-ASO-741-OE) 354624N0842528W (13.8NM N MNV) 993FT (217FT AGL) U/S 2404161908-2407291906
4/2/240030Z !BNA 04/024 MNV OBST TOWER LGT (ASR 1043651) 353332.30N0843244.30W (8.1NM W MNV) 1540.0FT (282.2FT AGL) U/S 2404020030-2406300400
3/28/241834Z !BNA 03/598 MNV OBST TOWER LGT (ASR UNKNOWN) 353649.00N0842733.00W (4.6NM NW MNV) UNKNOWN (260FT AGL) U/S 2403281834-2405312359
3/23/240645Z !BNA 03/435 MNV OBST TOWER LGT (ASR 1037755) 353515.30N0841643.70W (5.6NM ENE MNV) 1296.9FT (308.1FT AGL) U/S 2403230645-2406210400
3/15/242346Z !BNA 03/327 MNV RWY 05/23 PAPI U/S DLY SS-SR 2403152346-2409151121
No
0900-1700
MONROE COUNTY
MONROE CO COURTHOUSE, 105 COLLEGE STREET, SUITE 1
MADISONVILLE, TN 37354
Phone: 423-442-3981
TOM MCCOSH
105 COLLEGE STREET, SUITE 1
MADISONVILLE, TN 37354
Phone: 423-420-0563
NASHVILLE FSS (BNA)
Toll Free: 1-800-WX-BRIEF
BNA
--
REIL RWY 5 & 23 SS-SR.
N/A
Yes - Lighted
Yes
No
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
34
2
0
0
0
0
Major
Major
None
None
Pilot Instruction
Aircraft Rental

Runway 05/23

3643 ft. x 75 ft.
ASPH
Good
NONE
MED

22,000lbs
35,000lbs
--
--
  Runway 05 Runway 23
True Heading 44°224°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 35° 32' 30"N 35° 32' 56"N
Longitude 84° 23' 05"W 84° 22' 34"W
Elevation 1,030' 1,001'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes
A110-1FOR CD CTC KNOXVILLE APCH AT 865-980-3034; IF UNA FOR CD CTC KNOXVILLE APCH AT 865-980-3033.
MONROE COUNTY (ICAO: KMNV, IATA: MNV) is a public airport located in MADISONVILLE, TN.
