KMSL
NORTHWEST ALABAMA RGNL
PublicPUB

1 miles E of MUSCLE SHOALS, AL
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
34° 44' 43"N 87° 36' 37"W
550' MSL
1550' MSL
03W
Jet A, 100LL
ANNISTON (ANB)
ATLANTA
MEMPHIS (ZME)
5/16/24-6/13/24
KMSL VFR
10:22 PM CDT
Broken 3,400'
Scattered 2,400'
Few 1,900'
10sm
70°F
67°F
29.82"Hg
Calm
AO2 T02110194
KMSL 180322Z AUTO 00000KT 10SM FEW019 SCT024 BKN034 21/19 A2982 RMK AO2 T02110194
List Your Business

KMSL FBOs, Flight Schools and Ground Support

Promote Listing
Shoals Flight Center
Freq: 123.05
Phone: (256) 383-2270
No Rating Available
0 Reviews (Read | Sign In To Write)
EPIC
As of 5/9
 100LL Jet A Jet A+ Mogas UL94
Self Serve 5.50
Full Serve 5.80 5.90

KMSL Ground Transportation (Taxi, Limo, Car Service)

No ground transportation services are listed for this airport.

KMSL Hotels

No hotels are listed for this airport.

KMSL Restaurants

No restaurants are listed for this airport.

KMSL Other Airport-Related Businesses

No other airport-related businesses are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
123.05 123.05

ASOS

ASOS
256-383-1033
 119.425

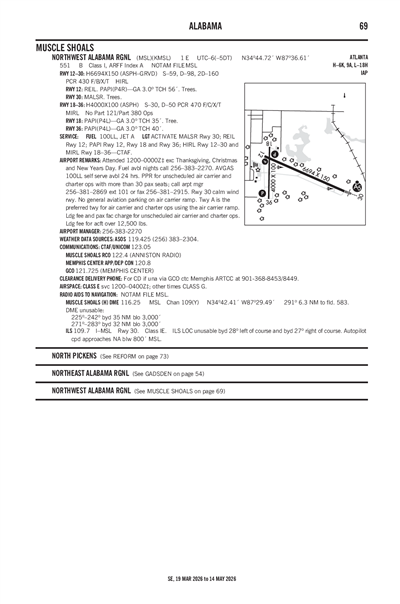

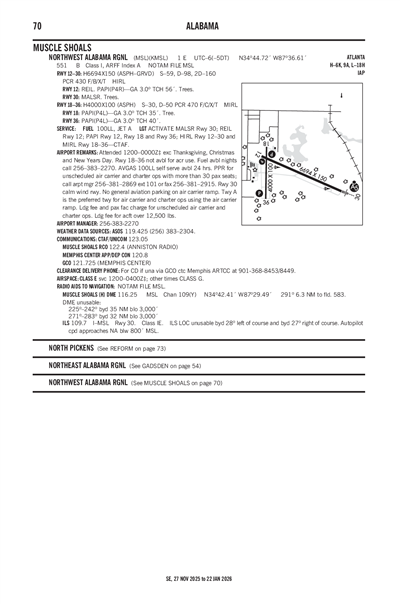

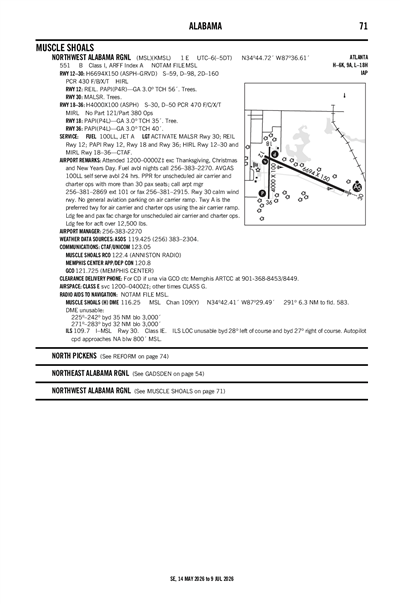

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KMSL
Fri, 5/17 6:20 PM CDT
Fri, 5/17 7:00 PM CDT - Sat, 5/18 7:00 PM CDT
MVFR
7:00 PM CDT - 1:00 AM CDT
Overcast 4,500'
Broken 2,500'
Scattered 2,000'
6sm
Calm
IFR
1:00 AM CDT - 4:00 AM CDT
Showers in vicinity
Overcast 2,500'
Broken 900'
6sm
VRB° 2kts
LIFR
4:00 AM CDT - 9:00 AM CDT
Mist
Overcast 200'
3sm
Calm
MVFR
9:00 AM CDT - 12:00 PM CDT
Showers in vicinity
Overcast 3,000'
Broken 1,600'
6sm
240° 6kts
VFR
12:00 PM CDT - 7:00 PM CDT
Thunderstorm in vicinity
Broken 4,000'
Scattered 3,000'
6sm
250° 7kts
KMSL 172320Z 1800/1824 00000KT P6SM SCT020 BKN025 OVC045
   FM180600 VRB02KT P6SM VCSH BKN009 OVC025
   FM180900 00000KT 3SM BR OVC002
   FM181400 24006KT P6SM VCSH BKN016 OVC030
   FM181700 25007KT P6SM VCTS SCT030 BKN040CB
KMSL
Domestic
5/12/240122Z !MSL 05/017 MSL OBST TOWER LGT (ASR 1216111) 344408.00N0874458.70W (6.9NM W MSL) 806.8FT (319.9FT AGL) U/S 2405120122-2405270022
5/9/241222Z !MSL 05/015 MSL NAV ILS RWY 30 U/S 2405091222-2406281300
5/6/240420Z !MSL 05/006 MSL OBST TOWER LGT (ASR 1254349) 345340.50N0874349.60W (10.7NM NNW MSL) 890.7FT (259.8FT AGL) U/S 2405060420-2405210320
5/2/240424Z !MSL 05/002 MSL COM GND COM OUTLET 121.500, 243.000 NOT AVBL 2405020424-2501012222
5/1/241644Z !MSL 05/001 MSL COM REMOTE COM OUTLET 122.4 U/S 2405011644-2409102000EST
4/23/241942Z !MSL 04/019 MSL OBST TOWER LGT (ASR 1036167) 344134.00N0874749.00W (9.8NM WSW MSL) 1298.6FT (498.7FT AGL) U/S 2404231942-2407232359
4/18/241100Z !MSL 04/015 MSL RWY 12/30 CLSD EXC SKED ACFT AND AIR CARRIERS THU FRI MON TUE WED 1100-2300 2404181100-2407172300
4/8/242107Z !MSL 04/007 MSL OBST TOWER LGT (ASR 1257554) 345547.80N0873144.30W (11.8NM NNE MSL) 1152.9FT (402.9FT AGL) U/S 2404082107-2407082359
3/22/242048Z !MSL 03/007 MSL OBST TOWER LGT (ASR 1323365) 344052.00N0873456.00W (4.08NM SSE MSL) 904FT (360FT AGL) U/S 2403222048-2405222359
2/29/242238Z !MSL 02/017 MSL RWY 12 PAPI U/S 2402292238-2406032000EST
2/29/242233Z !MSL 02/016 MSL RWY 12 RWY END ID LGT U/S 2402292233-2406032000EST
2/29/242202Z !MSL 02/015 MSL RWY 12 THR DISPLACED 1276FT MARKING NOT STD. DECLARED DIST: TORA 5418FT TODA 5418FT ASDA 5418FT LDA 5418FT. 2402292202-2406012300
2/22/242253Z !MSL 02/011 MSL OBST TOWER LGT (ASR 1037310) 344024.00N0874256.00W (6.8NM SW MSL) 1669.9FT (820.2FT AGL) U/S 2402222253-2405222359
1/19/241848Z !MSL 01/039 MSL OBST TOWER LGT (ASN 2023-ASO-21886-OE) 344509N0875132W (12.3NM W MSL) 885FT (373FT AGL) U/S 2401191848-2406282359
12/12/231903Z !MSL 12/011 MSL OBST TOWER LGT (ASN 2013-ASO-3909-OE) 344753N0873823W (3.5NM NNW MSL) 811FT (382FT AGL) U/S 2312121903-2411222359
No
0600-1800
EXC THANKSGIVING, CHRISTMAS, AND NEW YEARS DAY
COLBERT & LAUDERDALE COUNTIES
1729 T. ED CAMPBELL DR SUITE A
MUSCLE SHOALS, AL 35661-2016
Phone: 256-381-2869
BARRY GRIFFITH
1729 T. ED CAMPBELL DR SUITE A
MUSCLE SHOALS, AL 35661-2016
Phone: 256-383-2270
ANNISTON FSS (ANB)
Toll Free: 1-800-WX-BRIEF
MSL
--
ACTVT MALSR RWY 30; REIL RWY 12; PAPI RWY 12; PAPI RWY 18 & 36; HIRL RWY 12/30; MIRL RWY 18/36 - CTAF.
N/A
Yes - Lighted
Yes
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
42
12
3
4
0
0
None
None
None
None
Air Freight
Pilot Instruction
Aircraft Rental

Runway 12/30

6694 ft. x 150 ft.
ASPH
Good
GRVD
HIGH
34 /F/C/X/T
59,000lbs
98,000lbs
160,000lbs
--
  Runway 12 Runway 30
True Heading 114°294°
Traffic Pattern Left Left
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 34° 44' 56"N 34° 44' 29"N
Longitude 87° 37' 01"W 87° 35' 48"W
Elevation 542' 550'
Threshold Crossing Height 56 ft. AGL --
Visual Glide Path Angle 3° --
Visual Slope Indicator P4R --
Approach Lights MALSR
Centerline Lights No
Runway End Identifier Lights Yes No

Runway 18/36

4000 ft. x 100 ft.
ASPH
Fair
NONE
MED
6 /F/C/Y/U
30,000lbs
50,000lbs
--
--
  Runway 18 Runway 36
True Heading 181°1°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 34° 45' 03"N 34° 44' 24"N
Longitude 87° 36' 57"W 87° 36' 58"W
Elevation 539' 541'
Threshold Crossing Height 35 ft. AGL 40 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-10FOR CD IF UNA VIA GCO CTC MEMPHIS ARTCC AT 901-368-8453/8449.
A110-2NO GA PARKING ON ACR RAMP.
A110-5LNDG FEE & PAX FAC CHRG FOR UNSKED ACR & CHTR OPNS.
A110-7TWY A IS THE PREF TWY FOR ACR & CHTR OPNS USING THE ACR RAMP.
A110-8LNDG FEE FOR ACR OVER 12,500 LBS.
A110-9GCO AVBL ON FREQ 121.725 FOR MEMPHIS ARTCC (ZME).
NORTHWEST ALABAMA RGNL (ICAO: KMSL, IATA: MSL) is a public airport located in MUSCLE SHOALS, AL.
