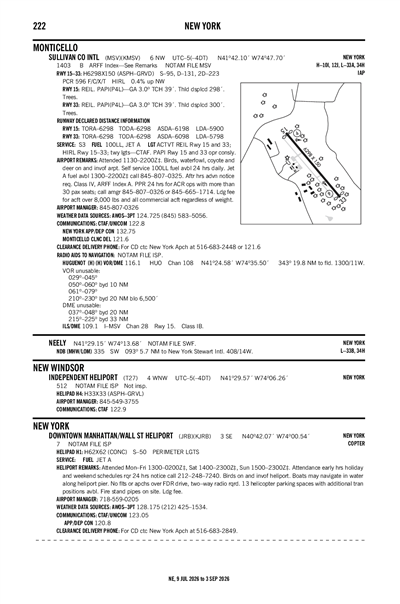

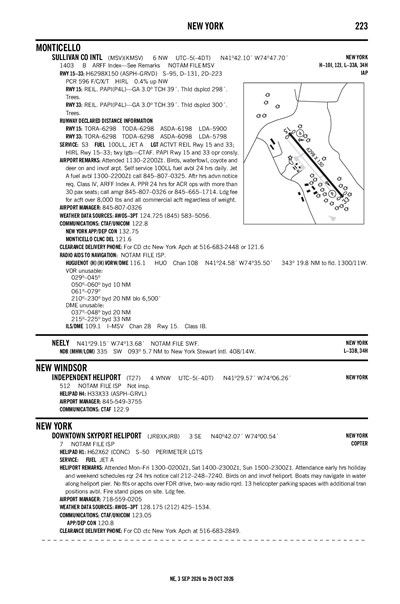

SULLIVAN COUNTY INTL - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KMSV
SULLIVAN COUNTY INTL
PublicPUB

6 miles NW of MONTICELLO, NY
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
41° 42' 06"N 74° 47' 42"W
1403' MSL
2403' MSL
12W
Jet A, 100LL
NEW YORK (ISP)
NEW YORK
NEW YORK (ZNY)
5/16/24-6/13/24
KMGJ (27nm) VFR
2:54 AM EDT
Overcast 4,200'
10sm
55°F
53°F
29.95"Hg
Calm
AO2 RAB33E48 SLP141 P0000 T01280117
KMGJ 180654Z AUTO 00000KT 10SM OVC042 13/12 A2995 RMK AO2 RAB33E48 SLP141 P0000 T01280117
List Your Business

KMSV FBOs, Flight Schools and Ground Support

Promote Listing
Sullivan County International Airport
Freq: 122.8
Phone: (845) 807-0325
Other: (845) 807-0326
No Rating Available
0 Reviews (Read | Sign In To Write)
Titan
As of 5/13
 100LL Jet A Jet A+ Mogas UL94
Self Serve 5.80
Full Serve 5.80 6.65

KMSV Ground Transportation (Taxi, Limo, Car Service)

No ground transportation services are listed for this airport.

KMSV Hotels

No hotels are listed for this airport.

KMSV Restaurants

No restaurants are listed for this airport.

KMSV Other Airport-Related Businesses

No other airport-related businesses are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.8 122.8

AWOS-3PT

AWOS-3PT
845-583-5056
 124.725

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KSWF (33nm)
Sat, 5/18 1:20 AM EDT
Sat, 5/18 2:00 AM EDT - Sun, 5/19 8:00 AM EDT
VFR
2:00 AM EDT - 10:00 AM EDT
Broken 8,000'
6sm
VRB° 3kts
VFR
10:00 AM EDT - 8:00 PM EDT
Broken 4,500'
Scattered 2,500'
6sm
080° 6kts
VFR
8:00 PM EDT - 8:00 AM EDT
Broken 4,500'
Scattered 2,500'
6sm
VRB° 3kts
KSWF 180520Z 1806/1912 VRB03KT P6SM BKN080
   FM181400 08006KT P6SM SCT025 BKN045
   FM190000 VRB03KT P6SM SCT025 BKN045 AMD NOT SKED
KMSV
Domestic
5/16/240426Z !MSV 05/008 MSV OBST TOWER LGT (ASR 1005421) 414508.80N0744300.40W (4.7NM NE MSV) 1845.1FT (294.9FT AGL) U/S 2405160426-2406300426
5/14/241110Z !MSV 05/006 MSV AD AP ALL SFC WIP GRASS CUTTING 2405141110-2410012200
4/26/242144Z !MSV 04/015 MSV SVC AUTOMATED WX BCST SYSTEM NOT AVBL 2404262144-2408022359EST
3/12/241241Z !MSV 03/008 MSV AD AP ALL SFC WIP CONST W SIDE 2403121241-2505152200
10/23/231245Z !MSV 10/008 MSV APRON ALL CL LGT U/S 2310231245-2410231100
FDC
12/7/232006Z !FDC 3/2733 MSV IAP SULLIVAN COUNTY INTL, MONTICELLO, NY.
RNAV (GPS) RWY 33, AMDT 1B...
CIRCLING MDA CAT B 1920/HAA 517.
2312072006-2512072006EST
6/24/221605Z !FDC 2/3835 MSV IAP SULLIVAN COUNTY INTL, MONTICELLO, NY.
ILS OR LOC RWY 15, AMDT 6...
DISTANCE FAF TO MAP 5.51 NM.
TIME/DISTANCE TABLE: 60 KTS, 5:30; 90 KTS, 3:40; 120 KTS, 2:45; 150 KTS, 2:12; 180 KTS, 1:50.
2206241605-2406241605EST
No
0630-1700
SULLIVAN COUNTY DPW
100 NORTH ST
MONTICELLO, NY 12701
Phone: 845-807-0261
JULIAN MOTOLA
100 NORTH ST
MONTICELLO, NY 12701
Phone: 845-807-0326
NEW YORK FSS (ISP)
Toll Free: 1-800-WX-BRIEF
MSV
--
ACTVT REIL RWY 15 & 33; HIRL RWY 15/33; TWY LGTS - CTAF. PAPI RWY 15 & 33 OPR CONSLY.
N/A
Yes - Lighted
No
Yes
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
27
3
0
1
0
0
Major
Minor
None
None
Charter Service
Pilot Instruction
Aircraft Rental

Runway 15/33

6298 ft. x 150 ft.
ASPH
Excellent
GRVD
HIGH

95,000lbs
131,000lbs
223,000lbs
--
  Runway 15 Runway 33
True Heading 143°323°
Traffic Pattern Left Left
Markings PIR NPI
Markings Condition GOOD GOOD
Latitude 41° 42' 31"N 41° 41' 41"N
Longitude 74° 48' 07"W 74° 47' 17"W
Elevation 1,403' 1,380'
Threshold Crossing Height 39 ft. AGL 39 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes
A110-1BIRDS/WATERFOWL, COYOTE & DEER ON & INVOF ARPT.
A110-2FOR CD CTC NEW YORK APCH AT 516-683-2448 OR 121.6
SULLIVAN COUNTY INTL (ICAO: KMSV, IATA: MSV) is a public airport located in MONTICELLO, NY.
