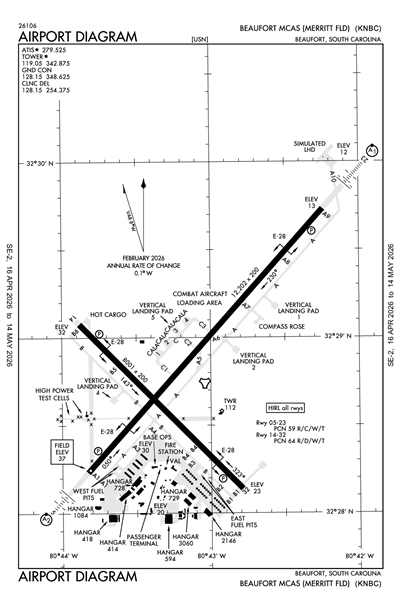

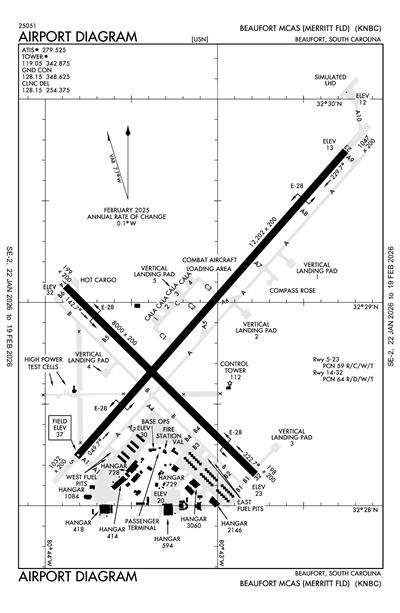

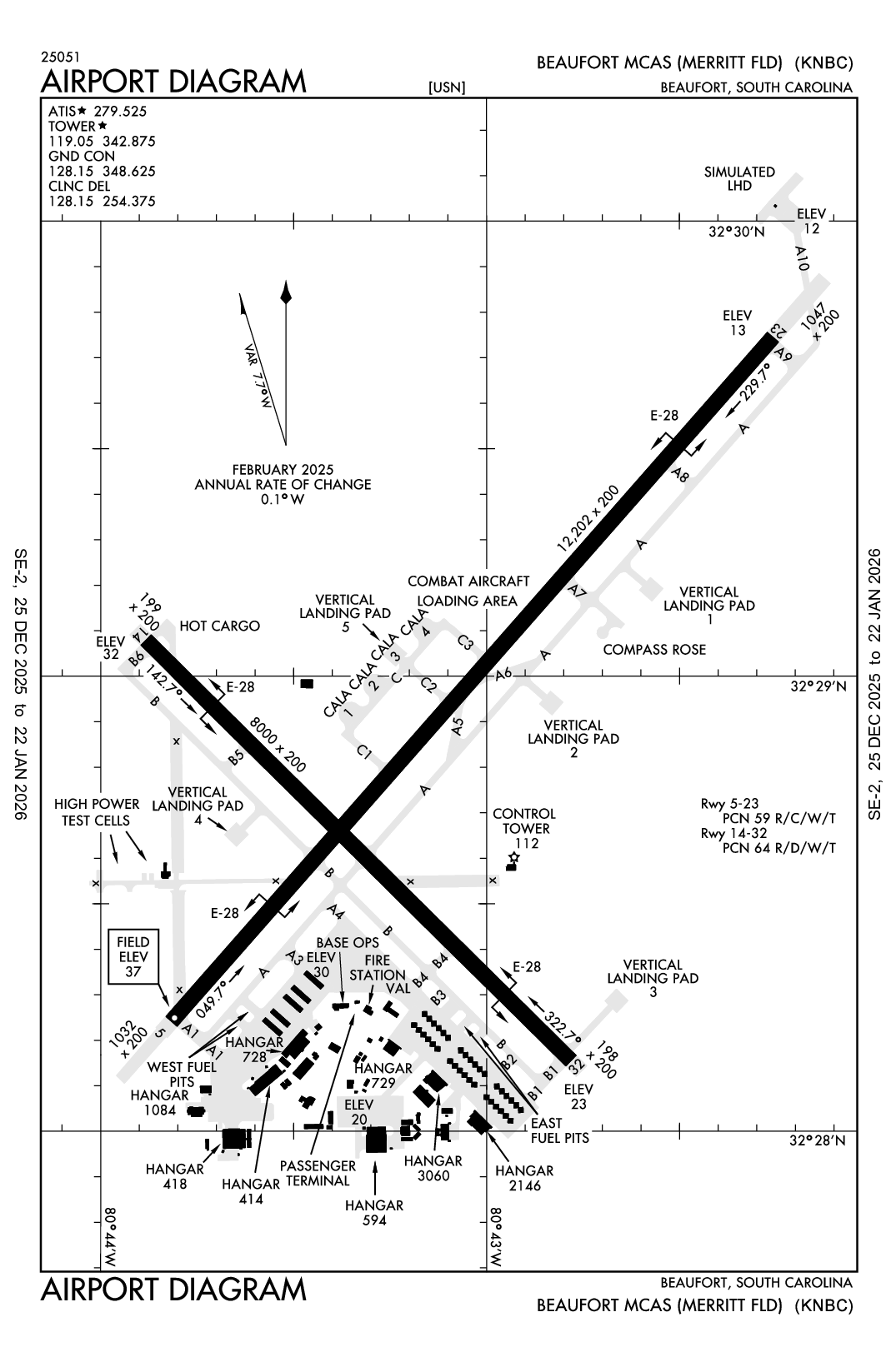

BEAUFORT MCAS (MERRITT FLD) - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KNBC
BEAUFORT MCAS (MERRITT FLD)
PrivatePVT

3 miles NW of BEAUFORT, SC
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
32° 28' 50"N 80° 43' 09"W
37' MSL
1037' MSL
05W
None Listed
ANDERSON (AND)
CHARLOTTE
JACKSONVILLE (ZJX)
5/16/24-6/13/24
KNBC VFR
2:56 AM EDT
Mist
Scattered 9,500'
6sm
73°F
72°F
29.87"Hg
Calm
AO2 SLP116 T02280222 $
KNBC 180656Z AUTO 00000KT 6SM BR SCT095 23/22 A2987 RMK AO2 SLP116 T02280222 $
List Your Business

KNBC FBOs, Flight Schools and Ground Support

No FBOs, flight schools or aircraft ground support businesses are listed for this airport.

KNBC Ground Transportation (Taxi, Limo, Car Service)

No ground transportation services are listed for this airport.

KNBC Hotels

No hotels are listed for this airport.

KNBC Restaurants

No restaurants are listed for this airport.

KNBC Other Airport-Related Businesses

No other airport-related businesses are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
-- --

Approach/Departure

APCH/P DEP/P
3000 FT & BLW
 123.7
APCH/P DEP/P
ABV 3000 FT
 125.125

Clearance Delivery

CD/P
 128.15

Emergency

EMERG
 121.5

Ground

GND/P
 128.15

Tower

LCL/P
 119.05

Terminal Area Forecast

KNBC
Fri, 5/17 5:03 PM EDT
Fri, 5/17 5:00 PM EDT - Sat, 5/18 5:00 PM EDT
VFR
5:00 PM EDT - 4:00 AM EDT
Overcast 15,000'
Broken 8,000'
Few 3,000'
6sm
29.82"Hg
VRB° 6kts
MVFR
Temporary 5:00 PM EDT - 7:00 PM EDT
Light Showers and Rain
Broken 2,500'
5.59sm
Calm
IFR
Temporary 10:00 PM EDT - 2:00 AM EDT
Thunderstorm and Rain
Broken 2,500'
2.49sm
Calm
MVFR
4:00 AM EDT - 10:00 AM EDT
Broken 1,000'
6sm
29.82"Hg
VRB° 6kts
MVFR
10:00 AM EDT - 12:00 PM EDT
Broken 1,000'
6sm
29.88"Hg
260° 8kts
LIFR
Becoming 12:00 PM EDT - 5:00 PM EDT
Heavy Thunderstorm and Rain and Duststorm
Broken 1,500'
0.5sm
29.85"Hg
260° 10kts
TAF KNBC 1721/1821 VRB06KT 9999 FEW030 BKN080 OVC150 QNH2981INS
   TEMPO 1721/1723 9000 -SHRA BKN025
   TEMPO 1802/1806 4000 TSRA BKN025CB
   FM180800 VRB06KT 9999 BKN010 QNH2981INS
   FM181400 26008KT 9999 BKN010 QNH2987INS
   BECMG 1816/1818 26010KT 0800 +TSRA BKN015CB QNH2984INS T23/1812Z T28/1817Z LAST NO AMENDS 1721/NEXT 1915 AUTOMATED SENSOR METWATCH 1800 TIL 1919
KNBC
Military
5/17/241228Z M0052/24 NOTAMC M0051/24
5/16/241149Z L0164/24 NOTAMC L0162/24
5/16/241148Z AFLD HRS OF SVC FOR THE MONTH OF MAY 2024: AFLD HRS FOR 17 MAY ARE FROM 1100-2300Z (0700-1900L). AFLD CLSD FROM 2300Z (1900L) ON 17 MAY UNTIL 1900Z (1500L) ON 19 MAY. AFLD HRS FOR 19 MAY ARE FROM 1900-2100Z (1500-1700L). AFLD CLSD FROM 2100Z (1700L) ON 19 MAY UNTIL 1100Z (0700L) ON 20 MAY. AFLD HRS FOR 24 MAY ARE FROM 1100-2300Z (0700-1900L). AFLD CLSD FROM 2300Z (1900L) ON 24 MAY UNTIL 1900Z (1500L) ON 28 MAY. AFLD HRS OF SVC FOR 28 MAY ARE FROM 1900-2100Z (1500-1700L). AFLD CLSD FROM 2100Z (1700L) ON 28 MAY UNTIL 1100Z (0700L) ON 29 MAY. AFLD HRS FOR 31 MAY ARE FROM 1100-2300Z (0700-1900L). AFLD CLSD FROM 2300Z (1900L) ON 31 MAY UNTIL 1900Z (1500L) ON 02 JUNE.
5/3/241943Z 32 PAPIS OUT OF SERVICE UNTIL FURTHER NOTICE
5/1/241700Z EOD WILL BE CONDUCTING A LIVE FIRE DEMOLITION RANGE ON 03 - 07 JUN 2024 FROM 1200-2100Z (0800-1700L)
4/25/241258Z MINIMA CHANGE IN EFFECT: PAR WO GS RWY 32 CAT ABCDE 4400-1 1/8 415 (500-1 1/8)
4/25/241256Z MINIMA CHANGE IN EFFECT: PAR WO GS RWY 23 CAT ABCDE 360-5/8 344 (400-5/8). WHEN ALS INOP INCREASE VIS TO 1 MILE
4/25/241255Z MINIMA CHANGE IN EFFECT: PAR WO GS RWY 14 CAT ABCDE 400-1 368 (400-1).
4/25/241254Z MINIMA CHANGE IN EFFECT: PAR WO GS RWY 05 CAT ABCDE 400-3/4 363 (400-3/4). WHEN ALS INOP INCREASE VIS TO 1 1/8 MILES
4/25/241252Z MINIMA CHANGE IN EFFECT: PAR RWY 32 CAT ABCDE 225-3/4 200 (200-3/4).
4/25/241250Z PROCEDURE CHANGE IN EFFECT: PAR RWY 32 TCH 41, RPI 785. WCH FOR GROUP 4 IS 16 FT
4/25/241248Z PROCEDURE CHANGE IN EFFECT: PAR RWY 23 TCH 43, RPI 818. WCH FOR GROUP 4 IS 18 FT
4/25/241246Z PROCEDURE CHANGE IN EFFECT: PAR RWY 14 TCH 40, RPI 766. WCH FOR GROUP 4 IS 15 FT
4/25/241243Z PROCEDURE CHANGE IN EFFECT: PAR RWY 05 RPI 778
4/16/241334Z QUIET HOURS FOR 28 JUNE 2024 ARE FROM 2100-2200Z (1700-1800L). MCAS BEAUFORT AIRFIELD SERVICES ARE FOR USE BY EMERGENCY AIRCRAFT ONLY DURING THESE TIMES. FLIGHT OPERATIONS NOT AUTHORIZED. GROUND OPERATIONS TO INCLUDE START, TAXI, AND TOW NOT AUTHORIZED.
4/16/241333Z QUIET HOURS FOR 21 JUNE 2024 ARE FROM 1400-1500Z (1000-1100L). MCAS BEAUFORT AIRFIELD SERVICES ARE FOR USE BY EMERGENCY AIRCRAFT ONLY DURING THESE TIMES. FLIGHT OPERATIONS NOT AUTHORIZED. GROUND OPERATIONS TO INCLUDE START, TAXI, AND TOW NOT AUTHORIZED.
4/16/241332Z QUIET HOURS FOR 07 JUNE 2024 ARE FROM 2100-2200Z (1700-1800L). MCAS BEAUFORT AIRFIELD SERVICES ARE FOR USE BY EMERGENCY AIRCRAFT ONLY DURING THESE TIMES. FLIGHT OPERATIONS NOT AUTHORIZED. GROUND OPERATIONS TO INCLUDE START, TAXI, AND TOW NOT AUTHORIZED.
4/16/241330Z QUIET HOURS FOR 07 JUNE 2024 ARE FROM 1930-2030Z (1530-1630L). MCAS BEAUFORT AIRFIELD SERVICES ARE FOR USE BY EMERGENCY AIRCRAFT ONLY DURING THESE TIMES. FLIGHT OPERATIONS NOT AUTHORIZED. GROUND OPERATIONS TO INCLUDE START, TAXI, AND TOW NOT AUTHORIZED.
4/16/241329Z QUIET HOURS FOR 24 MAY 2024 ARE FROM 1400-1500Z (1000-1100L). MCAS BEAUFORT AIRFIELD SERVICES ARE FOR USE BY EMERGENCY AIRCRAFT ONLY DURING THESE TIMES. FLIGHT OPERATIONS NOT AUTHORIZED. GROUND OPERATIONS TO INCLUDE START, TAXI, AND TOW NOT AUTHORIZED.
4/10/241042Z QUIET HOURS FOR 28 JUN 2024 ARE FROM 2100-2200Z (1700-1800L)
Yes
MON-THU 1200-0400Z++
FRI 1200-2300Z++
CLSD SAT, SUN AND HOL. SPECIAL OPR BY PPR AND NOTAM ONLY.
US NAVY
OCEANOGRAPHIC OFC-CODE 3142
WASHINGTON, DC 20373
COMMANDING OFFICER
MARINE CORPS AIR STATION
BEAUFORT, SC 29902
ANDERSON FSS (AND)
Toll Free: 1-800-WX-BRIEF
NBC
--
SALSF RWY 05; ALSF-1 RWY 23; PAPI RWY 05, 14, 23 & 32; HIRL RWY 05/23, 14/32 OPR CONSLY.
N/A
Yes
No
No
None
No
0
0
0
0
0
0
None
None
None
High & Low Pressure
None

Runway 05/23

12202 ft. x 200 ft.

PEM
NONE
HIGH
59 /R/C/W/T
--
--
--
--
  Runway 05 Runway 23
True Heading 42°222°
Traffic Pattern
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 32° 28' 14"N 32° 29' 44"N
Longitude 80° 43' 50"W 80° 42' 15"W
Elevation 37' 13'
Threshold Crossing Height 38 ft. AGL 44 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights SALSF ALSF1
Centerline Lights
Runway End Identifier Lights

Runway 14/32

8001 ft. x 200 ft.

PEM
NONE
HIGH
64 /R/D/W/T
--
--
--
--
  Runway 14 Runway 32
True Heading 135°315°
Traffic Pattern
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 32° 29' 05"N 32° 28' 08"N
Longitude 80° 43' 53"W 80° 42' 47"W
Elevation 32' 23'
Threshold Crossing Height 40 ft. AGL 50 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-10TRAN ALERT: TRANS SVC AVBL 1200-2300Z++ MON-FRI ONLY, CLSD NATL HOL. (SEE RTSD FOR ADDNL TRAN ACFT INFO) TRAN ACFT EXP TRUCK REFUEL. TRAN ACFT MAINT UNAVBL. TRAN AVN ORDNANCE SVC AVBL. LAVATORY SVC UNAVBL. JASU, FLUID, AND OIL UNAVBL.
A110-11RSTD: RSTD - PPR, 24 HR PN RQR, CTC AFLD BASE OPS DSN 335-7301/7302/7303 C843-228-7301/7302.
A110-12REMARKS: OPR 1200-0400Z++ MON-THU, 1200-2400Z++ FRI, 2000-2200Z++ SUN, CLSD SAT AND HOL, OT BY NOTAM.
A110-13RWY: FIRST 1000 FT ALL RWYS CONC, INTERIOR PORTIONS ASPHALT. VERTICAL LANDING PADS WITH HIGH TEMP CONCR AVBL FOR V/STOL AND R/W ACFT. WT BRG WAIVERS CTC BASE OPS.
A110-14COMMUNICATIONS: SFA REMARKS: AS ASGN.
A110-2SERVICE: A-GEAR - E-28 ON ALL RWY IN RAISED POSITION, EXC ON LDG RWY.
A110-3FUEL: J5 TRANS ALERT - TRANS SVC AVBL 1200-2300Z++ MON-FRI, CLSD HOL. TRANS HOT PIT AVBL BY PPR NO LATER THAN 1 HR PRIOR TO TRANS ALERT CLOSING. NO LCL, ROUND ROBIN TRANS SUP. WEAPONS ARM/DE-ARM SAFEING NOT AVBL. GND SVCG NOT AVBL WHEN LIGHTNING WI 10 NM. QUESTIONS REG SPECIFIC ACFT EQUIP SUP CTC TRANS ALERT DSN 228-7110, C 843-228-7110.
A110-5RSTD: OFFL BUS, PPR ALWAYS, MIN 24 HR NOTICE CTC BASE OPS DSN 335-7301, C 843-228-7301 OR EMAIL: BFRT_BASE_OPERATIONS@USMC.MIL. PN ALL INBD TRAN ACFT TO INCL AMC, JOSAC, ALTN AFLD, AND DIVERTS. PN APVL GOOD FOR +/- 1 HR OF COORD TIME. INBD ACFT WITH VIP, CARGO, PAX CTC BASE OPS VIA PTD 281.8 AT LEAST 20 MINS PRIOR TO LDG. WHEN NEC 180 DEGREE TURNS ON RWY EXECUTE LAST 1000 FT FOR C-130 ACFT AND LARGER.
A110-6CAUTION: RWY 14/32 CONC ENDS WITH NSTD OVRN LEN 200 FT. F-35B SHORT TAKEOFF OR LIMITED TO CONC ENDS OF RWYS. F-35B/AV-8 HOVER LDG RSTD TO VERTICAL LANDING PADS. ACFT RSTD FR TAXIING ON TOWWAY RD BTN RWY 5 AND TEST CELL; TOW ONLY. BIRD, DEER AND COYOTE HAZ. BIRD ACT INCR BTN OCT-APR. HVY AND LARGE 4 ENG ACFT ARE REQ TO IDLE OUTBOARD ENGS ON TWY A/B ADJ TO ACFT PARKING RAMPS DUE TO FOD HAZ. PORTIONS OF ACFT RAMPS NOT VIS FR TWR. UNCTL VEH TFC ON RAMPS.
A110-7TFC PAT: OVERHEAD 1500 FT, CONVL 800 FT, COPTER CALL ENTERING CLASS D AIRSPACE BLW 800 FT. MSTD RSRS APPLIED TO USN/USMC ACFT ONLY. SIMULTANEOUS RUNWAY OPR AND F-35B VSTOL LANDING PADS.
A110-8MISC: DURING SINGLE RWY OPS NON-TENANT ACFT EXP DELAYS. LTD CSTMS/AG AVBL 24 HR PN CTC DSN 335-6161, C 843-228-6161. COMSEC NOT AVBL. INTL GARBAGE CAP UNAVBL. ARFF CAT 3/FAA INDEX D. CLASS D AIRSPACE REVERTS TO CLASS E WHEN TWR CLSD. AFTER HRS URGENT AIRFIELD MATTERS CTC DUTY OFFICER DSN 335-7121, C 843-228-7121.
BEAUFORT MCAS (MERRITT FLD) (ICAO: KNBC, IATA: NBC) is a private airport located in BEAUFORT, SC.
