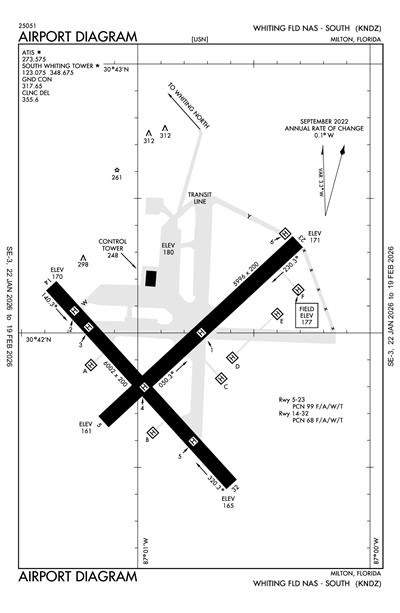

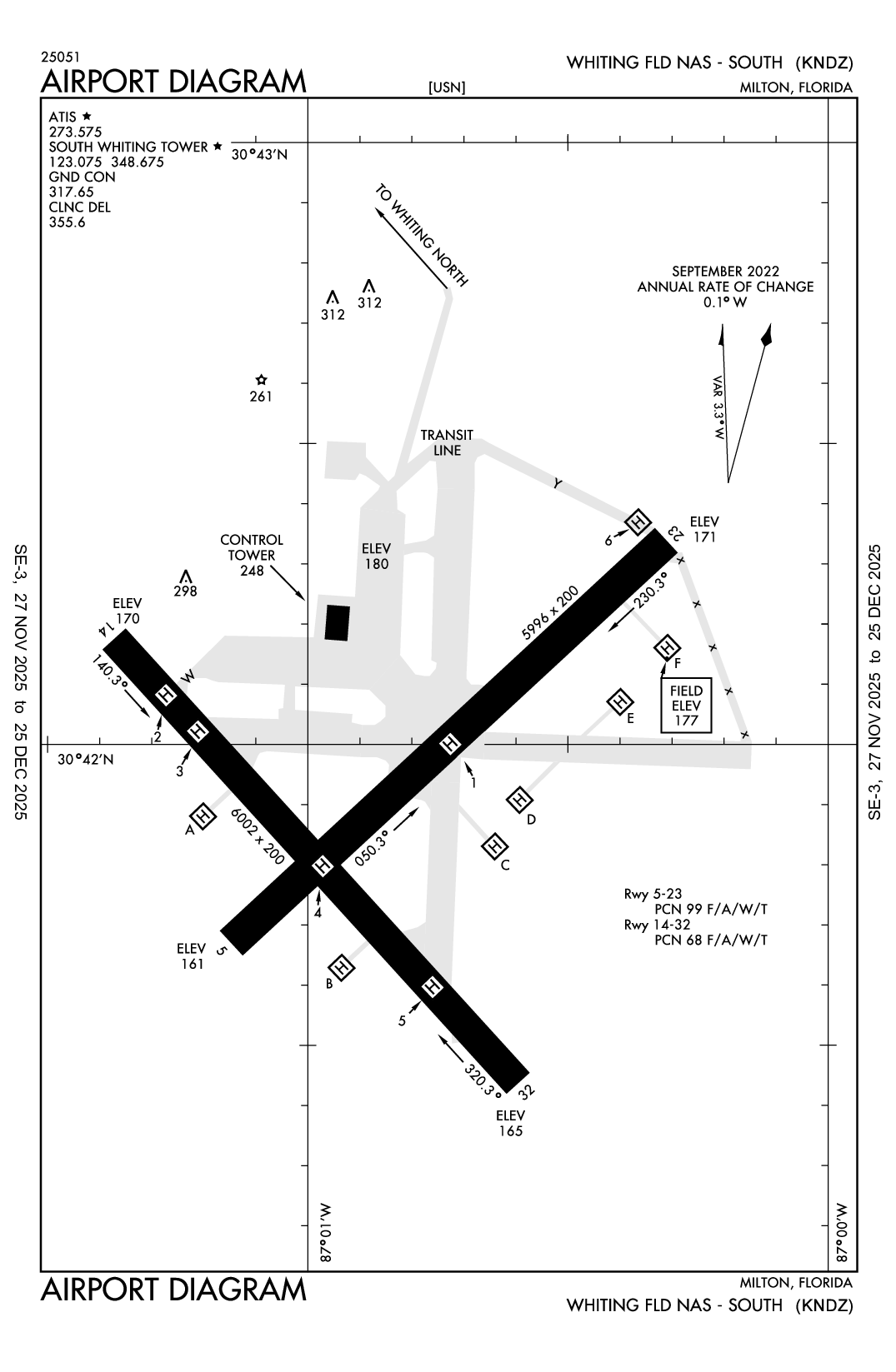

WHITING FLD NAS SOUTH - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KNDZ
WHITING FLD NAS SOUTH
PrivatePVT

3 miles N of MILTON, FL
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
30° 41' 55"N 87° 00' 52"W
177' MSL
1177' MSL
02W
100LL
GAINESVILLE (GNV)
NEW ORLEANS
JACKSONVILLE (ZJX)
5/16/24-6/13/24
KNDZ MVFR
2:39 AM CDT
Broken 1,900'
Scattered 1,200'
Few 900'
10sm
32°F
32°F
29.84"Hg
VRB° 4kts
AO2 $
KNDZ 180739Z AUTO VRB04KT 10SM FEW009 SCT012 BKN019 A2984 RMK AO2 $
List Your Business

KNDZ FBOs, Flight Schools and Ground Support

No FBOs, flight schools or aircraft ground support businesses are listed for this airport.

KNDZ Ground Transportation (Taxi, Limo, Car Service)

No ground transportation services are listed for this airport.

KNDZ Hotels

No hotels are listed for this airport.

KNDZ Restaurants

No restaurants are listed for this airport.

KNDZ Other Airport-Related Businesses

No other airport-related businesses are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
-- --

Tower

LCL/P
 123.075

FAA A/FD Pages

Airport Diagrams

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KNSE
Fri, 5/17 12:09 PM CDT
Fri, 5/17 12:00 PM CDT - Sat, 5/18 10:00 AM CDT
MVFR
12:00 PM CDT - 6:00 PM CDT
Showers in vicinity
Broken 10,000'
Broken 3,000'
Broken 2,000'
6sm
29.76"Hg
190° 16kts
Gusts 26kts
IFR
Temporary 2:00 PM CDT - 6:00 PM CDT
Thunderstorm and Rain
Broken 2,500'
Scattered 1,000'
2.98sm
VRB° 20kts
Gusts 30kts
VFR
6:00 PM CDT - 8:00 PM CDT
Showers in vicinity
Broken 10,000'
Broken 3,500'
Scattered 1,500'
6sm
29.76"Hg
200° 12kts
Gusts 18kts
MVFR
8:00 PM CDT - 11:00 PM CDT
Thunderstorm in vicinity
Broken 15,000'
Broken 3,000'
6sm
29.79"Hg
230° 9kts
IFR
11:00 PM CDT - 10:00 AM CDT
Overcast 2,000'
Broken 800'
6sm
29.79"Hg
210° 6kts
IFR
Temporary 7:00 AM CDT - 10:00 AM CDT
Thunderstorm and Rain
Broken 2,500'
Scattered 1,000'
2.98sm
VRB° 15kts
Gusts 25kts
TAF AMD KNSE 1717/1815 19016G26KT 9999 VCSH BKN020CB BKN030 BKN100 QNH2977INS
   TEMPO 1719/1723 VRB20G30KT 4800 TSRA SCT010 BKN025CB
   FM172300 20012G18KT 9999 VCSH SCT015 BKN035 BKN100 QNH2976INS
   FM180100 23009KT 9999 VCTS BKN030CB BKN150 QNH2978INS
   FM180400 21006KT 9999 BKN008 OVC020 QNH2980INS
   TEMPO 1812/1815 VRB15G25KT 4800 TSRA SCT010 BKN025CB AMD 1205 LAST NO AMDS AFT 1717 NEXT 2008 AUTOMATED SENSOR METWATCH 1704 TIL 1922 TX28/1717Z TN23/1809Z
KNDZ
Military
5/16/240108Z AERODROME PAPI LIGHTS UNSERVICEABLE.
5/16/240102Z M0534/24 NOTAMC M0519/24
5/15/241658Z M0532/24 NOTAMC M0529/24
5/14/242021Z ROTATING BEACON UNSERVICEABLE.
5/14/241831Z GATESWOOD TACAN UNSERVICEABLE.
4/12/241756Z ASR RWY 32 CIRCLING MINIMUMS CAT AB 660-1 483 (500-1), CAT C 700-1 ½ 523 (600-1 1/2), CAT DE 760-2 583 (600-2).
4/12/241756Z ILS Y OR LOC Y RWY 32 LOCALIZER (S-LOC 32*) MINIMUMS CAT AB 520-1/2 348 (400-1/2) CAT CD 520-5/8 348 (400-5/8) *WHEN ALSO INOP INCREASE VIS TO 1 MILE.
4/12/241755Z ASR RWY 23 CIRCLING MINIMUMS CAT AB 660-1 483 (500-1), CAT C 700-1 ½ 523 (600-1 1/2), CAT DE 760-2 583 (600-2)
4/12/241754Z ASR RWY 14 CIRCLING MINIMUMS CAT AB 660-1 483 (500-1), CAT C 700-1 ½ 523 (600-1 1/2), CAT DE 760-2 583 (600-2)
4/12/241753Z ASR RWY 5 CIRCLING MINIMUMS CAT AB 660-1 483 (500-1), CAT C 700-1 ½ 523 (600-1 1/2), CAT DE 760-2 583 (600-2).
4/12/241752Z ASR RWY 5 MINIMUMS CAT AB 660-1 490 (500-1), CAT CDE 660-1 3/8 490 (500-1 3/8).
3/11/241414Z ROTATING BEACON OBSTRUCTION LIGHT UNLIT.
3/11/241412Z ASR RWY 23 APPROACH MINIMUMS (CAT) AB 580-1 (CAT) CDE 580-1 1/8.
3/11/241409Z PAR W/O GS RWY 23 APPROACH MINIMUMS (CAT) AB 560-1 (CAT) CDE 560-1 1/8.
3/7/241508Z SUNDAY RECOVERY FROM 2300-0300 (1800-2200L).
3/7/241504Z CTO HOURS EVERY SATURDAY FROM 1400-0400 (0900-2300L) AND EVERY SUNDAY 1200-2230 (0700-1730L).
Yes
MON-THU 1200-0700Z++
FRI 1200-0400Z++
SUN 2300-0300Z++
CLSD SAT & HOL, OTR BY NOTAM.
US NAVY
OCEANOGRAPHIC OFC-CODE 3142
WASHINGTON, DC 20373
COMMANDING OFFICER
NAVAL AIR STATION WHITING FLD
MILTON, FL 32570
GAINESVILLE FSS (GNV)
Toll Free: 1-800-WX-BRIEF
N/A
--
AVBL DURG OPS HRS.
N/A
N/A
No
No
None
No
0
0
0
0
0
0
None
None
None
None
None

Runway 05/23

5996 ft. x 200 ft.
ASPH
Fair
NONE
HIGH
33 /F/B/W/T
--
--
--
--
  Runway 05 Runway 23
True Heading 47°227°
Traffic Pattern
Markings PIR PIR
Markings Condition FAIR FAIR
Latitude 30° 41' 41"N 30° 42' 21"N
Longitude 87° 01' 10"W 87° 00' 19"W
Elevation 162' 171'
Threshold Crossing Height 54 ft. AGL 59 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway 14/32

6002 ft. x 200 ft.
ASPH
Fair
NONE
HIGH
36 /F/A/W/T
--
--
--
--
  Runway 14 Runway 32
True Heading 137°317°
Traffic Pattern
Markings PIR PIR
Markings Condition FAIR FAIR
Latitude 30° 42' 11"N 30° 41' 27"N
Longitude 87° 01' 23"W 87° 00' 36"W
Elevation 170' 165'
Threshold Crossing Height 58 ft. AGL 56 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights MALSR
Centerline Lights
Runway End Identifier Lights

Runway H-A

100 ft. x 100 ft.

ASPH
NONE


--
--
--
--
  Runway H-A Runway
True Heading Not ListedNot Listed
Traffic Pattern
Markings
Markings Condition
Latitude N/A N/A
Longitude N/A N/A
Elevation -- --
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway H-B

100 ft. x 100 ft.

ASPH
NONE


--
--
--
--
  Runway H-B Runway
True Heading Not ListedNot Listed
Traffic Pattern
Markings
Markings Condition
Latitude N/A N/A
Longitude N/A N/A
Elevation -- --
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway H-C

100 ft. x 100 ft.

ASPH
NONE


--
--
--
--
  Runway H-C Runway
True Heading Not ListedNot Listed
Traffic Pattern
Markings
Markings Condition
Latitude N/A N/A
Longitude N/A N/A
Elevation -- --
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway H-D

100 ft. x 100 ft.

ASPH
NONE


--
--
--
--
  Runway H-D Runway
True Heading Not ListedNot Listed
Traffic Pattern
Markings
Markings Condition
Latitude N/A N/A
Longitude N/A N/A
Elevation -- --
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway H-E

100 ft. x 100 ft.

ASPH
NONE


--
--
--
--
  Runway H-E Runway
True Heading Not ListedNot Listed
Traffic Pattern
Markings
Markings Condition
Latitude N/A N/A
Longitude N/A N/A
Elevation -- --
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway H-F

100 ft. x 100 ft.

ASPH
NONE


--
--
--
--
  Runway H-F Runway
True Heading Not ListedNot Listed
Traffic Pattern
Markings
Markings Condition
Latitude N/A N/A
Longitude N/A N/A
Elevation -- --
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway H1

100 ft. x 100 ft.

ASPH
NONE


--
--
--
--
  Runway H1 Runway
True Heading Not ListedNot Listed
Traffic Pattern
Markings
Markings Condition
Latitude N/A N/A
Longitude N/A N/A
Elevation -- --
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway H2

100 ft. x 100 ft.

ASPH
NONE


--
--
--
--
  Runway H2 Runway
True Heading Not ListedNot Listed
Traffic Pattern
Markings
Markings Condition
Latitude N/A N/A
Longitude N/A N/A
Elevation -- --
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway H3

100 ft. x 100 ft.

ASPH
NONE


--
--
--
--
  Runway H3 Runway
True Heading Not ListedNot Listed
Traffic Pattern
Markings
Markings Condition
Latitude N/A N/A
Longitude N/A N/A
Elevation -- --
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway H4

100 ft. x 100 ft.

ASPH
NONE


--
--
--
--
  Runway H4 Runway
True Heading Not ListedNot Listed
Traffic Pattern
Markings
Markings Condition
Latitude N/A N/A
Longitude N/A N/A
Elevation -- --
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway H5

100 ft. x 100 ft.

ASPH
NONE


--
--
--
--
  Runway H5 Runway
True Heading Not ListedNot Listed
Traffic Pattern
Markings
Markings Condition
Latitude N/A N/A
Longitude N/A N/A
Elevation -- --
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway H6

75 ft. x 100 ft.

ASPH
NONE


--
--
--
--
  Runway H6 Runway
True Heading Not ListedNot Listed
Traffic Pattern
Markings
Markings Condition
Latitude N/A N/A
Longitude N/A N/A
Elevation -- --
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-11CTN: HEL TRNG OPS ALL HRS; NO OVRN.
A110-12DD-1801 WX CODES OBTAINED AT HTTPS:/FWB.METOC.NAVY.MIL. WX AFT HR - AWS/NORFOLK 1-888-745-6899.
A110-14TWY Z NORTH OF LANGLEY RD NOT VSB FM ATCT.
A110-15PONDING OCRS AFT RAIN - BRAP.
A110-16TRAN ALERT: TSNT PRAC APCH 24 HR PPR- D868-7598. TSNT LINE SVC AVBL 1400-2200Z++ MON-FRI ONLY; LTD TSNT PRK AVBL; 5 DAY NTC FOR GND SUPPORT EQPT - D868-7717. TSNT CTC BASE OPS 10 MIN PRIOR ARR. TSNT PAR EXP RADAR VECTORS RWY 32.
A110-17BDRY LGTD HELI LCTD N OF ARPT; SAR AND VIP USE ONLY.
A110-18SMT WHITING FLD FP - FAX C850-623-7356 OR WHTG_NASWF_BASEOPS.FCT@NAVY.MIL; CFM FP - FPG DISPATCH D868-7598/7597/7654 OR C850-623-7598/7597/7654.
A110-19CTC DUTY OPS DSN 868-7475; C850-623-7475 FOR INFO, PPR, AND CALP OR EMAIL: WHTG_NASWF_AIRPOS_AFM@NAVY.MIL PPR 24 HR PN.
A110-9FUEL: J8, JASU-1(NC-8), A++.
WHITING FLD NAS SOUTH (ICAO: KNDZ, IATA: NDZ) is a private airport located in MILTON, FL.
