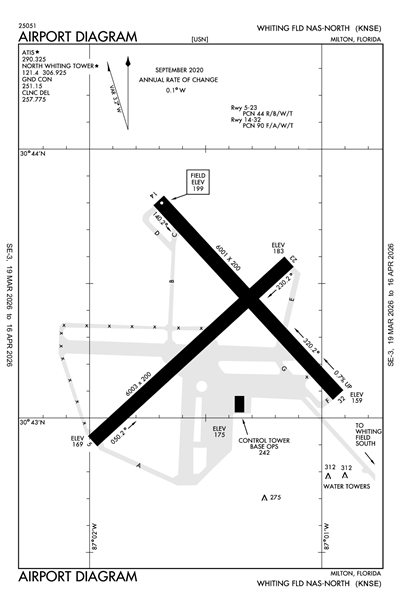

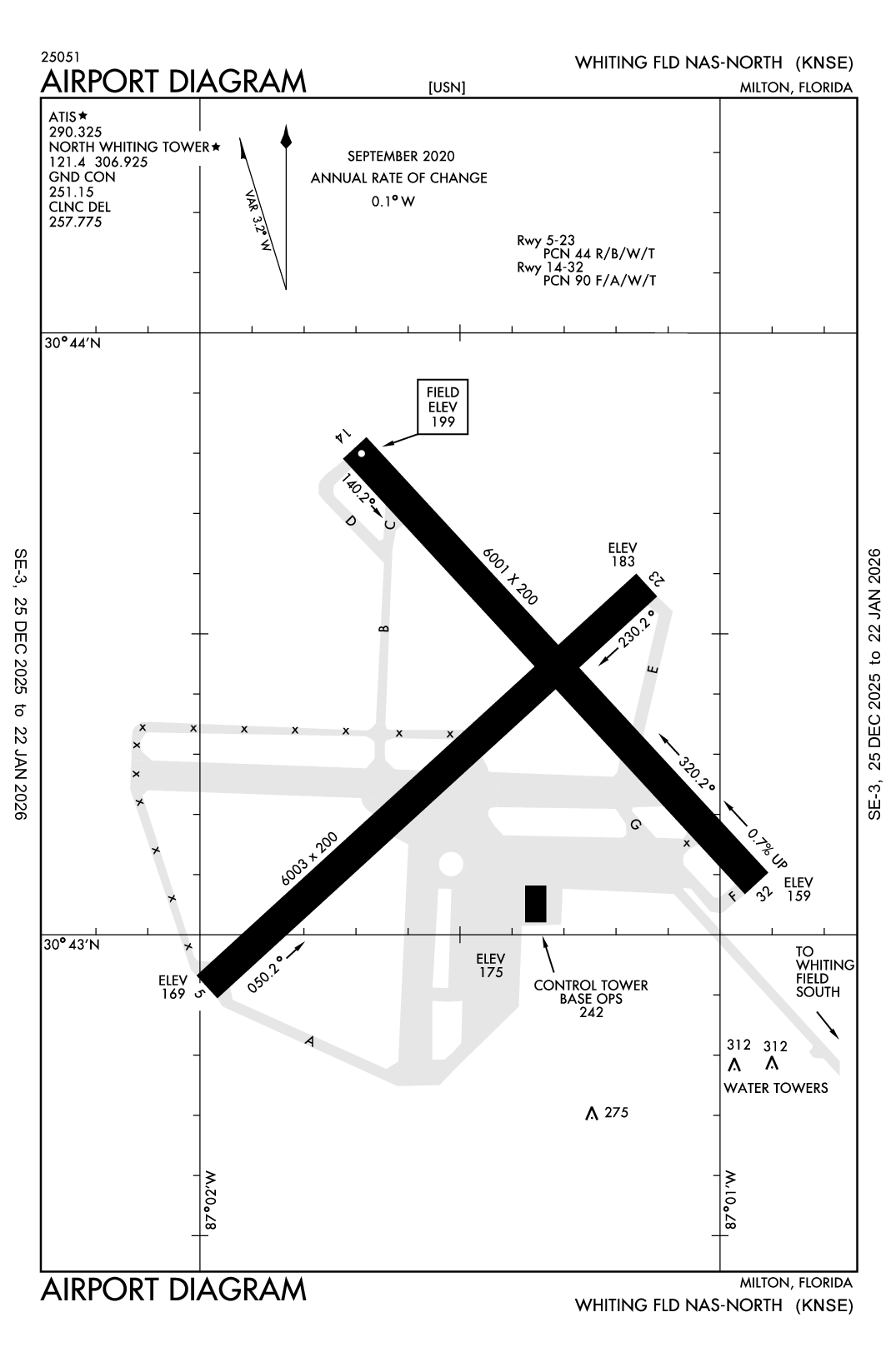

WHITING FLD NAS NORTH - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KNSE
WHITING FLD NAS NORTH
PrivatePVT

4 miles N of MILTON, FL
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
30° 43' 21"N 87° 01' 26"W
199' MSL
1199' MSL
02W
100LL
GAINESVILLE (GNV)
NEW ORLEANS
JACKSONVILLE (ZJX)
5/16/24-6/13/24
KNSE VFR
8:56 PM CDT
Broken 25,000'
Broken 8,000'
Scattered 3,200'
Few 1,600'
10sm
74°F
69°F
29.82"Hg
130° 4kts
SLP082 T2 SET T02330206
KNSE 180156Z 13004KT 10SM FEW016 SCT032 BKN080 BKN250 23/21 A2982 RMK SLP082 T2 SET T02330206
List Your Business

KNSE FBOs, Flight Schools and Ground Support

No FBOs, flight schools or aircraft ground support businesses are listed for this airport.

KNSE Ground Transportation (Taxi, Limo, Car Service)

No ground transportation services are listed for this airport.

KNSE Hotels

No hotels are listed for this airport.

KNSE Restaurants

No restaurants are listed for this airport.

KNSE Other Airport-Related Businesses

No other airport-related businesses are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
-- --

ATIS

ATIS
Hours: 1245-0445Z++ MON-FRI, CLSD SAT, SUN & HOL.
 140.0

Emergency

EMERG
 121.5

Tower

LCL/P
 121.4

FAA A/FD Pages

Airport Diagrams

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KNSE
Fri, 5/17 12:09 PM CDT
Fri, 5/17 12:00 PM CDT - Sat, 5/18 10:00 AM CDT
MVFR
12:00 PM CDT - 6:00 PM CDT
Showers in vicinity
Broken 10,000'
Broken 3,000'
Broken 2,000'
6sm
29.76"Hg
190° 16kts
Gusts 26kts
IFR
Temporary 2:00 PM CDT - 6:00 PM CDT
Thunderstorm and Rain
Broken 2,500'
Scattered 1,000'
2.98sm
VRB° 20kts
Gusts 30kts
VFR
6:00 PM CDT - 8:00 PM CDT
Showers in vicinity
Broken 10,000'
Broken 3,500'
Scattered 1,500'
6sm
29.76"Hg
200° 12kts
Gusts 18kts
MVFR
8:00 PM CDT - 11:00 PM CDT
Thunderstorm in vicinity
Broken 15,000'
Broken 3,000'
6sm
29.79"Hg
230° 9kts
IFR
11:00 PM CDT - 10:00 AM CDT
Overcast 2,000'
Broken 800'
6sm
29.79"Hg
210° 6kts
IFR
Temporary 7:00 AM CDT - 10:00 AM CDT
Thunderstorm and Rain
Broken 2,500'
Scattered 1,000'
2.98sm
VRB° 15kts
Gusts 25kts
TAF AMD KNSE 1717/1815 19016G26KT 9999 VCSH BKN020CB BKN030 BKN100 QNH2977INS
   TEMPO 1719/1723 VRB20G30KT 4800 TSRA SCT010 BKN025CB
   FM172300 20012G18KT 9999 VCSH SCT015 BKN035 BKN100 QNH2976INS
   FM180100 23009KT 9999 VCTS BKN030CB BKN150 QNH2978INS
   FM180400 21006KT 9999 BKN008 OVC020 QNH2980INS
   TEMPO 1812/1815 VRB15G25KT 4800 TSRA SCT010 BKN025CB AMD 1205 LAST NO AMDS AFT 1717 NEXT 2008 AUTOMATED SENSOR METWATCH 1704 TIL 1922 TX28/1717Z TN23/1809Z
KNSE
Military
5/17/241700Z AERODROME CLOSED 1200L-2300L.
5/17/241159Z TAXIWAY G CLOSED DUE TO PONDING.
5/17/241156Z M0538/24 NOTAMC M0536/24
5/15/241658Z M0533/24 NOTAMC M0530/24
5/15/241356Z L0029/24 NOTAMC L0028/24
5/14/242020Z ROTATING BEACON UNSERVICEABLE.
5/13/241205Z ROTATING BEACON OBSTRUCTION LIGHT UNLIT.
4/12/241814Z RUNWAY 5 SURVEILLANCE APPROACH MINIMUM CAT AB 660-1 480 (500-1) CAT CDE 660-1 3/8 480 (500-1 3/8)
4/4/242039Z CRANE OPERATIONS OUTBOARD TAXIWAY BRAVO AT 150 FEET AGL.
4/4/242025Z RUNWAY 14 SURVEILLANCE APPROACH CIRCLING MINIMUM CAT A/B DH/MDA-VIS 720-1 HAT/HATH HAA 521 CEIL-VIS (600-1) CAT C DH/MDA-VIS 720-1 1/2 HAT/HATH HAA 521 CEIL-VIS (600-1/2).
4/4/242024Z RUNWAY 23 SURVEILLANCE APPROACH CIRCLING MINIMUM CAT A/B DH/MDA-VIS 720-1 HAT/HATH HAA 521 CEIL-VIS (600-1) CAT C DH/MDA-VIS 720-1 1/2 HAT/HATH HAA 521 CEIL-VIS (600-1/2).
4/4/242021Z RUNWAY 5 SURVEILLANCE APPROACH CIRCLING MINIMUM CAT A/B DH/MDA-VIS 720-1 HAT/HATH HAA 521 CEIL-VIS (600-1) CAT C DH/MDA-VIS 720-1 1/2 HAT/HATH HAA 521 CEIL-VIS (600-1/2).
4/4/241952Z ILS Z OR RNAV (GPS) RUNWAY 14 LNAV CAT A/B DH/MDA/VIS 660-1/2 HAT/HATH HAA 461 CEIL-VIS (500-1/2) CAT C/D DH/MDA/VIS 660-1 HAT/HATH HAA 461 CEIL-VIS (500-1) .
4/4/241949Z ILS Z OR RNAV (GPS) RUNWAY 14 LNAV/VNAV CAT A DH/MDA-VIS 540-5/8 HAT/HATH HAA 341 CEIL-VIS (400-5/8) CAT B DH/MDA-VIS 551-5/8 HAT/HATH HAA 352 CEIL-VIS (400-5/8) CAT C DH/MDA-VIS 559-5/8 HAT/HATH HAA 360 CEIL-VIS (400-5/8) CAT D DH/MDA-VIS 570-5/8 HAT/HATH HAA 371 CEIL-VIS (400-5/8).
4/4/241938Z ILS Z OR RNAV (GPS) RUNWAY 14 CIRCLING MINIMUM CAT A/B DH/MDA-VIS 720-1 HAT/HATH HAA 521 CEIL-VIS (600-1) CAT C DH/MDA-VIS 720-1 1/2 HAT/HATH HAA 521 CEIL-VIS (600-1/2).
4/4/241930Z TACAN RUNWAY 5 CIRCLING MINIMUM CAT A/B DH/MDA-VIS 720-1 HAT/HATH HAA 521 CEIL-VIS (600-1) CAT C DH/MDA-VIS 720-1 1/2 HAT/HATH HAA 521 CEIL-VIS (600-1/2).
4/4/241929Z TACAN RUNWAY 14 CIRCLING MINIMUM CAT A/B DH/MDA-VIS 720-1 HAT/HATH HAA 521 CEIL-VIS (600-1) CAT C DH/MDA-VIS 720-1 1/2 HAT/HATH HAA 521 CEIL-VIS (600-1/2).
4/4/241929Z TACAN RUNWAY 23 CIRCLING MINIMUM CAT A/B DH/MDA-VIS 720-1 HAT/HATH HAA 521 CEIL-VIS (600-1) CAT C DH/MDA-VIS 720-1 1/2 HAT/HATH HAA 521 CEIL-VIS (600-1/2).
4/4/241926Z RUNWAY 23 RNAV ( GPS ) CIRCLING MINIMUM CAT A/B DH/MDA-VIS 720-1 HAT/HATH HAA 521 CEIL-VIS (600-1) CAT C DH/MDA-VIS 720-1 1/2 HAT/HATH HAA 521 CEIL-VIS (600-1/2).
4/4/241924Z RUNWAY 14 ILS Y OR LOC/DME CIRCLING MINIMUM CAT A/B DH/MDA-VIS 720-1 HAT/HATH HAA 521 CEIL-VIS (600-1) CAT C DH/MDA-VIS 720-1 1/2 HAT/HATH HAA 521 CEIL-VIS (600-1/2).
3/11/241310Z NEW ATIS VHF FREQUENCY 140.0
3/7/241511Z CTO HOURS EVERY SATURDAY FROM 1400-1500 (0900-1000L AND EVERY SUNDAY 1200-2300 (0700-1800L).
Yes
MON-FRI 1200-0400Z++
CLSD SAT, SUN & HOL; OTR BY NOTAM.
US NAVY
OCEANOGRAPHIC OFC-CODE 3142
WASHINGTON, DC 20373
COMMANDING OFFICER
NAVAL AIR STATION WHITING FLD
MILTON, FL 32570
GAINESVILLE FSS (GNV)
Toll Free: 1-800-WX-BRIEF
NSE
--
AVBL DURG OPS HRS.
N/A
N/A
No
No
None
No
0
0
0
0
0
0
None
None
None
None
None

Runway 05/23

6003 ft. x 200 ft.
ASPH
Fair
NONE
HIGH
31 /F/A/W/T
--
--
--
--
  Runway 05 Runway 23
True Heading 47°227°
Traffic Pattern
Markings
Markings Condition FAIR FAIR
Latitude 30° 42' 55"N 30° 43' 35"N
Longitude 87° 01' 59"W 87° 01' 08"W
Elevation 169' 183'
Threshold Crossing Height 60 ft. AGL 52 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway 14/32

6001 ft. x 200 ft.
ASPH
Fair
NONE
HIGH
23 /F/A/W/T
--
--
--
--
  Runway 14 Runway 32
True Heading 137°317°
Traffic Pattern
Markings
Markings Condition FAIR FAIR
Latitude 30° 43' 49"N 30° 43' 05"N
Longitude 87° 01' 42"W 87° 00' 55"W
Elevation 199' 159'
Threshold Crossing Height 51 ft. AGL 53 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights MALSR
Centerline Lights
Runway End Identifier Lights
A110-1RSTD: PPR FOR TSNT PRAC APCH & LDG; LTD TSNT PRK & SVC AVBL - DUTY OPS DSN 868-7475, C850-623-7475 & CALP OR E-MAIL: WHTG_NASWF_AIROPS_AFM@NAVY.MIL. WHITING FLD S UNLESS OTHERWISE ARNG WITH OPS OFFICER. (SEE WHITING FLD NAS-S) 24 HR PPR.
A110-2CTN: TRNG OPS INVOF ALL HRS; PONDING OCRS AFT RAIN - BRAP.
A110-3SERVICE-JASU-1(NC-8) FUEL - F24 TRAN ALERT. LTD TRAN LINE SVC AVBL 1400-220Z++ MON-FRI ONLY.
A110-4TWY Z & 200 FT INWARD FM COMPASS ROSE OF TWY A NOT VSB FM ATCT.
A110-5DD-1801 WX CODES OBTAINED AT HTTPS:/FWB.METOC.NAVY.MIL. METOC AFT HR - AWS/NORFOLK 1-888-745-6899.
A110-6SMT WHITING FLD FP - FAX C850-623-7356 OR WHTG_NASWF_BASEOPS.FCT@NAVY.MIL; CFM FP - FPG DISPATCH D868-7598/7597/7654 OR C850-623-7598/7597/7654.
WHITING FLD NAS NORTH (ICAO: KNSE, IATA: NSE) is a private airport located in MILTON, FL.
