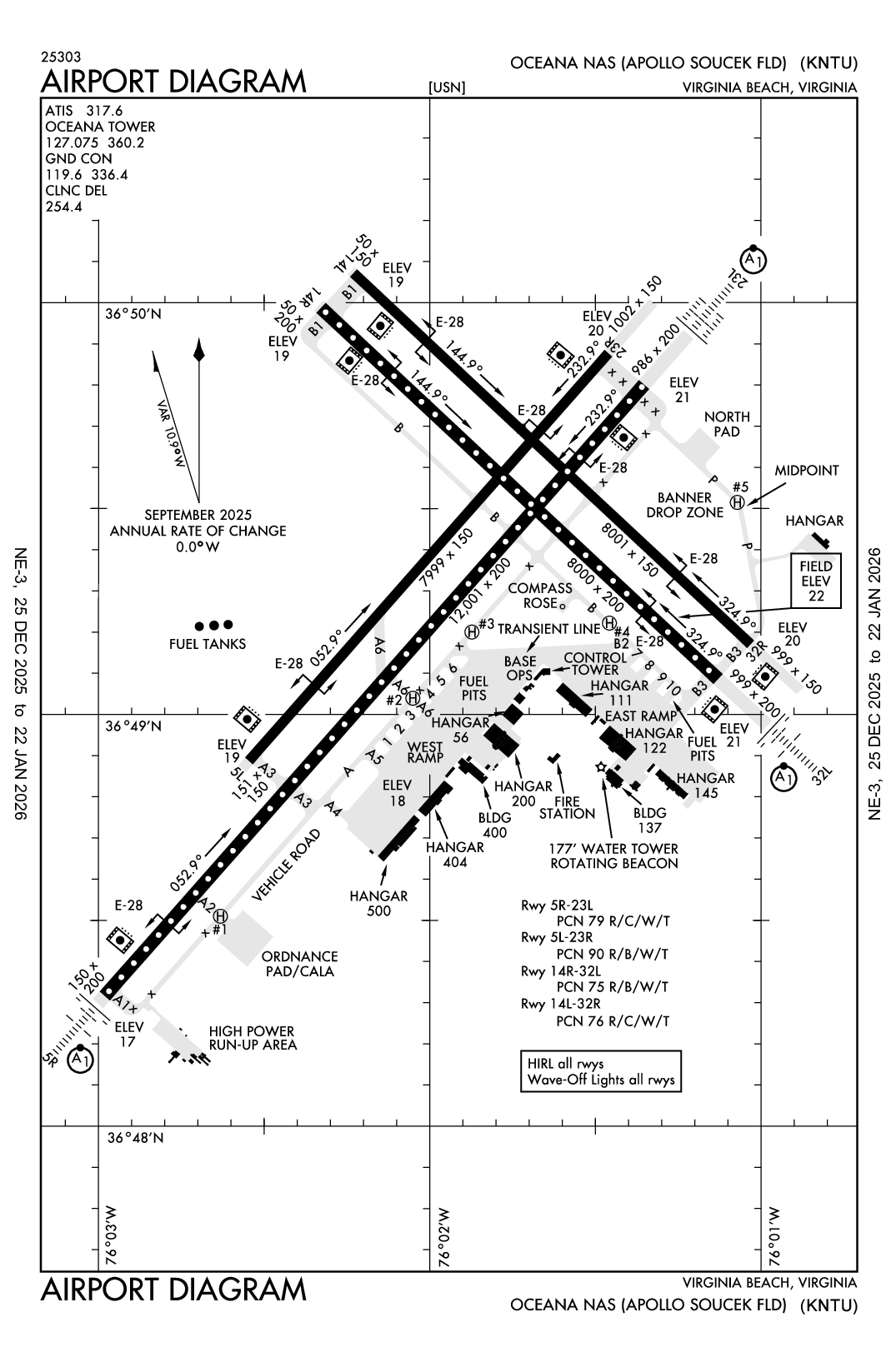

OCEANA NAS (APOLLO SOUCEK FLD) - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KNTU
OCEANA NAS (APOLLO SOUCEK FLD)
PrivatePVT

3 miles SW of VIRGINIA BEACH, VA
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
36° 49' 22"N 76° 01' 55"W
22' MSL
1022' MSL
10W
None Listed
LEESBURG (DCA)
WASHINGTON
WASHINGTON (ZDC)
5/16/24-6/13/24
KNTU MVFR
12:56 AM EDT
Overcast 3,000'
Scattered 1,000'
10sm
61°F
58°F
30.01"Hg
080° 3kts
A02 SLP160 T01600142
KNTU 180456Z 08003KT 10SM SCT010 OVC030 16/14 A3001 RMK A02 SLP160 T01600142
List Your Business

KNTU FBOs, Flight Schools and Ground Support

No FBOs, flight schools or aircraft ground support businesses are listed for this airport.

KNTU Ground Transportation (Taxi, Limo, Car Service)

No ground transportation services are listed for this airport.

KNTU Hotels

No hotels are listed for this airport.

KNTU Restaurants

No restaurants are listed for this airport.

KNTU Other Airport-Related Businesses

No other airport-related businesses are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
-- --

Approach

APCH/P
 123.9

Emergency

EMERG
 121.5

Ground

GND/P
 119.6

Tower

LCL/P
 127.075

Terminal Area Forecast

KNTU
Fri, 5/17 7:35 PM EDT
Fri, 5/17 7:00 PM EDT - Sat, 5/18 7:00 PM EDT
MVFR
7:00 PM EDT - 5:00 AM EDT
Overcast 3,000'
Broken 1,000'
6sm
29.91"Hg
060° 8kts
Light, In Cloud (Rime): 12,000-21,000'
Light, In Cloud (Rime): 21,000-24,000'
IFR
Temporary 11:00 PM EDT - 5:00 AM EDT
Light Rain and Mist
Overcast 1,500'
Broken 600'
3.73sm
VRB° 4kts
IFR
5:00 AM EDT - 11:00 AM EDT
Rain and Mist
Overcast 1,000'
2.98sm
29.91"Hg
110° 7kts
Light, In Cloud (Rime): 12,000-21,000'
Light, In Cloud (Rime): 21,000-24,000'
IFR
Temporary 5:00 AM EDT - 11:00 AM EDT
Light Rain and Mist
Overcast 1,500'
Broken 500'
2.98sm
070° 7kts
MVFR
11:00 AM EDT - 7:00 PM EDT
Overcast 1,000'
6sm
29.91"Hg
110° 11kts
Gusts 18kts
None: 21,000-24,000'
IFR
Temporary 11:00 AM EDT - 5:00 PM EDT
Showers and Rain and Mist
Overcast 500'
1.99sm
200° 51kts
TAF KNTU 1723/1823 06008KT 9999 BKN010 OVC030 621209 622103 QNH2990INS
   TEMPO 1803/1809 VRB04KT 6000 -RA BR BKN006 OVC015
   FM180900 11007KT 4800 RA BR OVC010 621209 622103 QNH2991INS
   TEMPO 1809/1815 07007KT 4800 -RA BR BKN005 OVC015
   FM181500 11011G18KT 9999 OVC010 600000 QNH2990INS
   TEMPO 1815/1821 3200 SHRA BR OVC005 TX19/1818Z TN15/1810Z FN200051
KNTU
Military
5/20/241100Z !KNTU M0295/24 NTU UNMANNED ACFT WITHIN AREA DEFINED AS 3NM RADIUS OF NTU025007.2 (FT STORY/CAPE HENRY LIGHTHOUSE) EXTENDING OUT OVER WATER AND OVER FT STORY. CONTACT UAS OPERATORS ON EASTERN COMMON FREQUENCY 239.45 PRIOR TO OVERFLIGHT OF FT STORY/CAPE HENRY. DLY 1100-0600 2405201100-2405250600
5/18/240300Z A SCHEDULED POWER OUTAGE (2300L FRI/17TH UNTIL 1400L SAT/18TH) WILL LIMIT OCEANA?S AIR TRAFFIC CONTROL SERVICES. RADAR SERVICES TO INCLUDE DEPARTURE, AND APPROACH WILL NOT BE AVAILABLE; PAR AND ASR APPROACHES WILL NOT BE AVAILABLE; TACAN AND RNAV APPROACHES WILL BE AVAILABLE; ATIS WILL NOT BE AVAILABLE. TOWER, APPROACH, AND DEPARTURE WILL REMAIN STAFFED WITH BACKUP RADIOS ON PRIMARY UHF FREQUENCIES. EXPECT ATC HANDOFFS VERY CLOSE TO THE EDGE OCEANA'S CLASS D AIRSPACE FOR ARRIVALS AND DEPARTURES. IF OCEANA GOES IMC, EXPECT TO HOLD AND EXECUTE APPROPRIATE APPROACHES THAT WILL BE DECONFLICTED BY TIMING SINCE OCEANA WE BE OPERATING UNDER NON-RADAR PROCEDURES. DURING THE OUTAGE BASE OPS CAN BE REACHED AT 757-438-3234, AND AIR TRAFFIC CONTROL AT 757-438-3671
5/16/241935Z M0301/24 NOTAMC M0296/24
5/16/241208Z M0300/24 NOTAMC M0299/24
5/15/241518Z RWY 23L SHORT FIELD ARRESTING GEAR OUT OF SERVICE, DERIGGED AND OFF THE RUNWAY.
5/15/241418Z RWY 14R WAVE OFF LIGHTS INOP.
5/13/241100Z !KNTU M0289/24 NTU UNMANNED ACFT WITHIN AREA DEFINED AS 3NM RADIUS OF NTU 025007.2 (FT STORY/CAPE HENRY LIGHTHOUSE) EXTENDING OUT OVER WATER AND OVER FT STORY. CONTACT UAS OPERATORS ON EASTERN COMMON FREQUENCY 239.45 PRIOR TO OVERFLIGHT OF FT STORY/CAPE HENRY. DLY 1100-0600 2405131100-2405180600
4/26/241432Z RWY 14R OPTICAL LANDING SYSTEM (OLS) NOT AVAILABLE OFF REMOVED FROM THE AIRFIELD.
4/25/241249Z NAS NORFOLK/CHAMBERS FIELD (KNGU) FLIGHT PLANNING EMAIL TEMPORARILY OTS. PLEASE SEND ALL FLIGHT PLANS TO THE FOLLOWING ADDRESS: W_CNI_NRFK_NSNORFOLK_N32_ATC_USERS@NAVY.MIL WILL UPDATE WHEN MAIN E-MAIL IS RETURNED TO SERVICE
4/25/241249Z RWY 14L SHORT FIELD GEAR UNSERVICEABLE, RAISED CABLE DERIGGED AND OFF THE RUNWAY
4/25/241248Z !KNTU M0270/24 NTU OBST CRANE 364703N0760156W (2NM S NTU) 154FT MSL
(140FT AGL) DAY LIGHT NO IMPACT TO INSTRUMENT PROCEDURES 2404251248-2407190359
4/25/241248Z OBST CRANE ERECTED 365048N/075584W (2.9 NM NORTHEAST NTU) 230FT MSL (220FT AGL) FLAGGED AND LGTD. NO IMPACT TO INSTRUMENT PROCEDURES.
4/21/241617Z !KNTU M0261/24 NTU RWY 14L OLS U/S 2404211617-2407192359
4/21/241613Z RWY 05L/23R DISTANCE REMAINING SIGNS LEFT AND RIGHT SIDE NOT LIGHTED.
4/21/241611Z AERODROME AIR START CART (MSU-200) UNAVAILABLE TO TRANSIENT AIRCRAFT.
4/21/241610Z AERODROME NALF FENTRESS LZ 9 (ARROW HEAD) CLSD
4/21/241607Z OBST WATER TOWER .75NM SSW OBSTRUCTION LIGHTS OUT OF SERVICE.
4/21/241605Z AERODROME AIR PASSENGER (PAX) TERMINAL AND AIR CARGO FLIGHT SUPPORT WINDOW FOR ON/OFFLOAD OF PAX/CARGO/BAGGAGE IS AS FOLLOWS: PAX/CARGO/BAGGAGE 0700-2300 LOCAL DAILY. BETWEEN 2300 AND 0700 LOCAL ONLY PAX OFFLOAD CAN BE ACCOMMODATED. BAGGAGE/CARGO OFFLOAD ASSISTANCE IS NOT AVAILABLE UNTIL AFTER 0700 LOCAL DAILY.
Yes
ALL
U.S. NAVY
OCEANOGRAPHIC OFC-CODE 3142
WASHINGTON, DC 20373
COMMANDING OFFICER
NAVAL AIR STATION OCEANA
VIRGINIA BEACH, VA 23460
LEESBURG FSS (DCA)
Toll Free: 1-800-WX-BRIEF
NTU
--
AVBL ONLY DURING HRS OF OPERATION.
N/A
N/A
No
No
None
No
0
0
0
0
0
0
None
None
High & Low Pressure
High & Low Pressure
None

Runway 05L/23R

8000 ft. x 150 ft.
PEM
Good
NONE
HIGH
90 /R/B/W/T
--
--
--
--
  Runway 05L Runway 23R
True Heading 42°222°
Traffic Pattern
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 36° 48' 54"N 36° 49' 53"N
Longitude 76° 02' 33"W 76° 01' 27"W
Elevation 19' 20'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights No No
Runway End Identifier Lights

Runway 05R/23L

12001 ft. x 200 ft.
PEM
Good
NONE
HIGH
79 /R/C/W/T
--
--
--
--
  Runway 05R Runway 23L
True Heading 42°222°
Traffic Pattern
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 36° 48' 20"N 36° 49' 48"N
Longitude 76° 02' 60"W 76° 01' 21"W
Elevation 17' 21'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights ALSF1 ALSF1
Centerline Lights Yes Yes
Runway End Identifier Lights

Runway 14L/32R

8001 ft. x 150 ft.
PEM
Good
NONE
HIGH
76 /R/C/W/T
--
--
--
--
  Runway 14L Runway 32R
True Heading 134°314°
Traffic Pattern
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 36° 50' 05"N 36° 49' 10"N
Longitude 76° 02' 13"W 76° 01' 02"W
Elevation 19' 20'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights No No
Runway End Identifier Lights

Runway 14R/32L

8000 ft. x 200 ft.
PEM
Good
NONE
HIGH
75 /R/B/W/T
--
--
--
--
  Runway 14R Runway 32L
True Heading 134°314°
Traffic Pattern
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 36° 49' 60"N 36° 49' 05"N
Longitude 76° 02' 19"W 76° 01' 08"W
Elevation 19' 21'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights ALSF1
Centerline Lights Yes Yes
Runway End Identifier Lights
A110-1SERVICE-A-GEAR: A-G NML RIGGED ALL RWY EXC INBOARD RWY SHORTFIELD ARRESTING GEAR.
A110-10NS ABTMT: STRICT COMPLIANCE RQR WITH PROGRAM OUTLINED IN FLIP AP/1 SUPPL ARPT RMK.
A110-11CSTMS/AG/IMG: AVBL OCEANA NAS BASED TACTICAL ACFT ONLY. RQR 48 HR PN TO BASE OPS. AIRCREW RQR TO REMAIN IN ACFT TIL RELEASED BY CSTMS.
A110-12TWY A3, FEEDER TWY FROM A TWY TO RAMP AREA, 1ST FEEDER TWY SOUTH OF FUEL PITS.
A110-13HANGAR 145 AND REVISE RAMP AREA EXTENDING SE CORNER OF RAMP FROM JUST SOUTH OF FUEL PITS TO APRX THE END OF THE OVER RUNS.
A110-14RSTD: PPR RQR 48 HR PRIOR TO ARRIVAL FOR ALL NON-OCEANA BASED ACFT DSN 433-2161/2163, C757-433-2161/ 2163. STA TO FINAL LDG ONLY 0300-1200Z++, SUN 0000-1800Z++. VICE FINAL LDG ONLY 0400-1200Z++, SUN 0400-1800Z++.
A110-15RSTD: SUN ALL FIXED WING AND HEL FLT ABV 1000 FT ARR/DEP MUST FILE IFR FLT PLAN. VFR/SPECIAL VFR COPTER ROUTE MANDATORY FOR ALL HEL FLTS AT OR BLW 1000 FT.
A110-16TRAN ALERT - NO ON/OFF BASE TRNSP AVBL.
A110-17RMKS: ALL PLN SERVICES HAVE BEEN CONSOLIDATED WITH NAVAL STATION NORFOLK, CHAMBERS FIELD. FLT PLANS SHOULD BE FAXED TO DSN 565-9680, C757-445-9680. TO CONFIRM RECEIPT OF FLIGHT PLANS CALL NAVAL STATION NORFOLK, CHAMBERS FIELD FLIGHT PLANNING SUPERVISOR AT DSN 262-3419, C757-322-3419/3429.
A110-18RSTD PPR ALL NON-OCEANIA BASED ACFT DSN 433-2161/2163, C757-433-2161/2163 STRAIGHT-IN APCH TO FINAL LDG ONLY 0300-1200Z++, SUN 0300-1800Z++.
A110-19SUN ALL FIXED WING AND HEL FLIGHT ABV 1000 FT ARR/DEP NTU MUST FILE IFR FLT PLAN. VFR/SPECIAL VFR HEL ROUTE MANDATORY FOR ALL HEL FLTS AT OR BLW 1000 FT.
A110-2JA SU: (NC-10C) (NC-108)(MSU-200) CTC AIR OPS DUTY OFFICER TO ENSURE AVBL.
A110-20ACLS AVBL MON-FRI 1400-0430Z++.
A110-21TFC PAT BREAK-1500. SIMULTANEOUS LDG/DEP ARE CONDUCTED ON PARL RWY LOCATED 700 FT APART.
A110-22EXTV JET TRNG OCEANA NAS/FENTRESS NALF. REDUCED RWY SEPN STD IN EFFECT USN/USMC ACFT. DUR PEAK PERIODS EXPT ONE APCH TO FULL STOP LDG.
A110-23DRG PEAK PERIODS EXPECT ONE APCH TO FULL STOP LDG.
A110-24CLASS D AND CLASS E-EXT AVAIL 0500-0459Z++ SUN-SAT EXC BY NOTAM. SEE FLIP AP/1 SUPPLEMENTARY ARPT INFO.
A110-25MISC: NS NORFOLK, CHAMBERS FLD COORD ALL FLT PLANNING SVCS. FLT PLANS SHOULD BE EMAILED TO KNGU.FLTPLNG.FCT@NAVY.MIL OR FAXED TO DSN 565-9680, C757 445-9680. TO CFM RECEIPT OF FLT PLANS CALL NS NORFOLK, CHAMBERS FLD FLT PLANNING SUPERVISOR AT DSN 262-3419/3429, C757 322-3419/3429.
A110-26CSTMS/AG/IMG AVBL OCEANA NAS BASED TACTICAL ACFT ONLY. REQUIRE 48 HR PRIOR NOTICE TO BASE OPS. AIRCREW RQR TO REMAIN IN ACFT UNTIL RLSD BY CUSTOMS.
A110-27DURING VMC ALL DEP AND PRACTICE INST APCH FLY RWY HDG AND DO NOT EXCEED 1000 FT UNTIL PAST DEP END DUE EXTV OVERHEAD TFC.
A110-28A/D USE CTN PARASAILING WILL TAKE PLACE ALONG THE COAST FROM NTU 350 CW 160 FROM COASTLINE TO 3 NM. SFC-400 FT. DAYTIME AND VMC ONLY. FROM 1 APR UNTIL 30 OCT.
A110-29MISC: HUFFER AIR START SVCS UNAVBL TO TSNT ACFT. USE CTN, PARASAILING WILL TAKE PLACE ALG THE COAST FM NTU R-350 TO NTU R-160 FM COASTLINE TO 3 NM, SFC-400 FT DALGT AND VMC ONLY FM 1 APR TIL 30 OCT. ALL SFCS WIP GRASS CUTTING ALG RWYS AND TWYS.
A110-3FUEL: J5. NO FUEL SVC 0430-0530Z++. LTD FUEL SVC AVBL 0330-0430Z++ AND 0530-1230Z++ DUE PERS RSTD. TRAN HOT PIT AVBL 1300-0330Z++ MON-FRI, PPR; UNAVBL WKEND/HOL.
A110-30FOR CIVIL ACFT LANDING PERMIT (CALP) INFO CTC AFLD MGR C757-433-2318/2161.
A110-31OVRN SFC RWY 23L AND 23R: PEM.
A110-32OVRN SFC RWY 32L AND 32R: ASP.
A110-33RWY 05L OVRN LEN: 1002 FT. RWY 05R OVRN LEN: 986 FT. RWY 14L OVRN LEN: 999 FT. RWY 23L OVRN LEN: 150 FT. RWY 23R OVRN LEN: 151 FT. RWY 32L OVRN LEN: 50 FT. RWY 32R OVRN LEN: 50 FT.
A110-4FLUID: SP LHOX LOX, UNAVAIL WKENDS & HOL.
A110-5OIL: UNAVAIL.
A110-6TRAN ALERT: TRAN LINE 1230-0330Z++ MON-FRI; 1300-2300Z++ SAT, SUN, AND HOL. LTD PRK/STOR FAC. DUR PEAK PERIODS EXTV DELAY IN TRAN SVG. JOSAC/NALO HAVE PRIORITY. NO LAV SVC OR POTABLE WATER AVBL.
A110-9TFC PAT: SIMULTANEOUS LDG/DEP ARE CONDUCTED ON PARL RWY LCTD 700 FT APART. EXTV JET TRNG OCEANA NAS/FENTRESS NALF. REDUCED RWY SEPN STD IN EFF USN/USMC ACFT. DUR PEAK PERIODS EXP ONE APCH TO FULL STOP LDG.
OCEANA NAS (APOLLO SOUCEK FLD) (ICAO: KNTU, IATA: NTU) is a private airport located in VIRGINIA BEACH, VA.
