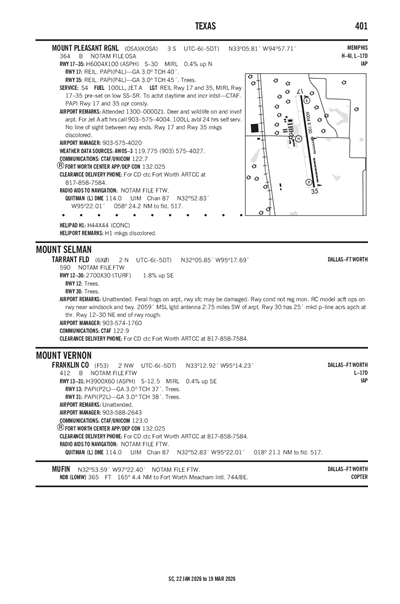

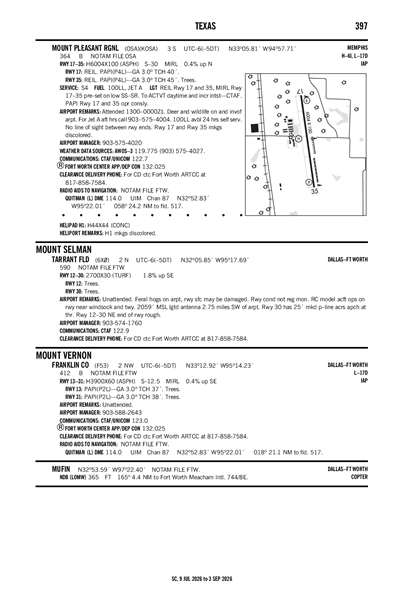

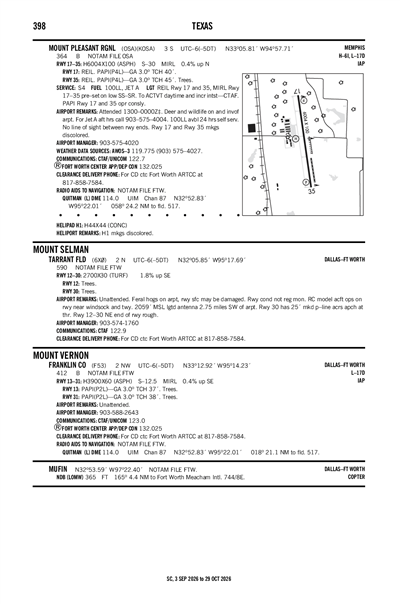

MOUNT PLEASANT RGNL - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KOSA
MOUNT PLEASANT RGNL
PublicPUB

3 miles S of MOUNT PLEASANT, TX
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
33° 05' 49"N 94° 57' 42"W
364' MSL
1364' MSL
04E
Jet A, 100LL
FORT WORTH (FTW)
MEMPHIS
FORT WORTH (ZFW)
5/16/24-6/13/24
KOSA VFR
10:35 PM CDT
Clear
10sm
69°F
68°F
29.79"Hg
Calm
AO2 T0205////
KOSA 180335Z AUTO 00000KT 10SM CLR 20/20 A2979 RMK AO2 T0205////
List Your Business

KOSA FBOs, Flight Schools and Ground Support

No FBOs, flight schools or aircraft ground support businesses are listed for this airport.

KOSA Ground Transportation (Taxi, Limo, Car Service)

No ground transportation services are listed for this airport.

KOSA Hotels

No hotels are listed for this airport.

KOSA Restaurants

No restaurants are listed for this airport.

KOSA Other Airport-Related Businesses

No other airport-related businesses are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.7 122.7

AWOS-3

AWOS-3
903-575-4027
 119.775

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KGGG (44nm)
Fri, 5/17 6:20 PM CDT
Fri, 5/17 7:00 PM CDT - Sat, 5/18 7:00 PM CDT
VFR
7:00 PM CDT - 10:00 PM CDT
Scattered 6,000'
Few 4,000'
6sm
Calm
VFR
10:00 PM CDT - 5:00 AM CDT
Scattered 2,500'
6sm
VRB° 3kts
VFR
5:00 AM CDT - 8:00 AM CDT
Mist
Sky Clear
6sm
VRB° 3kts
VFR
8:00 AM CDT - 4:00 PM CDT
Scattered 25,000'
6sm
240° 5kts
VFR
4:00 PM CDT - 7:00 PM CDT
Scattered 25,000'
6sm
270° 7kts
KGGG 172320Z 1800/1824 00000KT P6SM FEW040 SCT060
   FM180300 VRB03KT P6SM SCT025
   FM181000 VRB03KT 6SM BR SKC
   FM181300 24005KT P6SM SCT250
   FM182100 27007KT P6SM SCT250
KOSA
Domestic
5/17/241911Z !OSA 05/009 OSA OBST TOWER LGT (ASR 1254499) 330359.80N0950545.70W (7.0NM WSW OSA) 701.1FT (305.1FT AGL) U/S 2405171911-2406011811
5/17/241851Z !OSA 05/008 OSA OBST TOWER LGT (ASR 1306356) 330406.92N0950553.91W (7.1NM WSW OSA) 707FT (295FT AGL) U/S 2405171851-2407011851
5/3/241030Z !OSA 05/003 OSA OBST TOWER LGT (ASR 1047147) 331352.10N0950126.70W (8.6NM NNW OSA) 910.1FT (500.0FT AGL) U/S 2405031030-2408311030
4/26/242245Z !OSA 04/023 OSA OBST TOWER LGT (ASR 1251774) 330345.30N0945811.30W (2.1NM S OSA) 561.0FT (198.2FT AGL) U/S 2404262245-2407250400
4/19/241313Z !OSA 04/014 OSA OBST TOWER LGT (ASR 1047445) 330954.00N0950021.00W (4.6NM NNW OSA) 585.3FT (247.4FT AGL) U/S 2404191313-2406192359
4/5/240635Z !OSA 04/004 OSA OBST TOWER LGT (ASR 1219037) 331211.30N0945811.10W (6.4NM N OSA) 738.8FT (315.0FT AGL) U/S 2404050635-2408030635
4/4/241418Z !OSA 04/003 OSA OBST TOWER LGT (ASR 1055343) 330031.00N0950415.00W (7.7NM SW OSA) 810.4FT (400.3FT AGL) U/S 2404041418-2407042359
No
0700-1800
CITY OF MOUNT PLEASANT
501 NORTH MADISON
MOUNT PLEASANT, TX 75455
Phone: 903-575-4000
PAUL HENDERSON
501 MIKE HALL PARKWAY
MOUNT PLEASANT, TX 75455
Phone: 903-575-4020
FORT WORTH FSS (FTW)
Toll Free: 1-800-WX-BRIEF
OSA
--
REIL RWY 17 & 35, MIRL RWY 17/35 PRE-SET ON LOW SS-SR. TO ACTVT DAYTIME & INCR INTST - CTAF. PAPI RWY 17 & 35 OPR CONSLY.
N/A
Yes - Lighted
Yes
No
Hanger, Tie-Down
No
96
24
5
7
0
0
Major
Major
None
None
None

Runway 17/35

6004 ft. x 100 ft.
ASPH
Good
NONE
MED

30,000lbs
--
--
--
  Runway 17 Runway 35
True Heading 172°352°
Traffic Pattern
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 33° 06' 18"N 33° 05' 19"N
Longitude 94° 57' 47"W 94° 57' 37"W
Elevation 364' 342'
Threshold Crossing Height 40 ft. AGL 45 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes

Runway H1

44 ft. x 44 ft.
CONC
Fair
NONE


--
--
--
--
  Runway H1 Runway
True Heading 87°267°
Traffic Pattern
Markings BSC
Markings Condition FAIR
Latitude 33° 05' 50"N N/A
Longitude 94° 57' 48"W N/A
Elevation 364' --
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-1DEER & WILDLIFE ON & INVOF ARPT.
A110-2NO LINE OF SIGHT BETWEEN RUNWAY ENDS.
A110-3FOR CD CTC FORT WORTH ARTCC AT 817-858-7584.
MOUNT PLEASANT RGNL (ICAO: KOSA, IATA: OSA) is a public airport located in MOUNT PLEASANT, TX.
