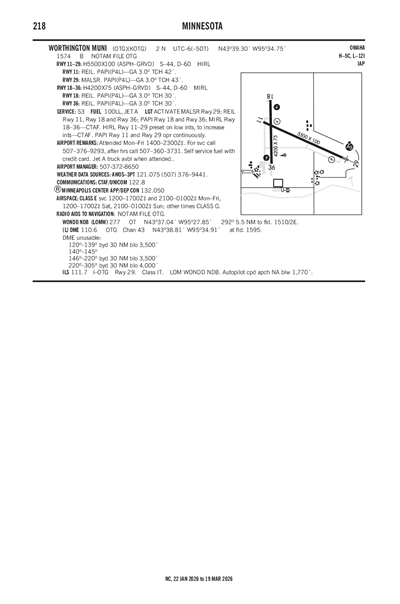

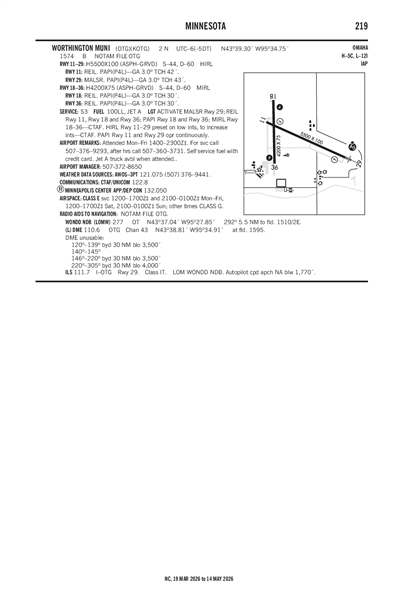

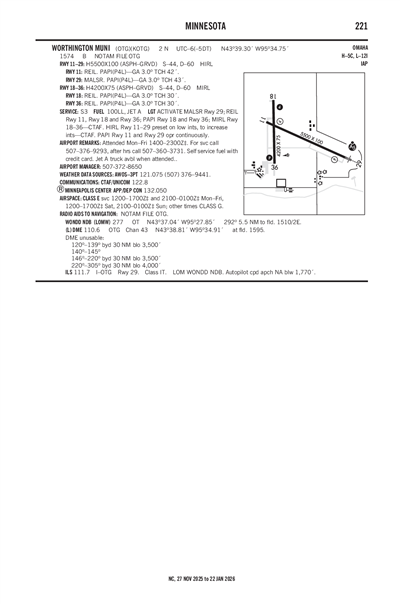

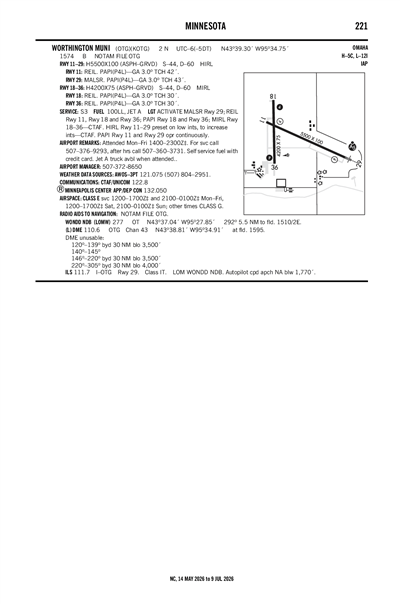

WORTHINGTON MUNI - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KOTG
WORTHINGTON MUNI
PublicPUB

2 miles N of WORTHINGTON, MN
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
43° 39' 18"N 95° 34' 45"W
1574' MSL
2574' MSL
02E
Jet A, 100LL
PRINCETON (PNM)
OMAHA
MINNEAPOLIS (ZMP)
5/16/24-6/13/24
KOTG VFR
12:56 AM CDT
Clear
N/A
68°F
53°F
29.59"Hg
180° 17kts
Gusts 23kts
AO2 SLP013 60001 T02000117 10222 20200 50001 PWINO $
KOTG 180556Z AUTO 18017G23KT CLR 20/12 A2959 RMK AO2 SLP013 60001 T02000117 10222 20200 50001 PWINO $
List Your Business

KOTG FBOs, Flight Schools and Ground Support

Promote Listing
Integrity Aviation
Freq: 122.8
Phone: (507) 376-9293
No Rating Available
0 Reviews (Read | Sign In To Write)
Phillips 66
As of 5/7
 100LL Jet A Jet A+ Mogas UL94
Self Serve 6.06
Full Serve 6.06 5.25 5.25

KOTG Ground Transportation (Taxi, Limo, Car Service)

No ground transportation services are listed for this airport.

KOTG Hotels

No hotels are listed for this airport.

KOTG Restaurants

No restaurants are listed for this airport.

KOTG Other Airport-Related Businesses

No other airport-related businesses are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.8 122.8

AWOS-3PT

AWOS-3PT
507-376-9441
 121.075

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KFSD (51nm)
Sat, 5/18 12:20 AM CDT
Sat, 5/18 1:00 AM CDT - Sun, 5/19 1:00 AM CDT
VFR
1:00 AM CDT - 6:00 AM CDT
Scattered 20,000'
6sm
180° 16kts
Gusts 27kts
Shear 200° 50kts @ 2000'
VFR
6:00 AM CDT - 7:00 AM CDT
Scattered 15,000'
6sm
240° 14kts
Gusts 23kts
VFR
7:00 AM CDT - 9:00 AM CDT
Few 25,000'
6sm
280° 14kts
Gusts 29kts
VFR
9:00 AM CDT - 2:00 PM CDT
Sky Clear
6sm
320° 19kts
Gusts 30kts
VFR
2:00 PM CDT - 8:00 PM CDT
Sky Clear
6sm
300° 17kts
Gusts 23kts
VFR
8:00 PM CDT - 1:00 AM CDT
Few 25,000'
6sm
300° 7kts
KFSD 180520Z 1806/1906 18016G27KT P6SM SCT200 WS020/20050KT
   FM181100 24014G23KT P6SM SCT150
   FM181200 28014G29KT P6SM FEW250
   FM181400 32019G30KT P6SM SKC
   FM181900 30017G23KT P6SM SKC
   FM190100 30007KT P6SM FEW250
KOTG
Domestic
5/16/242027Z !OTG 05/003 OTG OBST WIND TURBINE LGT (ASN 2019-WTE-589-OE) 434651N0954541W (10.9NM NW OTG) 2171FT (499FT AGL) U/S 2405162027-2406162359
5/13/240426Z !OTG 05/002 OTG OBST TOWER LGT (ASR 1031905) 433611.40N0954210.80W (6.2NM WSW OTG) 2169.0FT (484.9FT AGL) U/S 2405130426-2405280326
5/11/240208Z !OTG 05/001 OTG OBST TOWER LGT (ASR 1023803) 434331.00N0952127.00W (10.5NM ENE OTG) 1849.1FT (419.0FT AGL) U/S 2405110208-2409080208
FDC
2/23/231252Z !FDC 3/8740 OTG IAP WORTHINGTON MUNI, WORTHINGTON, MN.
RNAV (GPS) RWY 11, AMDT 1A...
LPV VIS 1 ALL CATS.
LNAV/VNAV VIS 1 ALL CATS.
2302231252-2502231252EST
No
MON-FRI 0800-1700
FOR SVC CALL 507-376-9293; AFT HRS CALL 507-360-3731.
CITY OF WORTHINGTON
303 NINTH ST., BOX 279
WORTHINGTON, MN 56187-2335
Phone: 507-372-8600
TODD WIETZEMA
303 NINTH ST., BOX 279
WORTHINGTON, MN 56817-0279
Phone: 507-372-8650
PRINCETON FSS (PNM)
Toll Free: 1-800-WX-BRIEF
OTG
--
ACTVT MALSR RWY 29; REIL RWY 11, 18 & 36; PAPI RWY 18 & 36; MIRL RWY 18/36 - CTAF. HIRL RWY 11/29 PRESET ON LOW INTST; TO INCR INTST - CTAF. PAPI RWY 11 & 29 OPR CONSLY.
N/A
Yes - Lighted
Yes
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
17
3
1
0
0
0
Major
Minor
None
None
Crop Dusting
Pilot Instruction
Aircraft Rental
Aircraft Sales

Runway 11/29

5500 ft. x 100 ft.
ASPH
Good
GRVD
HIGH

44,000lbs
60,000lbs
--
--
  Runway 11 Runway 29
True Heading 115°295°
Traffic Pattern Left Left
Markings NPI PIR
Markings Condition GOOD GOOD
Latitude 43° 39' 27"N 43° 39' 05"N
Longitude 95° 35' 07"W 95° 33' 59"W
Elevation 1,574' 1,566'
Threshold Crossing Height 42 ft. AGL 43 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights MALSR
Centerline Lights
Runway End Identifier Lights Yes

Runway 18/36

4200 ft. x 75 ft.
ASPH
Good
GRVD
MED

44,000lbs
60,000lbs
--
--
  Runway 18 Runway 36
True Heading 180°360°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 43° 39' 42"N 43° 39' 00"N
Longitude 95° 35' 00"W 95° 35' 00"W
Elevation 1,571' 1,574'
Threshold Crossing Height 30 ft. AGL 30 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes
No remarks are listed for this airport.
WORTHINGTON MUNI (ICAO: KOTG, IATA: OTG) is a public airport located in WORTHINGTON, MN.
