iFlightPlanner



...

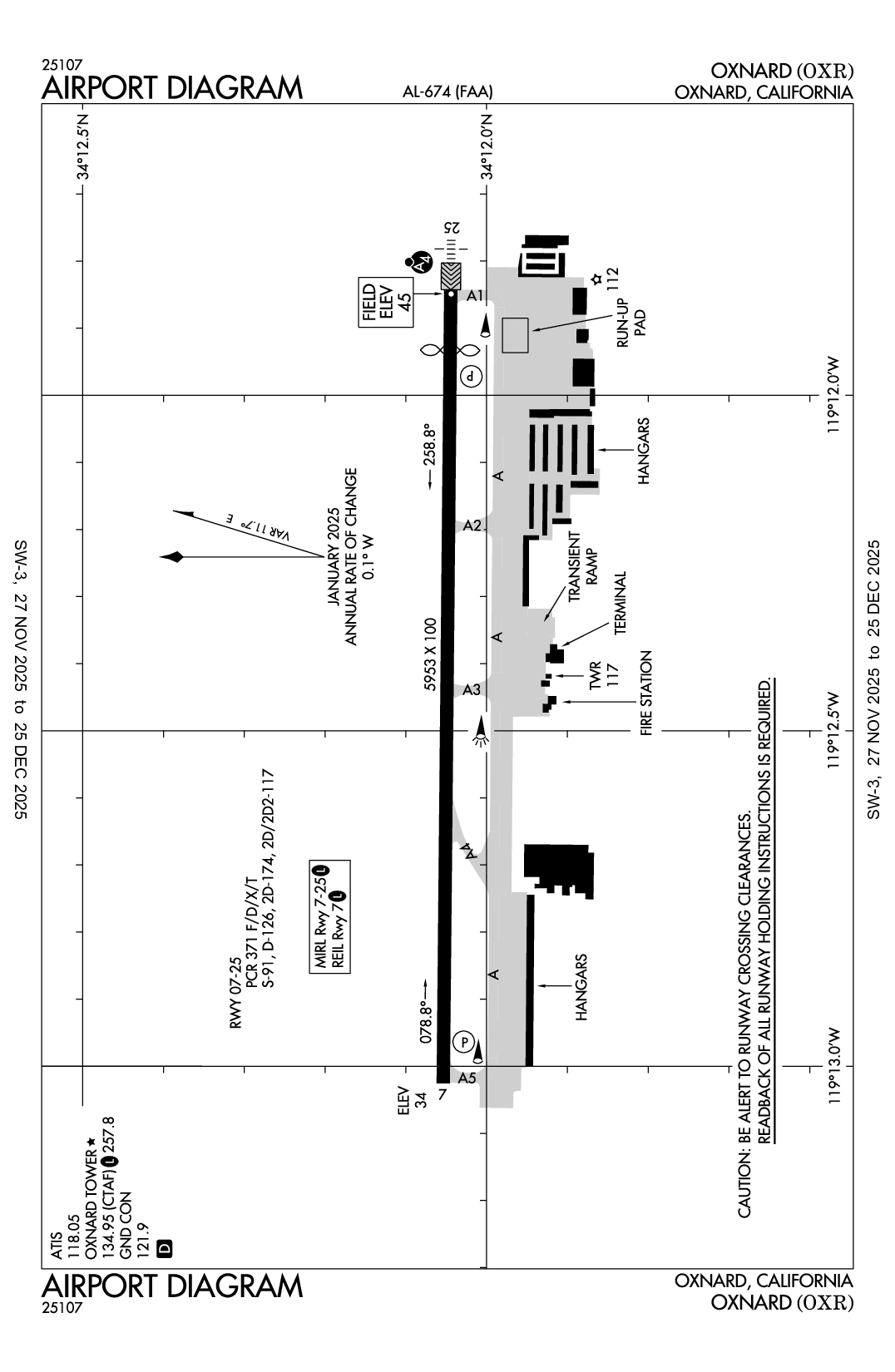

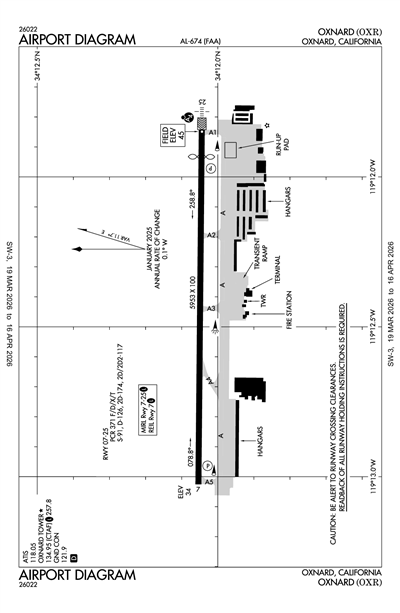

OXNARD - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KOXR
OXNARD
PublicPUB

1 miles W of OXNARD, CA
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
34° 12' 03"N 119° 12' 26"W
45' MSL
1045' MSL
15E
Jet A, 100LL
HAWTHORNE (HHR)
LOS ANGELES
LOS ANGELES (ZLA)
5/16/24-6/13/24
KOXR MVFR
8:02 PM PDT
Overcast 2,500'
10sm
57°F
54°F
29.94"Hg
260° 9kts
AO2 T01390122 $
KOXR 180302Z 26009KT 10SM OVC025 14/12 A2994 RMK AO2 T01390122 $
List Your Business

KOXR FBOs, Flight Schools and Ground Support

Promote Listing
Golden West Jet Center
Freq: 122.95
Phone: (805) 382-9333
No Rating Available
0 Reviews (Read | Sign In To Write)
Avfuel
As of 4/26
 100LL Jet A Jet A+ Mogas UL94
Self Serve
Full Serve 6.69 5.21 5.28 6.95
Promote Listing
Oxnard Aircraft & Jet Center
Freq: 122.95
Phone: (805) 985-2490
Other: (805) 985-5416
No Rating Available
0 Reviews (Read | Sign In To Write)
Phillips 66
As of 5/15
 100LL Jet A Jet A+ Mogas UL94
Self Serve
Full Serve 6.50 5.23 5.28

KOXR Ground Transportation (Taxi, Limo, Car Service)

No ground transportation services are listed for this airport.

KOXR Hotels

No hotels are listed for this airport.

KOXR Restaurants

No restaurants are listed for this airport.

KOXR Other Airport-Related Businesses

No other airport-related businesses are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
-- 134.95

ATIS

ATIS
805-985-1758
 118.05

Ground

GND/P
 121.9

Tower

LCL/P
 134.95

FAA A/FD Pages

Airport Diagrams

Airport Minimums

Departure Procedures

Hotspot

  • No Documents

Standard Term. Arrival

Instrument Approach

Terminal Area Forecast

KOXR
Fri, 5/17 4:42 PM PDT
Fri, 5/17 5:00 PM PDT - Sat, 5/18 5:00 PM PDT
MVFR
5:00 PM PDT - 8:00 PM PDT
Overcast 2,500'
Scattered 1,500'
6sm
260° 10kts
MVFR
8:00 PM PDT - 1:00 PM PDT
Overcast 2,500'
Broken 1,500'
6sm
VRB° 3kts
MVFR
1:00 PM PDT - 5:00 PM PDT
Broken 2,500'
6sm
260° 10kts
KOXR 172342Z 1800/1824 26010KT P6SM SCT015 OVC025
   FM180300 VRB03KT P6SM BKN015 OVC025
   FM182000 26010KT P6SM BKN025 AMD NOT SKED
KOXR
Domestic
5/17/242002Z !OXR 05/044 OXR SVC AUTOMATED WX BCST SYSTEM U/S 2405172002-2405232359EST
5/17/241852Z !OXR 05/043 OXR NAV ILS RWY 25 GP U/S 2405171852-2406090300
5/17/241300Z !OXR 05/042 OXR AIRSPACE SEE ZLA 05/072 TETHERED DRONE DLY 1300-0300 2405171300-2405220300
5/17/241300Z !OXR 05/039 OXR AIRSPACE SEE ZLA 05/069 UAS DLY 1300-0300 2405171300-2405220300
5/9/241400Z !OXR 05/022 OXR TWY A2 CLSD 2405091400-2406060200EST
5/9/241400Z !OXR 05/021 OXR TWY A1 CLSD 2405091400-2406060200EST
5/9/241400Z !OXR 05/020 OXR TWY A BTN TWY A1 AND TWY A3 CLSD 2405091400-2406060200EST
2/8/241816Z !OXR 02/025 OXR OBST TOWER LGT (ASR 1019626) 341413.00N1191212.00W (2.2NM NE OXR) 363.2FT (313.3FT AGL) U/S 2402081816-2408082359
2/7/242331Z !OXR 02/021 OXR OBST TOWER LGT (ASR 1020674) 342055.00N1192016.00W (11.1NM NW OXR) 2307.1FT (254.9FT AGL) U/S 2402072331-2407312359
FDC
4/11/241132Z !FDC 4/9603 OXR IAP OXNARD, OXNARD, CA.
VOR RWY 25, AMDT 10D...
EQUIPMENT REQUIREMENTS NOTE: DME REQUIRED.
S-25 MDA 620/HAT 576; CIRCLING CATS A/B MDA 620/HAA 575.
CHANGE NOTE: FOR INOPERATIVE ALS, WHEN USING CAMARILLO ALTIMETER
SETTING, INCREASE CAT C/D VISIBILITY TO 1 3/4 SM.
DELETE NOTE: INOP TABLE DOES NOT APPLY.
THIS IS VOR RWY 25, AMDT 10E. 2404111132-PERM
4/2/241652Z !FDC 4/5488 OXR IAP OXNARD, OXNARD, CA.
RNAV (GPS) RWY 25, AMDT 1C...
CHART VDP AT 1.31 NM TO RW25.
DELETE PROFILE NOTE: *LNAV ONLY. DELETE ASTERISK FROM MINIMUM
ALTITUDE 1720.
LPV DA 424/HAT 380 ALL CATS. LNAV/VNAV DA 421/HAT 377 ALL CATS.
CHANGE ALTIMETER SETTING NOTE TO READ: WHEN LOCAL ALTIMETER SETTING
NOT RECEIVED, USE CAMARILLO
ALTIMETER SETTING AND INCREASE LPV DA TO 440 FEET, LNAV/VNAV DA TO
437 FEET. INCREASE ALL MDAS 20 FEET AND CIRCLING CAT C VISIBILITY
1/4 SM..
THIS IS RNAV (GPS) RWY 25, AMDT 1D. 2404021652-PERM
3/13/241925Z !FDC 4/6869 OXR SID OXNARD, OXNARD, CA.
SKIFF SEVEN DEPARTURE...
KWANG TRANSITION,VENTURA TRANSITION NA EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
VTU VOR/DME OUT OF SERVICE. 2403131925-2407241925EST
3/13/241925Z !FDC 4/6868 OXR SID OXNARD, OXNARD, CA.
CAMARILLO SIX DEPARTURE...
VENTURA TRANSITION NA EXCEPT FOR AIRCRAFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
VTU VOR/DME OUT OF SERVICE. 2403131925-2407241925EST
11/2/231427Z !FDC 3/5820 OXR IAP OXNARD, OXNARD, CA.
VOR RWY 25, AMDT 10D...
TERMINAL ROUTE FROM GINNA (IAF) TO YOUBE INT/RADAR (IF/IAF) NA EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS.
CMA DME UNUSABLE.
2311021427-2511021427EST
Yes
0500-0030
COUNTY OF VENTURA
555 AIRPORT WAY
CAMARILLO, CA 93010
Phone: 805-388-4372
KEITH FREITAS
2889 W 5TH ST
OXNARD, CA 93030
Phone: 805-388-4372
HAWTHORNE FSS (HHR)
Toll Free: 1-800-WX-BRIEF
OXR
--
WHEN ATCT CLSD, ACTVT MALSF RWY 25, REIL RWY 07, MIRL RWY 07-25 - CTAF.
N/A
Yes - Lighted
Yes
No
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
89
23
2
8
0
0
Major
Major
None
High & Low Pressure
Air Freight
Crop Dusting
Cargo Handling
Charter Service
Pilot Instruction
Aircraft Rental
Aircraft Sales

Runway 07/25

5953 ft. x 100 ft.
ASPH
Fair
NONE
MED
30 /F/D/X/T
91,000lbs
126,000lbs
174,000lbs
117,000lbs
  Runway 07 Runway 25
True Heading 91°271°
Traffic Pattern Left Left
Markings NPI PIR
Markings Condition FAIR FAIR
Latitude 34° 12' 03"N 34° 12' 03"N
Longitude 119° 13' 01"W 119° 11' 51"W
Elevation 34' 45'
Threshold Crossing Height 40 ft. AGL 59 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4R P4L
Approach Lights MALSF
Centerline Lights No No
Runway End Identifier Lights Yes
A110-1NO TOUCH & GO, STOP & GO, OR TAXI BACK OPNS 2000-0700 LCL AFTER THREE CONSECUTIVE PATS, THEN TAXI BACK ONLY.
A110-5ARPT OPNS LCTD AT BASE OF ATCT; CTC ON 134.95 WHEN ATCT CLSD OR CALL 805-947-6804.
A110-6FLY FRIENDLY PROCEDURES IN EFCT. AVOID HIGH PWR SETTINGS OVER RESIDENTIAL AREA. KEEP DNWND NORTH OF WOOLEY RD. TURN LEFT CROSSWIND LEG BFR CANAL OR FLY 1/2 MILE PAST SHORELINE. EXP RIGHT TFC RWY 26. SEE VCAIRPORTS.ORG FOR FULL PROC.
A110-7WILDLIFE ON AND INVOF AIRPORT.
A110-8ARPT OPNS SUPVR ADDNL CTC DIR OF ARPTS - (805) 388-4200.
OXNARD (ICAO: KOXR, IATA: OXR) is a public airport located in OXNARD, CA.
