ROBERT F SWINNIE - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KPHH
ROBERT F SWINNIE
PublicPUB

2 miles E of ANDREWS, SC
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
33° 27' 06"N 79° 31' 34"W
26' MSL
1026' MSL
06W
100LL
ANDERSON (AND)
CHARLOTTE
JACKSONVILLE (ZJX)
5/16/24-6/13/24
KGGE (13nm) VFR
12:15 AM EDT
Clear
10sm
72°F
72°F
29.93"Hg
210° 4kts
AO2 LTG DSNT SW
KGGE 180415Z AUTO 21004KT 10SM CLR 22/22 A2993 RMK AO2 LTG DSNT SW
List Your Business

KPHH FBOs, Flight Schools and Ground Support

No FBOs, flight schools or aircraft ground support businesses are listed for this airport.

KPHH Ground Transportation (Taxi, Limo, Car Service)

No ground transportation services are listed for this airport.

KPHH Hotels

No hotels are listed for this airport.

KPHH Restaurants

No restaurants are listed for this airport.

KPHH Other Airport-Related Businesses

No other airport-related businesses are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
-- 122.9

No communication frequencies available for this airport.

FAA A/FD Pages

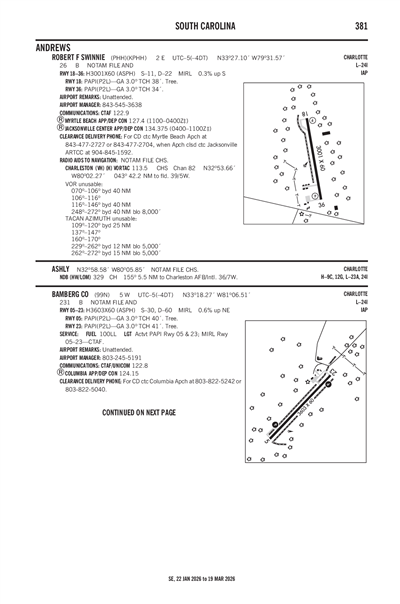

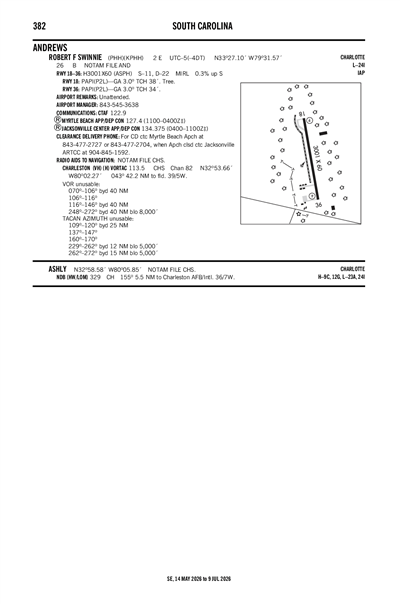

Airport Diagrams

  • No Documents

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KMYR (33nm)
Fri, 5/17 7:50 PM EDT
Fri, 5/17 8:00 PM EDT - Sat, 5/18 8:00 PM EDT
VFR
8:00 PM EDT - 11:00 PM EDT
Overcast 10,000'
Broken 7,000'
6sm
170° 6kts
VFR
11:00 PM EDT - 4:00 AM EDT
Showers in vicinity
Overcast 8,000'
Broken 5,000'
6sm
210° 5kts
VFR
4:00 AM EDT - 10:00 AM EDT
Light Showers and Rain
Overcast 7,000'
Broken 4,000'
6sm
240° 5kts
MVFR
10:00 AM EDT - 8:00 PM EDT
Light Showers and Rain
Overcast 3,000'
Broken 1,500'
6sm
210° 11kts
MVFR
2:00 PM EDT - 8:00 PM EDT
Thunderstorm and Rain and Mist
Overcast 2,000'
Scattered 700'
3sm
VRB° 20kts
Gusts 30kts
KMYR 172350Z 1800/1824 17006KT P6SM BKN070 OVC100
   FM180300 21005KT P6SM VCSH BKN050 OVC080
   FM180800 24005KT P6SM -SHRA BKN040 OVC070
   FM181400 21011KT 6SM -SHRA BKN015 OVC030
   PROB30 1818/1824 VRB20G30KT 3SM TSRA BR SCT007 OVC020CB
KPHH
Domestic
5/15/242230Z !AND 05/255 PHH OBST TOWER LGT (ASR 1234140) 333107.00N0793947.30W (7.8NM WNW PHH) 349.7FT (310.0FT AGL) U/S 2405152230-2406142359
5/14/240422Z !AND 05/235 PHH OBST TOWER LGT (ASR 1223797) 332521.50N0793022.90W (2.0NM SSE PHH) 313.0FT (285.1FT AGL) U/S 2405140422-2405290322
5/7/240237Z !AND 05/081 PHH OBST TOWER LGT (ASR 1306976) 331211.39N0793734.77W (15.9NM SSW PHH) 378FT (340FT AGL) U/S 2405070237-2406050001
5/6/240427Z !AND 05/064 PHH OBST TOWER LGT (ASR 1255685) 332102.00N0793243.70W (6.2NM S PHH) 282.8FT (254.9FT AGL) U/S 2405060427-2405210327
4/24/241152Z !AND 04/347 PHH OBST TOWER LGT (ASR 1325673) 333656.53N0791932.07W (14.3NM NE PHH) 342FT (310FT AGL) U/S 2404241152-2405242300
3/27/242013Z !AND 03/288 PHH AD AP AVGAS NOT AVBL 2403272013-2409302359
11/29/232208Z !AND 11/352 PHH OBST TOWER LGT (ASR 1242646) 334003.10N0792617.70W (13.8NM NNE PHH) 357.9FT (311.0FT AGL) U/S 2311292208-2406272359
No
UNATNDD
GEORGETOWN COUNTY
P.O. DRAWER 1270
GEORGETOWN, SC 29442
Phone: 843-546-4189
JIM TAYLOR
129 AIRPORT ROAD
GEORGETOWN, SC 29440
Phone: 843-545-3638
ANDERSON FSS (AND)
Toll Free: 1-800-WX-BRIEF
AND
Sunset to Sunrise
--
N/A
Yes - Lighted
Yes
No
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
9
0
0
0
0
1
None
None
None
None
None

Runway 18/36

3001 ft. x 60 ft.
ASPH
Good
NONE
MED

11,000lbs
22,000lbs
--
--
  Runway 18 Runway 36
True Heading 172°352°
Traffic Pattern Left Left
Markings BSC BSC
Markings Condition GOOD GOOD
Latitude 33° 27' 21"N 33° 26' 51"N
Longitude 79° 31' 37"W 79° 31' 32"W
Elevation 17' 26'
Threshold Crossing Height 38 ft. AGL 34 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P2L P2L
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-1FOR CD CTC MYRTLE BEACH APCH AT 843-477-2727 OR 843-477-2704, WHEN APCH CLSD CTC JACKSONVILLE ARTCC AT 904-845-1592.
ROBERT F SWINNIE (ICAO: KPHH, IATA: PHH) is a public airport located in ANDREWS, SC.
