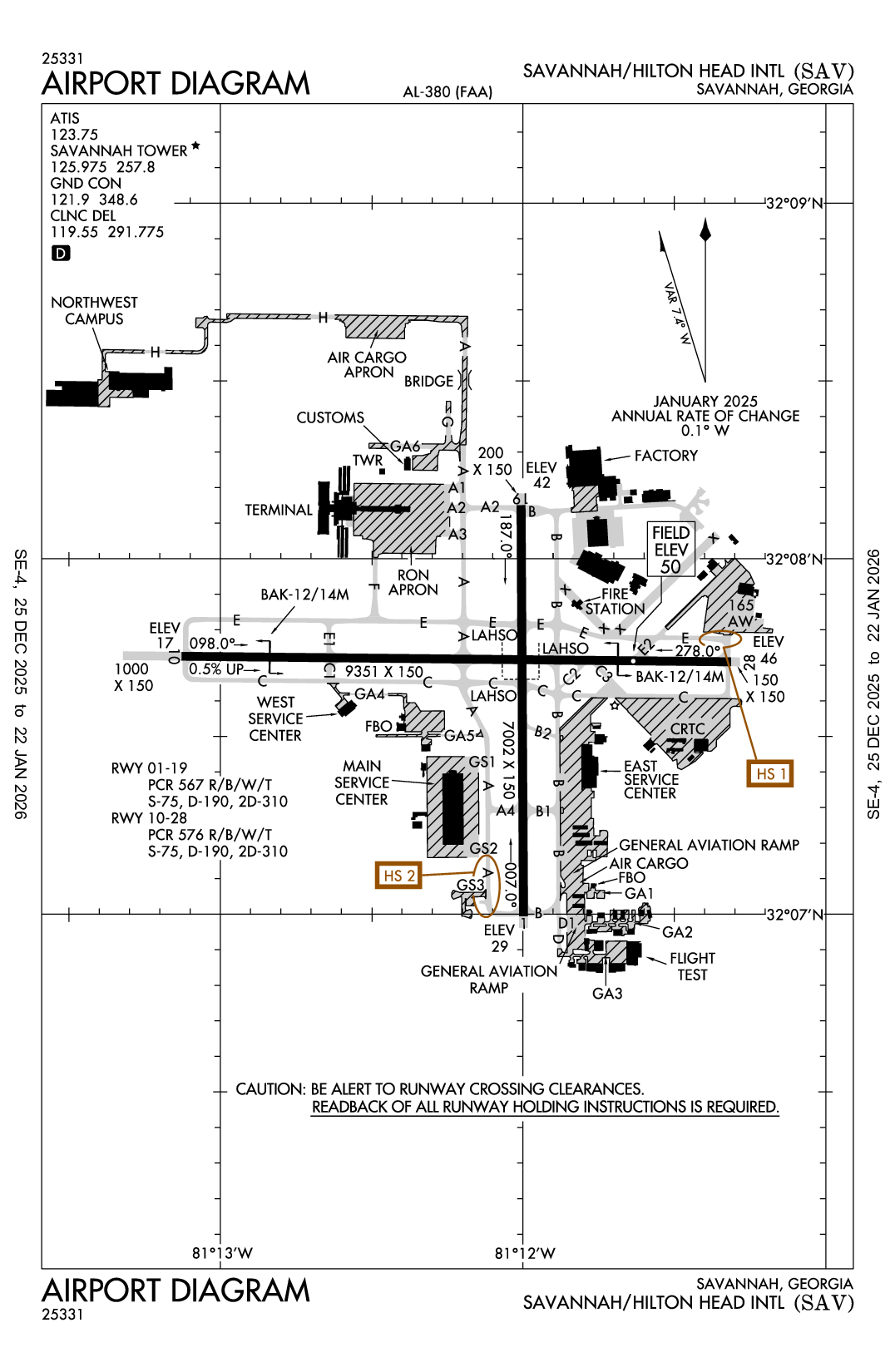

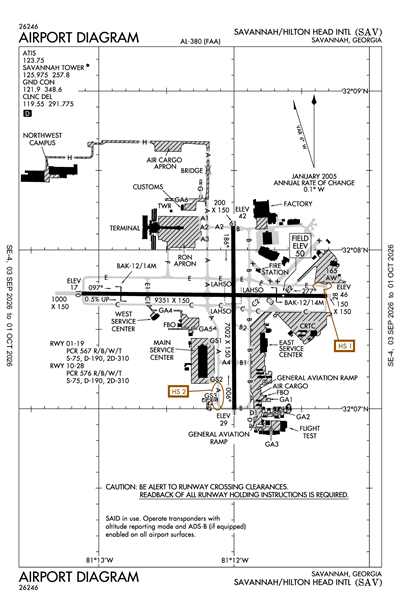

SAVANNAH/HILTON HEAD INTL - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KSAV
SAVANNAH/HILTON HEAD INTL
PublicPUB

7 miles NW of SAVANNAH, GA
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
32° 07' 39"N 81° 12' 08"W
50' MSL
1050' MSL
06W
Jet A, Jet A+, CILI, 100LL
MACON (MCN)
ATLANTA
JACKSONVILLE (ZJX)
5/16/24-6/13/24
KSAV VFR
1:53 AM EDT
Clear
10sm
73°F
70°F
29.89"Hg
Calm
AO2 SLP119 60000 T02280211 10256 20228 56013
KSAV 180553Z AUTO 00000KT 10SM CLR 23/21 A2989 RMK AO2 SLP119 60000 T02280211 10256 20228 56013
List Your Business

KSAV FBOs, Flight Schools and Ground Support

Sheltair
Freq: 128.825
Phone: (912) 965-0095
No Rating Available
0 Reviews (Read | Sign In To Write)
Avfuel
As of 4/28
 100LL Jet A Jet A+ Mogas UL94
Self Serve
Full Serve 8.42 6.64 6.71
Promote Listing
Signature Aviation
Freq: 130.375
Phone: (912) 964-1557
No Rating Available
0 Reviews (Read | Sign In To Write)
Other
As of 5/17
 100LL Jet A Jet A+ Mogas UL94
Self Serve
Full Serve 7.60 6.44 6.45

KSAV Ground Transportation (Taxi, Limo, Car Service)

No ground transportation services are listed for this airport.

KSAV Hotels

No hotels are listed for this airport.

KSAV Restaurants

No restaurants are listed for this airport.

KSAV Other Airport-Related Businesses

No other airport-related businesses are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.95 125.975

ATIS

ATIS
 123.75

Approach/Departure

APCH/P DEP/P
270-010
 118.4
APCH/P DEP/P
110-269
 120.4
APCH/P DEP/P IC
011-109
 125.3
APCH/S DEP/S
 121.1

Clearance Delivery

CD/P
 119.55

Emergency

EMERG
 121.5

Ground

GND/P
 121.9

Tower

LCL/P
 125.975

Other

CLASS C
270-010
 118.4
CLASS C
110-269
 120.4
CLASS C
011-109
 125.3

Terminal Area Forecast

KSAV
Sat, 5/18 1:22 AM EDT
Sat, 5/18 2:00 AM EDT - Sun, 5/19 2:00 AM EDT
VFR
2:00 AM EDT - 10:00 AM EDT
Overcast 10,000'
6sm
190° 5kts
VFR
10:00 AM EDT - 2:00 PM EDT
Light Showers and Rain
Broken 5,000'
Scattered 2,500'
6sm
250° 9kts
MVFR
Temporary 10:00 AM EDT - 2:00 PM EDT
Thunderstorm and Rain
Broken 2,200'
3sm
Calm
VFR
2:00 PM EDT - 6:00 PM EDT
Light Showers and Rain and Thunderstorm in vicinity
Overcast 15,000'
Broken 3,500'
6sm
250° 11kts
VFR
6:00 PM EDT - 10:00 PM EDT
Showers in vicinity
Broken 8,000'
6sm
250° 9kts
VFR
10:00 PM EDT - 2:00 AM EDT
Overcast 25,000'
Scattered 5,000'
6sm
220° 5kts
KSAV 180522Z 1806/1906 19005KT P6SM OVC100
   FM181400 25009KT P6SM -SHRA SCT025 BKN050
   TEMPO 1814/1818 3SM TSRA BKN022CB
   FM181800 25011KT P6SM -SHRA VCTS BKN035CB OVC150
   FM182200 25009KT P6SM VCSH BKN080
   FM190200 22005KT P6SM SCT050 OVC250
KSAV
Domestic
5/17/240456Z !SAV 05/034 SAV OBST TOWER LGT (ASR 1280339) 320342.70N0810422.60W (7.6NM ESE SAV) 162.1FT (143.0FT AGL) U/S 2405170456-2406010356
5/15/240214Z !SAV 05/031 SAV OBST TOWER LGT (ASR 1013480) 320258.70N0810930.80W (5.1NM SSE SAV) 298.6FT (267.7FT AGL) U/S 2405150214-2409120214
5/10/242322Z !SAV 05/027 SAV OBST TOWER LGT (ASR 1018344) 320326.50N0810846.10W (5.0NM SE SAV) 519.7FT (509.8FT AGL) U/S 2405102322-2406090001
5/8/241632Z !SAV 05/019 SAV OBST TOWER LGT (ASR 1217177) 321834.70N0812340.00W (14.5NM NW SAV) 366.1FT (303.1FT AGL) U/S 2405081632-2405230400
5/8/241626Z !SAV 05/018 SAV OBST TOWER LGT (ASR 1042833) 320910.90N0810308.90W (7.8NM ENE SAV) 254.9FT (248.0FT AGL) U/S 2405081626-2405230400
5/7/240619Z !SAV 05/015 SAV OBST TOWER LGT (ASR 1249397) 321649.80N0811139.20W (9.2NM NE SAV) 557.7FT (503.9FT AGL) U/S 2405070619-2405220519
5/6/241530Z !SAV 05/006 SAV OBST TOWER LGT (ASR 1023093) 320749.00N0812352.00W (10.0NM W SAV) 296.9FT (265.1FT AGL) U/S 2405061530-2408040400
5/2/240143Z !SAV 05/002 SAV OBST TOWER LGT (ASR 1021802) 321729.70N0811454.40W (10.1NM NNW SAV) 431.8FT (359.9FT AGL) U/S 2405020143-2408300143
4/30/240027Z !SAV 04/054 SAV OBST TOWER LGT (ASR 1028296) 320249.00N0810441.00W (7.8NM SE SAV) 546.6FT (522.0FT AGL) U/S 2404300027-2407302359
4/23/240026Z !SAV 04/045 SAV OBST TOWER LGT (ASR 1312674) 321419.16N0812506.23W (12.7NM WNW SAV) 337FT (295FT AGL) U/S 2404230026-2405220001
4/6/241601Z !SAV 04/013 SAV OBST TOWER LGT (ASR 1031374) 320407.00N0810535.00W (6.5NM ESE SAV) 411.1FT (367.1FT AGL) U/S 2404061601-2407050400
4/1/241058Z !SAV 04/001 SAV NAV ILS RWY 01 LOC/GP U/S 2404011058-2412312300
3/19/241709Z !SAV 03/033 SAV OBST TOWER LGT (ASR 1019578) 322034.70N0811427.90W (13.0NM N SAV) 418.0FT (347.1FT AGL) U/S 2403191709-2406170400
3/18/241752Z !SAV 03/029 SAV OBST TOWER LGT (ASR 1025117) 321441.20N0811227.00W (7.0NM N SAV) 285.1FT (265.1FT AGL) U/S 2403181752-2406160400
3/15/241629Z !SAV 03/025 SAV OBST TOWER LGT (ASR 1039122) 322202.90N0811638.10W (14.8NM NNW SAV) 549.2FT (476.0FT AGL) U/S 2403151629-2406100400
3/11/241801Z !SAV 03/020 SAV OBST TOWER LGT (ASR 1025737) 321732.90N0811446.80W (10.1NM NNW SAV) 338.3FT (265.1FT AGL) U/S 2403111801-2406090400
6/23/231020Z !SAV 06/029 SAV OBST CRANE (ASN 2022-ASO-7798-NRA) 320721N0811149W (0.4NM SE SAV) 185FT (150FT AGL) FLAGGED AND LGTD DLY SR-SS 2306231020-2406020027
5/30/221307Z !SAV 05/051 SAV AD AP SELF SERVE FUEL NOT AVBL 2205301307-PERM
FDC
5/8/241200Z !FDC 4/9892 SAV ODP SAVANNAH/HILTON HEAD INTL, SAVANNAH, GA.
TAKEOFF MINIMUMS AND (OBSTACLE) DEPARTURE PROCEDURES AMDT 7...
ADD TAKEOFF OBSTACLE NOTE: RWY 10, TEMPORARY CRANE 4637FT FROM DER, 1250FT RIGHT OF CENTERLINE, 170FT AGL/ 184FT MSL (2023-ASO-3551-OE).
ALL OTHER DATA REMAINS AS PUBLISHED. 2405081200-2406021641EST
4/19/241444Z !FDC 4/3042 SAV IAP SAVANNAH/HILTON HEAD INTL, SAVANNAH, GA.
RNAV (GPS) Z RWY 28, AMDT 2C...
LPV DA 375/HAT 325 ALL CATS.
LNAV/VNAV DA 486/HAT 436 ALL CATS.
TEMPORARY CRANE 275FT MSL 1984FT SOUTHWEST OF RWY 28 (2021-ASO-343-NRA).
2404191444-2406211444EST
4/19/241444Z !FDC 4/3041 SAV IAP SAVANNAH/HILTON HEAD INTL, SAVANNAH, GA.
VOR/DME OR TACAN RWY 1, ORIG-E...
S-1 MDA 540/HAT 501 ALL CATS.
CIRCLING MDA CATS A/B 640/HAA 590.
TEMPORARY CRANE 275FT MSL 1984FT SOUTHWEST OF RWY 28 (2021-ASO-343-NRA).
TEMPORARY CRANE 226 MSL 1.39NM SE OF KSAV (2019-ASO-7636-NRA).
2404191444-2406211444EST
4/19/241444Z !FDC 4/3040 SAV IAP SAVANNAH/HILTON HEAD INTL, SAVANNAH, GA.
ILS OR LOC RWY 10, AMDT 29...
RNAV (GPS) RWY 1, AMDT 2B...
RNAV (GPS) RWY 19, AMDT 2B...
VOR/DME OR TACAN RWY 19, ORIG-B...
VOR/DME-A, ORIG-B...
CIRCLING MDA CATS A/B 640/HAA 590.
TEMPORARY CRANE 275FT MSL 1984FT SOUTHWEST OF RWY 28 (2021-ASO-343-NRA).
2404191444-2406211444EST
4/19/241444Z !FDC 4/3039 SAV IAP SAVANNAH/HILTON HEAD INTL, SAVANNAH, GA.
ILS OR LOC RWY 1, AMDT 8C...
CIRCLING CATS A/B MDA 640/HAA 590. TEMPORARY CRANE 226 MSL 1.39NM SE OF KSAV (2019-ASO-7636-NRA). TEMPORARY CRANE 275FT MSL 1984FT SOUTHWEST OF RWY 28 (2021-ASO-343-NRA).
2404191444-2406211444EST
4/19/241444Z !FDC 4/3038 SAV IAP SAVANNAH/HILTON HEAD INTL, SAVANNAH, GA.
RNAV (GPS) RWY 10, AMDT 2C...
LPV DA 230/HAT 200, VIS RVR 1800 ALL CATS. LNAV/VNAV DA 530/HAT 500 ALL CATS. CIRCLING MDA 740/HAA 690 CATS C/D. VIS CAT C 2, CAT D 2-1/4. CHANGE NOTE: **LPV DA VISIBILITY RVR 1800 ALL CATS, RVR 2000 WHEN USING HILTON HEAD ISLAND, SC ALTIMETER SETTING, TO READ: **LPV DA VISIBILITY RVR 1800 AUTHORIZED WITH USE OF FD OR AP OR HUD TO DA ALL CATS, RVR 2000 AUTHORIZED WITH USE OF FD OR AP OR HUD TO DA ALL CATS WHEN USING HILTON HEAD ISLAND, SC ALTIMETER SETTING. TEMPORARY CRANE 226 MSL 1.39NM SE OF KSAV (2019-ASO-7636-NRA). TEMPORARY CRANE 275FT MSL 1984FT SOUTHWEST OF RWY 28 (2021-ASO-343-NRA).
2404191444-2406211444EST
6/29/230201Z !FDC 3/8432 SAV IAP SAVANNAH/HILTON HEAD INTL, SAVANNAH, GA.
ILS RWY 10 (SA CAT I - II), AMDT 29 ...
PROCEDURE NA EXC FOR RDO ALTIMETER TOLERANT ACFT AND ACFT USING APPROVED ALTERNATIVE METHODS OF COMPLIANCE DUE TO 5G C-BAND INTERFERENCE PLUS SEE AIRWORTHINESS DIRECTIVE 2023-10-02 AND 5G C-BAND DOMESTIC NOTICES. 2306290201-2506290151EST
Yes
0600-2300
SAVANNAH AIRPORT COMMISSION
400 AIRWAYS AVE.
SAVANNAH, GA 31408
Phone: 912-964-0514
GREG B. KELLY, A.A.E.
400 AIRWAYS AVE.
SAVANNAH, GA 31408
Phone: 912-964-0514
MACON FSS (MCN)
Toll Free: 1-800-WX-BRIEF
SAV
--
WHEN ATCT CLSD ACTVT MALSR RWY 10; REIL RWYS 19 & 28; HIRL RWYS 01/19 & 10/28 - CTAF. VASI RWY 19 AND PAPI RWYS 01, 10, & 28 OPER CONTINUOUSLY.
N/A
Yes - Lighted
Yes
No
Hanger, Tie-Down
Landing Rights Airport
NOT an Airport of Entry
82
27
29
4
8
0
Major
Major
High & Low Pressure
High & Low Pressure
Air Freight
Cargo Handling
Charter Service
Pilot Instruction
Aircraft Rental
Aircraft Sales

Runway 01/19

7002 ft. x 150 ft.
CONC
Good
GRVD
HIGH
70 /R/C/W/T
75,000lbs
190,000lbs
310,000lbs
--
  Runway 01 Runway 19
True Heading 360°180°
Traffic Pattern Left Left
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 32° 06' 60"N 32° 08' 09"N
Longitude 81° 11' 60"W 81° 12' 00"W
Elevation 29' 42'
Threshold Crossing Height 74 ft. AGL 52 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L V4R
Approach Lights
Centerline Lights
Runway End Identifier Lights No Yes

Runway 10/28

9351 ft. x 150 ft.
CONC
Good
GRVD
HIGH
70 /R/C/W/T
75,000lbs
190,000lbs
310,000lbs
--
  Runway 10 Runway 28
True Heading 91°271°
Traffic Pattern Left Left
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 32° 07' 44"N 32° 07' 43"N
Longitude 81° 13' 08"W 81° 11' 19"W
Elevation 17' 46'
Threshold Crossing Height 69 ft. AGL 66 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights MALSR
Centerline Lights Yes Yes
Runway End Identifier Lights Yes
A110-1BIRDS & DEER ON & INVOF OF ARPT.
A110-14TWY 'E2' CONNECTOR CLSD TO ACFT LANDING RY 28. DISTANCE FM TOUCHDOWN TOO SHORT FOR SAFE TURN.
A110-16ANG: COMBAT READINESS TRNG CNTR (CRTC)/ANG-PPR ALL ACFT. DOMINANCE CNTR (ADC)/ANG - PPR ALL ACFT. CTC BASE OPS DSN 860-3145/3497 C912-963-3145/3497. PPR RQ FOR ALL ACFT 72 HR PRIOR TO ARR, GOOD FOR +/- 1 HOUR. COORD OF PPR OUTSIDE OF SKED ARR/DEP BLOCK TIME BY PHONE IS RQR OR WILL BE CONSIDERED CNL. CLSD SAT-SUN, AND HOL. ABVL WEEKEND FOR HHQ OR OBO MSN WITH 24 HR PN TO AFLD MGMT. COMBAT READINESS TRNG CNTR (CRTC)/AIR DOMINANCE CENTER (ADC) AFLD MGMT DSN 860-3145/3497, C912-963-3145. DUTY HR 1230-2100Z++ MON-FRI. CLSD SAT-SUN, AND HOL; AVBL WKND FOR HHQ OR OBO MSN WITH 24 HR PN TO AFLD MGMT.
A110-17165AW (C130 UNIT) AFLD MGMT DSN 860-8184/8433, C912-966-8184. DUTY HR 1230-2100Z++MON-THUR, 1230-1900Z++ FRI. ACFT INBD TO 165AW CTC COMD POST DSN 860-8244, C912-966-8244 OR UHF 225.75 WITHIN 50 NM WITH ETA AND REQ. ADC COMSEC STORAGE UNAVBL. 165AW COMSEC STORAGE UP TO SECRET AVBL VIA COMD POST DUR NORMAL DUTY HR ONLY.
A110-20TRAN ACFT PROH WHEN TRAN ALERT UNAVBL. FLEET SVC UNAVBL.
A110-21ACFT/VEHICLES ON THE SOUTH END OF TWY A AND THE EAST END OF TWY E NOT VSB FROM THE ATCT.
A110-22BASH PHASE II 01 APR - 31 OCT. CTC TWR OR COMD POST FOR BIRD HAZ. WILDLIFE MOST ACTIVE +/- 1 HR OF SS OR SR.
A110-23ANG: MIL E2 TAXILANE.
A110-24FOR CD IF UNA TO CTC ON FSS FREQ, CTC SAVANNAH APCH AT 912-964-3205, WHEN APCH CLSD CTC JACKSONVILLE ARTCC AT 904-845-1592.
A110-25AP CLSD TO INTL GA ARR EXC 24HR PPR CTC US CUST 912-232-7507 AND SERVICING FIXED BASE OPR FOR PROCESSING AND INSTRUCTIONS.
A110-3NO 180 DEG TURNS ON ASPH FOR ACFT OVER 12500 LBS GROSS.
A110-4PPR FOR ACES OF GEN AVN ACFT ON THE ACR TRML RAMP CTC 912-964-7501.
A110-5TWY A, TWY B TWY C, TWY D, TWY E, TWY F, TWY G AND TWY H ARE LTD TO DUAL WHEEL ACFT UP TO 173,000 LBS AND DUAL TANDEM WHEEL ACFT UP TO 310,000 LBS.
A110-8TWY B2, C2 ARE LIMITED TO 12500 LBS.
A110-9TWY E CLSD FM RY 28 TO BUT NOT INCLUDING TWY E2 TO ACFT WITH WING SPAN OF 175 FT OR GREATER.
SAVANNAH/HILTON HEAD INTL (ICAO: KSAV, IATA: SAV) is a public airport located in SAVANNAH, GA.
