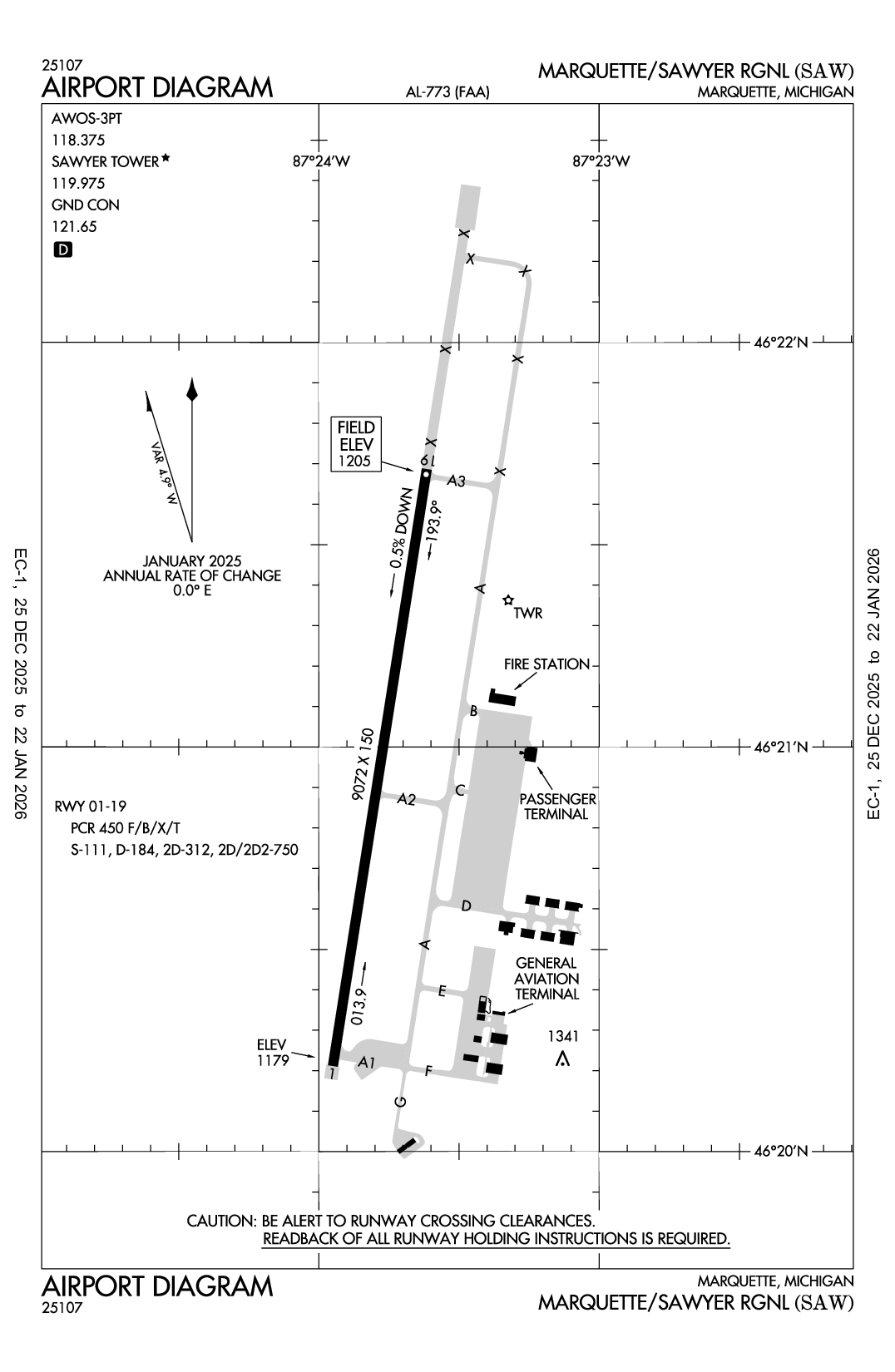

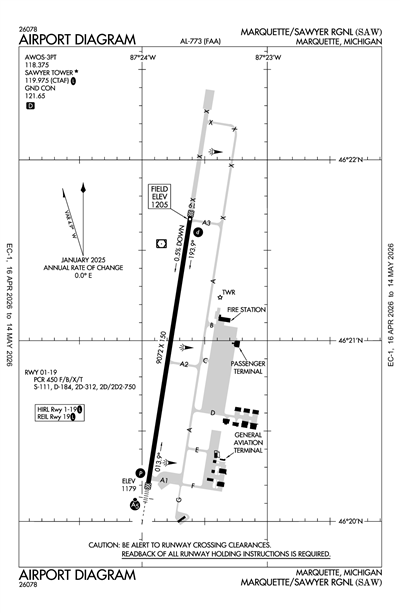

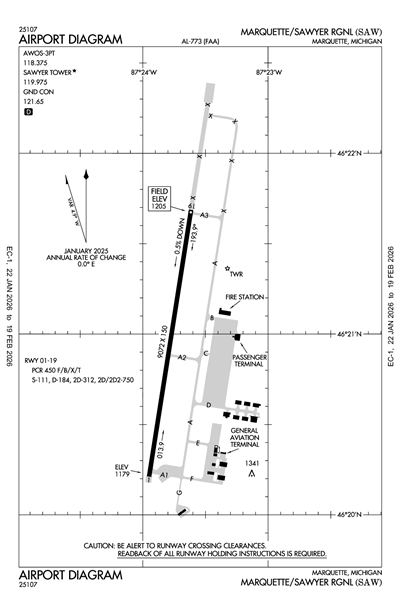

MARQUETTE/SAWYER RGNL - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KSAW
MARQUETTE/SAWYER RGNL
PublicPUB

17 miles S of MARQUETTE, MI
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
46° 20' 57"N 87° 23' 47"W
1204' MSL
2204' MSL
04W
Jet A, 100LL
GREEN BAY (GRB)
GREEN BAY
MINNEAPOLIS (ZMP)
5/16/24-6/13/24
KSAW VFR
4:18 AM EDT
Clear
10sm
50°F
48°F
29.79"Hg
200° 6kts
AO2
KSAW 180818Z AUTO 20006KT 10SM CLR 10/09 A2979 RMK AO2
List Your Business

KSAW FBOs, Flight Schools and Ground Support

Promote Listing
Kubick Aviation Services
Freq: 122.7
Phone: (906) 346-6440
No Rating Available
0 Reviews (Read | Sign In To Write)
World Fuel
As of 5/17
 100LL Jet A Jet A+ Mogas UL94
Self Serve 6.79
Full Serve 7.09 6.30

KSAW Ground Transportation (Taxi, Limo, Car Service)

No ground transportation services are listed for this airport.

KSAW Hotels

No hotels are listed for this airport.

KSAW Restaurants

No restaurants are listed for this airport.

KSAW Other Airport-Related Businesses

No other airport-related businesses are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.7 119.975

AWOS-3PT

AWOS-3PT
906-346-5126
 118.375

Ground

GND/P
 121.65

Tower

LCL/P
 119.975

FAA A/FD Pages

Airport Diagrams

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KSAW
Sat, 5/18 1:20 AM EDT
Sat, 5/18 2:00 AM EDT - Sun, 5/19 2:00 AM EDT
VFR
2:00 AM EDT - 11:00 AM EDT
Few 10,000'
6sm
190° 7kts
VFR
11:00 AM EDT - 2:00 PM EDT
Few 10,000'
6sm
190° 10kts
Gusts 18kts
VFR
2:00 PM EDT - 9:00 PM EDT
Few 12,000'
6sm
180° 13kts
Gusts 21kts
VFR
9:00 PM EDT - 11:00 PM EDT
Light Showers and Rain
Scattered 9,000'
6sm
190° 10kts
Gusts 18kts
VFR
11:00 PM EDT - 1:00 AM EDT
Light Showers and Rain
Scattered 9,000'
6sm
220° 7kts
VFR
1:00 AM EDT - 2:00 AM EDT
Scattered 14,000'
6sm
260° 5kts
KSAW 180520Z 1806/1906 19007KT P6SM FEW100
   FM181500 19010G18KT P6SM FEW100
   FM181800 18013G21KT P6SM FEW120
   FM190100 19010G18KT P6SM -SHRA SCT090
   FM190300 22007KT P6SM -SHRA SCT090
   FM190500 26005KT P6SM SCT140
KSAW
Domestic
5/15/241500Z !SAW 05/047 SAW TWY B, TWY A BTN TWY B AND TWY C CLSD 2405151500-2406111500
5/15/241500Z !SAW 05/046 SAW APRON NORTH COMMERCIAL RAMP ACCESS CLSD 2405151500-2406111500
5/9/241328Z !SAW 05/030 SAW TWY D BTN SOUTH COMMERCIAL RAMP AND NOSE DOCK RAMP
CLSD EXC AIR CARRIERS TENANT ACFT ONLY 2405091328-2405202200
5/9/241328Z !SAW 05/029 SAW TWY D BTN SOUTH COMMERCIAL RAMP AND NOSE DOCK RAMP WIP CONST ADJ LGTD AND BARRICADED 2405091328-2405202200
4/17/241236Z !SAW 04/069 SAW OBST TOWER LGT (ASR 1000740) 463051.50N0872840.70W (10.5NM NNW SAW) 1676.8FT (419.9FT AGL) U/S 2404171236-2406011236
FDC
5/15/241500Z !FDC 4/3707 SAW IAP MARQUETTE/SAWYER RGNL, MARQUETTE, MI.
RNAV (GPS) RWY 19, AMDT 2...
LPV, LNAV/VNAV VISIBILITY ALL CATS 1 SM. TEMPORARY CONSTRUCTION-MISCELLANEOUS 1192 MSL 2947FT SE OF RWY 19 (2023-AGL-7214-NRA).
2405151500-2406271714EST
5/15/241500Z !FDC 4/3705 SAW IAP MARQUETTE/SAWYER RGNL, MARQUETTE, MI.
RNAV (GPS) RWY 1, AMDT 1A...
LPV, LNAV/VNAV, LNAV VISIBILITY ALL CATS 1SM. TEMPORARY CONSTRUCTION-MISCELLANEOUS 1192 MSL 1.1NM NE OF RWY 1 (2023-AGL-7214-NRA).
2405151500-2406271714EST
5/15/241500Z !FDC 4/3704 SAW IAP MARQUETTE/SAWYER RGNL, MARQUETTE, MI.
ILS OR LOC RWY 1, AMDT 1B...
S-ILS 1 VISIBILITY ALL CATS 1 SM. S-LOC 1 VISIBILITY ALL CATS 1 SM. TEMPORARY CONSTRUCTION-MISCELLANEOUS 1192 MSL 1.1NM NE OF RWY 1 (2023-AGL-7214-NRA).
2405151500-2406271714EST
9/5/231440Z !FDC 3/5618 SAW IAP MARQUETTE/SAWYER RGNL, MARQUETTE, MI.
RNAV (GPS) RWY 1, AMDT 1A...
ADD NOTE: VGSI AND RNAV GLIDEPATH NOT COINCIDENT.
2309051440-2509051440EST
Yes
0500-2000
FOR SVCS AFT HRS CALL 906-222-3062 (PAGER).
MARQUETTE COUNTY
125 AVENUE G
GWINN, MI 49841-3108
Phone: 906-346-3308
DUANE DURAY
MARQUETTE/SAWYER RGNL ARPT, 125 AVENUE G
GWINN, MI 49841-3108
Phone: 906-346-3308
GREEN BAY FSS (GRB)
Toll Free: 1-800-WX-BRIEF
SAW
--
WHEN ATCT CLSD, ACTVT MALSR RWY 01; REIL RWY 19; PAPI RWYS 01 & 19; HIRL RWY 01/19 - CTAF.
N/A
Yes - Lighted
Yes
Yes
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
36
4
1
0
0
0
Major
Major
None
High & Low Pressure
Air Freight
Avionics
Cargo Handling
Pilot Instruction
Aircraft Rental

Runway 01/19

9072 ft. x 150 ft.
ASPH
Good
GRVD
HIGH
43 /F/B/X/U
114,000lbs
181,000lbs
317,000lbs
741,000lbs
  Runway 01 Runway 19
True Heading 9°189°
Traffic Pattern Left Left
Markings PIR PIR
Markings Condition FAIR FAIR
Latitude 46° 20' 13"N 46° 21' 41"N
Longitude 87° 23' 57"W 87° 23' 37"W
Elevation 1,179' 1,204'
Threshold Crossing Height 51 ft. AGL 53 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights MALSR
Centerline Lights No No
Runway End Identifier Lights Yes
A110-1BIRDS & DEER ON & INVOF ARPT.
A110-10RAMP FEES IN EFFECT. RAMP FEES MAY BE WAIVED WITH FUEL PURCHASE.FBO SERVICE AFTER HOURS CONTACT 906-222-3062 (PAGER).
A110-11FOR CD WHEN ATCT IS CLSD CTC FSS VIA RCO, IF UNA CTC MINNEAPOLIS ARTCC AT 651-463-5588.
A110-12FICONS UNMON 0000-0430.
A110-13(CONTACT PHONE NR) EXTN 3131.
A110-6GA & CHARTER ACFT PARKING AVBL AT GA TERMINAL ONLY, LCTD SE CORNER OF ARPT.
A110-7S HALF OF ACR TERMINAL RAMP NOT PLOWED OCT-APR.
A110-8FREQUENT SNOW REMOVAL OPNS IN PROGRESS VARIOUS TIMES OCT-APR. MONITOR CTAF.
A110-9PAEW ON ARPT MONITOR 119.975 (CTAF).
MARQUETTE/SAWYER RGNL (ICAO: KSAW, IATA: SAW) is a public airport located in MARQUETTE, MI.
