EAST GEORGIA RGNL - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KSBO
EAST GEORGIA RGNL
PublicPUB

2 miles NW of SWAINSBORO, GA
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
32° 36' 33"N 82° 22' 12"W
327' MSL
1327' MSL
06W
Jet A, Jet A+, 100LL
MACON (MCN)
ATLANTA
ATLANTA (ZTL)
5/16/24-6/13/24
KMHP (20nm) MVFR
2:55 AM EDT
Mist
Broken 8,500'
Broken 4,200'
Broken 1,400'
5sm
67°F
67°F
29.88"Hg
110° 3kts
AO2 LTG DSNT SW T01970196
KMHP 180655Z AUTO 11003KT 5SM BR BKN014 BKN042 BKN085 20/20 A2988 RMK AO2 LTG DSNT SW T01970196
List Your Business

KSBO FBOs, Flight Schools and Ground Support

Promote Listing
AirStar Flight Support
Freq: 122.975
Phone: (478) 237-5882
No Rating Available
0 Reviews (Read | Sign In To Write)
Titan
As of 4/26
 100LL Jet A Jet A+ Mogas UL94
Self Serve 6.20 4.89 5.04
Full Serve 6.45 4.89 5.04

KSBO Ground Transportation (Taxi, Limo, Car Service)

No ground transportation services are listed for this airport.

KSBO Hotels

No hotels are listed for this airport.

KSBO Restaurants

No restaurants are listed for this airport.

KSBO Other Airport-Related Businesses

No other airport-related businesses are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.975 122.975

AWOS-3

AWOS-3
478-237-8437
 133.375

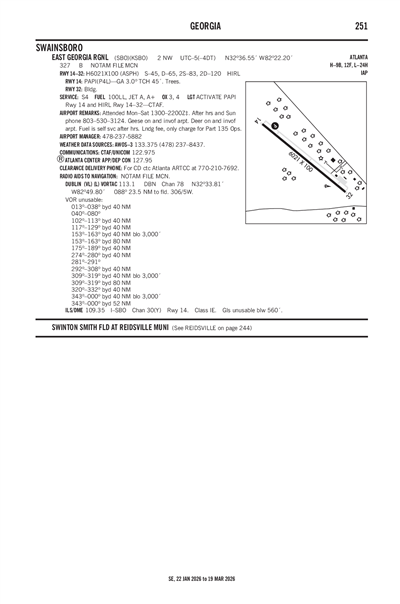

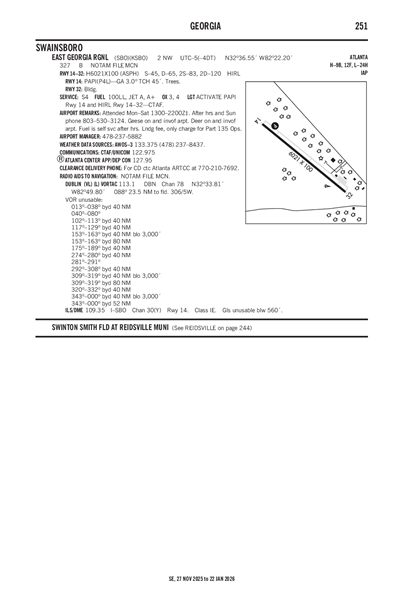

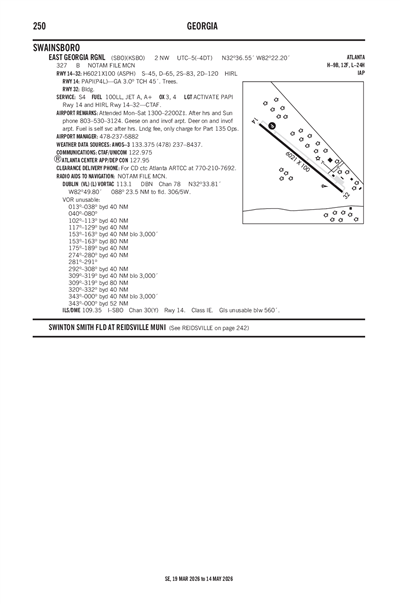

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KAGS (50nm)
Sat, 5/18 3:07 AM EDT
Sat, 5/18 3:00 AM EDT - Sun, 5/19 2:00 AM EDT
VFR
3:00 AM EDT - 5:00 AM EDT
Broken 5,000'
Scattered 1,500'
6sm
Calm
MVFR
Temporary 3:00 AM EDT - 5:00 AM EDT
Light Showers and Rain and Mist
Broken 1,000'
6sm
Calm
IFR
5:00 AM EDT - 12:00 PM EDT
Mist and Showers in vicinity
Overcast 700'
5sm
VRB° 3kts
IFR
Temporary 6:00 AM EDT - 10:00 AM EDT
Showers and Rain and Mist
Overcast 700'
4sm
Calm
MVFR
12:00 PM EDT - 5:00 PM EDT
Overcast 1,500'
Scattered 700'
6sm
240° 5kts
VFR
5:00 PM EDT - 2:00 AM EDT
Showers in vicinity
Overcast 5,000'
6sm
240° 5kts
KAGS 180707Z 1807/1906 00000KT P6SM SCT015 BKN050
   TEMPO 1807/1809 6SM -SHRA BR BKN010
   FM180900 VRB03KT 5SM BR VCSH OVC007
   TEMPO 1810/1814 4SM SHRA BR OVC007
   FM181600 24005KT P6SM SCT007 OVC015
   FM182100 24005KT P6SM VCSH OVC050
KSBO
Domestic
5/9/241555Z !MCN 05/329 SBO OBST TOWER LGT (ASR 1230777) 323127.80N0821904.20W (5.7NM SSE SBO) 593.2FT (306.1FT AGL) U/S 2405091555-2405240400
5/3/240246Z !MCN 05/077 SBO OBST TOWER LGT (ASN 2017-ASO-24616-OE) 324104N0821756W (5.9NM NE SBO) 629FT (312FT AGL) U/S 2405030246-2406170245
4/29/240800Z !MCN 04/863 SBO OBST TOWER LGT (ASR 1019313) 323231.00N0822253.00W (4.1NM S SBO) 784.1FT (518.4FT AGL) U/S 2404290800-2406130759
4/28/241520Z !MCN 04/851 SBO OBST TOWER LGT (ASR 1019584) 323236.50N0821808.40W (5.2NM SE SBO) 788.1FT (500.0FT AGL) U/S 2404281520-2407282359
FDC
12/29/221210Z !FDC 2/9613 SBO IAP EAST GEORGIA RGNL, SWAINSBORO, GA.
ILS OR LOC RWY 14, AMDT 2...
MSA DBN VORTAC 25NM 2600.
2212291210-2412291210EST
No
MON-SAT 0800-1700
AFT HRS & SUNDAY PHONE 803-530-3124.
CITY OF SWAINSBORO
101 WEST MAIN STREET
SWAINSBORO, GA 30401
Phone: 478-237-7025
KEN WARNOCK
102 SOUTH MAIN STREET
SWAINSBORO, GA 30401
Phone: 478-237-5882
MACON FSS (MCN)
Toll Free: 1-800-WX-BRIEF
MCN
--
ACTVT PAPI RWY 14; HIRL RWY 14/32 - CTAF.
N/A
Yes - Lighted
Yes
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
5
5
3
0
0
0
Major
Major
High & Low Pressure
None
Air Freight
Charter Service
Pilot Instruction
Annual Surveying

Runway 14/32

6021 ft. x 100 ft.
ASPH
Good
NONE
HIGH

45,000lbs
65,000lbs
120,000lbs
--
  Runway 14 Runway 32
True Heading 129°309°
Traffic Pattern Left Left
Markings PIR NPI
Markings Condition FAIR FAIR
Latitude 32° 36' 52"N 32° 36' 14"N
Longitude 82° 22' 39"W 82° 21' 45"W
Elevation 324' 322'
Threshold Crossing Height 45 ft. AGL --
Visual Glide Path Angle 3° --
Visual Slope Indicator P4L --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-3DEER ON & INVOF ARPT.
A110-4GEESE ON AND INVOF ARPT.
A110-5FOR CD CTC ATLANTA ARTCC AT 770-210-7692.
EAST GEORGIA RGNL (ICAO: KSBO, IATA: SBO) is a public airport located in SWAINSBORO, GA.
