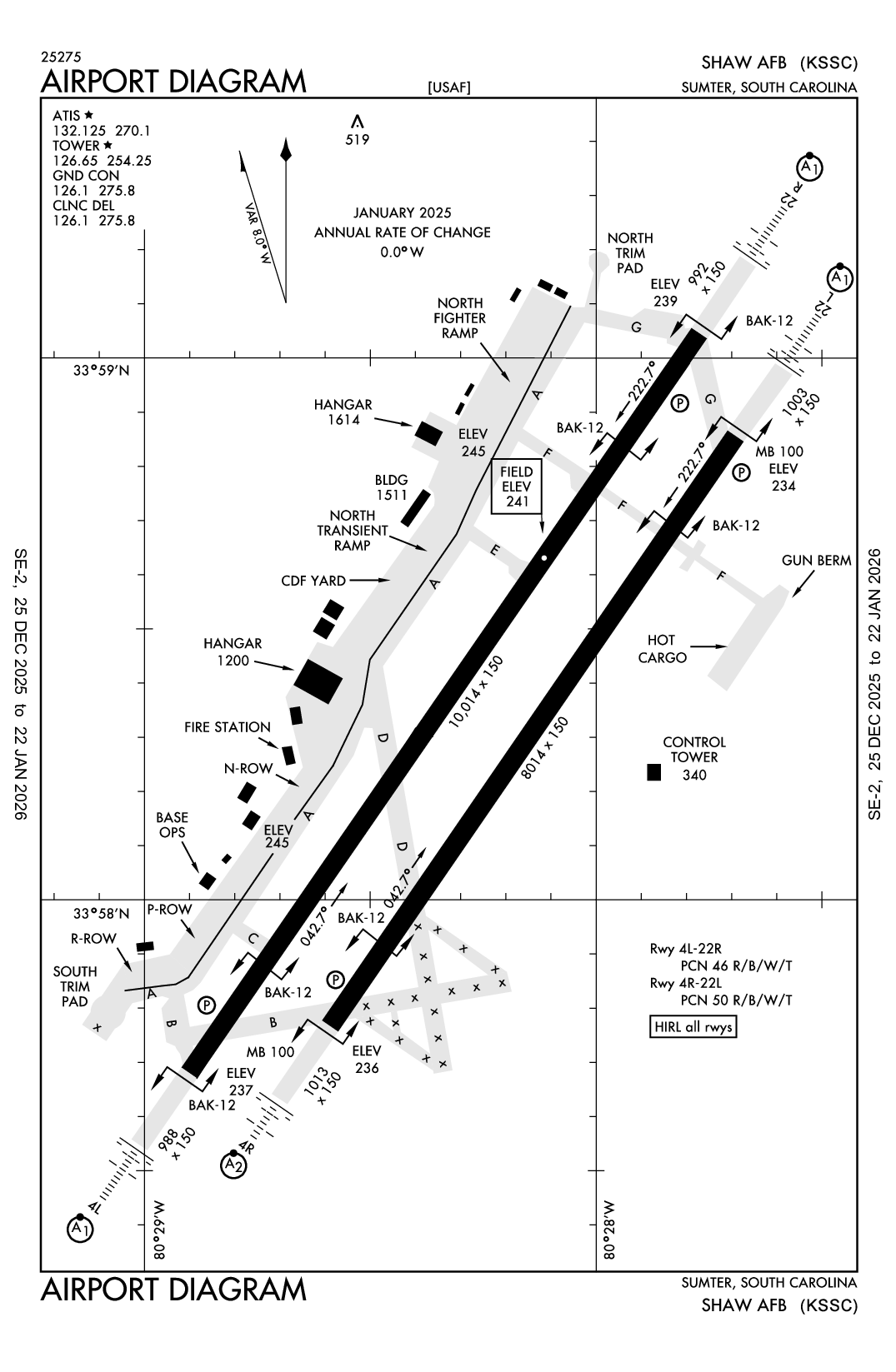

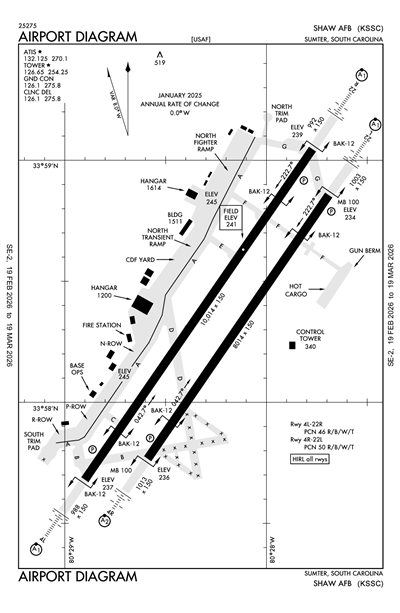

SHAW AFB - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KSSC
SHAW AFB
PrivatePVT

6 miles NW of SUMTER, SC
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
33° 58' 22"N 80° 28' 14"W
241' MSL
1241' MSL
08W
Jet A+, CILI
ANDERSON (AND)
CHARLOTTE
JACKSONVILLE (ZJX)
5/16/24-6/13/24
KSSC VFR
3:55 AM EDT
Overcast 9,000'
Few 4,800'
10sm
70°F
67°F
29.87"Hg
250° 3kts
AO2 SLP114 T02120195 $
KSSC 180755Z AUTO 25003KT 10SM FEW048 OVC090 21/20 A2987 RMK AO2 SLP114 T02120195 $
List Your Business

KSSC FBOs, Flight Schools and Ground Support

No FBOs, flight schools or aircraft ground support businesses are listed for this airport.

KSSC Ground Transportation (Taxi, Limo, Car Service)

No ground transportation services are listed for this airport.

KSSC Hotels

No hotels are listed for this airport.

KSSC Restaurants

No restaurants are listed for this airport.

KSSC Other Airport-Related Businesses

No other airport-related businesses are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
-- --

ATIS

ATIS
 132.125

Approach/Departure

APCH/P DEP/P
 125.4

Clearance Delivery

CD/P
 126.1

Emergency

EMERG
 121.5

Ground

GND/P
 126.1

Tower

LCL/P
 126.65

Other

CLASS C
 125.4
PTD
 139.6

FAA A/FD Pages

Airport Diagrams

Airport Minimums

Departure Procedures

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KSSC
Sat, 5/18 3:00 AM EDT
Sat, 5/18 3:00 AM EDT - Sun, 5/19 9:00 AM EDT
VFR
3:00 AM EDT - 9:00 AM EDT
Showers in vicinity
Overcast 6,000'
Scattered 4,000'
6sm
29.91"Hg
230° 6kts
MVFR
Temporary 6:00 AM EDT - 9:00 AM EDT
Light Showers and Rain
No Clouds
4.97sm
Calm
MVFR
Becoming 9:00 AM EDT - 12:00 PM EDT
Light Rain and Mist
Overcast 3,000'
Broken 1,500'
3.73sm
29.91"Hg
230° 9kts
MVFR
Becoming 12:00 PM EDT - 4:00 PM EDT
Broken 10,000'
Broken 3,000'
Scattered 1,500'
6sm
29.88"Hg
250° 9kts
MVFR
Becoming 4:00 PM EDT - 8:00 PM EDT
Light Showers and Rain
Overcast 25,000'
Broken 9,000'
Broken 3,000'
3.73sm
29.82"Hg
240° 10kts
Gusts 15kts
MVFR
Becoming 8:00 PM EDT - 1:00 AM EDT
Showers in vicinity
Overcast 9,000'
Broken 2,500'
Broken 1,500'
6sm
29.85"Hg
240° 9kts
MVFR
Becoming 1:00 AM EDT - 4:00 AM EDT
Light Thunderstorm and Rain
Overcast 9,000'
Broken 2,500'
Broken 1,500'
4.97sm
29.85"Hg
230° 15kts
Gusts 22kts
MVFR
Becoming 4:00 AM EDT - 9:00 AM EDT
Broken 2,500'
Broken 1,500'
Scattered 700'
6sm
29.88"Hg
250° 6kts
TAF KSSC 180700Z 1807/1913 23006KT 9999 VCSH SCT040 OVC060 QNH2990INS
   TEMPO 1810/1813 8000 -SHRA
   BECMG 1813/1814 23009KT 6000 -RA BR BKN015 OVC030 QNH2990INS
   BECMG 1816/1817 25009KT 9999 NSW SCT015 BKN030 BKN100 QNH2989INS
   BECMG 1820/1821 24010G15KT 6000 -SHRA BKN030 BKN090 OVC250 QNH2982INS
   BECMG 1900/1901 24009KT 9999 VCSH BKN015 BKN025 OVC090 QNH2986INS
   BECMG 1905/1906 23015G22KT 8000 -TSRA BKN015CB BKN025 OVC090 QNH2984INS
   BECMG 1908/1909 25006KT 9999 NSW SCT007 BKN015 BKN025 QNH2987INS TX27
KSSC
Military
5/17/241644Z M0663/24 NOTAMC M0660/24
5/17/241643Z AERODROME CONTROL HOURS ARE AS FOLLOWS: 17 MAY 0830Z - 18 MAY 0030Z, 20 MAY 1515Z - 1715Z, 24 MAY 1245Z - 1715Z.
5/17/241353Z M0661/24 NOTAMC M0652/24
5/17/241348Z M0659/24 NOTAMC M0657/24
5/17/241316Z M0658/24 NOTAMC M0654/24
5/17/240930Z NORTH FIGHTER RAMP OBSTRUCTION LIGHT ON A-ROW UNSERVICEABLE
5/17/240930Z NORTH FIGHTER RAMP OBSTRUCTION LIGHT ON B-ROW UNSERVICEABLE
5/16/241810Z M0653/24 NOTAMC M0650/24
5/16/241520Z M0651/24 NOTAMC M0648/24
5/16/241345Z M0649/24 NOTAMC M0642/24
5/15/242133Z M0647/24 NOTAMC M0646/24
5/15/241830Z M0645/24 NOTAMC M0644/24
5/15/241722Z M0643/24 NOTAMC M0637/24
5/15/241316Z M0641/24 NOTAMC M0640/24
5/7/241720Z CDF YARD EXTENDED TO INCLUDE THE HOT PIT AREA, NEW DIMENTION: 553 FEET BY 140 FT BETTWEEN THESE DATE ONLY: 10 MAY - 31 MAY.
5/2/241230Z TAXILANE ALPHA DIRECTIONAL SIGN ON TWY F UNLIT
5/1/240258Z WATER TOWER 3396N80485W OBSTRUCTION LIGHT UNSERVICEABLE
5/1/240257Z BOTH DIRECTIONAL SIGNS ON FOXTROT CENTER NEAR RWY 22L ARE UNLIT.
5/1/240257Z RWY 04L DEPARTURE END BAK 12 ARRESTING GEAR MARKER SIGNS UNLIT.
5/1/240256Z RWY EDGE LIGHT LOCATED ON RWY 22R/04L & 22L/04R OBSTRUCTED BY FOLIAGE
5/1/240255Z TWY BRAVO CENTER DIRECTIONAL SIGN ON RWY 22L DEPARTURE END UNLIT.
5/1/240254Z RWY 22L DEPARTURE END 3/7 RDR SIGN UNLIT ON THE EAST SIDE.
5/1/240254Z RWY 22L MANDATORY SIGN ON TWY G CENTER ON THE SOUTH SIDE IS FADED AND DIM.
5/1/240253Z RWY 04L DEPARTURE BAK-12 ARRESTING GEAR OBSTRUCTION LIGHT 3398N8046W UNSERVICEABLE.
4/30/241102Z TWY F EAST HAZ CARGO DIRECTIONAL SIGN PARTIALLY LIT.
4/30/241100Z SOUTH EOR SHACK 3396N80483W OBSTRUCTION LIGHT UNSERVICEABLE.
4/30/241059Z RWY 22R LOCALIZER OBSTRUCTION LIGHT UNSERVICEABLE.
4/30/241057Z TACAN CHECKPOINT SIGN ON THE NORTH EOR IS UNLIT.
4/30/241054Z RWY 22R MANDATORY SIGN COLLOCATED WITH TWY G LOCATION SIGN ON THE NORTH SIDE UNLIT.
4/30/241052Z NORTH EOR SHACK 3398N80464W OBSTRUCTION LIGHT UNSERVICEABLE.
4/24/241252Z RWY 22R APPROACH END 8/2 RDR SIGN UNLIT.
4/17/242034Z IFR SUPP PCN UPDATE RWY 04R/22L FROM 50 R/C/W/T CHANGE TO 50 R/B/W/T.
4/15/242311Z 22R OVERRUN BAK12 OBSTRUCTION LIGHT KNOCKED DOWN.
4/15/242307Z TWY G NORTH LOCATION SIGN FADED
Yes
ALL
OPR 1100-0300Z++ MON-FRI, 1300-2100Z++ SAT-SUN, CLSD WKEND, FED HOL AND ACC FAMILY DAYS.
SEE FLIP AP/1 SUPPLEMENTARY ARPT RMK.
U.S. AIR FORCE
SHAW AFB
SUMTER, SC 29152
CHIEF AIRFIELD MANAGEMENT
SHAW AFB
SUMTER, SC 29152
Phone: 403-965-3338
ANDERSON FSS (AND)
Toll Free: 1-800-WX-BRIEF
SSC
--
--
N/A
Yes
No
No
Hangar
NOT a Landing Rights Airport
NOT an Airport of Entry
0
0
0
0
5
0
Minor
Minor
None
Low Pressure
Cargo Handling

Runway 04L/22R

10014 ft. x 150 ft.

CONC
NONE
HIGH
46 /R/B/W/T
--
--
--
--
  Runway 04L Runway 22R
True Heading 35°215°
Traffic Pattern Left Left
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 33° 57' 42"N 33° 59' 04"N
Longitude 80° 28' 53"W 80° 27' 46"W
Elevation 237' 239'
Threshold Crossing Height 35 ft. AGL 51 ft. AGL
Visual Glide Path Angle 2.8° 2.8°
Visual Slope Indicator P4L P4L
Approach Lights ALSF1 ALSF1
Centerline Lights No No
Runway End Identifier Lights No No

Runway 04R/22L

8014 ft. x 150 ft.

CONC
NONE
HIGH
50 /R/C/W/T
--
--
--
--
  Runway 04R Runway 22L
True Heading 35°215°
Traffic Pattern Left Left
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 33° 57' 48"N 33° 58' 53"N
Longitude 80° 28' 34"W 80° 27' 40"W
Elevation 236' 234'
Threshold Crossing Height 49 ft. AGL 50 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights SALSF ALSF1
Centerline Lights No No
Runway End Identifier Lights No No
A110-1BEARING STRENGTH RWY 04L-22R: ST175; SBTT576, DDT745.
A110-10RSTD: OFFL BUS RSTD TO 20 FTR WG MSN SUPPORT. 20 FTR WG QUIET HR IN EFF 0300-1100Z++. PPR, 24 HR PN RQR, CTC AFLD MGMT 1145-0430Z++ DSN 965-2356, C803-895-2357. TRAN ACFT CTC BASE OPS PTD PRIOR ARR TO CONFIRM FM SVC RQR. DSN 965-2356, C803-895-2357, FAX 2360.
A110-11RSTD: ISSUED PPR VALID 1 HR +/- ETA, EARLY/LATE ARR/DEP MUST RE-COORD. TRAN ACFT CTC TWR PRIOR TO EXITING RWY.
A110-12CAUTION: TRAN PILOTS WILL NOT CLIMB ABV 1000 FT ON DEP DUR VFR COND TIL CLEAR OF ARPT BDRY UNLESS SPECIFICALLY CLEARED TO DO SO BY ATC. SPECIFIC TAXI INSTR FOR HVY ACFT CTC GND, MAY RQR BACK TAXIING ON RWY TO APROP LADDER TWY. UNCONTROLLED VEH TFC ON TWY AND APN.
A110-13TFC PAT: RECTANGULAR 1300 FT, OVERHEAD 2000 FT.
A110-14CSTMS/AG/IMG: 24 HR PN RQR FOR CSTMS AND AG.
A110-1845 FT OBSTN LCTD 140 FT S TWY CNTRLN.
A110-19MISC: ACC RSRS APPLIED TO ACC ACFT ONLY.
A110-2BEARING STRENGTH RWY 04R-22L: ST130; SBTT351; DDT490.
A110-20ACC RSRS APPLIED TO ACC ACFT ONLY.
A110-22TRAN-ALERT: TRANSIENT ALERT AFTER HOURS SUPPORT IS NOT AUTH UNLESS SUPPORTING HIGHER HQ DIRECTED MISSIONS.
A110-23TRAN ACFT CTC BASE OPS PTD PRIOR TO ARRIVAL TO CONFIRM SVC RQR.
A110-26RSTD: SOUTH TRIM PAD AND TEST CELL SW OF TWY A CLSD.
A110-28RSTD: AERODROME UNUSE AS WX ALTN OUTSIDE OF TRAN ALERT HR OF OPNS.
A110-3LGT: ALL RWY THR LGT GATED.
A110-31RSTD: HVY ACFT EXP ARR/DEP DELAYS DUR WING FLYING.
A110-32MISC: WX 965-2362, C803-895-2362, FORECASTER AVBL H24. TELEWORKING DUR AFLD CLOSURES. REMOTE BRIEFING SVC AVBL FR 26 OWS, BARKSDALE AFB, DSN 331-2651/2635/2636, C318-529-2651/2635/2636, WEBSITE: HTTPS://26OWS..US.AF.MIL.
A110-33MISC: WX OBS AVBL H24 VIA AN/FMQ-19 AUTOMATED OBSN SYS. AUGMENTED AN/FMQ-19 WHEN RQR DUR OPR HR AND RESOURCE PROTECTION. HUMAN OBSN SFC VIS LTD FROM 230-030 BY FLIGHTLINE HANGARS, BUILDINGS AND TREES.
A110-34RSTD: ONLY 20 FW LCL OPS APV TO FLY STR-IN APCH TO RWY 4L WITH VGSI INOP AT NGT.
A110-36ARFF CAPABILITIES ARE YELLOW (REDUCED LEVEL OF SVC) FOR LARGE FRAME ACFT.
A110-37MISC: ACFT DEP SHAW AFB CTC GRD CTL FOR CLNC.
A110-38MISC: AFLD COND, BASH, AND RWY SFC COND AVBL ON ATIS; TWR IF ATIS UNAVBL.
A110-39FOR AIR EVAC OR URGENT REQ DUR AFLD CLOSURE, AIRCREWS MUST CTC COMD POST DSN 312-965-5850 OR VIA UHF.
A110-4A-GEAR: NML BAK-12 CONFIGURATION: RWY 04R/22L: APCH DOWN, DEP UP. RWY 04L-22R: APCH DOWN, DEP UP. BOTH RWY 04L/22R OVERRUN A-G BAK-12S ARE IN RAISED POSN. BAK-12A ARE NSTD 900 FT RUN OUT, 1 1/4 IN CABLE AND 50000 LB WEIGHT SETTING. CALL TWR OR BASE OPS AT LEAST 20 MIN IN ADVN TO REQ OTHER CONFIGNS. RWY 22R DEP END BAK-12 1457 FT FR DEP END O/S.
A110-40MISC: ACFT THAT RQR IMMED ASSISTANCE AFTER DUTY HR, HOL, AND WKENDS, CTC COMD POST C803-895-5850, DSN 965-5850.
A110-41SERVICE-LGT: RWY 04R/22L PRE-THR BARS REMOVED.
A110-42RSTD: RWY 04R-22L AVBL FOR 20 FW USE ONLY.
A110-43OPR HR BY NOTAM, CLSD FED HOL AND ACC FAMILY DAYS.
A110-44MISC: CLASS C AIRSPACE EFF 1100-0300Z++ MON-FRI, CLSD WKEND, FED HOL AND ACC FAMILY DAYS.
A110-45MISC: COMSEC STOR AT COMD POST.
A110-5JASU: 2(M32A-60) 2(A/M32A-86).
A110-7FLUID: PRESAIR LPOX LOX. LOX - 24 HOURS PN.
A110-8OIL: O-128-133-148.
A110-9TRAN ALERT: NO FLEET SVC AVBL. EXP 2-3 HR SVC/REFUEL DELAYS WKENDS, HOL AND PEAK PERIODS; LTD MAINT. CONCURRENT REFUELING NOT AVBL. NO DE-ICE SVC AVBL. TRAN ACFT WILL RETAIN DRAG CHUTES TO PRK. TRAN ALERT SVC AVBL 1230-0030Z++ MON-FRI; CLSD WKEND AND HOL.
SHAW AFB (ICAO: KSSC, IATA: SSC) is a private airport located in SUMTER, SC.
