iFlightPlanner



...

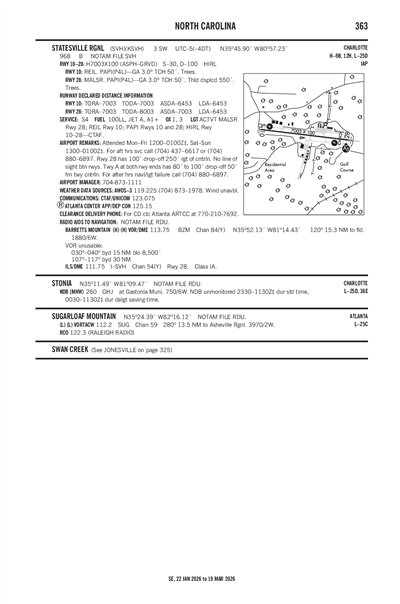

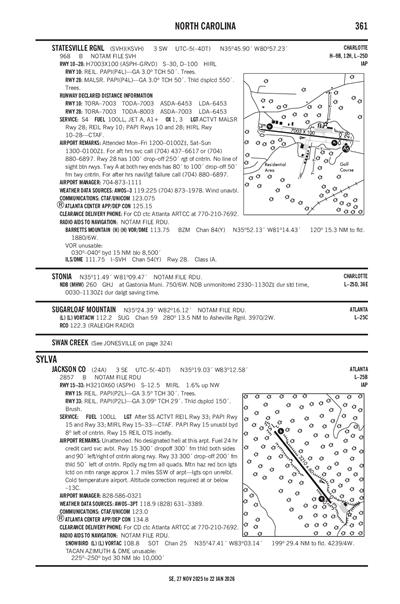

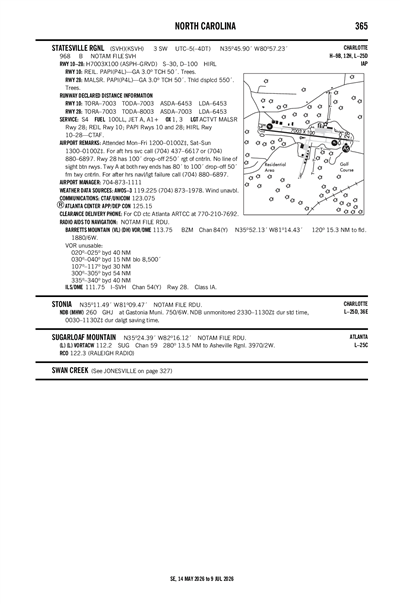

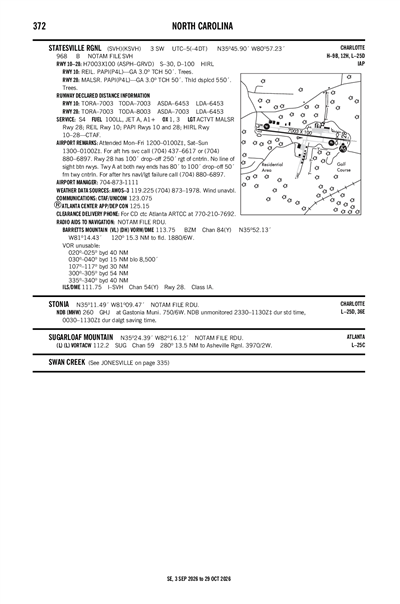

STATESVILLE RGNL - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KSVH
STATESVILLE RGNL
PublicPUB

3 miles SW of STATESVILLE, NC
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
35° 45' 54"N 80° 57' 14"W
968' MSL
1968' MSL
08W
Jet A, Jet A-1+, 100LL
RALEIGH (RDU)
CHARLOTTE
ATLANTA (ZTL)
5/16/24-6/13/24
KSVH VFR
11:45 PM EDT
Overcast 4,500'
7sm
67°F
66°F
29.88"Hg
Calm
AO2 P0001 T01950190
KSVH 180345Z AUTO 00000KT 7SM OVC045 20/19 A2988 RMK AO2 P0001 T01950190
List Your Business

KSVH FBOs, Flight Schools and Ground Support

Promote Listing
Statesville Regional Airport
Freq: 123.075
Phone: (704) 873-1111
No Rating Available
0 Reviews (Read | Sign In To Write)
Titan
As of 5/6
 100LL Jet A Jet A+ Mogas UL94
Self Serve
Full Serve 6.76 6.69

KSVH Ground Transportation (Taxi, Limo, Car Service)

No ground transportation services are listed for this airport.

KSVH Hotels

No hotels are listed for this airport.

KSVH Restaurants

No restaurants are listed for this airport.

KSVH Other Airport-Related Businesses

No other airport-related businesses are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
123.075 123.075

AWOS-3

AWOS-3
704-873-1978
 119.225

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

Instrument Approach

Terminal Area Forecast

KHKY (21nm)
Fri, 5/17 7:39 PM EDT
Fri, 5/17 8:00 PM EDT - Sat, 5/18 8:00 PM EDT
VFR
8:00 PM EDT - 12:00 AM EDT
Showers in vicinity
Overcast 5,000'
6sm
190° 3kts
MVFR
Temporary 8:00 PM EDT - 12:00 AM EDT
Light Showers and Rain and Mist
Broken 2,500'
6sm
Calm
MVFR
12:00 AM EDT - 4:00 AM EDT
Light Rain and Mist
Overcast 4,000'
Broken 2,000'
5sm
VRB° 3kts
IFR
4:00 AM EDT - 12:00 PM EDT
Mist
Broken 700'
3sm
VRB° 2kts
VFR
12:00 PM EDT - 8:00 PM EDT
Showers in vicinity
Broken 6,000'
Scattered 2,500'
6sm
230° 5kts
MVFR
2:00 PM EDT - 8:00 PM EDT
Thunderstorm and Rain and Mist
Overcast 1,500'
4sm
Calm
KHKY 172339Z 1800/1824 19003KT P6SM VCSH OVC050
   TEMPO 1800/1804 6SM -SHRA BR BKN025
   FM180400 VRB03KT 5SM -RA BR BKN020 OVC040
   FM180800 VRB02KT 3SM BR BKN007
   FM181600 23005KT P6SM VCSH SCT025 BKN060
   PROB30 1818/1824 4SM TSRA BR OVC015CB
KSVH
Domestic
5/15/241432Z !SVH 05/012 SVH OBST TOWER LGT (ASR 1008245) 354959.70N0804214.00W (12.9NM ENE SVH) 2322.8FT (1504.9FT AGL) U/S 2405151432-2409121432
5/14/240742Z !SVH 05/010 SVH OBST TOWER LGT (ASR 1033977) 354332.90N0805214.70W (4.6NM ESE SVH) 1278.2FT (365.2FT AGL) U/S 2405140742-2405290642
5/12/241407Z !SVH 05/009 SVH OBST TOWER LGT (ASR 1005914) 354318.20N0805151.70W (5.0NM ESE SVH) 1201.1FT (305.1FT AGL) U/S 2405121407-2405280400
5/10/240906Z !SVH 05/008 SVH OBST TOWER LGT (ASR 1044327) 354736.50N0804350.30W (11.0NM E SVH) 1202.1FT (353.0FT AGL) U/S 2405100906-2408080400
4/30/242350Z !SVH 04/007 SVH NAV ILS RWY 28 U/S 2404302350-2507302000EST
3/31/241652Z !SVH 03/013 SVH OBST TOWER LGT (ASR 1035862) 355448.00N0805040.00W (10.5NM NNE SVH) 1214.9FT (310.0FT AGL) U/S 2403311652-2406290400
3/4/241455Z !SVH 03/002 SVH NAV ILS RWY 28 LOC U/S 2403041455-2412252000EST
1/26/241532Z !SVH 01/010 SVH RWY 28 DECLARED DIST: TORA 7003FT TODA 8003FT ASDA 7003FT LDA 6453FT. 2401261532-2406302359
FDC
5/6/241609Z !FDC 4/9175 SVH IAP STATESVILLE RGNL, STATESVILLE, NC.
ILS Y OR LOC Y RWY 28, ORIG-B...
ILS Z OR LOC Z RWY 28, AMDT 1B...
MISSED APPROACH: CLIMB TO 1700 THEN CLIMBING RIGHT TURN TO 4000 DIRECT BZM VOR/DME AND HOLD,
CLT VOR OUT OF SERVICE. 2405061609-2406101609EST
No
MON-FRI 0700-2000
SAT-SUN 0800-2000
FOR AFT HRS SVC CALL (704) 437-6617 OR (704) 880-6897.
CITY OF STATESVILLE
PO BOX 1111
STATESVILLE, NC 28687
Phone: 704-873-1111
JOHN M. FERGUSON
238 AIRPORT ROAD
STATESVILLE, NC 28677
Phone: 704-873-1111
RALEIGH FSS (RDU)
Toll Free: 1-800-WX-BRIEF
SVH
--
ACTVT MALSR RWY 28; REIL RWY 10; PAPI RWY 10 & 28; HIRL RWY 10/28 - CTAF.
N/A
Yes - Lighted
Yes
No
Hanger, Tie-Down
No
44
13
29
0
1
0
Major
Major
High Pressure
High Pressure
Air Freight
Air Ambulance
Charter Service
Pilot Instruction
Aircraft Rental

Runway 10/28

7003 ft. x 100 ft.
ASPH
Excellent
GRVD
HIGH

30,000lbs
100,000lbs
--
--
  Runway 10 Runway 28
True Heading 97°277°
Traffic Pattern
Markings NPI PIR
Markings Condition GOOD GOOD
Latitude 35° 45' 58"N 35° 45' 50"N
Longitude 80° 57' 56"W 80° 56' 32"W
Elevation 959' 957'
Threshold Crossing Height 50 ft. AGL 50 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights MALSR
Centerline Lights
Runway End Identifier Lights Yes
A110-1RWY 28 HAS 100 FT DROP-OFF 250 FT RIGHT OF CNTRLN.
A110-2NO LINE OF SIGHT BTN RWYS.
A110-3FOR AFTER HRS NAVL/LGT FAILURE CALL 704-880-6897.
A110-4FOR CD CTC ATLANTA ARTCC AT 770-210-7692.
A110-5TWY A AT BOTH RWY ENDS HAS 80 FT TO 100 FT DROP-OFF 50 FT FM TWY CNTRLN.
STATESVILLE RGNL (ICAO: KSVH, IATA: SVH) is a public airport located in STATESVILLE, NC.
