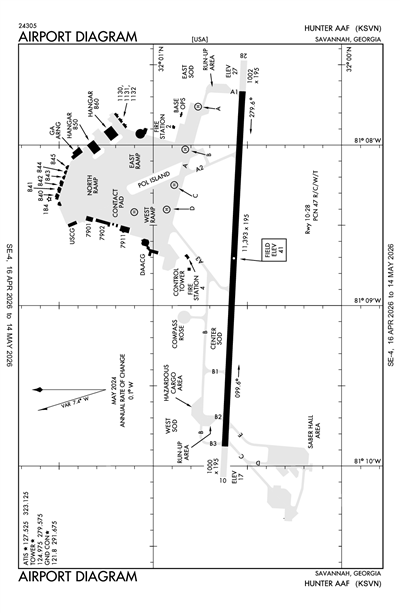

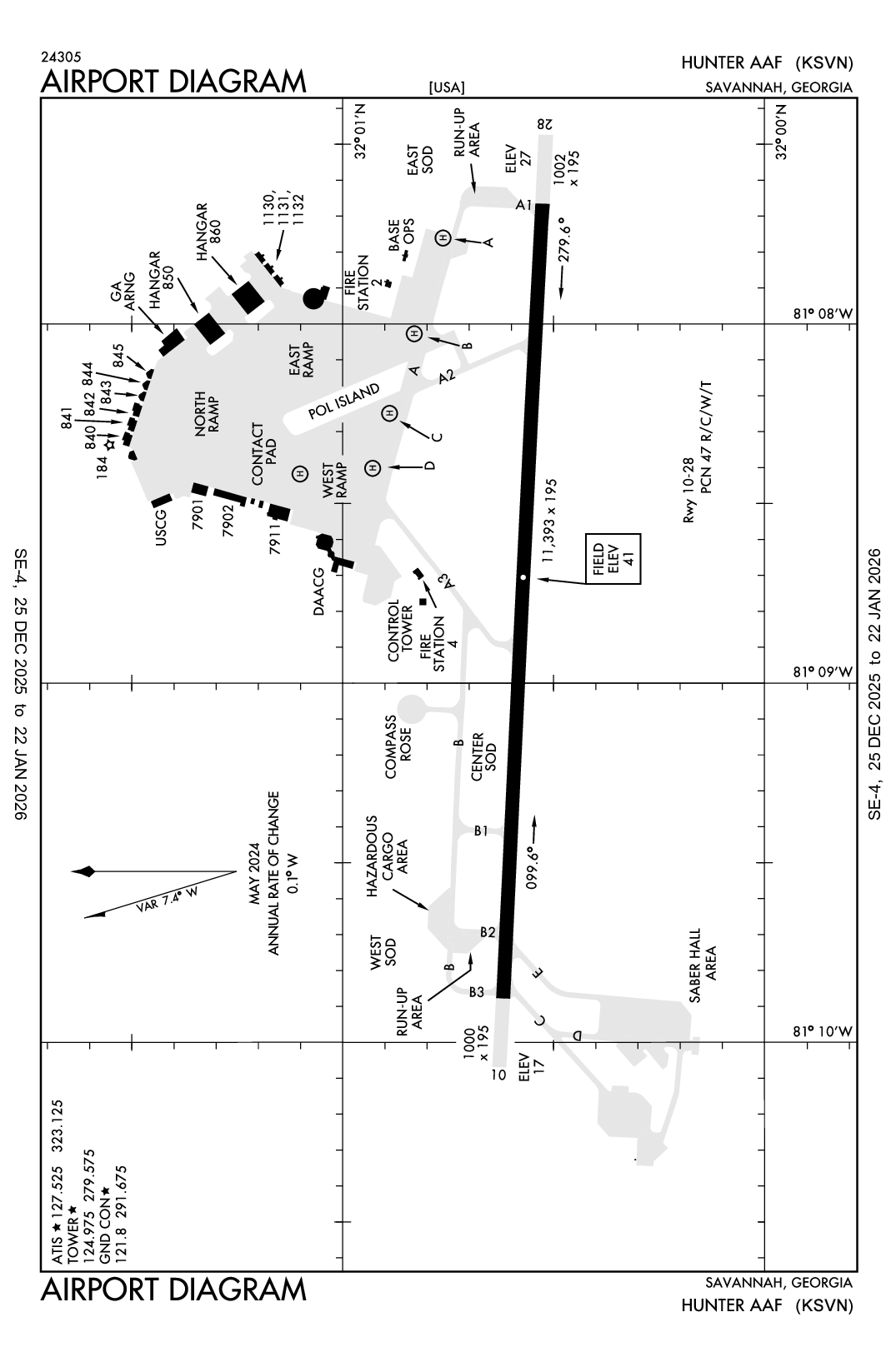

HUNTER AAF - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KSVN
HUNTER AAF
PrivatePVT

2 miles SW of SAVANNAH, GA
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
32° 00' 36"N 81° 08' 46"W
41' MSL
1041' MSL
04W
Jet A+, CILI, JP-8
MACON (MCN)
ATLANTA
JACKSONVILLE (ZJX)
5/16/24-6/13/24
KSVN VFR
2:55 AM EDT
Clear
10sm
71°F
68°F
29.84"Hg
Calm
AO2 SLP108 T02170201 VISNO RWY10 $
KSVN 180655Z AUTO 00000KT 10SM CLR 22/20 A2984 RMK AO2 SLP108 T02170201 VISNO RWY10 $
List Your Business

KSVN FBOs, Flight Schools and Ground Support

No FBOs, flight schools or aircraft ground support businesses are listed for this airport.

KSVN Ground Transportation (Taxi, Limo, Car Service)

No ground transportation services are listed for this airport.

KSVN Hotels

No hotels are listed for this airport.

KSVN Restaurants

No restaurants are listed for this airport.

KSVN Other Airport-Related Businesses

No other airport-related businesses are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
-- 124.975

ATIS

ATIS
Hours: 1230Z++ MON-0400Z ++ SAT, EXC HOL.
 127.525

Emergency

EMERG
 121.5

Ground

GND/P
 121.8

Tower

LCL/P
 124.975

Other

ARNG OPS
 36.825
ASR/PAR
 134.7
GCA
 134.7
PMSV METRO
FM
 45.0
PTD
 126.2

FAA A/FD Pages

Airport Diagrams

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KSVN
Fri, 5/17 9:01 PM EDT
Fri, 5/17 9:00 PM EDT - Sun, 5/19 3:00 AM EDT
MVFR
9:00 PM EDT - 3:00 AM EDT
Light Showers and Rain
Overcast 14,000'
Scattered 5,000'
4.97sm
29.82"Hg
180° 9kts
IFR
Temporary 10:00 PM EDT - 1:00 AM EDT
Light Thunderstorm and Rain
Broken 2,000'
2.98sm
180° 10kts
Gusts 15kts
MVFR
Becoming 3:00 AM EDT - 1:00 PM EDT
Overcast 14,000'
Broken 2,000'
6sm
29.79"Hg
200° 9kts
MVFR
Becoming 1:00 PM EDT - 3:00 PM EDT
Light Showers and Rain
Overcast 14,000'
Broken 2,000'
4.97sm
29.76"Hg
240° 10kts
IFR
Becoming 3:00 PM EDT - 7:00 PM EDT
Light Thunderstorm and Rain
Overcast 2,000'
1.99sm
29.79"Hg
200° 10kts
Gusts 20kts
LIFR
Temporary 4:00 PM EDT - 5:00 PM EDT
Thunderstorm and Rain
Overcast 2,000'
Broken 500'
0.99sm
VRB° 20kts
Gusts 35kts
VFR
Becoming 7:00 PM EDT - 10:00 PM EDT
Overcast 14,000'
6sm
29.85"Hg
250° 9kts
MVFR
Becoming 10:00 PM EDT - 3:00 AM EDT
Thunderstorm in vicinity
Overcast 14,000'
Broken 2,000'
6sm
29.79"Hg
260° 9kts
IFR
Temporary 12:00 AM EDT - 2:00 AM EDT
Light Thunderstorm and Rain
Overcast 12,000'
Broken 2,000'
2.98sm
200° 10kts
Gusts 15kts
TAF KSVN 180101Z 1801/1907 18009KT 8000 -SHRA SCT050 OVC140 QNH2983INS
   TEMPO 1802/1805 18010G15KT 4800 -TSRA BKN020CB
   BECMG 1807/1808 20009KT 9999 NSW BKN020 OVC140 QNH2980INS
   BECMG 1817/1818 24010KT 8000 -SHRA BKN020 OVC140 QNH2976INS
   BECMG 1819/1820 20010G20KT 3200 -TSRA OVC020CB QNH2980INS
   TEMPO 1820/1821 VRB20G35KT 1600 TSRA BKN005 OVC020CB
   BECMG 1823/1824 25009KT 9999 NSW OVC140 QNH2984INS
   BECMG 1902/1903 26009KT 9999 VCTS BKN020CB OVC140 QNH2980INS
   TEMPO 1904/1906 20010G15KT 4800 -TSRA BKN
KSVN
Domestic
7/2/181300Z !SVN 06/002 SVN OBST POLE (ASN UNKNOWN) 315844.40N0810820.40W (1.78NM SSE SVN) UNKNOWN (100FT AGL) LGTD 1807021300-PERM
Military
5/18/240100Z !KSVN M0226/24 SVN UNMANNED ACFT WITHIN AREA DEFINED AS 3.9NM RADIUS OF SVN IVO CSX RAILYARD 2405180100-2405180900
5/16/242126Z !KSVN M0222/24 SVN AD ABN U/S 2405162126-2408092359
5/16/241450Z !KSVN V0254/24 SVN AERODROME INSTRUMENT APPROACH PROCEDURE AMENDMENT ILS OR LOC RWY 28 GS U/S, LOC PROCEDURE ONLY. 2405161450-2412310001
5/16/240102Z GCA CLOSED PERMANENTLY DUE TO DIVESTITURE
5/6/241806Z !KSVN M0195/24 SVN RWY 10 RWY END ID LGT U/S 2405061806-2407312359
4/29/241835Z TWY A2 LIMITED TO C130 AND SMALLER AIRCRAFT
4/25/241440Z RUNWAY 28 GLIDESLOPE UNSERVICEABLE LOC ONLY
4/8/241403Z !KSVN M0146/24 SVN APRON EAST RAMP WORK IN PROGRESS MEN AND EQUIPMENT EAST SIDE OF POL ISLAND 2404081403-2406072359
4/1/241354Z AERODROME CONTACT PAD 100FT SE CONST AREA BARRICADED
4/1/241340Z TWY A BTN A2 AND A3 WIP CONST AND BARRICADED
4/1/241334Z WX PILOT TO METRO SERVICE OPERATING HOURS M-F 0000-2359 CONTACT HUNTER WX DSN 729-5467/COMM 912-315-5467 CONTACT WRIGHT WX M-F 1200-0400 FOR WATCHES , WARNINGS, AND ADVISORIES DSN 475-3147/COMM 912-435-3147
3/28/241812Z !KSVN V0145/24 SVN AERODROME INSTRUMENT APPROACH PROCEDURE AMENDMENT ILS OR LOC RWY 28 CHANGE SAV FEEDER HEADING TO 133°. 2403281812-2412310001
Yes
ALL
USAASA ATTN: ATAS-AS
9325 GUNSTON RD, BLDG 1466 SUITE N319
ALEXANDRIA, VA 22060-5582
N/A
MACON FSS (MCN)
Toll Free: 1-800-WX-BRIEF
SVN
--
ACTVT ALS RWY 10; 3-STEP ALS RWY 28; REIL RWY 10; PAPI RWY 10 & 28; HIRL RWY 10/28 - CTAF WHEN TWR CLSD.
N/A
N/A
No
No
None
Landing Rights Airport
NOT an Airport of Entry
0
0
0
0
0
0
None
None
None
None
None

Runway 10/28

11375 ft. x 197 ft.

ASPH
NONE
HIGH
47 /R/C/W/T
--
--
--
--
  Runway 10 Runway 28
True Heading 92°272°
Traffic Pattern
Markings
Markings Condition GOOD GOOD
Latitude 32° 00' 38"N 32° 00' 34"N
Longitude 81° 09' 52"W 81° 07' 40"W
Elevation 17' 26'
Threshold Crossing Height 55 ft. AGL 54 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4R P4L
Approach Lights NSTD ALSF1
Centerline Lights
Runway End Identifier Lights Yes
A110-15JASU: 3(AF M32A-86) 3(DND CE12 EQUIVALENT) 1(DND CE14 EQUIVALENT) 1(AF M32-95)
A110-16FUEL: J8, JET A++. TRAN FUEL PPR, CTC BASE OPS C912-315-5110.5531, DSN 729-2110/5531. TRAN ACFT MAY EXP DELAY DUE TO OPR MSN.
A110-17OIL: O-156
A110-18TRAN ALERT: LTD SVC AVBL 1230Z++MON-0400Z++ SAT, EXC HOL.
A110-20CAUTION: WILDLIFE HAZ. SEAGULL HAZ.
A110-21TFC PAT: F/W 1500 FT, R/W 700 FT.
A110-22MISC: R/W PILOTS PLANNING TO CONDUCT OPR WITHIN R3005 MUST RCV A RNG BRIEFING PRIOR TO OPR. BRIEFING SHALL BE ACCOMPLISHED AT LEAST 4 HR PRIOR TO FLT ON THE RESERVATION. AVIATORS BRIEFED WITHIN THE PAST 6 MONTHS MAY RCV FONE UPDATE.
A110-23MISC: FOR BRIEFING COORD CTC DSN 729-2523/6207, C912-315-2523, 1300-2100Z++ MON-FRI EXC HOL. BASE OPS OPR 24/7, WX OBSERVER OPR 1230Z++ MON-0400Z++ SAT, EXE HOL. OT, EXCLD HOL. NO EMERG SVC AVBL WHEN TWR AND BASE OPS CLSD.
A110-24RADAR: SEE TERMINAL FLIP FOR RADAR MINIMA.
A110-25SEE FLIP AP/1 SUPPLEMENTARY ARPT RMK.
A110-28CAUTION: TAXIWAY 7E/W CLSD. NO R/W HOVERING ON WEST RAMP WITHOUT PRIOR PERMISSION.
A110-31ARNGOPS CTC DSN 729-7182/6534, C912-315-7182/6534.
A110-32RSTD: AFLD CLSD 0400Z++ SAT THRU 1230Z++ MON TO TRAN F/W ACFT EXC FOR OFFL BUS ONLY. PPR FOR ALL TRAN ACFT TO INCL TOUCH AND GO OPS, CTC BASE OPS DSN 729-5110, C912-315-5110.
A110-33MISC: FULL WX SVC 24/7 INCL HOL, DSN 729-5467/5027, C912-315-5467/5027. OT REMOTE BRIEFING FR 26 OWS BARKSDALE AFB, LA, DSN 331-2651/2/3, C318-529-2651/2/3. PRIM WX SENSORS IN USE AN/FMQ-19 AUTOMATED FULL TIME AND AUGMENT AS RQR. DUR PERIODS OF AUGMENT, ATC WILL ASSIST IN COOPERATIVE WATCH BY NOTIFYING WX OF UNREPORTED WX COND. AUGMENTATION/BACK-UP MODE, PREVAIL SFC VIS MAY NOT REPRESENT ENTIRE AFLD, FR 330 - 090 DEGS DUE TO BLDG OBST AND LACK OF VIS MARK BYD 1/4 SM. PMSV AVBL DUR OPR HR.
A110-34COMPASS ROSE CALIBRATION OTS.
A110-5ARNG: BASE OPS CTC DSN 729-7182/6534, C912-315-7182/6534.
A110-8NS ABTMT: PROCEDURES IN EFFECT 0300Z-1200Z++ MON-SAT; 0300Z-1800Z++ SUN. PRACTICE MULTIPLE CIRCLING APCH CAT C, D, E NOT AUTH BLW 1500 FT. NO OVFT OF SAVANNAH AND SUR POPULATED AREAS BLW 1000 FT UNLESS ON APCH TO HUNTER AAF. QUIET HR 0230-1030Z++.
HUNTER AAF (ICAO: KSVN, IATA: SVN) is a private airport located in SAVANNAH, GA.
