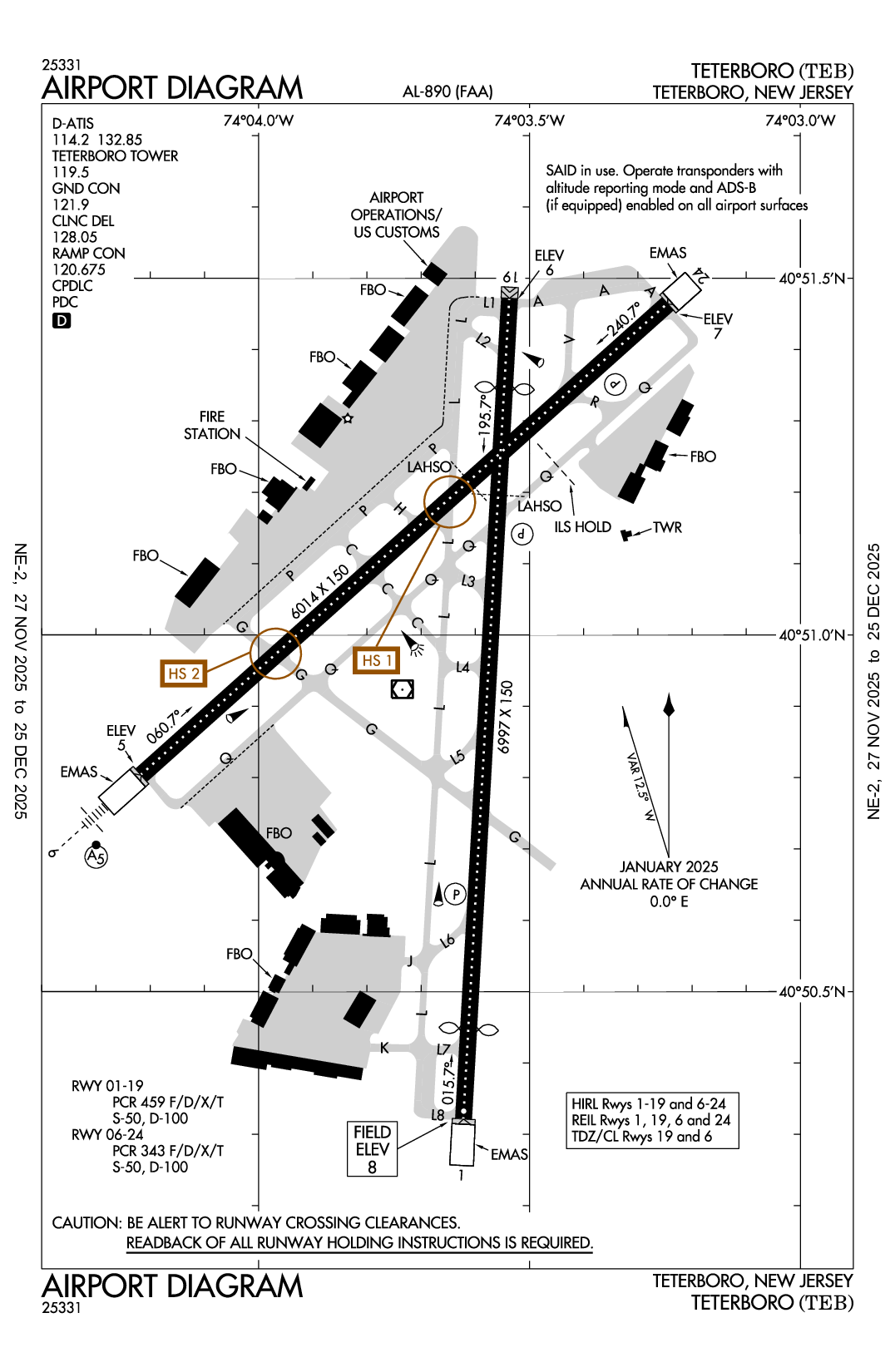

TETERBORO - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KTEB
TETERBORO
PublicPUB

1 miles SW of TETERBORO, NJ
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
40° 51' 00"N 74° 03' 39"W
8' MSL
1008' MSL
12W
Jet A, 100LL
MILLVILLE (MIV)
NEW YORK
NEW YORK (ZNY)
5/16/24-6/13/24
KTEB VFR
11:51 PM EDT
Clear
10sm
60°F
53°F
29.94"Hg
210° 4kts
AO2 SLP138 T01560117
KTEB 180351Z 21004KT 10SM CLR 16/12 A2994 RMK AO2 SLP138 T01560117
List Your Business

KTEB FBOs, Flight Schools and Ground Support

Promote Listing
Signature Aviation - West (fka, Meridian Teterboro)
Freq: 131.525
Phone: (201) 288-5040
No Rating Available
0 Reviews (Read | Sign In To Write)
Other
As of 5/17
 100LL Jet A Jet A+ Mogas UL94
Self Serve
Full Serve 6.59 8.90 9.12
Promote Listing
Signature Aviation - East
Freq: 130.15
Phone: (201) 393-4041
No Rating Available
0 Reviews (Read | Sign In To Write)
Other
As of 5/17
 100LL Jet A Jet A+ Mogas UL94
Self Serve
Full Serve 8.80 8.90 8.68
Promote Listing
Signature Aviation - Legacy West
Freq: 130.15
Phone: (201) 288-1880
No Rating Available
0 Reviews (Read | Sign In To Write)
Other
As of 5/17
 100LL Jet A Jet A+ Mogas UL94
Self Serve
Full Serve 8.80 8.90 8.68
Promote Listing
Signature Aviation - South
Freq: 130.6
Phone: (201) 288-3555
No Rating Available
0 Reviews (Read | Sign In To Write)
Other
As of 5/17
 100LL Jet A Jet A+ Mogas UL94
Self Serve
Full Serve 7.73 9.10 8.68
Promote Listing
Atlantic Aviation
Freq: 132.0
Phone: (201) 288-1740
Other: (201) 288-8275
No Rating Available
0 Reviews (Read | Sign In To Write)
Independent
As of 4/27
 100LL Jet A Jet A+ Mogas UL94
Self Serve
Full Serve 7.64 9.08

KTEB Ground Transportation (Taxi, Limo, Car Service)

Bermuda Limousine International
Phone: (212) 647-8400
Fax: (212) 633-2685
No Rating Available
0 Reviews (Read | Sign In To Write)

KTEB Hotels

No hotels are listed for this airport.

KTEB Restaurants

No restaurants are listed for this airport.

KTEB Other Airport-Related Businesses

No other airport-related businesses are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
-- --

ATIS

D-ATIS
201-288-1690
 114.2
D-ATIS
201-288-1690
 132.85

Clearance Delivery

CD/P
 128.05

Emergency

EMERG
 121.5

Ground

GND/P
 121.9

Tower

LCL/P
 119.5
LCL/S
 125.1

Other

OPS
 130.575
RAMP CTL
 120.675
VFR ADZY
 119.5

Terminal Area Forecast

KTEB
Fri, 5/17 10:30 PM EDT
Fri, 5/17 11:00 PM EDT - Sun, 5/19 2:00 AM EDT
VFR
11:00 PM EDT - 11:00 AM EDT
Broken 8,000'
6sm
180° 4kts
VFR
11:00 AM EDT - 5:00 PM EDT
Broken 3,500'
Scattered 2,500'
6sm
040° 5kts
VFR
5:00 PM EDT - 2:00 AM EDT
Broken 3,500'
6sm
VRB° 4kts
KTEB 180230Z 1803/1906 18004KT P6SM BKN080
   FM181500 04005KT P6SM SCT025 BKN035
   FM182100 VRB04KT P6SM BKN035
KTEB
Domestic
5/23/241100Z !TEB 05/223 TEB TWY K CLSD 2405231100-2405231600
5/23/241100Z !TEB 05/222 TEB TWY L BTN TWY J AND APCH END RWY 01 CLSD 2405231100-2405231600
5/23/240200Z !TEB 05/221 TEB RWY 01/19 CLSD 2405230200-2405231100
5/22/240200Z !TEB 05/220 TEB RWY 01/19 CLSD 2405220200-2405221600
5/21/241100Z !TEB 05/219 TEB TWY K CLSD 2405211100-2405211600
5/21/241100Z !TEB 05/218 TEB TWY L BTN TWY J AND APCH END RWY 01 CLSD 2405211100-2405211600
5/21/240200Z !TEB 05/217 TEB RWY 01/19 CLSD 2405210200-2405211600
5/20/241100Z !TEB 05/216 TEB TWY K BTN JET AVIATION APN AND TWY L CLSD 2405201100-2405201300
5/20/241100Z !TEB 05/215 TEB RWY 06/24 CLSD 2405201100-2405201600
5/18/241100Z !TEB 05/152 TEB RWY 06/24 CLSD 2405181100-2405191600
5/18/240249Z !TEB 05/245 TEB TWY L LGT U/S 2405180249-2405181100
5/18/240230Z !TEB 05/244 TEB RWY 19 SIGNS LGT U/S 2405180230-2405180900
5/18/240230Z !TEB 05/243 TEB RWY 01 SIGNS LGT U/S 2405180230-2405180900
5/18/240230Z !TEB 05/242 TEB RWY 01/19 REDL U/S 2405180230-2405180900
5/18/240230Z !TEB 05/241 TEB TWY ALL ELEVATED RWY GUARD LGT U/S 2405180230-2405180900
5/18/240230Z !TEB 05/240 TEB TWY ALL IN PAVEMENT RWY GUARD LGT U/S 2405180230-2405180900
5/18/240230Z !TEB 05/239 TEB TWY F SIGNS LGT U/S 2405180230-2405180900
5/18/240230Z !TEB 05/238 TEB TWY F LGT U/S 2405180230-2405180900
5/18/240230Z !TEB 05/237 TEB TWY D SIGNS LGT U/S 2405180230-2405180900
5/18/240230Z !TEB 05/236 TEB TWY D LGT U/S 2405180230-2405180900
5/18/240230Z !TEB 05/235 TEB TWY E SIGNS LGT U/S 2405180230-2405180900
5/18/240230Z !TEB 05/234 TEB TWY E LGT U/S 2405180230-2405180900
5/18/240230Z !TEB 05/231 TEB TWY G SIGNS BTN TWY L AND RWY 01/19 LGT U/S 2405180230-2405180900
5/18/240230Z !TEB 05/230 TEB TWY G LGT BTN TWY L AND RWY 01/19 U/S 2405180230-2405180900
5/18/240230Z !TEB 05/229 TEB TWY J SIGNS BTN TWY L AND RWY 01/19 LGT U/S 2405180230-2405180900
5/18/240230Z !TEB 05/228 TEB TWY J LGT BTN TWY L AND RWY 01/19 U/S 2405180230-2405180900
5/18/240230Z !TEB 05/227 TEB TWY K SIGNS LGT U/S 2405180230-2405180900
5/18/240230Z !TEB 05/226 TEB TWY K LGT U/S 2405180230-2405180900
5/18/240200Z !TEB 05/117 TEB RWY 01/19 CLSD 2405180200-2405181100
5/17/241553Z !TEB 05/232 TEB NAV ILS RWY 06 NOT MNT 2405171553-2405212359
5/17/241106Z !TEB 05/225 TEB TWY D IN PAVEMENT RWY GUARD LGT U/S 2405171106-2411161230
5/17/241104Z !TEB 05/224 TEB TWY F IN PAVEMENT RWY GUARD LGT U/S 2405171104-2411161230
5/16/241600Z !TEB 05/170 TEB TWY G EAST OF RWY 01/19 CLSD 2405161600-2405251559
5/14/240230Z !TEB 05/137 TEB RWY 01/19 RCLL U/S 2405140230-2411161230
5/14/240230Z !TEB 05/136 TEB RWY 01 RTZL U/S 2405140230-2411161230
5/14/240230Z !TEB 05/135 TEB RWY 19 RTZL U/S 2405140230-2411161230
5/11/241823Z !TEB 05/115 TEB TWY E SIGNS OBSC 2405111823-2405191600
5/11/241821Z !TEB 05/114 TEB TWY B SIGNS OBSC 2405111821-2405191600
5/11/241820Z !TEB 05/113 TEB TWY D SIGNS OBSC 2405111820-2405191600
5/11/241817Z !TEB 05/112 TEB TWY H SIGNS OBSC 2405111817-2405191600
5/11/241817Z !TEB 05/111 TEB TWY K SIGNS OBSC 2405111817-2405191600
5/11/241813Z !TEB 05/110 TEB TWY Q SIGNS BTN APCH END RWY 06 AND SIGNATURE SOUTH APN OBSC 2405111813-2405191600
5/11/241755Z !TEB 05/109 TEB TWY P EDGE LGT OBSC 2405111755-2405191600
5/11/241754Z !TEB 05/108 TEB TWY Q ELEVATED RWY GUARD LGT BTN RWY 01/19 AND TWY L OBSC 2405111754-2405191600
5/11/241752Z !TEB 05/107 TEB TWY L ELEVATED RWY GUARD LGT BTN RWY 06/24 AND TWY Q OBSC 2405111752-2405191600
5/11/241751Z !TEB 05/106 TEB TWY Q ELEVATED RWY GUARD LGT BTN APCH END RWY 06 AND SIGNATURE SOUTH APN OBSC 2405111751-2405191600
5/7/241300Z !TEB 05/067 TEB AIRSPACE SEE 2N7 05/037 UAS 2405071300-2411050200
5/6/241600Z !TEB 05/023 TEB AIRSPACE UAS WI AN AREA DEFINED AS 0.3NM RADIUS OF
405647.90N0740537.70W (6.0NM N TEB) SFC-400FT AGL
2405061600-2405180559
5/3/240716Z !TEB 05/019 TEB AD AP WILDLIFE HAZARD DEER, FOX 2405030716-2406010359
5/1/242048Z !TEB 05/010 TEB OBST TOWER LGT (ASR 1046247) 405250.00N0740410.00W (1.9NM NNW TEB) 691.6FT (652.6FT AGL) U/S 2405012048-2406302359
4/30/242332Z !TEB 04/184 TEB OBST TOWER LGT (ASR 1045375) 404753.00N0740623.00W (3.8NM SW TEB) 410.8FT (405.8FT AGL) U/S 2404302332-2407012359
4/30/242332Z !TEB 04/183 TEB OBST TOWER LGT (ASR 1045373) 404748.00N0740616.00W (3.8NM SSW TEB) 311.0FT (306.1FT AGL) U/S 2404302332-2407012359
4/30/242332Z !TEB 04/182 TEB OBST TOWER LGT (ASR 1045377) 404758.00N0740632.00W (3.8NM SW TEB) 311.0FT (306.1FT AGL) U/S 2404302332-2407012359
4/30/242326Z !TEB 04/181 TEB OBST TOWER LGT (ASR 1042783) 404817.00N0740626.00W (3.5NM SW TEB) 413.1FT (410.1FT AGL) U/S 2404302326-2406012359
4/29/241427Z !TEB 04/168 TEB OBST TOWER LGT (ASR UNKNOWN) 405001.44N0740113.33W (1.8NM E TEB) UNKNOWN (155FT AGL) U/S 2404291427-2406282359
4/8/240011Z !TEB 04/026 TEB OBST TOWER LGT (ASR 1237850) 404753.40N0740525.50W (3.4NM SSW TEB) 674.5FT (668.6FT AGL) U/S 2404080011-2405230010
3/31/242151Z !TEB 03/119 TEB OBST TOWER LGT (ASR 1045376) 404755.00N0740628.00W (3.8NM SW TEB) 311.0FT (306.1FT AGL) U/S 2403312151-2406012359
3/31/242150Z !TEB 03/118 TEB OBST TOWER LGT (ASR 1045374) 404750.00N0740620.00W (3.8NM SSW TEB) 311.0FT (306.1FT AGL) U/S 2403312150-2406012359
3/1/241918Z !TEB 03/003 TEB OBST TOWER LGT (ASR 1040101) 404914.80N0740404.00W (1.8NM S TEB) 237.9FT (237.9FT AGL) U/S 2403011918-2405312359
12/13/231651Z !TEB 12/062 TEB RWY 01 VASI (V4R) GPA 3.5DEG AVBL
2312131651-2410312359
12/13/231622Z !TEB 12/061 TEB RWY 01 PAPI UNUSABLE 2312131622-2410312359
FDC
5/17/241521Z !FDC 4/5831 TEB IAP TETERBORO, TETERBORO, NJ.
ILS Z OR LOC Z RWY 6, AMDT 31...
PROCEDURE NA.
2405171521-2412271521EST
5/16/240740Z !FDC 4/4918 TEB IAP TETERBORO, TETERBORO, NJ.
ILS Z OR LOC Z RWY 6, AMDT 30...
ALTERNATE MINIMUMS NA EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
TEB VOR/DME UNMONITORED. 2405160740-2406160740EST
4/30/241308Z !FDC 4/6638 TEB SID TETERBORO, TETERBORO, NJ.
TETERBORO FOUR DEPARTURE...
COATE, ELIOT, NEWEL, ZIMMZ DEPARTURES: NA EXCEPT FOR AIRCRAFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS, SAX VORTAC OUT OF SERVICE. 2404301308-2412101308EST
3/22/241212Z !FDC 4/0316 TEB ODP TETERBORO, TETERBORO, NJ.
TAKEOFF MINIMUMS AND (OBSTACLE) DEPARTURE PROCEDURES AMDT 8A...
ADD TAKEOFF OBSTACLE NOTE: RWY 19, TEMPORARY CRANE 590FT FROM DER, 2FT LEFT OF CENTERLINE, 30FT AGL/ 35FT MSL (2021-AEA-2062-NRA).
ALL OTHER DATA REMAINS AS PUBLISHED. 2403221212-2411011212EST
3/12/241412Z !FDC 4/6151 TEB SID TETERBORO, TETERBORO, NJ.
TETERBORO FOUR DEPARTURE...
DIXIE AND WHITE DEPARTURES: NA EXCEPT FOR AIRCRAFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS, COL VOR OUT OF SERVICE. 2403121412-2603121412EST
2/14/241443Z !FDC 4/4984 TEB SID TETERBORO, TETERBORO, NJ.
TETERBORO FOUR DEPARTURE...
NOTE: PARKE DEPARTURE VIA BWZ R-250 NA EXCEPT FOR AIRCRAFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
BWZ VOR/DME OUT OF SERVICE. 2402141443-2405301443EST
8/10/230901Z !FDC 3/1005 TEB IAP TETERBORO, TETERBORO, NJ.
RNAV (GPS) X RWY 6, AMDT 3...
CHANGE PLANVIEW NOTE TO READ: PROCEDURE NA FOR ARRIVALS AT COATE ON V252 NORTHBOUND AND V116-188, T218 NORTHWEST BOUND.
2308100901-2508101538EST
Yes
ALL
PORT AUTHORITY OF NY & NJ
4 WORLD TRADE CENTER
NEW YORK, NY 10006
Phone: 212-435-3640
MARIA SHERIDAN
90 MOONACHIE AVE
TETERBORO, NJ 07608
Phone: 201-288-1775
MILLVILLE FSS (MIV)
Toll Free: 1-800-WX-BRIEF
TEB
Sunset to Sunrise
--
N/A
Yes - Lighted
No
Yes
Hanger, Tie-Down
Landing Rights Airport
NOT an Airport of Entry
5
2
97
5
0
0
Major
Major
High & Low Pressure
High & Low Pressure
Avionics
Cargo Handling
Charter Service
Aircraft Sales

Runway 01/19

7000 ft. x 150 ft.
ASPH
Good
GRVD
HIGH
35 /F/C/X/T
50,000lbs
100,000lbs
--
--
  Runway 01 Runway 19
True Heading 3°183°
Traffic Pattern Left Left
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 40° 50' 19"N 40° 51' 28"N
Longitude 74° 03' 37"W 74° 03' 32"W
Elevation 8' 6'
Threshold Crossing Height 56 ft. AGL 57 ft. AGL
Visual Glide Path Angle 3.1° 3°
Visual Slope Indicator P4L P4L
Approach Lights
Centerline Lights Yes Yes
Runway End Identifier Lights Yes Yes

Runway 06/24

6013 ft. x 150 ft.
ASPH
Good
GRVD
HIGH
35 /F/C/X/T
50,000lbs
100,000lbs
--
--
  Runway 06 Runway 24
True Heading 48°228°
Traffic Pattern Left Left
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 40° 50' 48"N 40° 51' 28"N
Longitude 74° 04' 13"W 74° 03' 15"W
Elevation 5' 7'
Threshold Crossing Height -- 46 ft. AGL
Visual Glide Path Angle -- 3.2°
Visual Slope Indicator -- P4L
Approach Lights MALSR
Centerline Lights Yes Yes
Runway End Identifier Lights Yes Yes
A110-1CLSD TO MOTORLESS ACFT - UNCTLD ACFT & ULTRALIGHT ACTIVITY EXCEP BY PRIOR PERMISSION.
A110-10DLY CONS CONST ACT ALL QUADRANTS.
A110-14ACFT CAPABLE OF OPERATING ABV 100,000 POUNDS MUST SUBMIT CERTIFICATION TO AMGR VERIFYING AIRCRAFT OPERATING WEIGHT IS LESS THAN 100,000 LBS. CONTACT AIRPORT OPERATIONS AT 201-288-1775 FOR FORMS.
A110-15TEB RNAV (GPS) X RWY 06 IS PRIM RNAV APCH TO RWY 06.
A110-2ALL ACFT AVOID HOSPITAL 1.7 MILE NORTH OF RWY 01/19.
A110-3DEER AND BIRD ACT ON AND INVOF ARPT.
A110-4HEL OPNS OVER RESIDENTIAL AREAS BLO 1000 FT MSL SHOULD BE AVOIDED.
A110-5ACFT & HELICOPTER NOISE ABATEMENT RULES IN EFF; CTC ARPT NOISE ABATEMENT OFC 201-393-0399/288-1775 FOR COPY OF PROCEDURES & RULES PRIOR TO ARR. RY 24 NOISE CRITICAL RY MAX NOISE LIMIT OF 80 DB BETWEEN 2200-0700 & 90 DB ALL OTR HRS.
A110-7STAGE 1 ACFT NOT PERMITTED TO OPR AT TETERBORO ARPT.
TETERBORO (ICAO: KTEB, IATA: TEB) is a public airport located in TETERBORO, NJ.
