DRAUGHON-MILLER CENTRAL TEXAS RGNL - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KTPL
DRAUGHON-MILLER CENTRAL TEXAS RGNL
PublicPUB

5 miles NW of TEMPLE, TX
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
31° 09' 07"N 97° 24' 28"W
682' MSL
1682' MSL
03E
Jet A, Jet A-1+, 100LL
SAN ANGELO (SJT)
SAN ANTONIO
HOUSTON (ZHU)
5/16/24-6/13/24
KTPL VFR
10:51 PM CDT
Clear
N/A
72°F
67°F
29.82"Hg
170° 6kts
AO2 SLP088 T02220194 PWINO RVRNO $
KTPL 180351Z AUTO 17006KT CLR 22/19 A2982 RMK AO2 SLP088 T02220194 PWINO RVRNO $
List Your Business

KTPL FBOs, Flight Schools and Ground Support

KTPL Ground Transportation (Taxi, Limo, Car Service)

No ground transportation services are listed for this airport.

KTPL Hotels

No hotels are listed for this airport.

KTPL Restaurants

No restaurants are listed for this airport.

KTPL Other Airport-Related Businesses

No other airport-related businesses are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
123.0 123.0

AWOS-3PT

AWOS-3PT
254-774-8337
 134.975

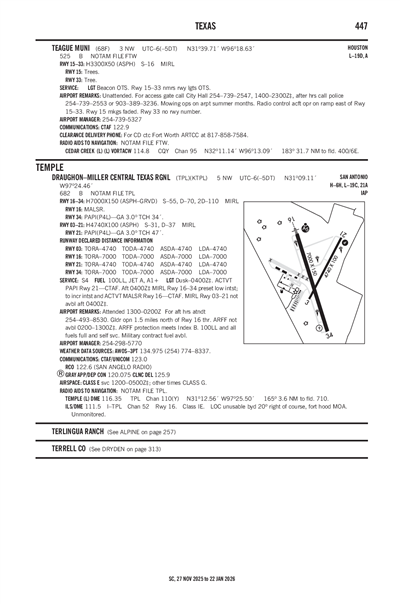

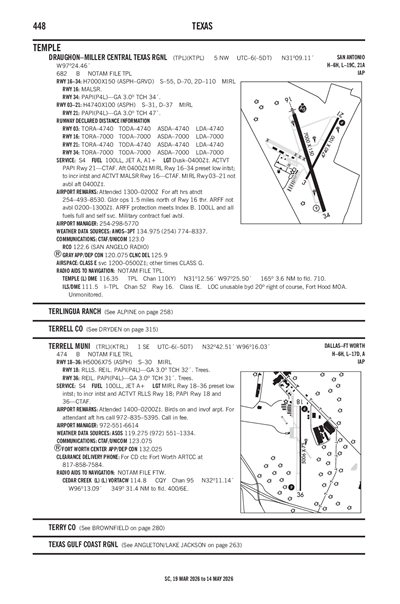

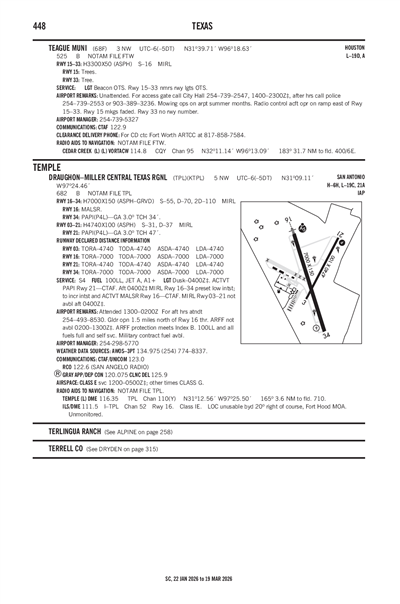

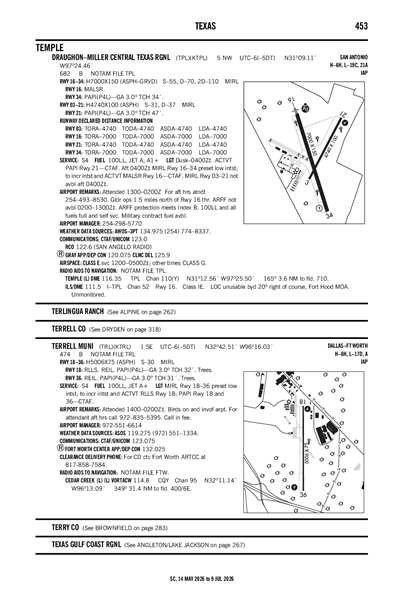

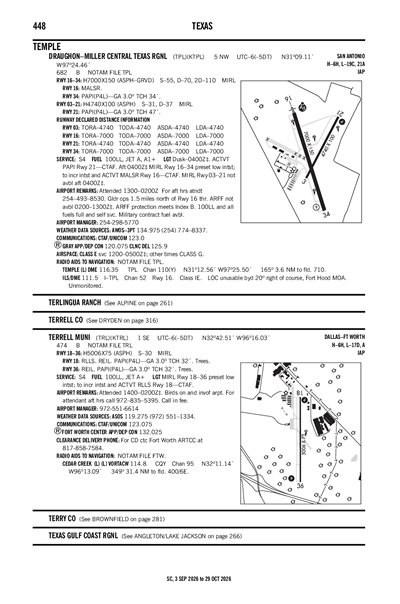

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KGRK (22nm)
Fri, 5/17 7:00 PM CDT
Fri, 5/17 7:00 PM CDT - Sun, 5/19 1:00 AM CDT
VFR
7:00 PM CDT - 1:00 PM CDT
Few 25,000'
Few 3,500'
6sm
29.73"Hg
150° 12kts
VFR
Becoming 1:00 PM CDT - 1:00 AM CDT
Sky Clear
6sm
29.85"Hg
150° 12kts
TAF KGRK 180000Z 1800/1906 15012KT 9999 FEW035 FEW250 QNH2974INS WND 21009KT AFT 1814
   BECMG 1818/1819 15012KT 9999 SKC QNH2984INS TX32/1821Z TN18/1812Z
KTPL
Domestic
5/18/241700Z !TPL 05/011 TPL AIRSPACE AEROBATIC ACFT WI AN AREA DEFINED AS 5NM RADIUS OF TPL SFC-6000FT AVOIDANCE ADZ DLY 1700-2200 2405181700-2405192200
5/18/241700Z !TPL 05/010 TPL AD AP CLSD DLY 1700-2200 2405181700-2405192200
5/17/241900Z !TPL 05/006 TPL AIRSPACE SEE FDC 4/2463 ZHU AIRSHOW 2405171900-2405192000
5/17/241700Z !TPL 05/008 TPL AIRSPACE UAS WI AN AREA DEFINED AS 0.3NM RADIUS OF
310917.40N0972500.40W (0.5NM WNW TPL) SFC-400FT AGL
2405171700-2405180459
5/17/241259Z !TPL 05/014 TPL OBST TOWER LGT (ASR 1055427) 310648.60N0972113.20W (3.6NM SE TPL) 1001.0FT (248.0FT AGL) U/S 2405171259-2409141259
5/16/241705Z !TPL 05/013 TPL OBST TOWER LGT (ASR 1239049) 311858.50N0972205.90W (10.0NM NNE TPL) 1060.0FT (270.0FT AGL) U/S 2405161705-2409131705
5/15/241548Z !TPL 05/009 TPL OBST TOWER LGT (ASR 1043254) 311625.00N0972332.00W (7.3NM NE TPL) 1131.9FT (452.8FT AGL) U/S 2405151548-2407152359
5/12/241435Z !TPL 05/007 TPL OBST TOWER LGT (ASR 1047264) 310227.70N0972851.90W (7.6NM SSW TPL) 1104.0FT (442.9FT AGL) U/S 2405121435-2408100400
5/3/240604Z !TPL 05/002 TPL OBST TOWER LGT (ASR 1225427) 311915.70N0972322.70W (10.1NM NE TPL) 1066.9FT (253.0FT AGL) U/S 2405030604-2408310603
4/28/241845Z !TPL 04/019 TPL OBST TOWER LGT (ASR 1051781) 310632.70N0972156.40W (3.3NM SE TPL) 928.5FT (224.7FT AGL) U/S 2404281845-2405282359
FDC
5/13/241200Z !FDC 4/2807 TPL IAP DRAUGHON-MILLER CENTRAL TEXAS RGNL, TEMPLE, TX.
ILS OR LOC RWY 16, AMDT 14...
DME REQUIRED EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
AGJ VORTAC OUT OF SERVICE. 2405131200-2407112100EST
No
0700-2000
FOR AFT HRS ATNDT 254-493-8530.
CITY OF TEMPLE
2 N. MAIN
TEMPLE, TX 76501
Phone: 254-298-5660
SEAN PARKER
7720-F AIRPORT ROAD
TEMPLE, TX 76501
Phone: 254-298-5770
SAN ANGELO FSS (SJT)
Toll Free: 1-800-WX-BRIEF
TPL
--
DUSK-2200. ACTVT PAPI RWY 21 - CTAF. AFT 2200 MIRL RWY 16/34 PRESET LOW INTST; TO INCR INTST & ACTVT MALSR RWY 16 - CTAF. MIRL RWY 03/21 NOT AVBL AFT 2200.
N/A
Yes - Lighted
Yes
No
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
91
13
9
9
147
0
Major
Major
None
None
Avionics
Pilot Instruction
Aircraft Rental

Runway 03/21

4740 ft. x 100 ft.
ASPH
Good
NONE
MED

31,000lbs
37,000lbs
--
--
  Runway 03 Runway 21
True Heading 28°208°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 31° 08' 52"N 31° 09' 33"N
Longitude 97° 24' 34"W 97° 24' 09"W
Elevation 674' 665'
Threshold Crossing Height -- 47 ft. AGL
Visual Glide Path Angle -- 3°
Visual Slope Indicator -- P4L
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway 16/34

7000 ft. x 150 ft.
ASPH
Good
GRVD
MED

55,000lbs
70,000lbs
110,000lbs
--
  Runway 16 Runway 34
True Heading 163°343°
Traffic Pattern Left Left
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 31° 09' 36"N 31° 08' 30"N
Longitude 97° 24' 44"W 97° 24' 20"W
Elevation 682' 669'
Threshold Crossing Height -- 34 ft. AGL
Visual Glide Path Angle -- 3°
Visual Slope Indicator -- P4L
Approach Lights MALSR
Centerline Lights
Runway End Identifier Lights
A110-1ARFF NOT AVBL 2000-0700.
A110-2MIL CONTR FUEL AVBL.
A110-6GLDR OPN 1.5 MILES NORTH OF RWY 16 THR.
DRAUGHON-MILLER CENTRAL TEXAS RGNL (ICAO: KTPL, IATA: TPL) is a public airport located in TEMPLE, TX.
