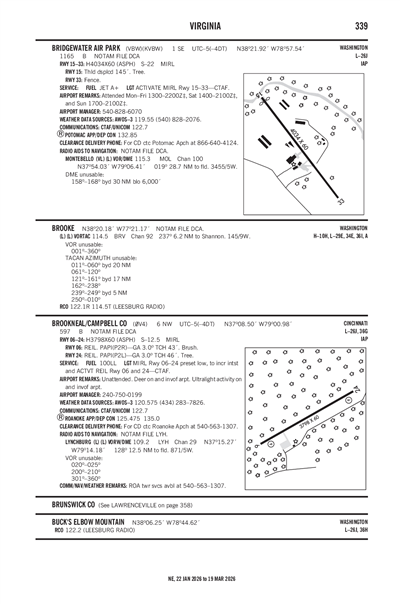

BRIDGEWATER AIR PARK - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KVBW
BRIDGEWATER AIR PARK
PublicPUB

1 miles SE of BRIDGEWATER, VA
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
38° 21' 55"N 78° 57' 32"W
1165' MSL
2165' MSL
09W
Jet A+
LEESBURG (DCA)
WASHINGTON
WASHINGTON (ZDC)
5/16/24-6/13/24
KVBW IFR
3:15 AM EDT
Overcast 2,700'
Broken 1,700'
Broken 500'
4sm
32°F
32°F
29.89"Hg
Calm
AO1 P0004
KVBW 180715Z AUTO 00000KT 4SM BKN005 BKN017 OVC027 A2989 RMK AO1 P0004
List Your Business

KVBW FBOs, Flight Schools and Ground Support

No FBOs, flight schools or aircraft ground support businesses are listed for this airport.

KVBW Ground Transportation (Taxi, Limo, Car Service)

No ground transportation services are listed for this airport.

KVBW Hotels

No hotels are listed for this airport.

KVBW Restaurants

No restaurants are listed for this airport.

KVBW Other Airport-Related Businesses

No other airport-related businesses are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.7 122.7

AWOS-3

AWOS-3
540-828-2076
 119.55

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KCHO (27nm)
Sat, 5/18 1:43 AM EDT
Sat, 5/18 2:00 AM EDT - Sun, 5/19 2:00 AM EDT
IFR
2:00 AM EDT - 6:00 AM EDT
Light Showers and Rain and Mist
Overcast 800'
6sm
110° 4kts
IFR
6:00 AM EDT - 2:00 PM EDT
Showers and Rain and Mist
Overcast 800'
Scattered 300'
4sm
100° 3kts
IFR
2:00 PM EDT - 6:00 PM EDT
Light Showers and Rain and Mist and Thunderstorm in vicinity
Overcast 800'
4sm
060° 6kts
IFR
6:00 PM EDT - 8:00 PM EDT
Mist
Overcast 800'
Scattered 300'
5sm
060° 5kts
LIFR
8:00 PM EDT - 2:00 AM EDT
Mist
Overcast 300'
4sm
050° 4kts
KCHO 180543Z 1806/1906 11004KT 6SM -SHRA BR OVC008
   FM181000 10003KT 4SM SHRA BR SCT003 OVC008
   FM181800 06006KT 4SM -SHRA BR VCTS OVC008CB
   FM182200 06005KT 5SM BR SCT003 OVC008
   FM190000 05004KT 4SM BR OVC003
KVBW
Domestic
3/18/241330Z !DCA 03/279 VBW RWY 15/33 CHANGED TO 4034FT X 60FT. DECLARED DIST: RWY 15 TORA 4034FT TODA 4034FT ASDA 4034FT LDA 3885FT. RWY 33 TORA 4034FT TODA 4034FT ASDA 4034FT LDA 4034FT 2403181330-PERM
FDC
3/15/241915Z !FDC 4/7860 VBW IAP BRIDGEWATER AIR PARK, BRIDGEWATER, VA.
RNAV (GPS) RWY 33, AMDT 1...
STRAIGHT-IN MINIMUMS NA.
2403151915-2410251915EST
No
MON-FRI 0800-1700
SAT 0900-1600
SUN 1200-1600
ROCKINGHAM AVIATION CORP
PO BOX 7
BRIDGEWATER, VA 22812
Phone: 540-828-3214
AARON LORSON
PO BOX 7
BRIDGEWATER, VA 22812
Phone: 540-828-6070
LEESBURG FSS (DCA)
Toll Free: 1-800-WX-BRIEF
DCA
--
ACTVT MIRL RWY 15/33 - CTAF.
N/A
Yes
No
No
Tie-Down
No
2
94
3
1
0
0
None
None
None
None
None

Runway 15/33

4034 ft. x 60 ft.
ASPH
Good
NONE
MED

22,000lbs
--
--
--
  Runway 15 Runway 33
True Heading 143°323°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition FAIR FAIR
Latitude 38° 22' 11"N 38° 21' 39"N
Longitude 78° 57' 48"W 78° 57' 17"W
Elevation 1,157' 1,163'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-21300 FT TWY IN LINE WITH RWY PRIOR TO RWY 33 IN ADDITION TO THE DISPLACEMENT.
A110-4FOR CD CTC POTOMAC APCH AT 866-640-4124.
A110-5PPR FOR US GOVT OPS CALL 540-828-6070.
BRIDGEWATER AIR PARK (ICAO: KVBW, IATA: VBW) is a public airport located in BRIDGEWATER, VA.
