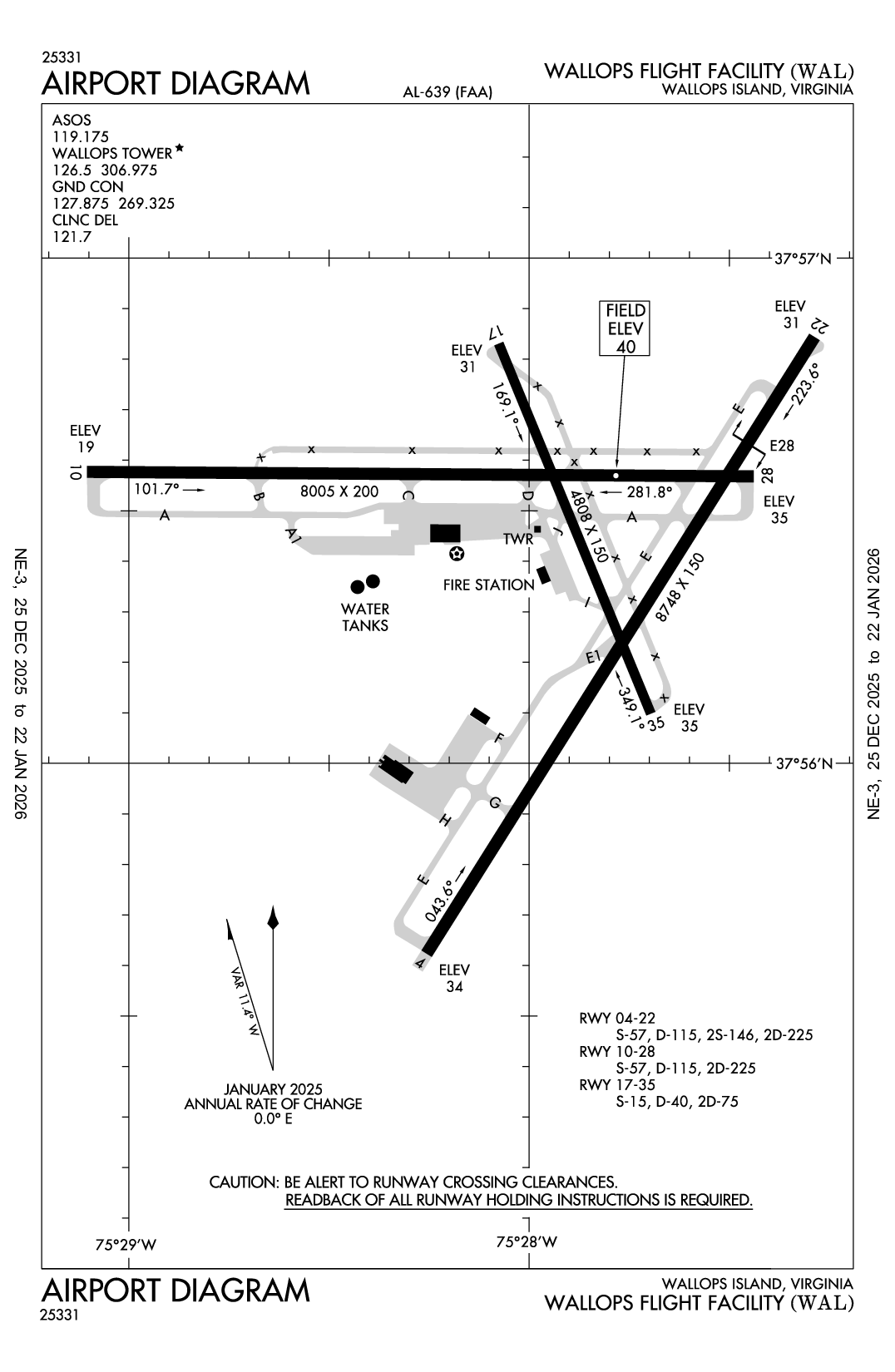

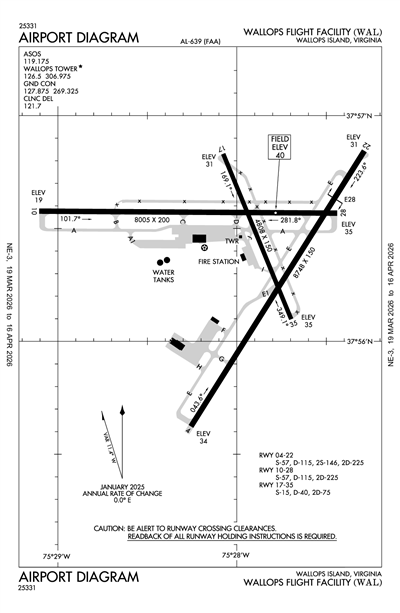

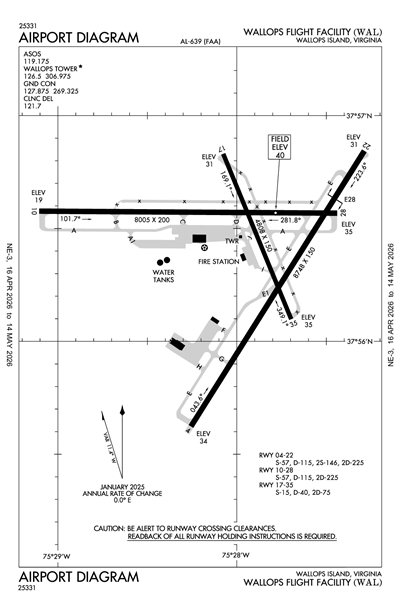

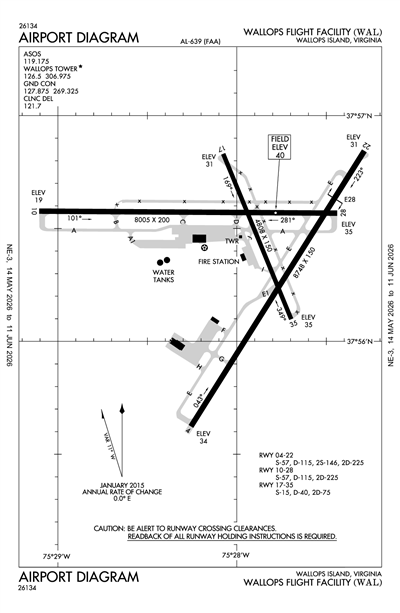

WALLOPS FLIGHT FACILITY - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KWAL
WALLOPS FLIGHT FACILITY
PrivatePVT

5 miles S of WALLOPS ISLAND, VA
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
37° 56' 25"N 75° 27' 59"W
40' MSL
1040' MSL
11W
Jet A
LEESBURG (DCA)
WASHINGTON
WASHINGTON (ZDC)
5/16/24-6/13/24
KWAL VFR
11:54 PM EDT
Clear
10sm
58°F
56°F
29.98"Hg
Calm
AO2 SLP150 T01440133
KWAL 180354Z AUTO 00000KT 10SM CLR 14/13 A2998 RMK AO2 SLP150 T01440133
List Your Business

KWAL FBOs, Flight Schools and Ground Support

No FBOs, flight schools or aircraft ground support businesses are listed for this airport.

KWAL Ground Transportation (Taxi, Limo, Car Service)

No ground transportation services are listed for this airport.

KWAL Hotels

No hotels are listed for this airport.

KWAL Restaurants

No restaurants are listed for this airport.

KWAL Other Airport-Related Businesses

No other airport-related businesses are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
-- 126.5

ASOS

ASOS
757-824-0820
 119.175

Clearance Delivery

CD/P
 121.7

Ground

GND/P
 127.875

Tower

LCL/P
 126.5

FAA A/FD Pages

Airport Diagrams

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KSBY (24nm)
Fri, 5/17 7:34 PM EDT
Fri, 5/17 8:00 PM EDT - Sat, 5/18 8:00 PM EDT
VFR
8:00 PM EDT - 3:00 AM EDT
Broken 3,500'
6sm
050° 10kts
VFR
3:00 AM EDT - 7:00 AM EDT
Showers in vicinity
Overcast 8,000'
Scattered 2,500'
6sm
090° 3kts
MVFR
7:00 AM EDT - 11:00 AM EDT
Light Showers and Rain
Overcast 2,500'
6sm
100° 8kts
MVFR
11:00 AM EDT - 8:00 PM EDT
Light Showers and Rain and Mist
Overcast 1,500'
6sm
080° 8kts
KSBY 172334Z 1800/1824 05010KT P6SM BKN035
   FM180700 09003KT P6SM VCSH SCT025 OVC080
   FM181100 10008KT 6SM -SHRA OVC025
   FM181500 08008KT 6SM -SHRA BR OVC015
KWAL
Domestic
3/29/241413Z !WAL 03/006 WAL RWY 17 PAPI MEDIUM INTST U/S 2403291413-2405312359
2/2/242149Z !WAL 02/010 WAL OBST PARKED ACFT (ASN UNKNOWN) 375641N0752756W (0.16NM SE APCH END RWY 17) UNKNOWN (38FT AGL) NOT LGTD 2402022149-2408012359
2/2/242149Z !WAL 02/009 WAL OBST BLDG (ASN UNKNOWN) 375552N0752801W (0.3NM NE APCH END RWY 04) UNKNOWN (1FT AGL) NOT LGTD 2402022149-2408012359
2/2/242148Z !WAL 02/008 WAL OBST RIG (ASN UNKNOWN) 355635N0752844W (0.27NM ENE APCH END RWY 10) UNKNOWN (12FT AGL) NOT LGTD 2402022148-2408012359
2/2/242148Z !WAL 02/007 WAL OBST BLDG (ASN UNKNOWN) 375632N0752743W (0.23NM WSW APCH END RWY 28) UNKNOWN (15FT AGL) LGTD 2402022148-2408012359
2/2/242145Z !WAL 02/006 WAL OBST RIG (ASN UNKNOWN) 375633N0752747W (0.27NM WSW APCH END RWY 28) UNKNOWN (12FT AGL) NOT LGTD 2402022145-2408012359
2/2/242145Z !WAL 02/005 WAL OBST BLDG (ASN UNKNOWN) 375635N0752849W (0.22NM ENE APCH END RWY 10) UNKNOWN (15FT AGL) LGTD 2402022145-2408012359
2/2/242144Z !WAL 02/004 WAL OBST BLDG (ASN UNKNOWN) 375553N0752804W (0.3NM NE APCH END RWY 04) UNKNOWN (1FT AGL) NOT LGTD 2402022144-2408012359
FDC
2/13/231954Z !FDC 3/5282 WAL IAP WALLOPS FLIGHT FACILITY, Wallops Island, VA.
VOR OR TACAN RWY 17, AMDT 7B...
S-17 AND CIRCLING MDA 900 ALL CATS, VIS CATS A/B 1 1/4 SM, CAT C 2 1/2 SM, CAT D 2 3/4 SM. DISREGARD SALISBURY ALTIMETER NOTE.
2302131954-2509251954EST
Yes
ALL
NASA
WALLOPS FLIGHT FACILITY
WALLOPS ISLAND, VA 23337
Phone: 757-824-1240
ED SUDENDORF
WALLOPS FLIGHT FACILITY
WALLOPS ISLAND, VA 23337
Phone: 757-824-1250
LEESBURG FSS (DCA)
Toll Free: 1-800-WX-BRIEF
WAL
--
FOR ROTG BCN CALL CTAF.
N/A
Yes - Lighted
No
No
None
NOT a Landing Rights Airport
NOT an Airport of Entry
0
8
2
1
0
0
None
None
None
None
None

Runway 04/22

8748 ft. x 150 ft.
ASPH CONC
Good
NONE
HIGH

57,000lbs
115,000lbs
225,000lbs
--
  Runway 04 Runway 22
True Heading 32°212°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 37° 55' 37"N 37° 56' 51"N
Longitude 75° 28' 15"W 75° 27' 17"W
Elevation 34' 31'
Threshold Crossing Height 57 ft. AGL 60 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes

Runway 10/28

8005 ft. x 200 ft.
ASPH CONC
Good
NONE
HIGH

57,000lbs
115,000lbs
225,000lbs
--
  Runway 10 Runway 28
True Heading 90°270°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 37° 56' 35"N 37° 56' 34"N
Longitude 75° 29' 06"W 75° 27' 26"W
Elevation 19' 35'
Threshold Crossing Height 69 ft. AGL 61 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes

Runway 17/35

4808 ft. x 150 ft.
ASPH
Good
NONE
HIGH

15,000lbs
40,000lbs
75,000lbs
--
  Runway 17 Runway 35
True Heading 158°338°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition FAIR FAIR
Latitude 37° 56' 50"N 37° 56' 06"N
Longitude 75° 28' 05"W 75° 27' 42"W
Elevation 31' 35'
Threshold Crossing Height 63 ft. AGL 59 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes
A110-1EXTENSIVE RESEARCH TEST DEVELOPMENT IN PROGRESS.
A110-11MILITARY TURBOPROP TRAINING DAILY UNTIL 2300L.
A110-13FCLP EQUIPMENT DIRECTLY ADJACENT TO LEFT SIDE OF RWY 10 1335-1725 FT FM APPROACH END. FCLP EQUIPMENT DIRECTLY ADJACENT TO LEFT SIDE OF RWY 28 1340-1725 FT FM APPROACH END.
A110-14TOUCH AND GO LDGS NA WHEN ATCT CLSD.
A110-15RWY 17/35 CLSD WHEN ATCT CLSD.
A110-16WHEN ATCT CLSD, 126.5 CTAF ONLY. EXPC NO RESP OR ADZY SVCS.
A110-17E-28 ARRESTING GEAR 1500 FT FM THE NORTH END OF RWY 22 IS RIGGED/IN BATTERY.
A110-18PPR 24 HR PN TO LDG, PHONE 757-824-1688.
A110-19FOR CD CTC PATUXENT APCH AT 301-342-3740, WHEN PATUXENT APCH IS CLSD CTC POTOMAC APCH AT 866-640-4124.
A110-20DEER & BIRDS ON AND INVOF ARPT.
A110-3NUMEROUS RADAR FACILITIES AT ARPT WITH POSSIBLE RADIO FREQUENCY HAZARD TO ORDNANCE.
WALLOPS FLIGHT FACILITY (ICAO: KWAL, IATA: WAL) is a private airport located in WALLOPS ISLAND, VA.
