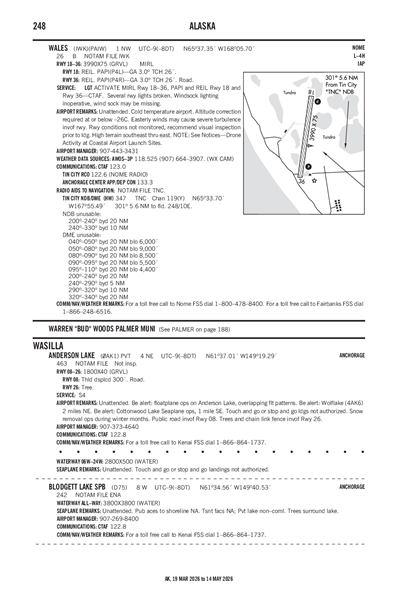

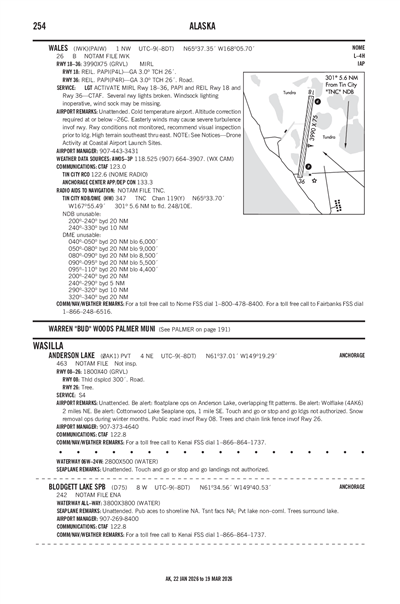

WALES - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

PAIW
WALES
PublicPUB

1 miles NW of WALES, AK
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
65° 37' 21"N 168° 05' 42"W
26' MSL
1026' MSL
08E
None Listed
NOME (OME)
NOME
ANCHORAGE (ZAN)
5/16/24-6/13/24
PAIW VFR
9:56 PM AKDT
Few 6,000'
10sm
32°F
29°F
30.04"Hg
070° 10kts
AO2 SLP175 T00001017 10017 20000 58001 FZRANO
PAIW 180556Z AUTO 07010KT 10SM FEW060 00/M02 A3004 RMK AO2 SLP175 T00001017 10017 20000 58001 FZRANO
List Your Business

PAIW FBOs, Flight Schools and Ground Support

No FBOs, flight schools or aircraft ground support businesses are listed for this airport.

PAIW Ground Transportation (Taxi, Limo, Car Service)

No ground transportation services are listed for this airport.

PAIW Hotels

No hotels are listed for this airport.

PAIW Restaurants

No restaurants are listed for this airport.

PAIW Other Airport-Related Businesses

No other airport-related businesses are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
-- 123.0

AWOS-3P

AWOS-3P
907-664-3907
 118.525

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

No TAF is available for this location.
PAIW
Domestic
5/14/242132Z !IWK 05/007 IWK SVC PCL RWY 36 PAPI U/S 2405142132-2406151500EST
5/14/242131Z !IWK 05/006 IWK SVC PCL RWY 18 PAPI U/S 2405142131-2406151500EST
5/12/240522Z !IWK 05/003 IWK SVC AUTOMATED WX BCST SYSTEM NOT AVBL 2405120522-2407281500EST
5/10/241600Z !IWK 05/002 IWK RWY 18 PAPI U/S 2405101600-2406291500EST
5/10/241559Z !IWK 05/001 IWK RWY 36 PAPI U/S 2405101559-2406291500EST
No
UNATNDD
ALASKA DOT&PF NORTHERN REGION
NORTHERN REGION, 2301 PEGER RD
FAIRBANKS, AK 99709
Phone: 907-451-2200
GEORGE KOST
PO BOX 1048
NOME, AK 99762
Phone: 907-443-3431
NOME FSS (OME)
Toll Free: 1-800-478-8400
IWK
--
ACTVT MIRL RY 18/36; PAPI AND REIL RYS 18 & 36 - CTAF.
N/A
Yes - Lighted
Yes
No
None
NOT a Landing Rights Airport
NOT an Airport of Entry
0
0
0
0
0
0
None
None
None
None
None

Runway 18/36

3990 ft. x 75 ft.
GRAVEL
Good
NONE
MED

--
--
--
--
  Runway 18 Runway 36
True Heading 188°8°
Traffic Pattern Left Left
Markings
Markings Condition
Latitude 65° 37' 41"N 65° 37' 02"N
Longitude 168° 05' 35"W 168° 05' 49"W
Elevation 22' 21'
Threshold Crossing Height 26 ft. AGL 26 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4R
Approach Lights
Centerline Lights No No
Runway End Identifier Lights Yes Yes
A110-1EASTERLY WINDS MAY CAUSE SEVERE TURBULENCE IN VICINITY OF RWY.
A110-2HIGH TERRAIN SE THRU E.
A110-3RY CONDITIONS NOT MONITORED; RECOMMEND VISUAL INSPECTION PRIOR TO LANDING.
A110-4WX CAMERA AVBL ON INTERNET AT HTTPS://WEATHERCAMS.FAA.GOV
A110-5COLD TEMPERATURE AIRPORT. ALTITUDE CORRECTION REQUIRED AT OR BELOW -27C.
A110-6WIND SOCK LIGHTING INOPERATIVE, WIND SOCK MAY BE MISSING
A110-7SEVERAL RWY LIGHTS BROKEN.
WALES (ICAO: PAIW, IATA: IWK) is a public airport located in WALES, AK.
