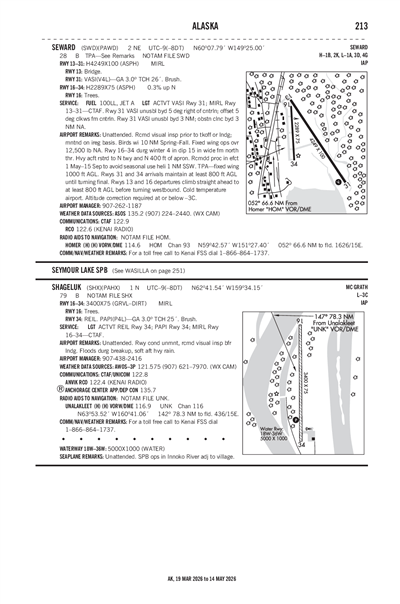

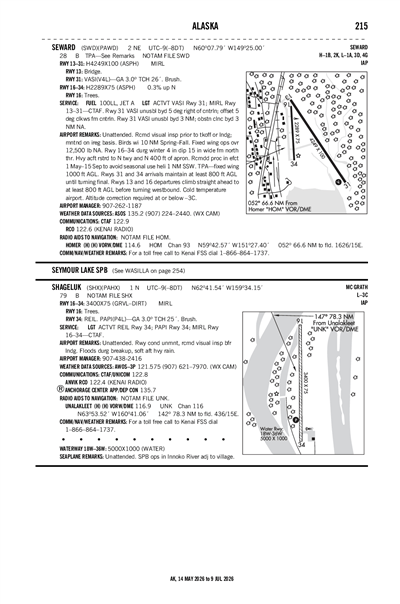

SEWARD - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

PAWD
SEWARD
PublicPUB

2 miles NE of SEWARD, AK
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
60° 07' 48"N 149° 24' 60"W
28' MSL
1028' MSL
19E
Jet A, 100LL
KENAI (ENA)
SEWARD
ANCHORAGE (ZAN)
5/16/24-6/13/24
PAWD VFR
9:53 PM AKDT
Clear
10sm
45°F
35°F
30.12"Hg
180° 7kts
AO2 SLP199 T00720017 10106 20072 51004 TSNO
PAWD 180553Z AUTO 18007KT 10SM CLR 07/02 A3012 RMK AO2 SLP199 T00720017 10106 20072 51004 TSNO
List Your Business

PAWD FBOs, Flight Schools and Ground Support

Promote Listing
Seward Air
Freq: 122.9
Phone: (907) 491-1357
No Rating Available
0 Reviews (Read | Sign In To Write)
Independent
As of 5/15
 100LL Jet A Jet A+ Mogas UL94
Self Serve 9.50 9.50
Full Serve

PAWD Ground Transportation (Taxi, Limo, Car Service)

No ground transportation services are listed for this airport.

PAWD Hotels

No hotels are listed for this airport.

PAWD Restaurants

No restaurants are listed for this airport.

PAWD Other Airport-Related Businesses

No other airport-related businesses are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
-- 122.9

ASOS

ASOS
907-224-2440
 135.2

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

Departure Procedures

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

PAEN (61nm)
Fri, 5/17 9:44 PM AKDT
Fri, 5/17 10:00 PM AKDT - Sat, 5/18 10:00 PM AKDT
VFR
10:00 PM AKDT - 7:00 AM AKDT
Scattered 4,000'
6sm
210° 9kts
VFR
7:00 AM AKDT - 4:00 PM AKDT
Overcast 5,000'
6sm
VRB° 2kts
VFR
4:00 PM AKDT - 7:00 PM AKDT
Overcast 4,500'
6sm
030° 9kts
VFR
7:00 PM AKDT - 10:00 PM AKDT
Showers in vicinity
Overcast 3,500'
6sm
060° 11kts
PAEN 180544Z 1806/1906 21009KT P6SM SCT040
   FM181500 VRB02KT P6SM OVC050
   FM190000 03009KT P6SM OVC045
   FM190300 06011KT P6SM VCSH OVC035
PAWD
No NOTAM Available
No
UNATNDD
ALASKA DOT&PF CENTRAL REGION
PO BOX 196900
ANCHORAGE, AK 99519-6900
Phone: 907-262-2199
ROB SMITH
30049 SEWARD HWY MP 23.9
SEWARD, AK 99664
Phone: 907-262-1187
KENAI FSS (ENA)
Toll Free: 1-866-864-1737
SWD
--
ACTVT VASI RWY 31; MIRL RWY 13/31 - CTAF.
N/A
Yes
Yes
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
23
0
0
0
0
0
None
None
None
None
Charter Service

Runway 13/31

4249 ft. x 100 ft.
ASPH
Good
NONE
MED

--
--
--
--
  Runway 13 Runway 31
True Heading 146°326°
Traffic Pattern Left Left
Markings BSC BSC
Markings Condition GOOD GOOD
Latitude 60° 08' 04"N 60° 07' 29"N
Longitude 149° 25' 16"W 149° 24' 29"W
Elevation 28' 19'
Threshold Crossing Height -- 26 ft. AGL
Visual Glide Path Angle -- 3°
Visual Slope Indicator -- V4L
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway 16/34

2289 ft. x 75 ft.
ASPH
Good
NONE


--
--
--
--
  Runway 16 Runway 34
True Heading 177°357°
Traffic Pattern Left Left
Markings BSC BSC
Markings Condition GOOD GOOD
Latitude 60° 08' 01"N 60° 07' 39"N
Longitude 149° 25' 15"W 149° 25' 12"W
Elevation 25' 17'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-11WX CAMERA AVBL ON INTERNET AT HTTPS://WEATHERCAMS.FAA.GOV
A110-13BIRDS WI 10 NM SPRING-FALL.
A110-14FIXED WING OPS OVR 12500 LB NA.
A110-15COLD TEMPERATURE AIRPORT. ALTITUDE CORRECTION REQUIRED AT OR BELOW -4C.
A110-16RCMD VISUAL INSP PRIOR TO TKOFF OR LNDG; MNTND ON IREG BASIS.
A110-2HVY ACFT RSTRD TO N TWY & N 400 FT OF APRON.
A110-8RCMDD PROC IN EFCT 1 MAY-15 SEP TO AVOID SEASONAL USE HELI 1 NM SSW.
SEWARD (ICAO: PAWD, IATA: SWD) is a public airport located in SEWARD, AK.
