iFlightPlanner



...

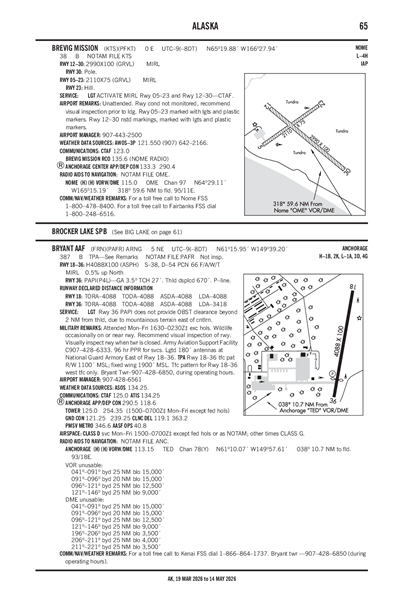

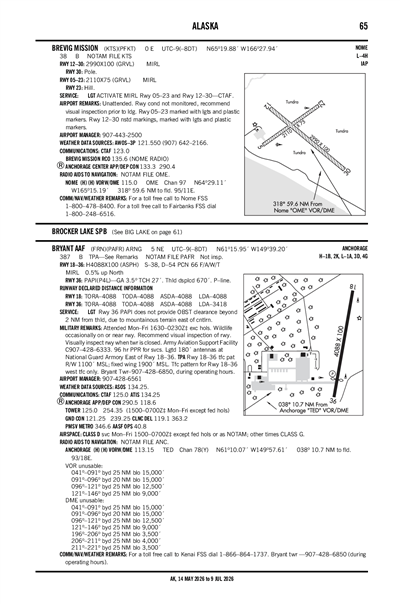

BREVIG MISSION - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

PFKT
BREVIG MISSION
PublicPUB

0 miles E of BREVIG MISSION, AK
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
65° 19' 53"N 166° 27' 57"W
38' MSL
1038' MSL
09E
None Listed
NOME (OME)
NOME
ANCHORAGE (ZAN)
5/16/24-6/13/24
PFKT VFR
9:56 PM AKDT
Overcast 6,000'
10sm
36°F
24°F
30.02"Hg
Calm
AO2 SLP166 T00221044 10033 20011 56001 FZRANO
PFKT 180556Z AUTO 00000KT 10SM OVC060 02/M04 A3002 RMK AO2 SLP166 T00221044 10033 20011 56001 FZRANO
List Your Business

PFKT FBOs, Flight Schools and Ground Support

No FBOs, flight schools or aircraft ground support businesses are listed for this airport.

PFKT Ground Transportation (Taxi, Limo, Car Service)

No ground transportation services are listed for this airport.

PFKT Hotels

No hotels are listed for this airport.

PFKT Restaurants

No restaurants are listed for this airport.

PFKT Other Airport-Related Businesses

No other airport-related businesses are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
-- 123.0

AWOS-3P

AWOS-3P
907-642-2166
 121.55

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

Departure Procedures

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

PAOM (56nm)
Fri, 5/17 9:39 PM AKDT
Fri, 5/17 10:00 PM AKDT - Sat, 5/18 10:00 PM AKDT
MVFR
10:00 PM AKDT - 1:00 AM AKDT
Showers in vicinity
Overcast 2,500'
6sm
080° 10kts
VFR
Temporary 10:00 PM AKDT - 1:00 AM AKDT
Overcast 5,000'
Scattered 4,500'
N/A
Calm
MVFR
1:00 AM AKDT - 11:00 AM AKDT
Showers in vicinity
Overcast 1,500'
6sm
070° 10kts
VFR
11:00 AM AKDT - 10:00 PM AKDT
Broken 8,000'
6sm
050° 8kts
PAOM 180539Z 1806/1906 08010KT P6SM VCSH OVC025
   TEMPO 1806/1809 SCT045 OVC050
   FM180900 07010KT P6SM VCSH OVC015
   FM181900 05008KT P6SM BKN080
PFKT
No NOTAM Available
No
UNATNDD
ALASKA DOT&PF NORTHERN REGION
2301 PEGER RD
FAIRBANKS, AK 99701
Phone: 907-451-2200
GEORGE KOST
BOX 1048
NOME, AK 99762
Phone: 907-443-2500
NOME FSS (OME)
Toll Free: 1-800-478-8400
KTS
--
ACTVT MIRL RWY 05/23 & 12/30 - CTAF.
N/A
Yes - Lighted
Yes
No
None
No
0
0
0
0
0
0
None
None
None
None
None

Runway 05/23

2110 ft. x 75 ft.
GRVL
Good
NONE
MED

--
--
--
--
  Runway 05 Runway 23
True Heading 55°235°
Traffic Pattern Left Left
Markings NSTD
Markings Condition
Latitude 65° 19' 49"N 65° 20' 01"N
Longitude 166° 28' 24"W 166° 27' 43"W
Elevation 34' 38'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway 12/30

2990 ft. x 100 ft.
GRVL
Good
NONE
MED

--
--
--
--
  Runway 12 Runway 30
True Heading 130°310°
Traffic Pattern
Markings NSTD
Markings Condition
Latitude 65° 20' 00"N 65° 19' 42"N
Longitude 166° 28' 19"W 166° 27' 25"W
Elevation 36' 35'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-2RY COND NOT MONITORED; RCMD VISUAL INSPECTION PRIOR TO LDNG.
BREVIG MISSION (ICAO: PFKT, IATA: KTS) is a public airport located in BREVIG MISSION, AK.
