U30
TEMPLE BAR
PublicPUB

1 miles SW of TEMPLE BAR, AZ
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
36° 01' 14"N 114° 20' 06"W
1549' MSL
2549' MSL
14E
None Listed
PRESCOTT (PRC)
LAS VEGAS
LOS ANGELES (ZLA)
5/16/24-6/13/24
KBVU (26nm) VFR
9:35 PM PDT
Clear
10sm
84°F
23°F
29.75"Hg
290° 4kts
AO2
KBVU 180435Z AUTO 29004KT 10SM CLR 29/M05 A2975 RMK AO2
List Your Business

U30 FBOs, Flight Schools and Ground Support

No FBOs, flight schools or aircraft ground support businesses are listed for this airport.

U30 Ground Transportation (Taxi, Limo, Car Service)

No ground transportation services are listed for this airport.

U30 Hotels

No hotels are listed for this airport.

U30 Restaurants

No restaurants are listed for this airport.

U30 Other Airport-Related Businesses

No other airport-related businesses are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.8 122.8

No communication frequencies available for this airport.

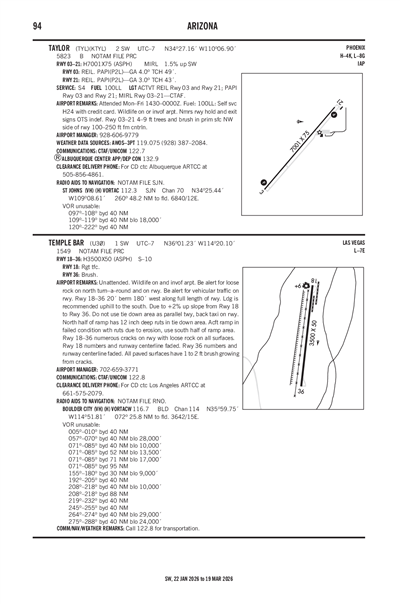

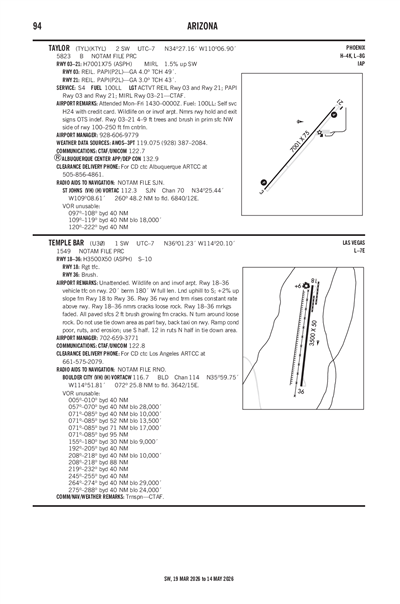

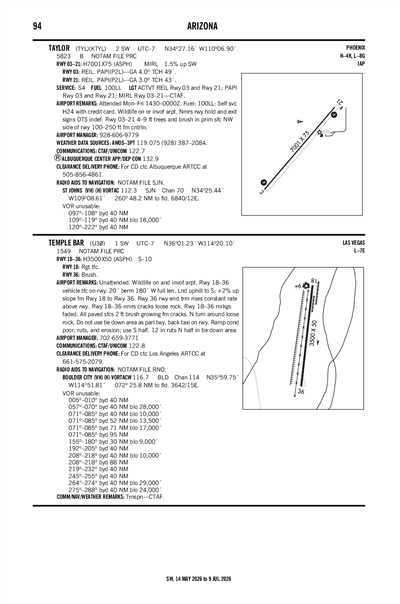

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

  • No Documents

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

  • No Documents

Terminal Area Forecast

KLSV (36nm)
Fri, 5/17 6:52 PM PDT
Fri, 5/17 6:00 PM PDT - Sat, 5/18 10:00 PM PDT
VFR
6:00 PM PDT - 11:00 PM PDT
Few 15,000'
6sm
29.65"Hg
210° 12kts
Gusts 20kts
Light Turbulence: up to 9,000'
VFR
Temporary 6:00 PM PDT - 9:00 PM PDT
No Clouds
N/A
130° 15kts
Gusts 25kts
Moderate, Clear Air, Occasional: up to 9,000'
VFR
Becoming 11:00 PM PDT - 1:00 PM PDT
Few 20,000'
6sm
29.76"Hg
160° 9kts
VFR
Becoming 1:00 PM PDT - 10:00 PM PDT
Scattered 25,000'
6sm
29.70"Hg
200° 15kts
Gusts 25kts
Moderate, Clear Air, Occasional: up to 9,000'
TAF AMD KLSV 180152Z 1801/1905 21012G20KT 9999 FEW150 510009 QNH2965INS
   TEMPO 1801/1804 13015G25KT 520009
   BECMG 1806/1807 16009KT 9999 FEW200 QNH2975INS
   BECMG 1820/1821 20015G25KT 9999 SCT250 520009 QNH2969INS TX37/1822Z TN23/1813Z
U30
No NOTAM Available
No
UNATNDD
NATIONAL PARK SERVICE
601 NEVADA HWY
BOULDER CITY, NV 89005
Phone: (702) 293-2011
MATT STARK
601 NEVADA HWY
BOULDER CITY, NV 89005
Phone: (702) 293-2011
PRESCOTT FSS (PRC)
Toll Free: 1-800-WX-BRIEF
PRC
--
--
N/A
Yes
Yes
No
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
0
0
0
0
0
0
None
None
None
None
None

Runway 18/36

3500 ft. x 50 ft.
ASPH
Fair
NONE


10,000lbs
--
--
--
  Runway 18 Runway 36
True Heading 192°12°
Traffic Pattern Right
Markings BSC BSC
Markings Condition POOR POOR
Latitude 36° 01' 31"N 36° 00' 57"N
Longitude 114° 20' 01"W 114° 20' 10"W
Elevation -- --
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights No No
Runway End Identifier Lights No No
A110-10BE ALERT FOR VEHICULAR TRAFFIC ON RY.
A110-11ACFT RAMP IN FAILED CONDITION WITH RUTS DUE TO EROSION, USE SOUTH HALF OF RAMP AREA.
A110-12FOR CD CTC LOS ANGELES ARTCC AT 661-575-2079.
A110-13NORTH HALF OF RAMP HAS 12 IN DEEP RUTS IN TIE DOWN AREA.
A110-14ALL PAVED SURFACES HAVE 1 TO 2 FT BRUSH GROWING FROM CRACKS.
A110-2LANDING IS RECOMMENDED UPHILL TO THE SOUTH. DUE TO +2% UP SLOPE FROM RUNWAY 18 TO RUNWAY 36
A110-4DO NOT USE TIE DOWN AREA AS PARL TWY; BACK TAXI ON RY.
A110-5RY 36 TERRAIN RISES AT CONSTANT RATE ABOVE RY.
A110-7RY 18/36 20 FT BERM 180 FT WEST ALONG FULL LENGTH OF RY.
A110-8WILDLIFE ON & INVOF ARPT.
A110-9BE ALERT FOR LOOSE ROCK ON NORTH TURN-A-ROUND AND RY.
TEMPLE BAR (IATA: U30) is a public airport located in TEMPLE BAR, AZ.
