X06
ARCADIA MUNI
PublicPUB

1 miles SE of ARCADIA, FL
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
27° 11' 43"N 81° 50' 18"W
63' MSL
1063' MSL
06W
100LL
SAINT PETERSBURG (PIE)
MIAMI
MIAMI (ZMA)
5/16/24-6/13/24
KPGD (19nm) VFR
11:53 PM EDT
Clear
10sm
81°F
74°F
29.97"Hg
160° 3kts
AO2 SLP146 T02720233
KPGD 180353Z AUTO 16003KT 10SM CLR 27/23 A2997 RMK AO2 SLP146 T02720233
List Your Business

X06 FBOs, Flight Schools and Ground Support

Promote Listing
Arcadia Municipal Airport
Freq: 123.0
Phone: (863) 494-7844
No Rating Available
0 Reviews (Read | Sign In To Write)
World Fuel
As of 5/17
 100LL Jet A Jet A+ Mogas UL94
Self Serve 5.25
Full Serve

X06 Ground Transportation (Taxi, Limo, Car Service)

No ground transportation services are listed for this airport.

X06 Hotels

No hotels are listed for this airport.

X06 Restaurants

No restaurants are listed for this airport.

X06 Other Airport-Related Businesses

No other airport-related businesses are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
123.0 123.0

No communication frequencies available for this airport.

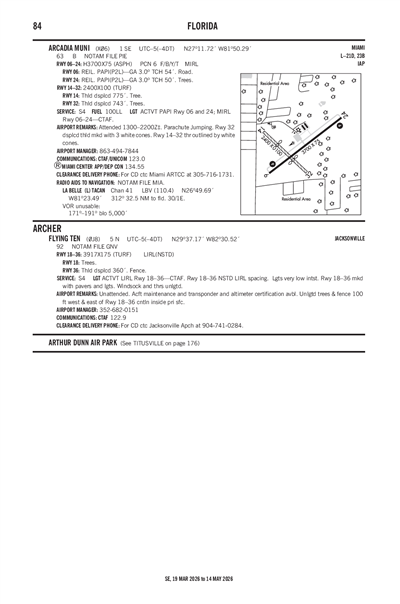

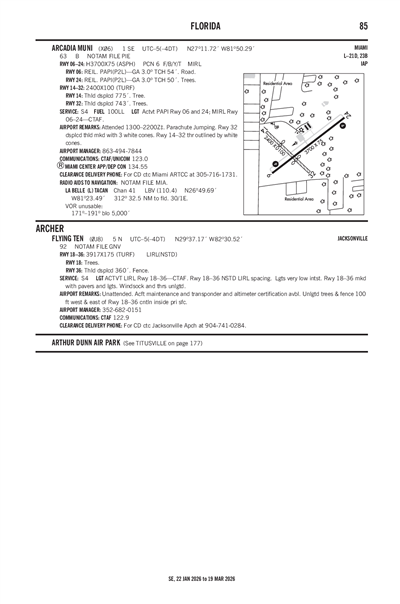

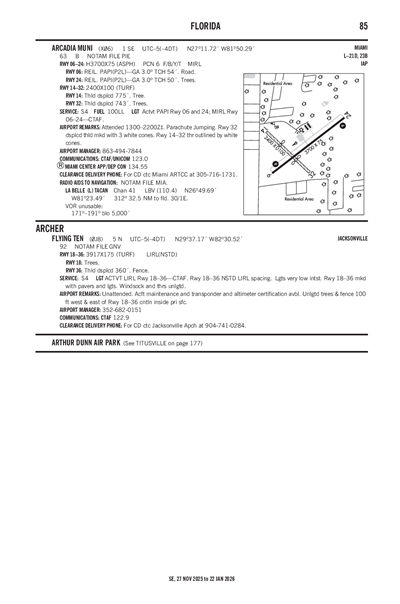

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KPGD (19nm)
Fri, 5/17 7:20 PM EDT
Fri, 5/17 8:00 PM EDT - Sat, 5/18 8:00 PM EDT
VFR
8:00 PM EDT - 9:00 PM EDT
Few 25,000'
6sm
230° 10kts
VFR
9:00 PM EDT - 10:00 AM EDT
Scattered 25,000'
Few 2,500'
6sm
VRB° 4kts
VFR
10:00 AM EDT - 1:00 PM EDT
Few 25,000'
Few 3,000'
6sm
210° 10kts
VFR
1:00 PM EDT - 8:00 PM EDT
Sky Clear
6sm
230° 14kts
Gusts 22kts
KPGD 172320Z 1800/1824 23010KT P6SM FEW250
   FM180100 VRB04KT P6SM FEW025 SCT250
   FM181400 21010KT P6SM FEW030 FEW250
   FM181700 23014G22KT P6SM SKC
X06
Domestic
5/15/241031Z !PIE 05/163 X06 OBST TOWER LGT (ASR 1292202) 271537.80N0815835.20W (8.3NM WNW X06) 290.7FT (239.8FT AGL) U/S 2405151031-2406291031
4/30/241417Z !PIE 04/266 X06 RWY 14/32 CLSD 2404301417-2407012359
4/25/240502Z !PIE 04/219 X06 OBST TOWER LGT (ASN 2000-ASO-4752-OE) 272109N0815229W (9.5NM NNW X06) 276FT (220FT AGL) U/S 2404250502-2405250001
4/19/241545Z !PIE 04/164 X06 RWY 06 PAPI U/S 2404191545-2410212111EST
4/9/241300Z !PIE 04/072 X06 RWY 14/32 CLSD TO TGL TUE 1300-2000 2404091300-2412312000
4/9/241300Z !PIE 04/071 X06 RWY 06/24 CLSD TO TGL TUE 1300-2000 2404091300-2412312000
11/29/232146Z !PIE 11/284 X06 OBST TOWER LGT (ASR 1228631) 271337.80N0815115.80W (2.1NM NNW X06) 381.9FT (319.9FT AGL) U/S 2311292146-2406282359
FDC
5/16/241334Z !FDC 4/5155 X06 IAP ARCADIA MUNI, ARCADIA, FL.
RNAV (GPS)-B, AMDT 1...
CHART PROFILE NOTE: VGSI AND DESCENT ANGLE NOT COINCIDENT (VGSI
ANGLE 3.00/TCH 49.9).
THIS IS RNAV (GPS)-B, AMDT 1A. 2405161334-PERM
No
0800-1700
CITY OF ARCADIA
P.O. BOX 351
ARCADIA, FL 33821
Phone: 863-494-4114
SHELLEY PEACOCK
1067 SE AC POLK AVENUE
ARCADIA, FL 34266
Phone: 863-993-5670
SAINT PETERSBURG FSS (PIE)
Toll Free: 1-800-WX-BRIEF
PIE
--
ACTVT PAPI RWY 06 & 24; MIRL RWY 06/24 - CTAF.
N/A
Yes - Lighted
No
No
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
22
3
0
2
0
1
Major
Major
None
None
Pilot Instruction

Runway 06/24

3700 ft. x 75 ft.
ASPH
Excellent
NONE
MED
6 /F/B/Y/T
--
--
--
--
  Runway 06 Runway 24
True Heading 52°232°
Traffic Pattern
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 27° 11' 33"N 27° 11' 55"N
Longitude 81° 50' 30"W 81° 49' 58"W
Elevation 59' 62'
Threshold Crossing Height 54 ft. AGL 50 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P2L --
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes

Runway 14/32

2400 ft. x 100 ft.
TURF
Good
NONE


--
--
--
--
  Runway 14 Runway 32
True Heading 133°313°
Traffic Pattern Left Left
Markings NSTD NSTD
Markings Condition FAIR FAIR
Latitude 27° 11' 50"N 27° 11' 33"N
Longitude 81° 50' 33"W 81° 50' 13"W
Elevation 62' 58'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-2FOR CD CTC MIAMI ARTCC AT 305-716-1731.
ARCADIA MUNI (IATA: X06) is a public airport located in ARCADIA, FL.
