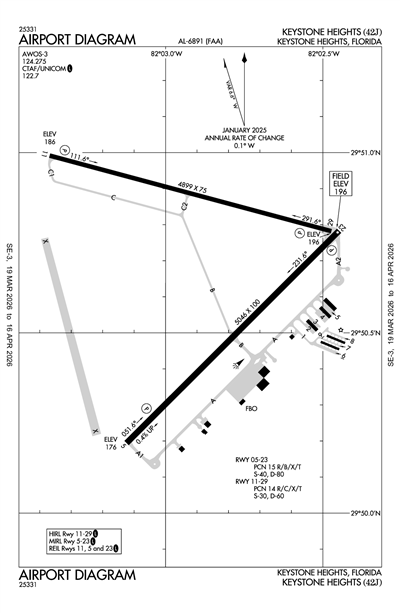

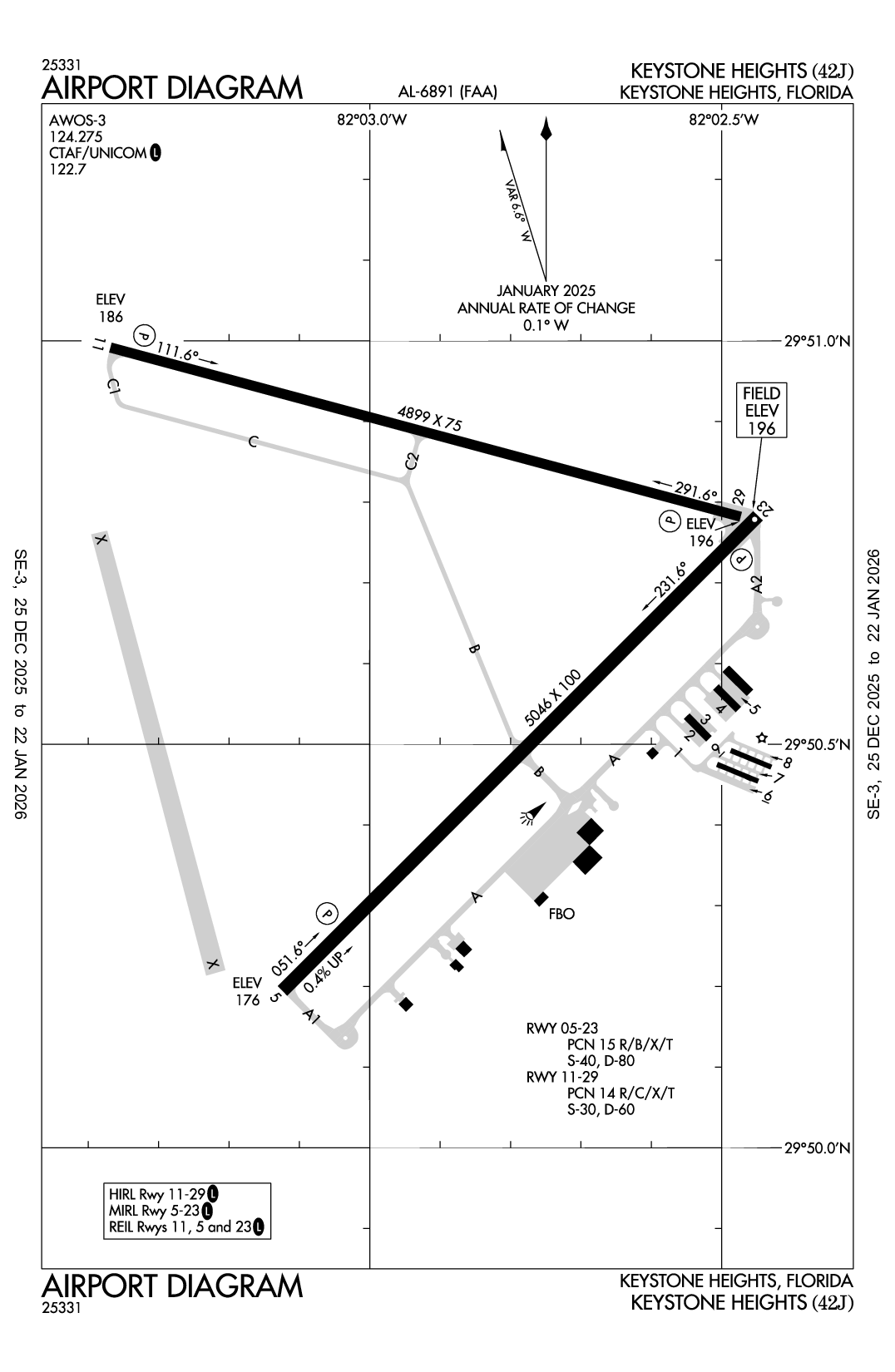

KEYSTONE HEIGHTS - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

42J
KEYSTONE HEIGHTS
PublicPUB

3 miles N of KEYSTONE HEIGHTS, FL
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
29° 50' 41"N 82° 02' 51"W
196' MSL
1196' MSL
05W
JET A, 100LL
GAINESVILLE (GNV)
JACKSONVILLE
JACKSONVILLE (ZJX)
5/16/24-6/13/24
K42J VFR
3:35 PM EDT
Broken 10,000'
Broken 6,500'
Broken 6,000'
9sm
82°F
61°F
30.04"Hg
330° 7kts
A01
K42J 021935Z AUTO 33007KT 9SM BKN060 BKN065 BKN100 28/16 A3004 RMK A01
Add Your Business

42J FBOs

Promote Listing
Keystone Heights Airport
UNICOM: 122.7
Phone: (352) 473-0031
No Rating Available
1 Review (Read | Sign In To Write)
1 out of 1 Recommend
Titan
As of 5/9
 100LL JET A JET A (FSII) MOGAS UL94
Self Serve 5.59
Full Serve 5.69
Fuel Notes
Prices include tax
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.7 122.7

AWOS-3

AWOS-3
352-473-8273
 124.275

FAA A/FD Pages

Airport Diagrams

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KGNV (15nm)
Sun, 6/2 1:20 PM EDT
Sun, 6/2 2:00 PM EDT - Mon, 6/3 2:00 PM EDT
VFR
2:00 PM EDT - 10:00 PM EDT
Thunderstorm in vicinity
Broken 12,000'
Broken 8,000'
Few 4,000'
6sm
120° 8kts
MVFR
Temporary 3:00 PM EDT - 7:00 PM EDT
Thunderstorm and Rain
Overcast 10,000'
Broken 8,000'
Broken 4,000'
3sm
Calm
VFR
10:00 PM EDT - 2:00 PM EDT
Overcast 10,000'
6sm
120° 8kts
KGNV 021720Z 0218/0318 12008KT P6SM VCTS FEW040CB BKN080 BKN120
   TEMPO 0219/0223 3SM TSRA BKN040CB BKN080 OVC100
   FM030200 12008KT P6SM OVC100
42J
Domestic
6/2/241232Z !GNV 06/021 42J OBST TOWER LGT (ASR 1036079) 295003.00N0815840.50W (3.7NM E 42J) 501.0FT (321.9FT AGL) U/S 2406021232-2409301232
6/2/241225Z !GNV 06/020 42J OBST TOWER LGT (ASR 1213609) 294619.90N0815748.00W (6.1NM SE 42J) 390.7FT (261.8FT AGL) U/S 2406021225-2408310400
6/2/241225Z !GNV 06/019 42J OBST TOWER LGT (ASR 1221631) 294825.70N0820039.30W (2.9NM SE 42J) 389.8FT (234.9FT AGL) U/S 2406021225-2408310400
5/23/240952Z !GNV 05/411 42J OBST TOWER LGT (ASR 1245386) 293731.50N0815725.50W (13.8NM SSE 42J) 429.1FT (269.0FT AGL) U/S 2405230952-2406070852
5/17/241631Z !GNV 05/353 42J OBST TOWER LGT (ASR 1239898) 294306.70N0820237.00W (7.5NM S 42J) 433.7FT (259.8FT AGL) U/S 2405171631-2408160400
5/13/241603Z !GNV 05/280 42J OBST TOWER LGT (ASR 1212971) 295237.00N0815525.70W (6.8NM ENE 42J) 429.1FT (262.1FT AGL) U/S 2405131603-2408120400
No
MON-FRI 0830-1730
KEYSTONE HEIGHTS AIRPORT AUTHORITY
7150 AIRPORT ROAD
STARKE, FL 32091-9347
Phone: 352-473-0031
CRAIG COON
7150 AIRPORT RD, 7150 AIRPORT ROAD
STARKE, FL 32091-9347
Phone: 352-473-0031
GAINESVILLE FSS (GNV)
Toll Free: 1-800-WX-BRIEF
GNV
--
ACTVT REIL RWY 05, 11, & 23; MIRL RWY 05/23; HIRL RWY 11/29. - CTAF.
N/A
Yes - Lighted
Yes
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
39
8
0
1
0
1
Major
Major
None
None
Charter Service
Pilot Instruction
Aircraft Rental
Aircraft Sales

Runway 05/23

5046 ft. x 100 ft.
ASPH
Fair
NONE
MED
15 /R/B/X/T
40,000lbs
80,000lbs
--
--
  Runway 05 Runway 23
True Heading 45°225°
Traffic Pattern Right Left
Markings NPI NPI
Markings Condition FAIR FAIR
Latitude 29° 50' 12"N 29° 50' 47"N
Longitude 82° 03' 07"W 82° 02' 27"W
Elevation 176' 196'
Threshold Crossing Height 40 ft. AGL 40 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P2L P2L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes

Runway 11/29

4899 ft. x 75 ft.
ASPH
Fair
NONE
HIGH
14 /R/C/X/T
30,000lbs
60,000lbs
--
--
  Runway 11 Runway 29
True Heading 105°285°
Traffic Pattern Left Right
Markings BSC BSC
Markings Condition FAIR FAIR
Latitude 29° 50' 59"N 29° 50' 47"N
Longitude 82° 03' 22"W 82° 02' 28"W
Elevation 186' 196'
Threshold Crossing Height 40 ft. AGL 40 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P2L P2L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes
A110-1ANIMALS ON AND INVOF ARPT.
A110-2RSTRD AREA 2903A 1.5 MILES RWY 23 END. FLY L TFC TO AVOID.
A110-3RWYS 11/29 RSTRD BY AMGR TO ACFT 12500 LBS GWT OR LESS.
A110-4SELF SERVE AVGAS AVBL 24 HRS WITH CREDIT CARD. JET A BY APPOINTMENT. CALL 352-473-0031.
A110-5RWY 5/23 WEIGHT BEARING CAPACITY 2S-155.
A110-6FOR CD CTC JACKSONVILLE APCH AT 904-741-0284.
KEYSTONE HEIGHTS (IATA: 42J) is a public airport located in KEYSTONE HEIGHTS, FL.
