5V4
CALHAN
PublicPUB

1 miles N of CALHAN, CO
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
39° 02' 54"N 104° 17' 35"W
6450' MSL
7250' MSL
11E
None Listed
DENVER (DEN)
DENVER
DENVER (ZDV)
5/16/24-6/13/24
KFLY (14nm) VFR
3:15 PM MDT
Clear
10sm
80°F
24°F
29.91"Hg
220° 6kts
AO2 T02671045
KFLY 022115Z AUTO 22006KT 10SM CLR 27/M04 A2991 RMK AO2 T02671045
Add Your Business

5V4 FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.725 122.725

No communication frequencies available for this airport.

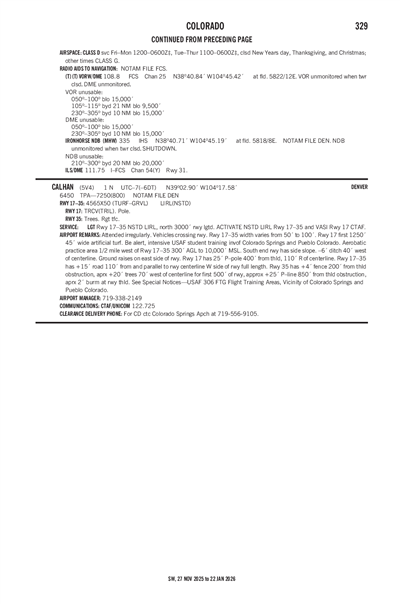

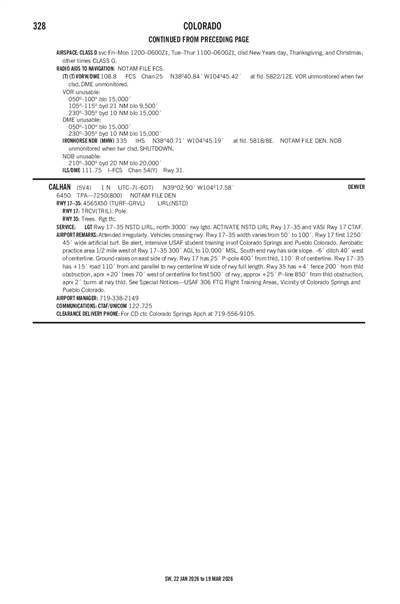

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

  • No Documents

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

  • No Documents

Terminal Area Forecast

KCOS (23nm)
Sun, 6/2 11:20 AM MDT
Sun, 6/2 12:00 PM MDT - Mon, 6/3 12:00 PM MDT
VFR
12:00 PM MDT - 1:00 PM MDT
Few 20,000'
6sm
170° 8kts
VFR
1:00 PM MDT - 7:00 PM MDT
Broken 20,000'
Scattered 12,000'
6sm
210° 18kts
Gusts 28kts
VFR
7:00 PM MDT - 9:00 PM MDT
Broken 15,000'
6sm
200° 12kts
VFR
9:00 PM MDT - 11:00 PM MDT
Broken 20,000'
Few 14,000'
6sm
010° 14kts
Gusts 28kts
VFR
11:00 PM MDT - 9:00 AM MDT
Broken 20,000'
6sm
010° 8kts
VFR
9:00 AM MDT - 12:00 PM MDT
Few 15,000'
6sm
180° 5kts
KCOS 021720Z 0218/0318 17008KT P6SM FEW200
   FM021900 21018G28KT P6SM SCT120 BKN200
   FM030100 20012KT P6SM BKN150
   FM030300 01014G28KT P6SM FEW140 BKN200
   FM030500 01008KT P6SM BKN200
   FM031500 18005KT P6SM FEW150
5V4
No NOTAM Available
No
IREG
EDWARD GLASER
PO BOX 38
CALHAN, CO 80808
Phone: 719-347-2338
DAVID E GLASER
PO BOX 69
CALHAN, CO 80808
Phone: 719-338-2149
DENVER FSS (DEN)
Toll Free: 1-800-WX-BRIEF
DEN
--
DUSK-DAWN. ACTVT NSTD LIRL RY 17/35 & VASI RY 17 - CTAF.
N/A
Yes - Lighted
Yes
No
Hanger, Tie-Down
No
10
1
0
0
0
0
Minor
Minor
None
None
None

Runway 17/35

4565 ft. x 50 ft.
TURF GRVL
Good
NONE
NSTD

--
--
--
--
  Runway 17 Runway 35
True Heading 180°0°
Traffic Pattern Left Right
Markings
Markings Condition
Latitude 39° 03' 16"N 39° 02' 31"N
Longitude 104° 17' 35"W 104° 17' 35"W
Elevation -- --
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator TRIL --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-1S END OF RY HAS SIDE SLOPE. -6 FT DITCH 40 FT W OF CNTRLN. GROUND RISES ON EAST SIDE OF RY.
A110-11BE ALERT; INTENSIVE USAF STUDENT TRAINING IN VICINITY OF COLORADO SPRINGS & PUEBLO COLORADO.
A110-12RY 17/35 HAS +15 FT ROAD 110 FT FM & PARALLEL TO RY CNTRLN W SIDE OF RY - FULL LENGTH.
A110-13RWY 35 HAS 4 FT FENCE 200 FT FM THLD OB; APPX 20 FT TREES 70 FT WEST OF CNTRLN FOR FIRST 500 FT OF RWY; APPX 25 FT P-LINE 850 FT FM THLD OB; APPX 2 FT BURM AT RWY THLD.
A110-14FOR CD CTC COLORADO SPRINGS APCH AT 719-556-9105.
A110-2AEROBATIC PRACTICE AREA ONE-HALF MILE W OF RY 17/35 300 FT AGL TO 10000 FT MSL.
A110-3VEHICLES CROSSING RY.
A110-4RWY 17 HAS 25 FT P-POLE 400 FT FM THLD, 110 FT R OF CNTRLN.
CALHAN (IATA: 5V4) is a public airport located in CALHAN, CO.
