HAZEN MUNI DAVID DUCH FLD - Airport Diagram

6M0

HAZEN MUNI DAVID DUCH FLD

PublicPUB

3 miles SW of HAZEN, AR

View on Map

Status

Operational

Coordinates

34° 45' 33"N 91° 38' 17"W

Elevation

230' MSL

Pattern Alt

1230' MSL

Mag Variation

03E

Fuel

100LL

FSS

JONESBORO (JBR)

Sectional

MEMPHIS

ARTCC

MEMPHIS (ZME)

Data Effective

5/16/24-6/13/24

KSGT (10nm) VFR

1:56 PM CDT RAW

Broken 6,500'
Scattered 3,600'

Viz

N/A

Temp

86°F

Dew

72°F

Pres

29.97"Hg

Wind

220° 9kts

RMK

AO2 SLP148 T03000222 PWINO RVRNO $

KSGT 021856Z AUTO 22009KT SCT036 BKN065 30/22 A2997 RMK AO2 SLP148 T03000222 PWINO RVRNO $

Add Your Business

6M0 FBOs

Promote Listing

Hazen Municipal Airport

UNICOM: 122.8

Phone: (870) 255-4873

0 Reviews (Read | Sign In To Write)

Independent

As of 5/15	100LL	JET A	JET A (FSII)	MOGAS	UL94
Self Serve	5.75
Full Serve

Fuel Notes

Prices include tax

Your Information

Business

UNICOM 122.8 CTAF 122.8

No communication frequencies available for this airport.

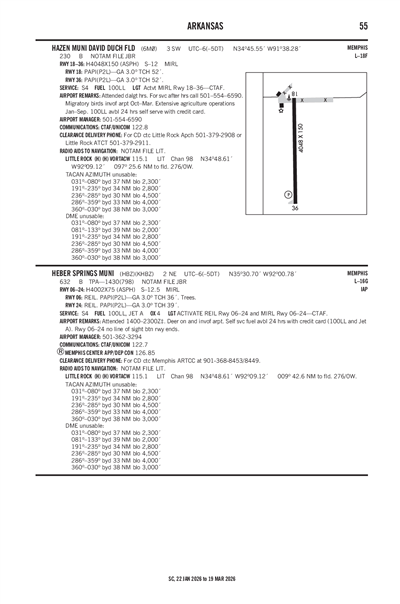

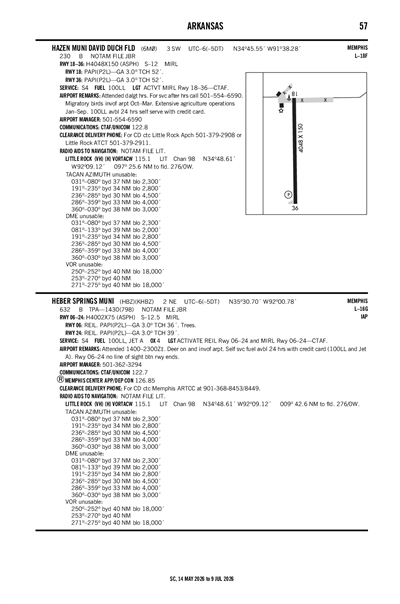

FAA A/FD Pages

FAA A/FD Page

Airport Diagrams

No Documents

Airport Minimums

No Documents

Departure Procedures

No Documents

Hotspot

No Documents

Standard Term. Arrival

No Documents

Instrument Approach

No Documents

Terminal Area Forecast

KLRF (26nm)

RAW

Reported

Sun, 6/2 10:00 AM CDT

Valid

Sun, 6/2 10:00 AM CDT - Mon, 6/3 4:00 PM CDT

VFR

10:00 AM CDT - 9:00 AM CDT

Few 3,000'

Viz

6sm

Pres

29.88"Hg

Wind

VRB° 6kts

MVFR

Becoming 9:00 AM CDT - 1:00 PM CDT

Light Showers and Rain

Broken 15,000'
Broken 2,500'

Viz

4.97sm

Pres

29.88"Hg

Wind

180° 10kts

Gusts 15kts

MVFR

Temporary 10:00 AM CDT - 12:00 PM CDT

Light Thunderstorm and Rain

Broken 2,000'

Viz

3.73sm

Wind

Calm

VFR

Becoming 1:00 PM CDT - 3:00 PM CDT

Broken 6,000'
Scattered 3,000'
Scattered 2,500'

Viz

6sm

Pres

29.85"Hg

Wind

180° 10kts

Gusts 15kts

MVFR

Becoming 3:00 PM CDT - 4:00 PM CDT

Light Showers and Rain

Broken 3,000'

Viz

5.59sm

Pres

29.82"Hg

Wind

VRB° 6kts

TAF KLRF 021500Z 0215/0321 VRB06KT 9999 FEW030 QNH2987INS
   BECMG 0314/0315 18010G15KT 8000 -SHRA BKN025 BKN150 QNH2988INS
   TEMPO 0315/0317 6000 -TSRA BKN020CB
   BECMG 0318/0319 18010G15KT 9999 NSW SCT025 SCT030 BKN060 QNH2985INS
   BECMG 0320/0321 VRB06KT 9000 -SHRA BKN030 QNH2981INS TX30/0221Z TN21/0311Z LIMITED METWATCH 0215 TIL 0307

6M0

No NOTAM Available

ATC Tower

Attendance

DALGT
FOR SVC AFT HRS CALL 501-554-6590.
FOR SVC AFT HRS CALL 870-255-4873 - NO FEE.

Owner

CITY OF HAZEN
PO BOX 564
HAZEN, AR 72064
Phone: 870-255-4521

Manager

PATRICK CLAYTON
1856 HWY 249
HAZEN, AR 72064
Phone: 501-554-6590

FSS

JONESBORO FSS (JBR)
Toll Free: 1-800-WX-BRIEF

NOTAM

JBR

Light Schedule

Lights

ACTVT MIRL RY 18/36 - CTAF.

Beacon

N/A

Wind Indicator

Yes - Lighted

Segmented Cir.

Landing Fee

Parking

Hanger, Tie-Down

Int'l Operations

NOT a Landing Rights Airport
NOT an Airport of Entry

# Single Engine

# Multi Engine

# Jets

# Helicopters

# Military

# Ultralights

Airframe Repair

Major

Pwrplant Repair

Major

Bottled Oxygen

None

Bulk Oxygen

None

Other Services

Crop Dusting

Runway 18/36

Dimensions

4048 ft. x 150 ft.

Surface Type

ASPH

Surface Cond

Fair

Treatment

NONE

Rwy Edge Lgts

MED

Pavement Class

Single Wheel

12,000lbs

Double Wheel

Double Tandem

Dual Dbl Tand

	Runway 18	Runway 36
True Heading	180°	360°
Traffic Pattern	Left	Left
Markings	BSC	BSC
Markings Condition	GOOD	GOOD
Latitude	34° 45' 53"N	34° 45' 13"N
Longitude	91° 38' 17"W	91° 38' 17"W
Elevation	230'	224'
Threshold Crossing Height	52 ft. AGL	52 ft. AGL
Visual Glide Path Angle	3°	3°
Visual Slope Indicator	P2L	P2L
Approach Lights
Centerline Lights
Runway End Identifier Lights

A110-1	EXTENSIVE AGRICULTURE OPNS JAN THRU SEPT.
A110-2	MIGRATORY BIRDS INVOF ARPT OCT-MAR.
A110-3	FOR CD CTC LITTLE ROCK APCH 501-379-2908 OR LITTLE ROCK ATCT 501-379-2911.

HAZEN MUNI DAVID DUCH FLD (IATA: 6M0) is a public airport located in HAZEN, AR.
