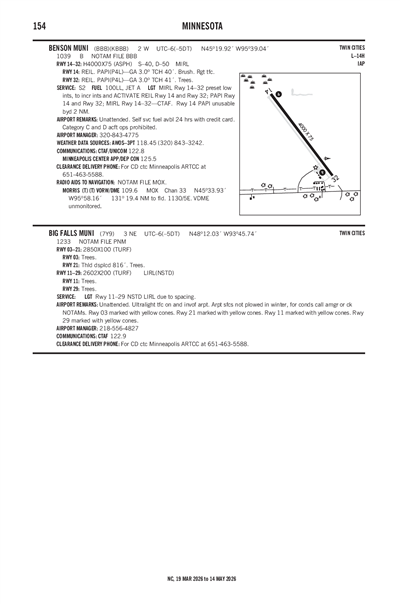

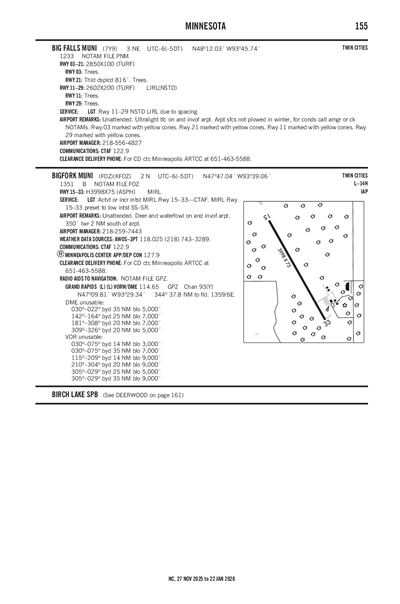

BIG FALLS MUNI - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

7Y9
BIG FALLS MUNI
PublicPUB

3 miles NE of BIG FALLS, MN
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
48° 12' 02"N 93° 45' 45"W
1233' MSL
2233' MSL
03E
None Listed
PRINCETON (PNM)
TWIN CITIES
MINNEAPOLIS (ZMP)
5/16/24-6/13/24
KFOZ (25nm) VFR
6:13 PM CDT
Clear
10sm
75°F
48°F
29.83"Hg
180° 10kts
Gusts 16kts
AO2
KFOZ 022313Z AUTO 18010G16KT 10SM CLR 24/09 A2983 RMK AO2
Add Your Business

7Y9 FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
-- 122.9

No communication frequencies available for this airport.

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

  • No Documents

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

  • No Documents

Terminal Area Forecast

KINL (26nm)
Sun, 6/2 4:05 PM CDT
Sun, 6/2 4:00 PM CDT - Mon, 6/3 1:00 PM CDT
VFR
4:00 PM CDT - 8:00 PM CDT
Overcast 10,000'
6sm
190° 5kts
VFR
8:00 PM CDT - 11:00 PM CDT
Showers in vicinity
Broken 15,000'
Scattered 6,000'
6sm
150° 10kts
MVFR
11:00 PM CDT - 5:00 AM CDT
Light Showers and Rain and Thunderstorm in vicinity
Overcast 3,500'
5sm
150° 9kts
Gusts 18kts
MVFR
1:00 AM CDT - 4:00 AM CDT
Light Thunderstorm and Rain
Overcast 1,500'
4sm
Calm
IFR
5:00 AM CDT - 9:00 AM CDT
Light Showers and Rain
Overcast 700'
4sm
190° 7kts
MVFR
9:00 AM CDT - 1:00 PM CDT
Mist
Overcast 2,300'
4sm
220° 5kts
KINL 022105Z 0221/0318 19005KT P6SM OVC100
   FM030100 15010KT P6SM VCSH SCT060 BKN150
   FM030400 15009G18KT 5SM -SHRA VCTS OVC035CB
   PROB30 0306/0309 4SM -TSRA OVC015CB
   FM031000 19007KT 4SM -SHRA OVC007
   FM031400 22005KT 4SM BR OVC023
7Y9
Domestic
5/30/241318Z !PNM 05/366 7Y9 OBST TOWER LGT (ASR 1050558) 481051.20N0934936.80W (2.8NM WSW 7Y9) 1646.0FT (424.9FT AGL) U/S 2405301318-2409271318
No
UNATNDD
CITY OF BIG FALLS
PO BOX 196
BIG FALLS, MN 56627-0196
Phone: 218-276-2282
TERRY BAIRD
PO BOX 196
BIG FALLS, MN 56627-0196
Phone: 218-556-4827
PRINCETON FSS (PNM)
Toll Free: 1-800-WX-BRIEF
PNM
Sunset to Sunrise
--
N/A
Yes - Lighted
No
No
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
2
0
0
0
0
0
None
None
None
None
None

Runway 03/21

2850 ft. x 100 ft.
TURF
Fair
NONE


--
--
--
--
  Runway 03 Runway 21
True Heading 35°215°
Traffic Pattern
Markings
Markings Condition
Latitude 48° 11' 55"N 48° 12' 18"N
Longitude 93° 45' 46"W 93° 45' 21"W
Elevation 1,232' 1,229'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway 11/29

2602 ft. x 200 ft.
TURF
Good
NONE
NSTD

--
--
--
--
  Runway 11 Runway 29
True Heading 120°300°
Traffic Pattern Left Left
Markings
Markings Condition
Latitude 48° 12' 03"N 48° 11' 49"N
Longitude 93° 46' 13"W 93° 45' 40"W
Elevation 1,229' 1,232'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-1ARPT SFCS NOT PLOWED IN WINTER, FOR CONDS CALL AMGR OR CK NOTAMS.
A110-2ULTRALIGHT TFC ON & INVOF ARPT.
A110-3FOR CD CTC MINNEAPOLIS ARTCC AT 651-463-5588.
BIG FALLS MUNI (IATA: 7Y9) is a public airport located in BIG FALLS, MN.
