iFlightPlanner



...
MINERAL COUNTY MEML - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

C24
MINERAL COUNTY MEML
PublicPUB

2 miles SSW of CREEDE, CO
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
37° 49' 20"N 106° 55' 48"W
8680' MSL
9680' MSL
12E
JET A, 100LL
DENVER (DEN)
DENVER
DENVER (ZDV)
5/16/24-6/13/24
KCPW (22nm) VFR
1:34 PM MDT
Clear
10sm
52°F
16°F
30.39"Hg
240° 16kts
Gusts 28kts
AO2
KCPW 021934Z AUTO 24016G28KT 10SM CLR 11/M09 A3039 RMK AO2
Add Your Business

C24 FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
-- 122.9

No communication frequencies available for this airport.

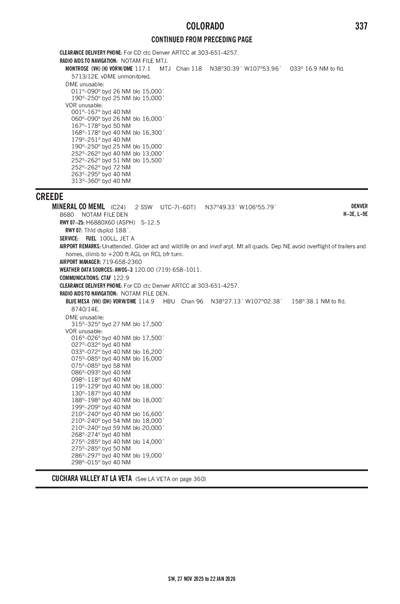

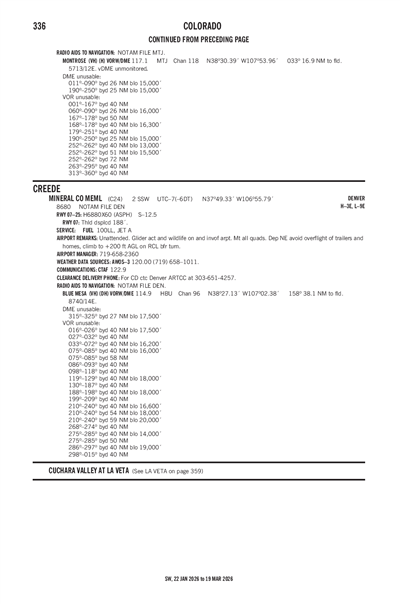

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

  • No Documents

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

  • No Documents

Terminal Area Forecast

KGUC (43nm)
Sun, 6/2 12:00 PM MDT
Sun, 6/2 12:00 PM MDT - Mon, 6/3 12:00 PM MDT
VFR
12:00 PM MDT - 1:00 PM MDT
Few 12,000'
6sm
250° 10kts
Gusts 20kts
VFR
1:00 PM MDT - 9:00 PM MDT
Broken 20,000'
Scattered 12,000'
6sm
250° 14kts
Gusts 25kts
VFR
9:00 PM MDT - 12:00 AM MDT
Few 25,000'
Few 13,000'
6sm
320° 9kts
VFR
12:00 AM MDT - 10:00 AM MDT
Few 25,000'
Few 11,000'
6sm
VRB° 3kts
VFR
10:00 AM MDT - 12:00 PM MDT
Few 25,000'
Few 9,000'
6sm
250° 7kts
KGUC 021800Z 0218/0318 25010G20KT P6SM FEW120
   FM021900 25014G25KT P6SM SCT120 BKN200
   FM030300 32009KT P6SM FEW130 FEW250
   FM030600 VRB03KT P6SM FEW110 FEW250
   FM031600 25007KT P6SM FEW090 FEW250
C24
No NOTAM Available
No
UNATNDD
MINERAL COUNTY
BOX 70
CREEDE, CO 81130
Phone: 719-658-2331
ROGER DUNCAN
BOX 70
CREEDE, CO 81130
Phone: 719-658-2360
DENVER FSS (DEN)
Toll Free: 1-800-WX-BRIEF
DEN
--
--
N/A
Yes
No
No
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
10
0
0
0
0
0
None
None
None
None
None

Runway 07/25

6880 ft. x 60 ft.
ASPH
Fair
NONE


12,000lbs
--
--
--
  Runway 07 Runway 25
True Heading 83°263°
Traffic Pattern Left Left
Markings BSC BSC
Markings Condition FAIR FAIR
Latitude 37° 49' 16"N 37° 49' 24"N
Longitude 106° 56' 30"W 106° 55' 05"W
Elevation -- 8,630'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-1MT ALL QUADS.
A110-3DEP NE AVOID OVERFLIGHT OF TRAILERS & HOMES; CLIMB TO +200 FT AGL ON RCL BFR TURN.
A110-6GLIDER ACT & WILDLIFE ON & INVOF ARPT.
A110-8FOR CD CTC DENVER ARTCC AT 303-651-4257.
MINERAL COUNTY MEML (IATA: C24) is a public airport located in CREEDE, CO.
