KAXX

ANGEL FIRE

PublicPUB

1 miles N of ANGEL FIRE, NM

View on Map

Status

Operational

Coordinates

36° 25' 19"N 105° 17' 24"W

Elevation

8380' MSL

Pattern Alt

9380' MSL

Mag Variation

10E

Fuel

JET A (FSII), 100LL

FSS

ALBUQUERQUE (ABQ)

Sectional

DENVER

ARTCC

ALBUQUERQUE (ZAB)

Data Effective

5/16/24-6/13/24

KAXX VFR

3:35 PM MDT RAW

Clear

Viz

10sm

Temp

74°F

Dew

14°F

Pres

30.11"Hg

Wind

260° 19kts

Gusts 27kts

RMK

AO2 T02341101

KAXX 022135Z AUTO 26019G27KT 10SM CLR 23/M10 A3011 RMK AO2 T02341101

Add Your Business

KAXX FBOs

Promote Listing

Angel Fire Airport

UNICOM: 122.8

Phone: (575) 643-8066

0 Reviews (Read | Sign In To Write)

Phillips 66

As of 5/21	100LL	JET A	JET A (FSII)	MOGAS	UL94
Self Serve	6.75		7.00
Full Serve	7.00		7.00

Fuel Notes

Prices include tax

Your Information

Business

UNICOM 122.8 CTAF 122.8

AWOS-3

575-377-0526

118.025

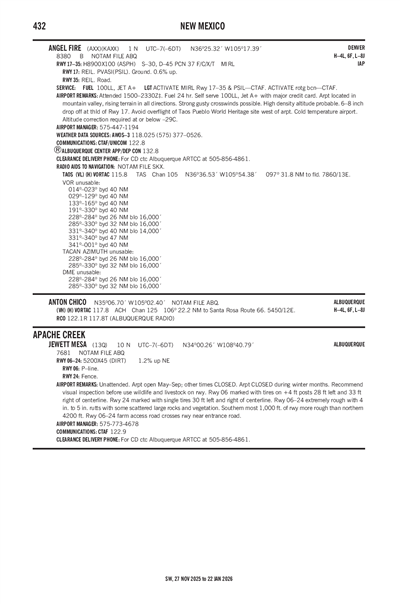

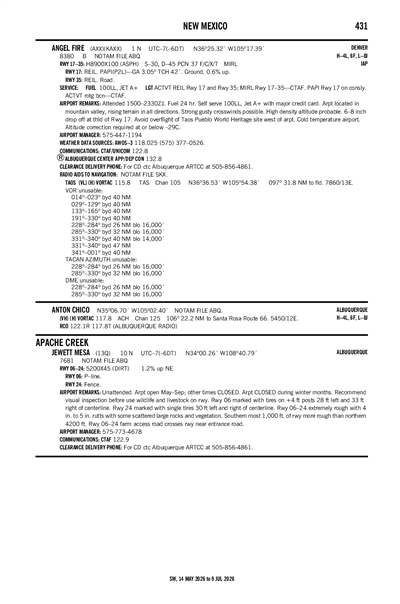

FAA A/FD Pages

FAA A/FD Page

Airport Diagrams

No Documents

Airport Minimums

TAKEOFF MINIMUMS

Departure Procedures

ANEKE TWO (OBSTACLE) (RNAV)

Hotspot

No Documents

Standard Term. Arrival

No Documents

Instrument Approach

RNAV (GPS) RWY 17

Terminal Area Forecast

KLVS (47nm)

RAW

Reported

Sun, 6/2 3:11 PM MDT

Valid

Sun, 6/2 3:00 PM MDT - Mon, 6/3 12:00 PM MDT

VFR

3:00 PM MDT - 9:00 PM MDT

Sky Clear

Viz

6sm

Wind

250° 20kts

Gusts 30kts

VFR

9:00 PM MDT - 3:00 AM MDT

Few 25,000'

Viz

6sm

Wind

280° 10kts

VFR

3:00 AM MDT - 11:00 AM MDT

Few 25,000'

Viz

6sm

Wind

VRB° 5kts

VFR

11:00 AM MDT - 12:00 PM MDT

Sky Clear

Viz

6sm

Wind

190° 7kts

KLVS 022111Z 0221/0318 25020G30KT P6SM SKC
   FM030300 28010KT P6SM FEW250
   FM030900 VRB05KT P6SM FEW250
   FM031700 19007KT P6SM SKC

KAXX

Domestic
5/22/240451Z	!ABQ 05/292 AXX OBST TOWER LGT (ASR 1248835) 362252.80N1051420.80W (3.5NM SE AXX) 10771.0FT (149.9FT AGL) U/S 2405220451-2406060351
5/11/241712Z	!ABQ 05/154 AXX RWY 17/35 REDL U/S 2405111712-2406112359
5/11/241711Z	!ABQ 05/153 AXX RWY 35 RWY END ID LGT U/S 2405111711-2406112359
5/11/241711Z	!ABQ 05/152 AXX RWY 17 RWY END ID LGT U/S 2405111711-2406112359
5/2/241817Z	!ABQ 05/028 AXX TWY PARL TWY CLSD 2405021817-2407022230

ATC Tower

Attendance

0800-1630

Owner

COLFAX COUNTY
PO BOX 1498
RATON, NM 88740
Phone: 575-445-9661

Manager

SCOTT MATTHEWS
3570 HWY 434
ANGEL FIRE, NM 87710
Phone: (575) 377-3171

FSS

ALBUQUERQUE FSS (ABQ)
Toll Free: 1-800-WX-BRIEF

NOTAM

ABQ

Light Schedule

Lights

ACTVT MIRL RY 17/35 & PSIL - CTAF.
ACTVT ROTG BCN - CTAF.

Beacon

N/A

Wind Indicator

Yes - Lighted

Segmented Cir.

Yes

Landing Fee

Parking

Hanger, Tie-Down

Int'l Operations

# Single Engine

# Multi Engine

# Jets

# Helicopters

# Military

# Ultralights

Airframe Repair

None

Pwrplant Repair

None

Bottled Oxygen

None

Bulk Oxygen

None

Other Services

None

Runway 17/35

Dimensions

8900 ft. x 100 ft.

Surface Type

ASPH

Surface Cond

Good

Treatment

NONE

Rwy Edge Lgts

MED

Pavement Class

37 /F/C/X/T

Single Wheel

30,000lbs

Double Wheel

45,000lbs

Double Tandem

Dual Dbl Tand

	Runway 17	Runway 35
True Heading	182°	2°
Traffic Pattern	Left	Left
Markings	NPI	BSC
Markings Condition	FAIR	FAIR
Latitude	36° 26' 03"N	36° 24' 35"N
Longitude	105° 17' 22"W	105° 17' 25"W
Elevation	8,322'	8,380'
Threshold Crossing Height	--	--
Visual Glide Path Angle	--	--
Visual Slope Indicator	PSIL	--
Approach Lights
Centerline Lights
Runway End Identifier Lights	Yes	Yes

A110-1	ARPT LCTD IN MOUNTAIN VALLEY; RISING TERRAIN IN ALL DIRECTIONS. STRONG GUSTY CROSSWINDS POSSIBLE. HIGH DENSITY ALTITUDE PROBABLE.
A110-10	FOR CD CTC ALBUQUERQUE ARTCC AT 505-856-4861.
A110-7	6-8 INCH DROP OFF AT THLD OF RWY 17.
A110-8	AVOID OVERFLIGHT OF TAOS PUEBLO WORLD HERITGE SITE WEST OF ARPT.
A110-9	COLD TEMPERATURE AIRPORT. ALTITUDE CORRECTION REQUIRED AT OR BELOW -30C.

ANGEL FIRE (ICAO: KAXX, IATA: AXX) is a public airport located in ANGEL FIRE, NM.
