KCUL

CARMI MUNI

PublicPUB

2 miles E of CARMI, IL

View on Map

Status

Operational

Coordinates

38° 05' 22"N 88° 07' 23"W

Elevation

388' MSL

Pattern Alt

1388' MSL

Mag Variation

01W

Fuel

JET A, 100LL

FSS

SAINT LOUIS (STL)

Sectional

ST LOUIS

ARTCC

INDIANAPOLIS (ZID)

Data Effective

5/16/24-6/13/24

KCUL VFR

5:15 PM CDT RAW

Scattered 4,500'

Viz

10sm

Temp

83°F

Dew

63°F

Pres

29.94"Hg

Wind

300° 3kts

RMK

AO2 T02810172

KCUL 022215Z AUTO 30003KT 10SM SCT045 28/17 A2994 RMK AO2 T02810172

Add Your Business

KCUL FBOs

Promote Listing

Carmi Municipal Airport

UNICOM: 122.8

Phone: (618) 382-7316

Other: (618) 380-4211

0 Reviews (Read | Sign In To Write)

Titan

As of 5/8	100LL	JET A	JET A (FSII)	MOGAS	UL94
Self Serve	4.99		4.75
Full Serve

Fuel Notes

Prices include tax

Your Information

Business

UNICOM 122.8 CTAF 122.8

AWOS-3

618-382-3760

118.425

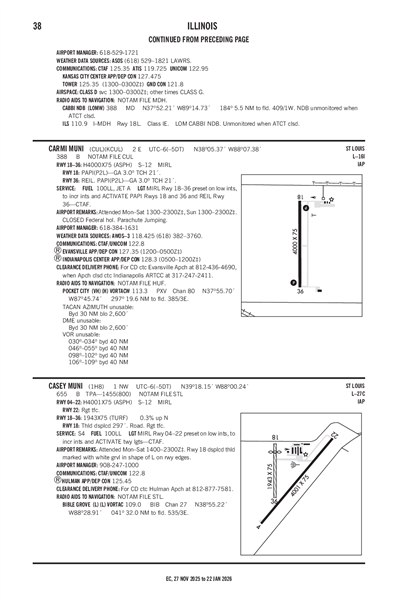

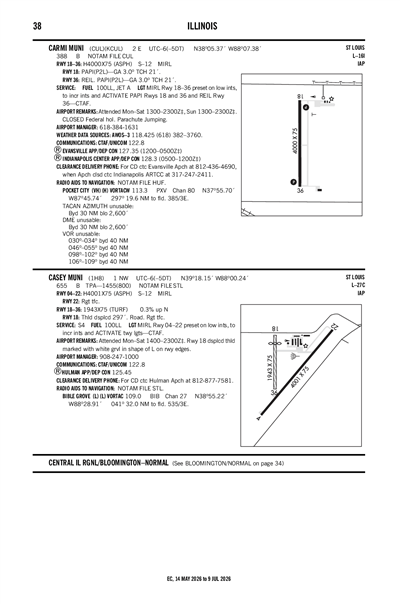

FAA A/FD Pages

FAA A/FD Page

Airport Diagrams

No Documents

Airport Minimums

Departure Procedures

No Documents

Hotspot

No Documents

Standard Term. Arrival

No Documents

Instrument Approach

Terminal Area Forecast

KEVV (29nm)

RAW

Reported

Sun, 6/2 12:20 PM CDT

Valid

Sun, 6/2 1:00 PM CDT - Mon, 6/3 1:00 PM CDT

VFR

1:00 PM CDT - 9:00 PM CDT

Broken 4,000'
Scattered 2,500'

Viz

6sm

Wind

VRB° 4kts

VFR

9:00 PM CDT - 9:00 AM CDT

Scattered 25,000'
Few 4,000'

Viz

6sm

Wind

Calm

VFR

9:00 AM CDT - 1:00 PM CDT

Scattered 4,000'

Viz

6sm

Wind

190° 7kts

KEVV 021720Z 0218/0318 VRB04KT P6SM SCT025 BKN040
FM030200 00000KT P6SM FEW040 SCT250
FM031400 19007KT P6SM SCT040

KCUL

Domestic
5/30/240418Z	!CUL 05/013 CUL OBST TOWER LGT (ASR 1203785) 381241.40N0875612.00W (11.5NM NE CUL) 792.0FT (301.8FT AGL) U/S 2405300418-2409270418
5/27/240140Z	!CUL 05/008 CUL OBST TOWER LGT (ASR 1236428) 381427.80N0880337.70W (9.6NM NNE CUL) 715.9FT (304.8FT AGL) U/S 2405270140-2408240400
5/22/240423Z	!CUL 05/003 CUL OBST TOWER LGT (ASR 1212400) 381456.00N0880016.00W (11.1NM NNE CUL) 760.8FT (299.9FT AGL) U/S 2405220423-2406060323
5/9/242209Z	!CUL 05/002 CUL OBST TOWER LGT (ASR 1223208) 381001.10N0880421.70W (5.2NM NNE CUL) 653.2FT (263.1FT AGL) U/S 2405092209-2406111700
4/12/242103Z	!CUL 04/010 CUL SVC AUTOMATED WX BCST SYSTEM 118.425 U/S 2404122103-2409272359EST

ATC Tower

Attendance

MON-SAT 0700-1700
SUN 0700-1700
CLSD FEDERAL HOLIDAYS.

Owner

CITY OF CARMI
MUNICIPAL BLDG 225 E MAIN
CARMI, IL 62821
Phone: 618-382-8118

Manager

GREG BROWN
MUNICIPAL BUILDING 225 EAST MAIN
CARMI, IL 62821
Phone: 618-380-4211

FSS

SAINT LOUIS FSS (STL)
Toll Free: 1-800-WX-BRIEF

NOTAM

CUL

Light Schedule

Lights

MIRL RY 18/36 PRESET ON LOW INTST; TO INCR INTST & ACTVT PAPI RYS 18 & 36 AND REIL RY 36- CTAF.

Beacon

N/A

Wind Indicator

Yes - Lighted

Segmented Cir.

Yes

Landing Fee

Parking

Hangar

Int'l Operations

NOT a Landing Rights Airport
NOT an Airport of Entry

# Single Engine

# Multi Engine

# Jets

# Helicopters

# Military

# Ultralights

Airframe Repair

None

Pwrplant Repair

None

Bottled Oxygen

None

Bulk Oxygen

None

Other Services

Crop Dusting

Runway 18/36

Dimensions

4000 ft. x 75 ft.

Surface Type

ASPH

Surface Cond

Good

Treatment

NONE

Rwy Edge Lgts

MED

Pavement Class

Single Wheel

12,000lbs

Double Wheel

Double Tandem

Dual Dbl Tand

	Runway 18	Runway 36
True Heading	180°	0°
Traffic Pattern	Left	Left
Markings	NPI	NPI
Markings Condition	GOOD	GOOD
Latitude	38° 05' 42"N	38° 05' 02"N
Longitude	88° 07' 23"W	88° 07' 23"W
Elevation	388'	383'
Threshold Crossing Height	21 ft. AGL	21 ft. AGL
Visual Glide Path Angle	3°	3°
Visual Slope Indicator	P2L	P2L
Approach Lights
Centerline Lights	No	No
Runway End Identifier Lights	No	Yes

A110-1

FOR CD CTC EVANSVILLE APCH AT 812-436-4690, WHEN APCH CLSD CTC INDIANAPOLIS ARTCC AT 317-247-2411.

CARMI MUNI (ICAO: KCUL, IATA: CUL) is a public airport located in CARMI, IL.
