SOUTH ARKANSAS RGNL AT GOODWIN FLD - Airport Diagram

KELD

SOUTH ARKANSAS RGNL AT GOODWIN FLD

PublicPUB

8 miles W of EL DORADO, AR

View on Map

Status

Operational

Coordinates

33° 13' 16"N 92° 48' 42"W

Elevation

277' MSL

Pattern Alt

1277' MSL

Mag Variation

03E

Fuel

JET A (FSII), 100LL

FSS

JONESBORO (JBR)

Sectional

MEMPHIS

ARTCC

FORT WORTH (ZFW)

Data Effective

5/16/24-6/13/24

KELD VFR

4:53 PM CDT RAW

Clear

Viz

10sm

Temp

86°F

Dew

70°F

Pres

29.92"Hg

Wind

120° 7kts

RMK

AO2 SLP128 T03000211

KELD 022153Z AUTO 12007KT 10SM CLR 30/21 A2992 RMK AO2 SLP128 T03000211

Add Your Business

KELD FBOs

Promote Listing

South Arkansas Regional Airport

UNICOM: 123.0

Phone: (870) 881-4192

0 Reviews (Read | Sign In To Write)

Avfuel

As of 5/9	100LL	JET A	JET A (FSII)	MOGAS	UL94
Self Serve
Full Serve	5.78		5.45

Fuel Notes

Prices include tax

Your Information

Business

UNICOM 123.0 CTAF 123.0

ASOS

870-862-3090

118.325

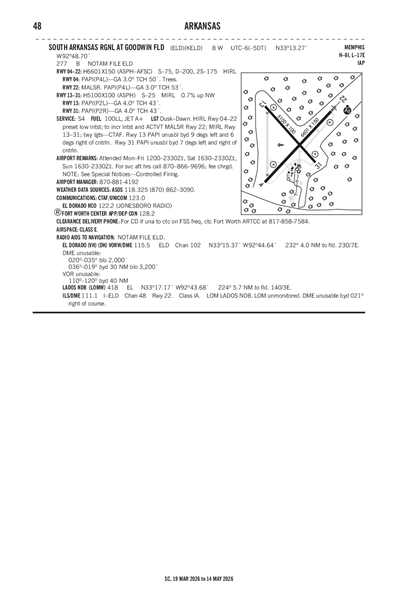

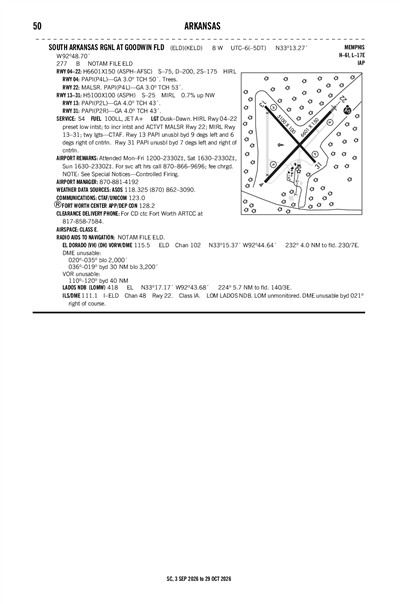

FAA A/FD Pages

FAA A/FD Page

Airport Diagrams

No Documents

Airport Minimums

TAKEOFF MINIMUMS

Departure Procedures

No Documents

Hotspot

No Documents

Standard Term. Arrival

No Documents

Instrument Approach

Terminal Area Forecast

KELD

RAW

Reported

Sun, 6/2 12:20 PM CDT

Valid

Sun, 6/2 1:00 PM CDT - Mon, 6/3 1:00 PM CDT

VFR

1:00 PM CDT - 7:00 PM CDT

Broken 25,000'
Broken 15,000'
Broken 4,500'

Viz

6sm

Wind

140° 5kts

VFR

7:00 PM CDT - 1:00 AM CDT

Broken 25,000'
Broken 15,000'
Scattered 4,500'

Viz

6sm

Wind

160° 4kts

VFR

1:00 AM CDT - 7:00 AM CDT

Broken 25,000'
Broken 15,000'
Scattered 5,000'

Viz

6sm

Wind

160° 6kts

MVFR

7:00 AM CDT - 11:00 AM CDT

Broken 25,000'
Broken 15,000'
Broken 1,500'

Viz

6sm

Wind

170° 4kts

MVFR

11:00 AM CDT - 1:00 PM CDT

Overcast 15,000'
Broken 2,500'

Viz

6sm

Wind

180° 7kts

KELD 021720Z 0218/0318 14005KT P6SM BKN045 BKN150 BKN250
   FM030000 16004KT P6SM SCT045 BKN150 BKN250
   FM030600 16006KT P6SM SCT050 BKN150 BKN250
   FM031200 17004KT P6SM BKN015 BKN150 BKN250
   FM031600 18007KT P6SM BKN025 OVC150

KELD

Domestic
6/1/240035Z	!ELD 06/001 ELD RWY 22 ALS U/S 2406010035-2406032300EST
5/14/241149Z	!ELD 05/013 ELD NAV ILS RWY 22 LADOS LOM U/S 2405141149-2409302000
5/14/241143Z	!ELD 05/012 ELD NAV ILS RWY 22 U/S 2405141143-2409302000EST
FDC
5/14/241219Z	!FDC 4/3449 ELD IAP SOUTH ARKANSAS RGNL AT GOODWIN FLD, EL DORADO, AR. ILS OR LOC RWY 22, AMDT 2F... S-LOC 22 DME REQUIRED EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS. MISSED APPROACH: CLIMB TO 1200 THEN CLIMBING LEFT TO 2000 DIRECT ELD VOR/DME AND HOLD. DME REQUIRED FOR PROCEDURE ENTRY EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS. LADOS (EL) LOM OTS. 2405141219-2406141219EST

ATC Tower

Attendance

MON-FRI 0600-1730
SUN 1030-1730
SAT 1030-1730
FOR SVC AFT HRS CALL 870-312-6255; FEE CHRGD.

Owner

CITY OF EL DORADO
PO BOX 2170
EL DORADO, AR 71730
Phone: 870-881-4192

Manager

JOHNATHAN ESTES
418 AIRPORT DR.
EL DORADO, AR 71730
Phone: 870-881-4192

FSS

JONESBORO FSS (JBR)
Toll Free: 1-800-WX-BRIEF

NOTAM

ELD

Light Schedule

Lights

DUSK-DAWN. HIRL RY 04/22 PRESET LOW INTST; TO INCR INTST & ACTVT MIRL RY 13/31; MALSR RY 22 & TWY LGTS - CTAF.

Beacon

N/A

Wind Indicator

Yes - Lighted

Segmented Cir.

Landing Fee

Parking

Hanger, Tie-Down

Int'l Operations

NOT a Landing Rights Airport
NOT an Airport of Entry

# Single Engine

# Multi Engine

# Jets

# Helicopters

# Military

# Ultralights

Airframe Repair

Major

Pwrplant Repair

Major

Bottled Oxygen

None

Bulk Oxygen

None

Other Services

Air Ambulance
Pilot Instruction
Aircraft Rental

Runway 04/22

Dimensions

6601 ft. x 150 ft.

Surface Type

ASPH

Surface Cond

Fair

Treatment

AFSC

Rwy Edge Lgts

HIGH

Pavement Class

Single Wheel

75,000lbs

Double Wheel

200,000lbs

Double Tandem

Dual Dbl Tand

	Runway 04	Runway 22
True Heading	46°	226°
Traffic Pattern	Left	Left
Markings	PIR	PIR
Markings Condition	FAIR	FAIR
Latitude	33° 12' 50"N	33° 13' 36"N
Longitude	92° 49' 08"W	92° 48' 12"W
Elevation	259'	259'
Threshold Crossing Height	50 ft. AGL	53 ft. AGL
Visual Glide Path Angle	3°	3°
Visual Slope Indicator	P4L	P4L
Approach Lights		MALSR
Centerline Lights
Runway End Identifier Lights

Runway 13/31

Dimensions

5100 ft. x 100 ft.

Surface Type

ASPH

Surface Cond

Good

Treatment

NONE

Rwy Edge Lgts

MED

Pavement Class

Single Wheel

25,000lbs

Double Wheel

Double Tandem

Dual Dbl Tand

	Runway 13	Runway 31
True Heading	136°	316°
Traffic Pattern	Left	Left
Markings	NPI	NPI
Markings Condition	GOOD	GOOD
Latitude	33° 13' 39"N	33° 13' 03"N
Longitude	92° 49' 07"W	92° 48' 25"W
Elevation	277'	243'
Threshold Crossing Height	43 ft. AGL	43 ft. AGL
Visual Glide Path Angle	4°	4°
Visual Slope Indicator	P2L	P2R
Approach Lights
Centerline Lights
Runway End Identifier Lights

A110-7

FOR CD IF UNA TO CTC ON FSS FREQ, CTC FORT WORTH ARTCC AT 817-858-7584.

SOUTH ARKANSAS RGNL AT GOODWIN FLD (ICAO: KELD, IATA: ELD) is a public airport located in EL DORADO, AR.
