iFlightPlanner



...

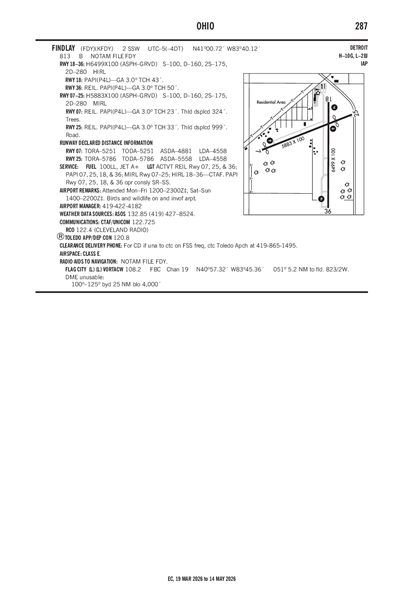

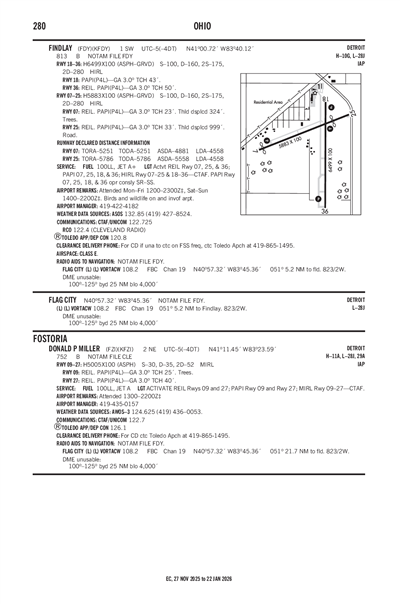

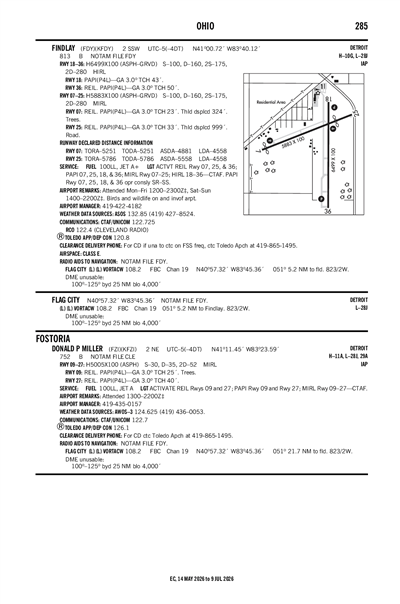

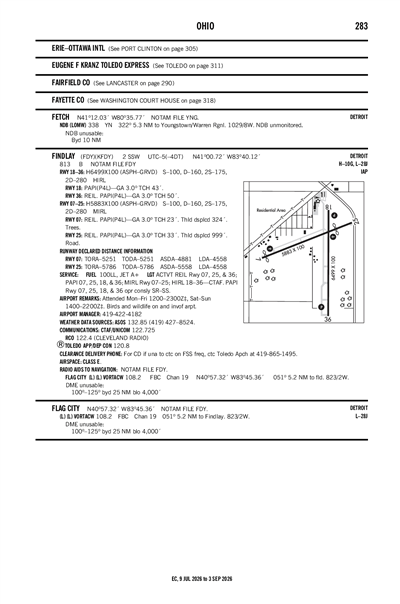

FINDLAY - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KFDY
FINDLAY
PublicPUB

1 miles SW of FINDLAY, OH
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
41° 00' 43"N 83° 40' 07"W
813' MSL
1813' MSL
05W
JET A (FSII), 100LL
CLEVELAND (CLE)
DETROIT
CLEVELAND (ZOB)
5/16/24-6/13/24
KFDY VFR
4:53 PM EDT
Overcast 8,000'
Broken 4,200'
Few 2,200'
10sm
76°F
65°F
29.93"Hg
290° 6kts
AO2 SLP129 60011 T02440183 56003
KFDY 022053Z AUTO 29006KT 10SM FEW022 BKN042 OVC080 24/18 A2993 RMK AO2 SLP129 60011 T02440183 56003
Add Your Business

KFDY FBOs

Promote Listing
Findlay Airport
UNICOM: 122.725
Phone: (419) 422-4182
No Rating Available
0 Reviews (Read | Sign In To Write)
Independent
As of 5/28
 100LL JET A JET A (FSII) MOGAS UL94
Self Serve
Full Serve 5.48 5.39
Fuel Notes
Prices include tax
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.725 122.725

ASOS

ASOS
419-427-8524
 132.85

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KFDY
Sun, 6/2 1:50 PM EDT
Sun, 6/2 2:00 PM EDT - Mon, 6/3 2:00 PM EDT
MVFR
2:00 PM EDT - 10:00 PM EDT
Showers in vicinity
Broken 2,500'
6sm
270° 7kts
MVFR
Temporary 2:00 PM EDT - 4:00 PM EDT
Light Showers and Rain
No Clouds
5sm
Calm
VFR
10:00 PM EDT - 3:00 AM EDT
Scattered 3,000'
6sm
180° 3kts
MVFR
3:00 AM EDT - 6:00 AM EDT
Mist
Scattered 1,500'
3sm
VRB° 2kts
IFR
6:00 AM EDT - 10:00 AM EDT
Mist
Scattered 200'
1sm
VRB° 2kts
LIFR
Temporary 6:00 AM EDT - 9:00 AM EDT
Fog
Overcast 200'
0.5sm
Calm
MVFR
10:00 AM EDT - 12:00 PM EDT
Broken 1,500'
6sm
210° 5kts
VFR
12:00 PM EDT - 2:00 PM EDT
Scattered 3,000'
6sm
200° 6kts
KFDY 021750Z 0218/0318 27007KT P6SM VCSH BKN025
   TEMPO 0218/0220 5SM -SHRA
   FM030200 18003KT P6SM SCT030
   FM030700 VRB02KT 3SM BR SCT015
   FM031000 VRB02KT 1SM BR SCT002
   TEMPO 0310/0313 1/2SM FG OVC002
   FM031400 21005KT P6SM BKN015
   FM031600 20006KT P6SM SCT030
KFDY
Domestic
6/2/241432Z !FDY 06/002 FDY OBST TOWER LGT (ASR 1019436) 410257.00N0833833.00W (2.5NM NNE FDY) 1074.8FT (294.0FT AGL) U/S 2406021432-2409301432
5/30/241219Z !FDY 05/030 FDY COM REMOTE COM OUTLET 122.4 U/S 2405301219-2406142000EST
5/12/240115Z !FDY 05/009 FDY OBST TOWER LGT (ASR 1261910) 410029.30N0833802.30W (1.6NM E FDY) 980.0FT (189.0FT AGL) U/S 2405120115-2406121700
4/11/241838Z !FDY 04/015 FDY OBST TOWER LGT (ASR 1203415) 410513.00N0834041.00W (4.5NM N FDY) 1103.0FT (273.0FT AGL) U/S 2404111838-2412312359
4/1/241851Z !FDY 04/003 FDY RWY 25 PAPI U/S 2404011851-2412312359
4/1/241848Z !FDY 04/002 FDY RWY 07 PAPI U/S 2404011848-2412312359
FDC
5/13/241711Z !FDC 4/3086 FDY IAP FINDLAY, FINDLAY, OH.
RNAV (GPS) RWY 7, ORIG-C...
LNAV/VNAV DA 1315/HAT 505 ALL CATS.
2405131711-2605161711EST
No
MON-FRI 0700-1800
SAT-SUN 0900-1700
CITY OF FINDLAY
310 MUNICIPAL BLDG
FINDLAY, OH 45840-3346
Phone: 419-424-7137
AMANDA MCGEE
1615 GRAY ST
FINDLAY, OH 45840-1411
Phone: 419-422-4182
CLEVELAND FSS (CLE)
Toll Free: 1-800-WX-BRIEF
FDY
--
ACTVT REIL RWY 07, 25, & 36; PAPI RWY 07, 25, 18, & 36; HIRL RWY 07/25 & 18/36 - CTAF. PAPI RWY 07, 25, 18, & 36 OPR CONSLY SR-SS.
N/A
Yes - Lighted
No
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
16
1
6
0
0
0
None
None
None
None
None

Runway 07/25

5883 ft. x 100 ft.
ASPH
Good
NONE
HIGH

100,000lbs
160,000lbs
280,000lbs
--
  Runway 07 Runway 25
True Heading 69°249°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 41° 00' 41"N 41° 01' 02"N
Longitude 83° 40' 52"W 83° 39' 41"W
Elevation 794' 806'
Threshold Crossing Height 24 ft. AGL 31 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights
Centerline Lights No No
Runway End Identifier Lights Yes Yes

Runway 18/36

6499 ft. x 100 ft.
ASPH
Good
NONE
HIGH

100,000lbs
160,000lbs
280,000lbs
--
  Runway 18 Runway 36
True Heading 180°0°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 41° 01' 08"N 41° 00' 04"N
Longitude 83° 39' 58"W 83° 39' 59"W
Elevation 804' 803'
Threshold Crossing Height 43 ft. AGL 50 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights
Centerline Lights No No
Runway End Identifier Lights No Yes
A110-1FOR CD IF UNA TO CTC ON FSS FREQ, CTC TOLEDO APCH AT 419-865-1495.
FINDLAY (ICAO: KFDY, IATA: FDY) is a public airport located in FINDLAY, OH.
