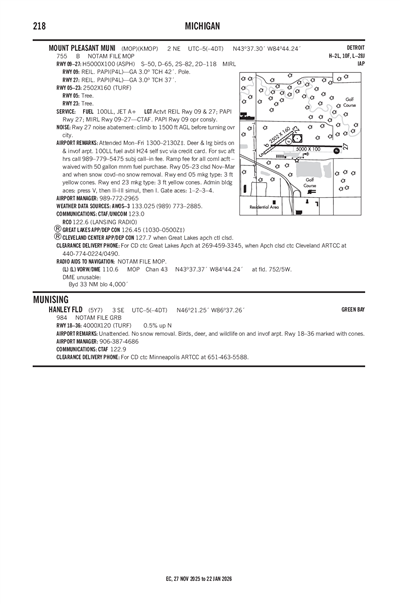

MOUNT PLEASANT MUNI - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KMOP
MOUNT PLEASANT MUNI
PublicPUB

2 miles NE of MOUNT PLEASANT, MI
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
43° 37' 18"N 84° 44' 14"W
755' MSL
1755' MSL
05W
JET A (FSII), 100LL
LANSING (LAN)
DETROIT
MINNEAPOLIS (ZMP)
5/16/24-6/13/24
KMOP VFR
3:35 PM EDT
Scattered 4,700'
Scattered 4,100'
10sm
74°F
56°F
29.94"Hg
340° 5kts
AO2 T02310132
KMOP 021935Z AUTO 34005KT 10SM SCT041 SCT047 23/13 A2994 RMK AO2 T02310132
Add Your Business

KMOP FBOs

Promote Listing
Mt. Pleasant Airport
UNICOM: 123.0
Phone: (989) 944-1188
Other: (989) 772-2965
No Rating Available
0 Reviews (Read | Sign In To Write)
Avfuel
As of 6/1
 100LL JET A JET A (FSII) MOGAS UL94
Self Serve 5.72 5.56
Full Serve 5.56
Fuel Notes
Prices include tax
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
123.0 123.0

AWOS-3

AWOS-3
989-773-2885
 133.025

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KMBS (29nm)
Sun, 6/2 1:28 PM EDT
Sun, 6/2 2:00 PM EDT - Mon, 6/3 2:00 PM EDT
MVFR
2:00 PM EDT - 7:00 PM EDT
Overcast 4,000'
Broken 2,500'
6sm
030° 8kts
MVFR
Temporary 2:00 PM EDT - 6:00 PM EDT
Light Rain
Overcast 1,500'
6sm
Calm
VFR
7:00 PM EDT - 10:00 PM EDT
Broken 4,000'
6sm
050° 8kts
VFR
10:00 PM EDT - 3:00 AM EDT
Scattered 4,000'
6sm
050° 5kts
IFR
3:00 AM EDT - 5:00 AM EDT
Mist
Scattered 600'
1sm
VRB° 3kts
LIFR
5:00 AM EDT - 9:00 AM EDT
Fog
Obscured
0.5sm
Calm
IFR
9:00 AM EDT - 11:00 AM EDT
Mist
Scattered 600'
1sm
VRB° 3kts
VFR
11:00 AM EDT - 2:00 PM EDT
Scattered 4,000'
6sm
160° 7kts
KMBS 021728Z 0218/0318 03008KT P6SM BKN025 OVC040
   TEMPO 0218/0222 6SM -RA OVC015
   FM022300 05008KT P6SM BKN040
   FM030200 05005KT P6SM SCT040
   FM030700 VRB03KT 1SM BR SCT006
   FM030900 00000KT 1/2SM FG VV003
   FM031300 VRB03KT 1SM BR SCT006
   FM031500 16007KT P6SM SCT040
KMOP
Domestic
5/7/241022Z !MOP 05/003 MOP AIRSPACE UAS WI AN AREA DEFINED AS 0.5NM RADIUS OF
433346.50N0843524.50W (7.3NM SE MOP) SFC-150FT AGL DLY SR-SS
2405071022-2406090118
4/26/240119Z !MOP 04/010 MOP OBST TOWER LGT (ASR 1004167) 434336.00N0843616.00W (8.6NM NE MOP) 1744.1FT (997.0FT AGL) U/S 2404260119-2406100115
No
MON-FRI 0800-1630
CITY OF MOUNT PLEASANT
320 W BROADWAY ST
MOUNT PLEASANT, MI 48858-2447
Phone: 989-779-5402
BILL BRICKNER
5453 E AIRPORT RD
MOUNT PLEASANT, MI 48858-8923
Phone: 989-772-2965
LANSING FSS (LAN)
Toll Free: 1-800-WX-BRIEF
MOP
--
ACTVT REIL RWY 09 & 27; PAPI RWY 27; MIRL RWY 09/27 - CTAF. PAPI RWY 09 OPR CONSLY.
N/A
Yes - Lighted
No
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
11
1
1
0
0
0
None
None
None
None
None

Runway 05/23

2502 ft. x 160 ft.
TURF
Fair
NONE


--
--
--
--
  Runway 05 Runway 23
True Heading 53°233°
Traffic Pattern Left Left
Markings
Markings Condition
Latitude 43° 37' 12"N 43° 37' 27"N
Longitude 84° 44' 46"W 84° 44' 18"W
Elevation 754' 749'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights No No
Runway End Identifier Lights No No

Runway 09/27

5000 ft. x 100 ft.
ASPH
Fair
NONE
MED

50,000lbs
65,000lbs
118,000lbs
--
  Runway 09 Runway 27
True Heading 91°271°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 43° 37' 18"N 43° 37' 17"N
Longitude 84° 44' 40"W 84° 43' 32"W
Elevation 754' 752'
Threshold Crossing Height 42 ft. AGL 37 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights
Centerline Lights No No
Runway End Identifier Lights Yes Yes
A110-1DEER & LRG BIRDS ON & INVOF ARPT.
A110-2RY 27 NOISE ABATEMENT: CLIMB TO 1500 FT AGL BEFORE TURNING OVER CITY.
A110-4RY 5/23 NO SNOW REMOVAL, CLSD NOV-MAR & WHEN SNOW COVERED.
A110-5ADMIN. BLDG. ACCESS, DEPRESS V, THEN II-III SIMULTANEOUS, THEN I. GATE ACCESS 1-2-3-4.
A110-6FOR CD CTC GREAT LAKES APCH AT 269-459-3345, WHEN APCH CLSD CTC CLEVELAND ARTCC AT 440-774-0224/0490.
MOUNT PLEASANT MUNI (ICAO: KMOP, IATA: MOP) is a public airport located in MOUNT PLEASANT, MI.
