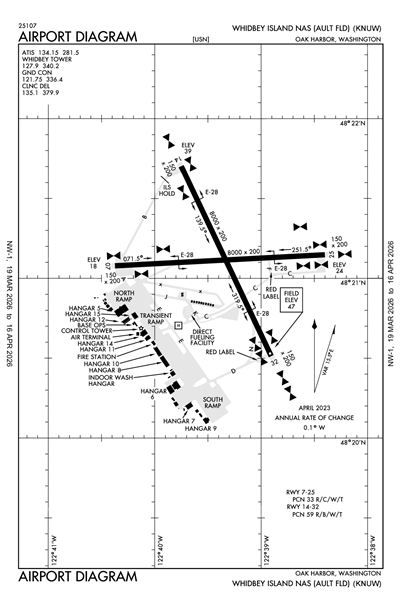

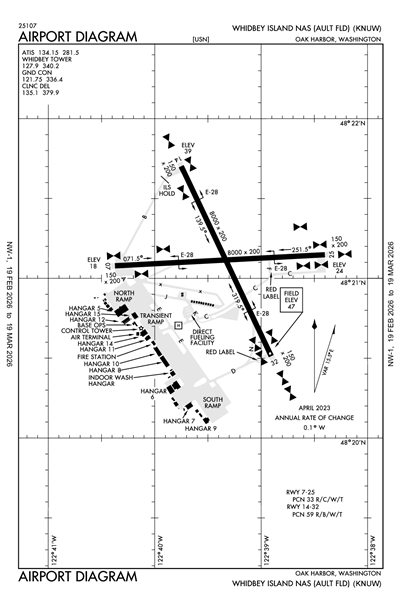

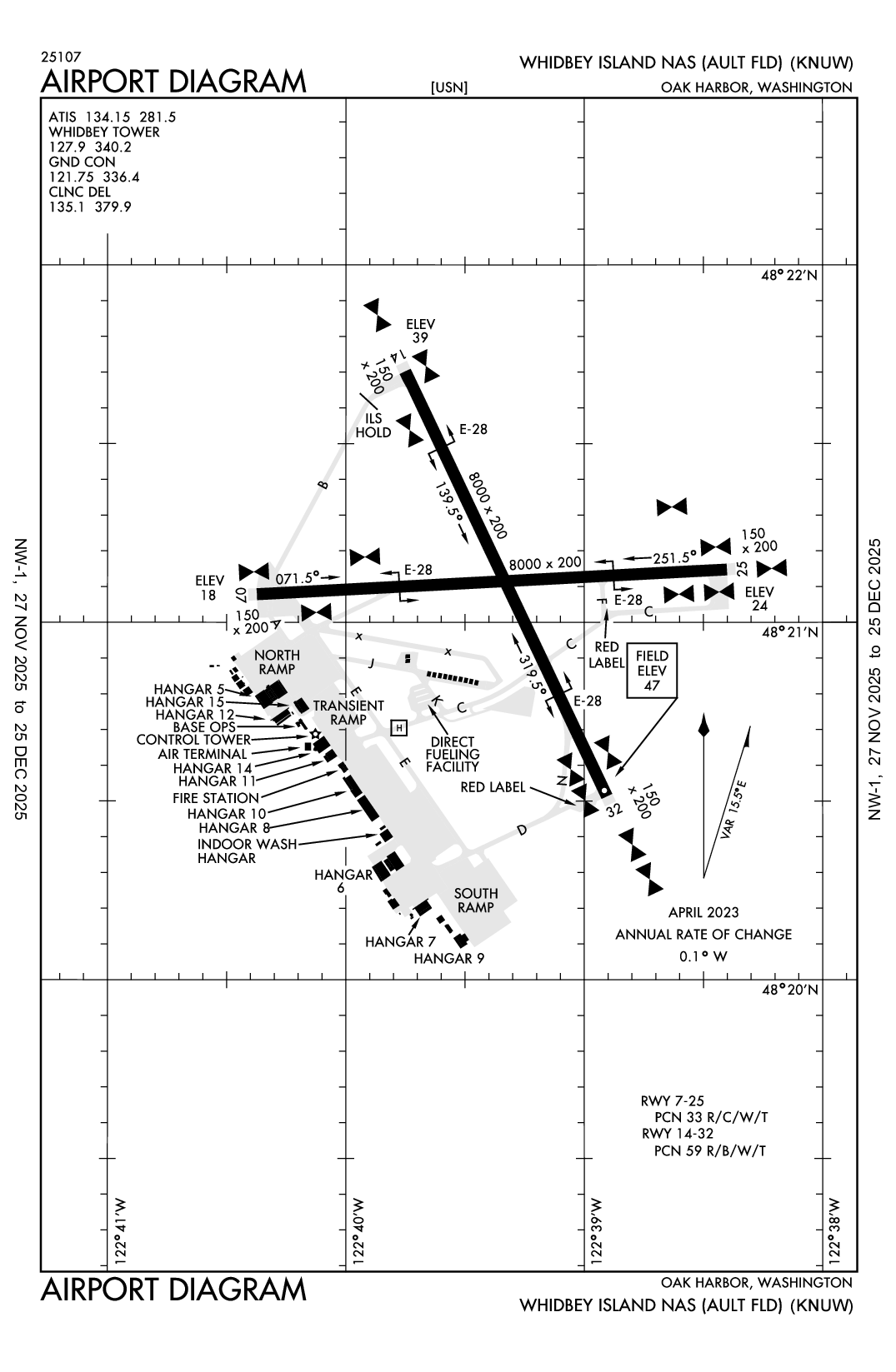

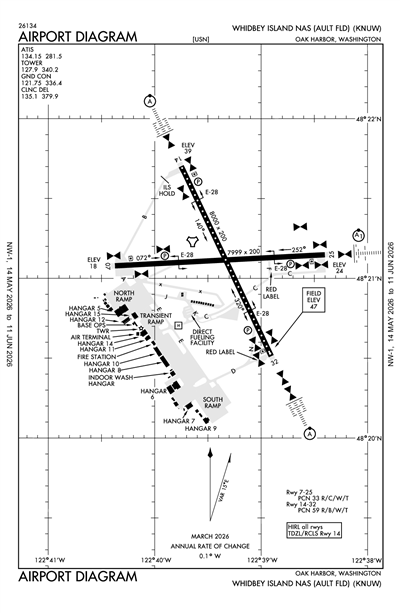

WHIDBEY ISLAND NAS (AULT FLD) - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KNUW
WHIDBEY ISLAND NAS (AULT FLD)
PrivatePVT

3 miles N of OAK HARBOR, WA
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
48° 21' 07"N 122° 39' 21"W
47' MSL
1047' MSL
18E
100LL, JP-5, JP-8
SEATTLE (SEA)
SEATTLE
SEATTLE (ZSE)
5/16/24-6/13/24
KNUW VFR
1:53 PM PDT
Light Rain
Overcast 9,000'
Broken 5,000'
Scattered 1,500'
9sm
56°F
54°F
29.65"Hg
130° 19kts
Gusts 28kts
AO2 PK WND 13031/2039 SLP043 P0006 60020 T01330122 58031 $
KNUW 022053Z 13019G28KT 9SM -RA SCT015 BKN050 OVC090 13/12 A2965 RMK AO2 PK WND 13031/2039 SLP043 P0006 60020 T01330122 58031 $
Add Your Business

KNUW FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
-- --

ATIS

ATIS
 134.15

Approach/Departure

APCH/P DEP/P IC
WEST
 118.2
APCH/P DEP/P IC
EAST
 120.7

Clearance Delivery

CD PRE TAXI CLNC
 135.1
CD/P
 135.1

Emergency

EMERG
 121.5

Ground

GND/P
 121.75

Tower

LCL/P
 127.9

Other

CLASS C
WEST
 118.2
CLASS C
EAST
 120.7

Terminal Area Forecast

KNUW
Sun, 6/2 12:33 PM PDT
Sun, 6/2 12:00 PM PDT - Mon, 6/3 8:00 AM PDT
VFR
12:00 PM PDT - 4:00 PM PDT
Light Rain
Overcast 8,000'
Broken 5,000'
5.59sm
29.65"Hg
130° 20kts
Gusts 28kts
Moderate (Mixed): 6,000-15,000'
Moderate (Mixed): 15,000-23,000'
Moderate, In Cloud, Occasional: 2,000 - 10,000'
MVFR
Temporary 12:00 PM PDT - 4:00 PM PDT
Broken 2,500'
Scattered 1,500'
N/A
Calm
MVFR
4:00 PM PDT - 11:00 PM PDT
Rain and Mist
Scattered 1,400'
4.97sm
29.44"Hg
140° 22kts
Gusts 32kts
Moderate (Mixed): 6,000-15,000'
Moderate (Mixed): 15,000-23,000'
Moderate, In Cloud, Occasional: 2,000 - 10,000'
IFR
Temporary 4:00 PM PDT - 11:00 PM PDT
Heavy Rain and Mist
Overcast 1,300'
Broken 600'
2.98sm
Calm
MVFR
11:00 PM PDT - 2:00 AM PDT
Light Rain and Mist
Overcast 2,100'
Broken 1,300'
Scattered 600'
4.97sm
29.53"Hg
180° 10kts
Gusts 19kts
Moderate (Mixed): 6,000-13,000'
None: 2,000 - 10,000'
MVFR
2:00 AM PDT - 6:00 AM PDT
Light Rain
Overcast 4,000'
Broken 2,800'
Scattered 2,100'
5.59sm
29.50"Hg
180° 8kts
Gusts 13kts
Moderate (Mixed): 6,000-13,000'
VFR
Temporary 3:00 AM PDT - 6:00 AM PDT
Mist
Broken 8,000'
Scattered 1,400'
5.59sm
Calm
MVFR
6:00 AM PDT - 8:00 AM PDT
Light Rain and Mist
Overcast 2,800'
Broken 2,100'
Few 1,300'
5.59sm
29.53"Hg
160° 8kts
Gusts 12kts
Light (Mixed): 5,000-11,000'
TAF AMD KNUW 0219/0315 13020G28KT 9000 -RA BKN050 OVC080 640609 641508 540208 QNH2964INS
   TEMPO 0219/0223 SCT015 BKN025
   FM022300 14022G32KT 8000 RA BR SCT014 OVC0035 WSCONDS 640609 641508 540208 QNH2945INS
   TEMPO 0223/0306 4800 +RA BR BKN006 OVC013
   FM030600 18010G19KT 8000 -RA BR SCT006 BKN013 OVC021 640607 500000 QNH2952INS
   FM030900 18008G13KT 9000 -RA SCT021 BKN028 OVC040 640607 QNH2951INS
   TEMPO 0310/0313 9000 BR SCT014 BKN080
   FM031300 16008G12KT 9000 -RA BR FEW013 BKN021 OVC028 610506 QNH2954IN
KNUW
Military
6/1/240314Z MINIMA CHANGE IN EFFECT: ASR RWY 7 INCREASED TO CAT ABCDE 440-1 ¼ 415 (400-1 ¼).
5/31/242222Z M0224/24 NOTAMC M0192/24
5/31/242222Z M0223/24 NOTAMC M0199/24
5/31/242221Z M0222/24 NOTAMC M0203/24
5/31/242209Z MINIMA CHANGE IN EFFECT: RNAV (GPS) RWY 25 LNAV INCREASED TO CAT AB 640- ½ 612 (600- ½); CAT CD 640-1 3/8 612 (600-1 3/8). WHEN ALS INOP INCREASE CAT AB VIS TO 1 MILE; CAT CD VIS TO 1 ¾ MILES.
5/31/242207Z MINIMA CHANGE IN EFFECT: RNAV (GPS) RWY 7 LNAV INCREASED TO CAT AB 460-1 435 (500-1); CAT CD 460-1 ¼ 435 (500-1¼).
5/31/242206Z MINIMA CHANGE IN EFFECT: ASR RWY 25 INCREASED TO CAT AB 760-3/4 732 (800-3/4), CAT CDE 760-1 5/8 732 (800-1 5/8). WHEN ALS INOP INCREASE CAT AB VIS TO 1 ¼ MILES; CAT CDE VIS TO 2 MILES.
5/31/242204Z RADAR INSTRUMENT APPROACH CIRCLING MINIMA CHANGE IN EFFECT: CAT AB 760-1 713 (800-1); CAT C 860-2½ 813 (900-2½); CAT D 900-2¾ 853 (900-2¾); CAT E 1200-3 1153 (1200-3).
5/31/242202Z PAR WO GS RWY 32 MINIMA CHANGE IN EFFECT: CAT AB 560/24 513 (600-½); CAT CDE 560/55 513 (600-1); WHEN ALS INOP INCREASE CAT AB RVR TO 55, VIS TO 1 MILE, CAT CDE VIS TO 1 3/8 MILES.
5/31/242201Z PAR WO GS RWY 14 MINIMA CHANGE IN EFFECT: CAT AB 440/30 401 (500-5/8); CAT CDE 440/40 401 (400-¾); WHEN ALS INOP INCREASE CAT AB RVR TO 55, VIS TO 1 MILE, CAT CDE RVR TO 60, VIS TO 1 1/8 MILES.
5/31/242159Z PAR RWY 32 MINIMA CHANGE IN EFFECT GS 3.0°/TCH 50/RPI 1177; CAT ABCDE 174/16 127 (200-¼); WHEN ALS INOP INCREASE RVR TO 24, VIS TO ½ MILE; VGSI AND PAR GLIDEPATH NOT COINDICENT (VGSI ANGLE 3.0°/TCH 38 FT).
5/31/242157Z PAR RWY 25 MINIMA CHANGE IN EFFECT GS 3.0°/TCH/50/RPI 896; CAT ABCDE 128/16 100 (100-¼); WHEN ALS INOP INCREASE RVR TO 24, VIS TO ½ MILE.
5/31/242156Z PAR RWY 25 MINIMA CHANGE IN EFFECT GS 3.0°/TCH/50/RPI 896; CAT ABCDE 128/16 100 (100-¼); WHEN ALS INOP INCREASE RVR TO 24, VIS TO ½ MILE.
5/31/242154Z PAR RWY 14 MINIMA CHANGE IN EFFECT: GS 3.0°/TCH 50/RPI 981; CAT ABCDE 139/12 100 (100-¼); WHEN ALS INOP INCREASE RVR TO 24, VIS TO ½ MILE. WHEN TDZ/CL LIGHTS INOP INCREASE CAT ABCDE RVR TO 24.
5/31/242152Z FPN-68A PRECISION APPROACH RADAR (PAR) FOR RUNWAY 7 IS OUT TO SERVICE UNTIL FURTHER NOTICE.
4/22/241439Z !KNUW M0160/24 NUW TWY E CLSD BETWEEN TWY JULIET AND CHARLIE UNTIL 1JULY24, 2359Z (1659L) 2404221439-2407012359
4/17/241435Z CONTACT GROUND CONTROL PRIOR TO TAXIING DUE TO CONSTRUCTION CONSTRAINTS. THIS REMAINS IN EFFECT UNTIL DEC 31, 2024.
Yes
ALL
U S NAVY
OCEANOGRAPHIC OFC CODE 3142
WASHINGTON, D C 20373
COMMANDING OFFICER
NAS WHIDBEY ISLAND
OAK HARBOR, WA 98278
Phone: 360 257 2681
SEATTLE FSS (SEA)
Toll Free: 1-800-WX-BRIEF
NUW
--
AVBL ONLY DURING HRS OF OPERATION.
N/A
N/A
No
No
None
No
0
0
0
0
0
0
None
None
None
High & Low Pressure
None

Runway 07/25

7999 ft. x 200 ft.
CONC
Good
NONE
HIGH
33 /R/C/W/T
--
--
--
--
  Runway 07 Runway 25
True Heading 87°267°
Traffic Pattern
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 48° 21' 05"N 48° 21' 09"N
Longitude 122° 40' 22"W 122° 38' 24"W
Elevation 18' 24'
Threshold Crossing Height 50 ft. AGL 51 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights ALSF1
Centerline Lights No No
Runway End Identifier Lights No

Runway 14/32

8001 ft. x 200 ft.
CONC
Good
NONE
HIGH
59 /R/B/W/T
--
--
--
--
  Runway 14 Runway 32
True Heading 155°335°
Traffic Pattern
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 48° 21' 42"N 48° 20' 31"N
Longitude 122° 39' 45"W 122° 38' 54"W
Elevation 39' 47'
Threshold Crossing Height 49 ft. AGL 38 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights ALSF2 ALSF2
Centerline Lights Yes Yes
Runway End Identifier Lights
A110-13SEE FLIP AP/1.
A110-14CSTMS/AG/IMG: 48 HR PN REQ, CTC AIR TERMINAL SUPERVISOR, 1430-0100Z++ AT DSN 820-2604/6707, C360-257-2604/6707.
A110-15SERVICE- JASU - 1 (NC-10C), 1 (GTC-85/GTE-85), 1(MSU-200NAV/ A/U47A-5 FUEL-J8 FLUID-SP PRESAIR DE-ICE (2 HR PN REQ) LHOX TRAN ALERT- TRAN CREWS MUST PROVIDE TECHNICAL DIRECT/ASSISTANCE IN SVC/MAINT TO INCLUDE DIRECT SUPERVISION OF FUELING. LTD SVC/MAINT AVBL 1500-2300Z++ MON-FRI. NO MAINT SAT, SUNAND HOL. AIR TERMINAL OPR 1400-0200Z++, AS RQR OT.
A110-16OLS LENSES AVBL TO ALL RWY.
A110-17HIRL AND SFL UNAVBL TO RWY 7. RCLL AVBL TO RWY 14-32 ONLY.
A110-18OPERATIONS DUTY OFFICER C360-257-2681, DSN 820-2681.
A110-19FOR CIVIL AIRCRAFT LANDING PERMITS (CALP) REQUESTS CTC OPS DUTY OFFICER.
A110-20CTN: LANDING SIGNAL OFFICER SHELTER 15 FT AGL, 32 FT FROM RWY EDGE, LCTD LEFT SIDE RWY, 558 FT FROM RWY 07 THLD AND 400 FT FROM THLD ON RWY 14, 25 AND 32. LARGE ACFT EXER CTN. EXTREME CTN RQRD FOR BACK TAXI IN LAST 1000 FT OF ALL RWYS.
A110-21CTN: NO WEPS LOADING OR OFFLOADING BTN HN.
A110-22DCT REFUL FAC LANES NOT AVBL TO TRAN ACFT.
A110-23SERVICE - PAPI RWY 07/25 AND RWY 14/32 H24.
A110-7RSTD: PPR REQUIRED FOR ALL ACFT EXC SAR/MEDEVAC. CTC AIR TERMINAL SUPERVISOR, 1430-0100Z++ AT DSN 820-2604/6707, C360-257-2604/6707. PRIOR COORD/FLT ADVSY RQR FOR AMC/JOSAC/NALO MSN.
A110-9TFC PAT - OVERHEAD INITIAL FOR RWYS 7, 14, 32 4NM 2500', RWY 25 6NM 3000'; OVERHEAD BREAK 1500'; PATTERN ALT 1000'.
WHIDBEY ISLAND NAS (AULT FLD) (ICAO: KNUW, IATA: NUW) is a private airport located in OAK HARBOR, WA.
