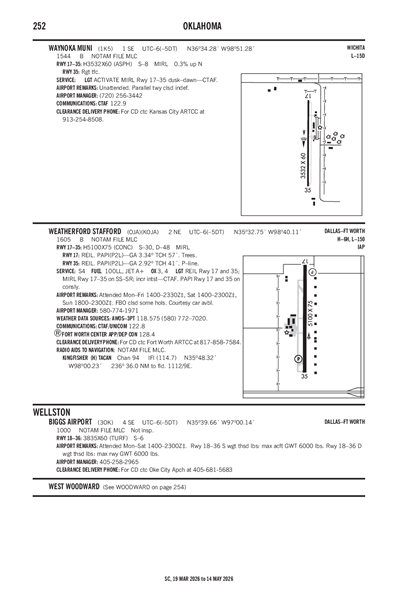

WEATHERFORD STAFFORD - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KOJA
WEATHERFORD STAFFORD
PublicPUB

2 miles NE of WEATHERFORD, OK
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
35° 32' 45"N 98° 40' 07"W
1605' MSL
2605' MSL
06E
JET A (FSII), 100LL
MC ALESTER (MLC)
DALLAS-FT WORTH
FORT WORTH (ZFW)
5/16/24-6/13/24
KOJA VFR
4:15 PM CDT
Clear
10sm
79°F
61°F
29.82"Hg
150° 14kts
Gusts 19kts
AO2 T02610159
KOJA 022115Z AUTO 15014G19KT 10SM CLR 26/16 A2982 RMK AO2 T02610159
Add Your Business

KOJA FBOs

Promote Listing
Thomas P. Stafford Airport
UNICOM: 122.8
Phone: (580) 774-1971
Other: (580) 774-7848
No Rating Available
0 Reviews (Read | Sign In To Write)
Phillips 66
As of 5/28
 100LL JET A JET A (FSII) MOGAS UL94
Self Serve
Full Serve 5.15 4.05
Fuel Notes
Prices include tax
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.8 122.8

AWOS-3PT

AWOS-3PT
580-772-7020
 118.575

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KCSM (29nm)
Sun, 6/2 1:01 PM CDT
Sun, 6/2 1:00 PM CDT - Mon, 6/3 1:00 PM CDT
VFR
1:00 PM CDT - 4:00 PM CDT
Scattered 12,000'
6sm
110° 15kts
VFR
4:00 PM CDT - 2:00 AM CDT
Overcast 12,000'
6sm
120° 10kts
Gusts 15kts
MVFR
10:00 PM CDT - 1:00 AM CDT
Thunderstorm and Rain and Mist
Overcast 2,500'
4sm
Calm
VFR
2:00 AM CDT - 5:00 AM CDT
Broken 11,000'
6sm
180° 13kts
Gusts 26kts
MVFR
5:00 AM CDT - 6:00 AM CDT
Broken 2,200'
6sm
170° 11kts
Gusts 23kts
MVFR
6:00 AM CDT - 10:00 AM CDT
Broken 1,500'
6sm
170° 11kts
Gusts 21kts
VFR
10:00 AM CDT - 1:00 PM CDT
Scattered 1,300'
6sm
170° 12kts
KCSM 021801Z 0218/0318 11015KT P6SM SCT120
   FM022100 12010G15KT P6SM OVC120
   PROB30 0303/0306 4SM TSRA BR OVC025CB
   FM030700 18013G26KT P6SM BKN110
   FM031000 17011G23KT P6SM BKN022
   FM031100 17011G21KT P6SM BKN015
   FM031500 17012KT P6SM SCT013
KOJA
Domestic
5/26/240238Z !MLC 05/432 OJA OBST TOWER LGT (ASR 1257438) 352407.20N0984348.80W (9.1NM SSW OJA) 2016.1FT (324.1FT AGL) U/S 2405260238-2406100138
5/20/240632Z !MLC 05/316 OJA OBST TOWER LGT (ASR 1253042) 353202.50N0983428.00W (4.7NM E OJA) 1840.6FT (305.1FT AGL) U/S 2405200632-2408212359
5/16/240042Z !MLC 05/263 OJA OBST TOWER LGT (ASR 1024873) 352356.00N0984655.00W (10.4NM SSW OJA) 1964.2FT (349.1FT AGL) U/S 2405160042-2406300041
FDC
3/28/241506Z !FDC 4/3464 OJA IAP WEATHERFORD STAFFORD, WEATHERFORD, OK.
RNAV (GPS) RWY 35, AMDT 3A...
WIXIP STEPDOWN FIX ALTITUDE 2580.
2403281506-2603281506EST
No
MON-FRI 0800-1730
SAT 0800-1700
SUN 1200-1700
CITY OF WEATHERFORD
522 W. RAINEY, P. O. BOX 569
WEATHERFORD, OK 73096
Phone: 580-772-7451
MARK SCHOONMAKER
3000 LOGAN ROAD
WEATHERFORD, OK 73096
Phone: 580-774-1971
MC ALESTER FSS (MLC)
Toll Free: 1-800-WX-BRIEF
MLC
--
REIL RWY 17 & 35; MIRL RWY 17/35 ON SS-SR; INCR INTST - CTAF. PAPI RWY 17 & 35 ON CONSLY.
N/A
Yes - Lighted
No
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
19
6
4
1
0
0
Major
Major
High & Low Pressure
None
Avionics
Pilot Instruction
Aircraft Rental

Runway 17/35

5100 ft. x 75 ft.
CONC
Good
NONE
MED

30,000lbs
48,000lbs
--
--
  Runway 17 Runway 35
True Heading 180°360°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 35° 33' 10"N 35° 32' 20"N
Longitude 98° 40' 07"W 98° 40' 07"W
Elevation 1,600' 1,599'
Threshold Crossing Height 57 ft. AGL 41 ft. AGL
Visual Glide Path Angle 3.34° 2.92°
Visual Slope Indicator P2L P2L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes
A110-1FOR CD CTC FORT WORTH ARTCC AT 817-858-7584.
A110-2FBO CLSD SOME HOLS.
WEATHERFORD STAFFORD (ICAO: KOJA, IATA: OJA) is a public airport located in WEATHERFORD, OK.
