ORANGE MUNI - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KORE
ORANGE MUNI
PublicPUB

1 miles SE of ORANGE, MA
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
42° 34' 12"N 72° 17' 19"W
556' MSL
1556' MSL
15W
JET A, 100LL
BRIDGEPORT (BDR)
NEW YORK
BOSTON (ZBW)
5/16/24-6/13/24
KORE VFR
4:52 PM EDT
Clear
10sm
84°F
63°F
29.95"Hg
220° 9kts
AO2 SLP141 T02890172 56018
KORE 022052Z AUTO 22009KT 10SM CLR 29/17 A2995 RMK AO2 SLP141 T02890172 56018
Add Your Business

KORE FBOs

Promote Listing
Orange Municipal Airport
UNICOM: 122.8
Phone: (978) 544-8189
No Rating Available
0 Reviews (Read | Sign In To Write)
Titan
As of 5/15
 100LL JET A JET A (FSII) MOGAS UL94
Self Serve 6.25
Full Serve 6.25 7.50
Fuel Notes
Prices include tax
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.8 122.8

ASOS

ASOS
978-544-6774
 135.675

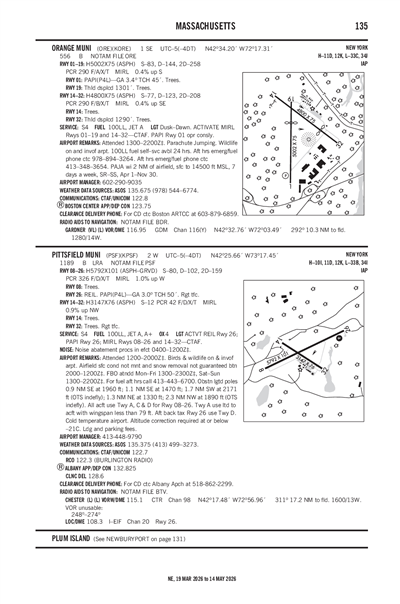

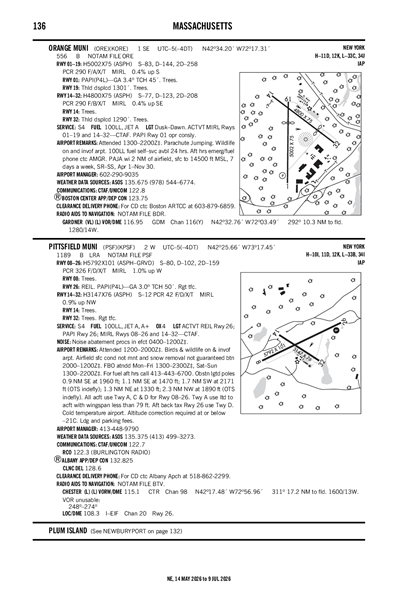

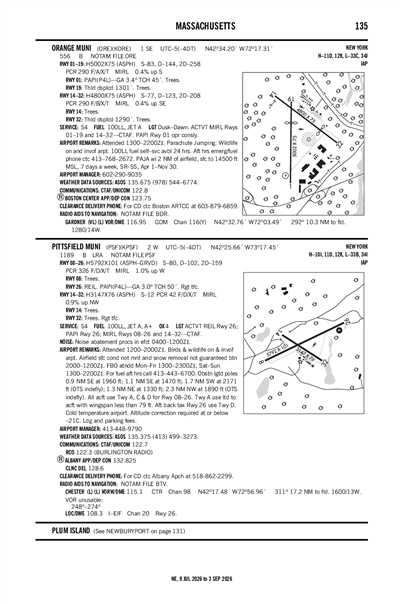

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KCEF (25nm)
Sun, 6/2 1:00 PM EDT
Sun, 6/2 1:00 PM EDT - Mon, 6/3 7:00 PM EDT
VFR
1:00 PM EDT - 9:00 AM EDT
Broken 21,000'
Broken 18,000'
Few 6,000'
6sm
29.91"Hg
220° 9kts
VFR
Becoming 9:00 AM EDT - 6:00 PM EDT
Scattered 25,000'
Few 5,000'
6sm
29.88"Hg
040° 9kts
VFR
Becoming 6:00 PM EDT - 7:00 PM EDT
Scattered 25,000'
Few 5,000'
6sm
29.85"Hg
120° 6kts
TAF KCEF 021700Z 0217/0323 22009KT 9999 FEW060 BKN180 BKN210 QNH2990INS WND VRB06KT AFT 0302
   BECMG 0313/0314 04009KT 9999 FEW050 SCT250 QNH2987INS
   BECMG 0322/0323 12006KT 9999 FEW050 SCT250 QNH2986INS TX31/0221Z TN16/0310Z
KORE
Domestic
4/13/241012Z !ORE 04/002 ORE AIRSPACE PJE WI AN AREA DEFINED AS 5NM RADIUS OF ORE SFC-14000FT DLY SR-SS 2404131012-2412012116
10/14/211721Z !ORE 10/001 ORE RWY 19 THR DISPLACED 1300FT 2110141721-PERM
12/3/202017Z !ORE 12/001 ORE RWY 01/19 CHANGED TO 5001FT X 75FT. DECLARED DIST: RWY 01 TORA 5001FT TODA 5001FT ASDA 5001FT LDA 5001FT. RWY 19 TORA 5001FT TODA 5001FT ASDA 5001FT LDA 3701FT. 2012032017-PERM
FDC
4/11/241516Z !FDC 4/9687 ORE ODP ORANGE MUNI, ORANGE, MA.
TAKEOFF MINIMUMS AND (OBSTACLE) DEPARTURE PROCEDURES AMDT 1...
TAKE-OFF MINIMUMS: RWY 01, STANDARD WITH MINIMUM CLIMB OF 325 FT PER NM TO 1800, OR 1300-3 FOR VCOA.
RWY 14, 400-1 1/2 WITH MINIMUM CLIMB OF 270 FT PER NM TO 1800, OR STANDARD WITH A MINIMUM CLIMB OF 500 FT PER NM TO 1200, OR 1300-3 FOR VCOA.
RWY 32, 400-2 1/4 WITH MINIMUM CLIMB OF 265 FT PER NM TO 1700, OR STANDARD WITH MINIMUM CLIMB OF 350 FT PER NM TO 1000, OR 1300-3 FOR VCOA.
ALL OTHER DATA REMAINS AS PUBLISHED. 2404111516-2604111514EST
No
0800-1700
TOWN OF ORANGE
6 PROSPECT ST
ORANGE, MA 01364
Phone: 978-544-1100
LEONARD BEDAW
80 AIRPORT ST
ORANGE, MA 01364
Phone: 978-544-8189
BRIDGEPORT FSS (BDR)
Toll Free: 1-800-WX-BRIEF
ORE
--
DUSK-DAWN. ACTVT MIRL RWYS 01/19 & 14/32 - CTAF. PAPI RWY 01 OPR CONSLY.
N/A
Yes
Yes
No
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
48
2
0
0
0
1
Major
Major
None
None
Charter Service
Pilot Instruction
Parachute Jump Activity
Aircraft Rental
Aircraft Sales

Runway 01/19

5001 ft. x 75 ft.
ASPH
Excellent
NONE
MED

25,000lbs
--
--
--
  Runway 01 Runway 19
True Heading 1°181°
Traffic Pattern Left
Markings BSC BSC
Markings Condition GOOD GOOD
Latitude 42° 33' 40"N 42° 34' 30"N
Longitude 72° 17' 25"W 72° 17' 24"W
Elevation 556' 534'
Threshold Crossing Height 45 ft. AGL --
Visual Glide Path Angle 3.4° --
Visual Slope Indicator P4L --
Approach Lights
Centerline Lights
Runway End Identifier Lights No No

Runway 14/32

4800 ft. x 75 ft.
ASPH
Good
NONE
MED

25,000lbs
--
--
--
  Runway 14 Runway 32
True Heading 127°307°
Traffic Pattern Left
Markings NPI NPI
Markings Condition FAIR FAIR
Latitude 42° 34' 33"N 42° 34' 05"N
Longitude 72° 17' 38"W 72° 16' 47"W
Elevation 533' 552'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights No No
A110-2PAJA WI 2 NM OF AIRFIELD, SFC TO 14500 FT MSL, 7 DAYS A WEEK, SR-SS, APR 1-NOV 30.
A110-5WILDLIFE ON & INVOF ARPT.
A110-6FOR CD CTC BOSTON ARTCC AT 603-879-6859.
A110-7AFT HRS EMERG/FUEL PHONE CTC 413-348-3654.
ORANGE MUNI (ICAO: KORE, IATA: ORE) is a public airport located in ORANGE, MA.
