CHEBOYGAN COUNTY - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KSLH
CHEBOYGAN COUNTY
PublicPUB

2 miles W of CHEBOYGAN, MI
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
45° 39' 13"N 84° 31' 09"W
640' MSL
1640' MSL
07W
JET A (FSII), 100LL
LANSING (LAN)
LAKE HURON
MINNEAPOLIS (ZMP)
5/16/24-6/13/24
KSLH VFR
6:15 PM EDT
Clear
10sm
70°F
57°F
29.95"Hg
060° 5kts
AO2
KSLH 022215Z AUTO 06005KT 10SM CLR 21/14 A2995 RMK AO2
Add Your Business

KSLH FBOs

Promote Listing
Cheboygan County Airport
UNICOM: 122.8
Phone: (231) 627-5571
Other: (231) 818-0938
No Rating Available
0 Reviews (Read | Sign In To Write)
Phillips 66
As of 5/25
 100LL JET A JET A (FSII) MOGAS UL94
Self Serve 6.55
Full Serve 5.85
Fuel Notes
Prices include tax
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.8 122.8

AWOS-3

AWOS-3
231-627-4671
 118.175

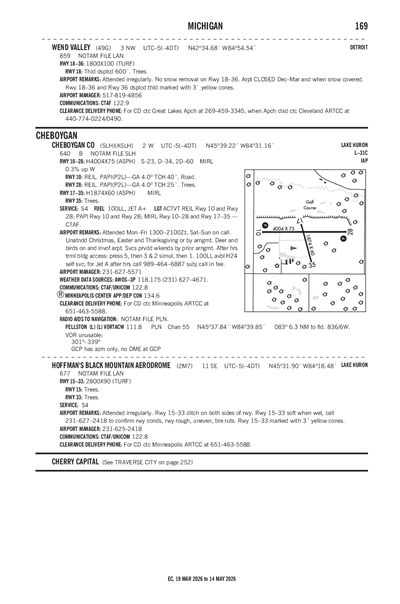

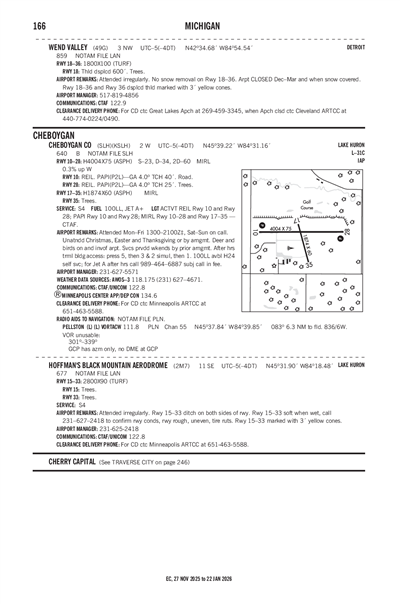

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KPLN (13nm)
Sun, 6/2 1:24 PM EDT
Sun, 6/2 2:00 PM EDT - Mon, 6/3 2:00 PM EDT
VFR
2:00 PM EDT - 9:00 PM EDT
Few 3,000'
6sm
030° 7kts
VFR
9:00 PM EDT - 8:00 AM EDT
Few 25,000'
6sm
VRB° 4kts
VFR
8:00 AM EDT - 2:00 PM EDT
Sky Clear
6sm
140° 5kts
KPLN 021724Z 0218/0318 03007KT P6SM FEW030
   FM030100 VRB04KT P6SM FEW250
   FM031200 14005KT P6SM SKC
KSLH
Domestic
5/14/241700Z !SLH 05/001 SLH AIRSPACE SEE 6Y1 05/220 PJE 2405141700-2410132200
4/30/240206Z !SLH 04/011 SLH OBST TOWER LGT (ASR 1000503) 453923.00N0843742.00W (4.6NM W SLH) 1187.7FT (298.6FT AGL) U/S 2404300206-2406140206
4/17/241320Z !SLH 04/008 SLH RWY 10 RWY END ID LGT U/S 2404171320-2411302359EST
4/17/241319Z !SLH 04/007 SLH RWY 28 PAPI U/S 2404171319-2411302359EST
4/17/241317Z !SLH 04/006 SLH RWY 28 RWY END ID LGT U/S 2404171317-2411302359EST
4/17/241315Z !SLH 04/005 SLH RWY 28 WIP MEN AND EQPT ADJ 2404171315-2410312359
FDC
4/8/241648Z !FDC 4/8100 SLH IAP CHEBOYGAN COUNTY, CHEBOYGAN, MI.
RNAV (GPS) RWY 28, AMDT 2B...
CIRCLING RWY 10 NA AT NIGHT.
2404081648-2604081648EST
No
0800-1600
UNATNDD CHRISTMAS, EASTER, & THANKSGIVING.
CHEBOYGAN AIRPORT AUTHORITY
1520 LEVERING RD
CHEBOYGAN, MI 49721-9381
Phone: 231-627-5571
MICHAEL JERMEAY
1520 LEVERING RD
CHEBOYGAN, MI 49721-9381
Phone: 231-627-5571
LANSING FSS (LAN)
Toll Free: 1-800-WX-BRIEF
SLH
--
ACTVT REIL RWY 10 & 28; PAPI RWY 10 & 28; MIRL RWY 10/28 & 17/35 - 122.5.
N/A
Yes - Lighted
Yes
No
None
NOT a Landing Rights Airport
NOT an Airport of Entry
16
1
0
0
0
0
Major
Major
None
None
Pilot Instruction
Aircraft Rental

Runway 10/28

4004 ft. x 75 ft.
ASPH
Good
NONE
MED

23,000lbs
34,000lbs
60,000lbs
--
  Runway 10 Runway 28
True Heading 90°270°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 45° 39' 15"N 45° 39' 15"N
Longitude 84° 31' 38"W 84° 30' 42"W
Elevation 640' 627'
Threshold Crossing Height 40 ft. AGL 25 ft. AGL
Visual Glide Path Angle 4° 4°
Visual Slope Indicator P2L P2L
Approach Lights
Centerline Lights No No
Runway End Identifier Lights Yes Yes

Runway 17/35

1874 ft. x 60 ft.
ASPH
Good
NONE
MED

--
--
--
--
  Runway 17 Runway 35
True Heading 165°345°
Traffic Pattern Left Left
Markings BSC BSC
Markings Condition GOOD GOOD
Latitude 45° 39' 19"N 45° 39' 01"N
Longitude 84° 31' 12"W 84° 31' 05"W
Elevation 633' 636'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-2DEER & BIRDS ON & INVOF ARPT.
A110-3AFT HRS TRML BLDG ACES: PRESS 5, THEN 3 & 2 SIMUL, THEN 1.
A110-4FOR CD CTC MINNEAPOLIS ARTCC AT 651-463-5588.
CHEBOYGAN COUNTY (ICAO: KSLH, IATA: SLH) is a public airport located in CHEBOYGAN, MI.
