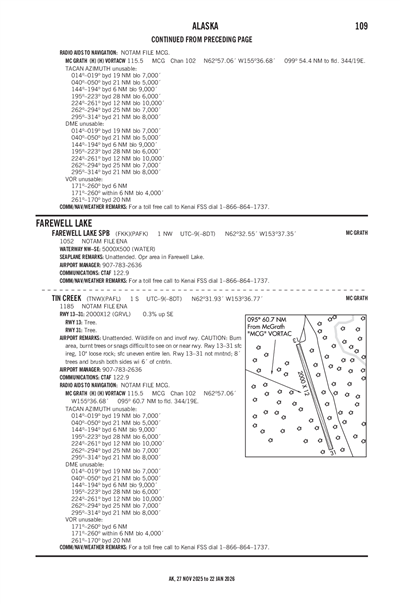

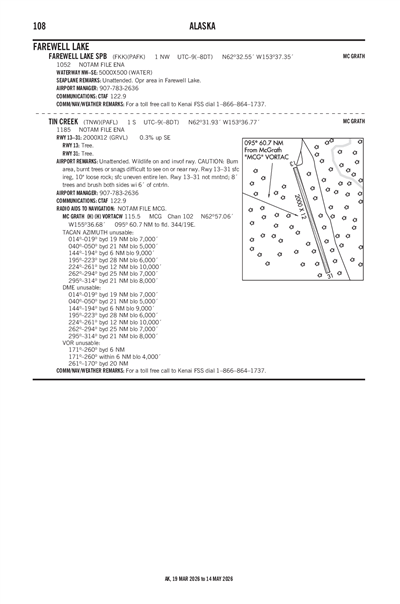

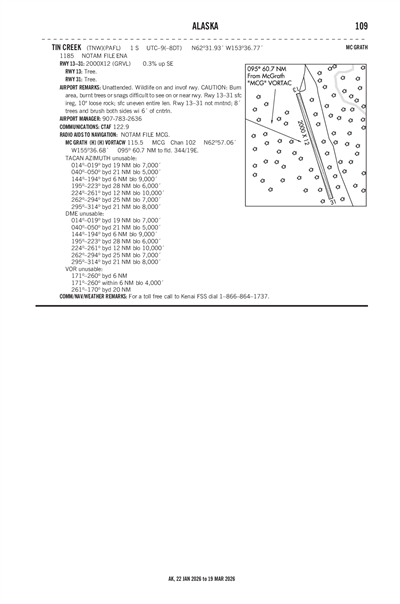

TIN CREEK - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

PAFL
TIN CREEK
PublicPUB

1 miles S of FAREWELL LAKE, AK
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
62° 31' 56"N 153° 36' 46"W
1185' MSL
2185' MSL
24E
None Listed
KENAI (ENA)
MC GRATH
ANCHORAGE (ZAN)
5/16/24-6/13/24
PAFS (36nm) MVFR
11:01 AM AKDT
Overcast 2,900'
10sm
52°F
46°F
29.40"Hg
230° 5kts
AO2 RAE1844 SLP961 P0000 T01110078
PAFS 021901Z AUTO 23005KT 10SM OVC029 11/08 A2940 RMK AO2 RAE1844 SLP961 P0000 T01110078
Add Your Business

PAFL FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
-- 122.9

No communication frequencies available for this airport.

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

  • No Documents

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

  • No Documents

Terminal Area Forecast

PAMC (61nm)
Sun, 6/2 9:37 AM AKDT
Sun, 6/2 10:00 AM AKDT - Mon, 6/3 10:00 AM AKDT
VFR
10:00 AM AKDT - 4:00 PM AKDT
Light Showers and Rain
Overcast 8,000'
Broken 5,000'
6sm
VRB° 5kts
VFR
4:00 PM AKDT - 10:00 PM AKDT
Thunderstorm in vicinity
Broken 5,000'
6sm
090° 8kts
VFR
10:00 PM AKDT - 1:00 AM AKDT
Light Showers and Rain
Overcast 8,000'
Broken 5,000'
6sm
VRB° 5kts
VFR
1:00 AM AKDT - 10:00 AM AKDT
Showers in vicinity
Overcast 6,000'
6sm
270° 2kts
PAMC 021737Z 0218/0318 VRB05KT P6SM -SHRA BKN050 OVC080
   FM030000 09008KT P6SM VCTS BKN050CB
   FM030600 VRB05KT P6SM -SHRA BKN050 OVC080
   FM030900 27002KT P6SM VCSH OVC060
PAFL
No NOTAM Available
No
UNATNDD
PUBLIC DOMAIN

CATHY FROST
BOX 1149
GIRDWOOD, AK 99587
Phone: 907-783-2636
KENAI FSS (ENA)
Toll Free: 1-866-864-1737
ENA
--
--
N/A
N/A
N/A
No
None
NOT a Landing Rights Airport
NOT an Airport of Entry
0
0
0
0
0
0
None
None
None
None
None

Runway 13/31

2000 ft. x 12 ft.
GRAVEL
Poor
NONE


--
--
--
--
  Runway 13 Runway 31
True Heading 156°336°
Traffic Pattern Left Left
Markings
Markings Condition
Latitude 62° 32' 05"N 62° 31' 47"N
Longitude 153° 36' 55"W 153° 36' 37"W
Elevation 1,179' 1,185'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-1RWY 13/31 NOT MAINTAINED; TREES & BRUSH UP TO 6 FT TALL ON BOTH SIDES, WITHIN 6 FT OF RWY CNTRLN.
A110-4BEAR, MOOSE & BUFFALO ON & INVOF RY.
A110-5AIRSTRIP LOCATED INSIDE BURNED AREA. BE ALERT: BURNT TREES OR SNAGS DIFFICULT TO SEE ON OR NEAR THE RWY DURING CERTAIN SEASONS AND LIGHT CONDITIONS.
TIN CREEK (ICAO: PAFL, IATA: TNW) is a public airport located in FAREWELL LAKE, AK.
