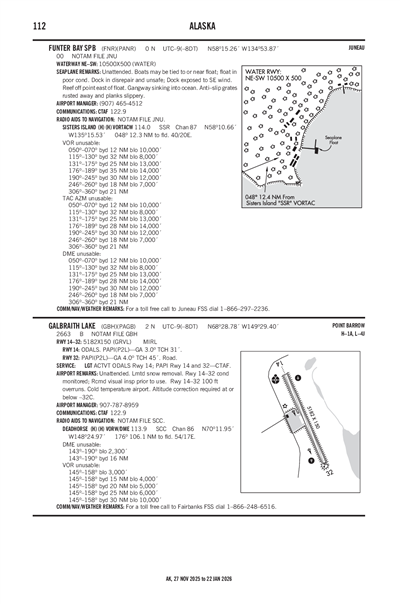

GALBRAITH LAKE - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

PAGB
GALBRAITH LAKE
PublicPUB

2 miles N of GALBRAITH LAKE, AK
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
68° 28' 47"N 149° 29' 24"W
2663' MSL
3663' MSL
16E
None Listed
FAIRBANKS (FAI)
POINT BARROW
ANCHORAGE (ZAN)
5/16/24-6/13/24
PACX (75nm) VFR
1:56 PM AKDT
Overcast 11,000'
Broken 9,500'
10sm
59°F
42°F
29.35"Hg
360° 19kts
AO2 PK WND 36026/2112 SLP572 T01500056
PACX 022156Z AUTO 36019KT 10SM BKN095 OVC110 15/06 A2935 RMK AO2 PK WND 36026/2112 SLP572 T01500056
Add Your Business

PAGB FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
-- 122.9

No communication frequencies available for this airport.

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

  • No Documents

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

  • No Documents

Terminal Area Forecast

PASC (105nm)
Sun, 6/2 9:37 AM AKDT
Sun, 6/2 10:00 AM AKDT - Mon, 6/3 10:00 AM AKDT
IFR
10:00 AM AKDT - 1:00 PM AKDT
Light Snow and Mist
Overcast 4,000'
Broken 1,500'
Broken 500'
6sm
010° 10kts
MVFR
Temporary 10:00 AM AKDT - 12:00 PM AKDT
Light Snow and Mist
No Clouds
3sm
Calm
LIFR
1:00 PM AKDT - 10:00 PM AKDT
Light Snow and Mist
Overcast 400'
2sm
040° 10kts
LIFR
10:00 PM AKDT - 10:00 AM AKDT
Light Snow and Mist
Overcast 300'
1sm
020° 10kts
PASC 021737Z 0218/0318 01010KT 6SM -SN BR BKN005 BKN015 OVC040
   TEMPO 0218/0220 3SM -SN BR
   FM022100 04010KT 2SM -SN BR OVC004
   FM030600 02010KT 1SM -SN BR OVC003
PAGB
No NOTAM Available
No
UNATNDD
ALASKA DOT&PF NORTHERN REGION
2301 PEGER RD
FAIRBANKS, AK 99701
Phone: 907-451-2207
RENIER SWART
P.O. BOX 196660, MS 530B
ANCHORAGE, AK 99512
Phone: 907-787-8959
FAIRBANKS FSS (FAI)
Toll Free: 1-866-248-6516
GBH
--
ACTVT ODALS RWY 14; PAPI RWY 14 & 32 - CTAF.
N/A
Yes - Lighted
Yes
No
None
No
0
0
0
0
0
0
None
None
None
None
None

Runway 14/32

5182 ft. x 150 ft.
GRAVEL
Good
NONE
MED

--
--
--
--
  Runway 14 Runway 32
True Heading 152°332°
Traffic Pattern Left Left
Markings
Markings Condition GOOD GOOD
Latitude 68° 29' 09"N 68° 28' 24"N
Longitude 149° 29' 56"W 149° 28' 51"W
Elevation 2,662' 2,655'
Threshold Crossing Height 31 ft. AGL 45 ft. AGL
Visual Glide Path Angle 3° 4°
Visual Slope Indicator P2L P2L
Approach Lights ODALS
Centerline Lights
Runway End Identifier Lights Yes
A110-2LMTD SNOW REMOVAL.
A110-4COLD TEMPERATURE AIRPORT. ALTITUDE CORRECTION REQUIRED AT OR BELOW -32C.
GALBRAITH LAKE (ICAO: PAGB, IATA: GBH) is a public airport located in GALBRAITH LAKE, AK.
