KSAT - SAN ANTONIO INTL

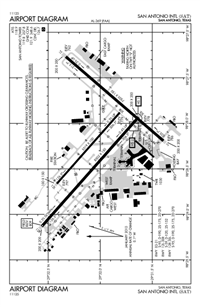

SAN ANTONIO INTL - Airport Diagram
SAN ANTONIO, TX
7 miles N
29° 32' 02.24" N
98° 28' 08.60" W
809' MSL
1809' MSL
08 E 1980
ZHU - HOUSTON
SAN ANTONIO
5/2/13 - 6/27/13
ALL
New Airport Search
Collapse Tabs
Weather
METAR - Current Conditions
VFR
KSAT @ 15:51 Z
Scattered 2,200'
10.0 SM
29 / 21 °C
84 / 70 °F
150° 12 KT
29.85" Hg
RMK: AO2 SLP088 SCT V BKN T02890211
TAF - Forecast
KSAT @ 15:18 Z
Valid
Mon, May 20, 15:00 Z - Tue, May 21, 18:00 Z
VFR
15:00 - 6:00 Z
Scattered 1,500'
> 6 SM
150° 15 KT
MVFR
6:00 - 18:00 Z
Broken 1,500'
> 6 SM
140° 12 KT
IFR
Temporary 11:00 - 14:00 Z
Broken 900'
Collapse Tabs
NOTAMs
KSAT NOTAMs
Domestic
5/20/13
17:00 Z
 !SAT 05/072 SAT RWY 4 RVRT OTS WEF 1305201700-1305201930
5/20/13
17:00 Z
 !SAT 05/071 SAT RWY 12R RVR OTS WEF 1305201700-1305201930
5/20/13
17:00 Z
 !SAT 05/070 SAT RWY 30L RVRT OTS WEF 1305201700-1305201930
5/20/13
14:00 Z
 !SAT 05/073 SAT TWY R BTN TWY A, D CLSD WEF 1305201400-1305202100
5/14/13
04:09 Z
 !SAT 05/058 SAT TWY E EAST HOLD POSITION SIGNS FOR RWY 4/22 UNLGTD
WEF 1305140409
5/11/13
04:42 Z
 !SAT 05/053 SAT OBST TOWER 1008 (241 AGL) 4.21 S LGTS OTS (ASR UNKN) TIL 1305250601
5/10/13
15:26 Z
 !SAT 05/051 SAT OBST TOWER 1030 (224 AGL) 3.0 SSE LGTS OTS (ASR 1226639) TIL 1305251519
5/8/13
04:17 Z
 !SAT 05/036 SAT OBST TOWER 1026 (368 AGL) 9.7 ESE LGTS OTS
(ASR 1051743) TIL 1305230415
4/29/13
22:15 Z
 !SAT 04/073 SAT TWY R WEST OF TWY D CLSD ACFT OVR 270000 WEF
1304292215
FDC
5/20/13
12:02 Z
 !FDC 3/0626 SAT FI/T SID SAN ANTONIO INTL, SAN ANTONIO, TX,
ALISS TWO DEPARTURE...
GPS REQUIRED, JCT TACAN OTS.
4/8/13
13:47 Z
 !FDC 3/0283 SAT FI/T IAP SAN ANTONIO INTL, SAN ANTONIO, TX.
RNAV (RNP) Z RWY 12R, ORIG...
RNP 0.15 DA 1150/HATH 341 ALL CATS.
11/30/12
19:26 Z
 !FDC 2/8409 SSF FI/T STAR STINSON MUNICIPAL, SAN ANTONIO, TX.
RODIO ONE RNAV ARRIVAL...
ADD NOTE: WAILN TRANSITION FOR HOUSTON TERMINAL AREA DEPARTURES
ONLY.
11/30/12
19:26 Z
 !FDC 2/8408 SAT FI/T STAR SAN ANTONIO INTERNATIONAL, SAN ANTONIO, TX.
RODIO ONE RNAV ARRIVAL...
ADD NOTE: WAILN TRANSITION FOR HOUSTON TERMINAL AREA
DEPARTURES ONLY.
11/14/12
14:50 Z
 !FDC 2/1456 SAT FI/T STAR SAN ANTONIO INTERNATIONAL, SAN ANTONIO, TX.
CENTERPOINT ONE ARRIVAL...
REVISE SAT LOCALIZER LABEL RWY 3 TO READ: RWY 4.
11/14/12
14:50 Z
 !FDC 2/1455 SSF FI/T STAR STINSON MUNICIPAL, SAN ANTONIO, TX.
CENTERPOINT ONE ARRIVAL...
REVISE SAT LOCALIZER LABEL RWY 3 TO READ: RWY 4.
11/14/12
14:50 Z
 !FDC 2/1451 SSF FI/T STAR STINSON MUNICIPAL, SAN ANTONIO, TX.
MARCS NINE ARRIVAL...
REVISE SAT LOCALIZER LABEL RWY 3 TO READ: RWY 4.
11/14/12
14:49 Z
 !FDC 2/1449 SSF FI/T STAR STINSON MUNICIPAL, SAN ANTONIO, TX.
STONEWALL ONE ARRIVAL...
REVISE SAT LOCALIZER LABEL RWY 3 TO READ: RWY 4.
11/14/12
14:40 Z
 !FDC 2/1374 SAT FI/T STAR SAN ANTONIO INTERNATIONAL, SAN ANTONIO, TX.
RODIO ONE RNAV ARRIVAL...
REVISE SAT LOCALIZER LABEL RWY 3 TO READ: RWY 4. REVISE
ARRIVAL ROUTE DESCRIPTION, SAN ANTONIO INTL (SAT) LANDING RWY
3 TO READ: LANDING RWY 4.
11/14/12
14:40 Z
 !FDC 2/1369 SAT FI/T STAR SAN ANTONIO INTERNATIONAL, SAN ANTONIO, TX.
STONEWALL ONE ARRIVAL...
REVISE SAT LOCALIZER LABEL RWY 3 TO READ: RWY 4.
11/14/12
14:39 Z
 !FDC 2/1351 SAT FI/T STAR SAN ANTONIO INTERNATIONAL, SAN ANTONIO, TX.
LEMIG ONE ARRIVAL...
REVISE SAT LOCALIZER LABEL RWY 3 TO READ: RWY 4.
11/14/12
14:38 Z
 !FDC 2/1347 SAT FI/T STAR SAN ANTONIO INTERNATIONAL, SAN ANTONIO, TX.
MARCS NINE ARRIVAL...
REVISE SAT LOCALIZER LABEL RWY 3 TO READ: RWY 4.
10/15/12
19:33 Z
 !FDC 2/7661 SAT FI/T STAR SAN ANTONIO INTL, SAN ANTONIO, TX, MARCS
NINE ARRIVAL... REMOVE NOTE: ASSIGNED BY ATC ONLY.
10/15/12
19:21 Z
 !FDC 2/7651 SSF FI/T STAR STINSON MUNI, SAN ANTONIO, TX, MARCS NINE
ARRIVAL... ADD NOTE: FOR CONVENTIONAL NAVIGATION EQUIPPED AIRCRAFT
ONLY. DME/DME/IRU OR GPS EQUIPPED AIRCRAFT FILE VIA THE RODIO RNAV
STAR.
10/15/12
19:21 Z
 !FDC 2/7647 SAT FI/T STAR SAN ANTONIO INTL, SAN ANTONIO, TX, MARCS
NINE ARRIVAL... ADD NOTE: FOR CONVENTIONAL NAVIGATION EQUIPPED
AIRCRAFT ONLY. DME/DME/IRU OR GPS EQUIPPED AIRCRAFT FILE VIA THE
RODIO RNAV STAR.
2/27/12
15:29 Z
 !FDC 2/1494 SAT SAN ANTONIO INTERNATIONAL AIRPORT, AUTOMATIC
DEPENDENT SURVEILLANCE, ESSENTIAL SERVICE BROADCAST. EFFECTIVE
FEBRUARY 29, 2012. THE FEDERAL AVIATION ADMINISTRATION (FAA) HAS
ADOPTED TWO ADS-B DATA LINKS: 1090 MHZ EXTENDED SQUITTER (1090ES) AND
978 MHZ UNIVERSAL ACCESS TRANSCEIVER (UAT). THE TWO LINKS OPERATE
SIMILARLY AND SUPPORT TRAFFIC INFORMATION SERVICE-BROADCAST (TIS-B).
ADDITIONALLY, THE UAT LINK SUPPORTS FLIGHT INFORMATION SERVICE-
BROADCAST (FIS-B). TIS-B SERVICE WILL BE AVAILABLE THROUGHOUT THE
NATIONAL AIRSPACE SYSTEM (NAS) WHERE THERE ARE BOTH ADEQUATE
SURVEILLANCE COVERAGE (RADAR) AND ADEQUATE BROADCAST COVERAGE FROM
ADS-B GROUND STATIONS. FIS-B SERVICE AVAILABILITY IS EXPECTED
THROUGHOUT THE NAS IN 2013, AND IS CURRENTLY AVAILABLE WITHIN CERTAIN
REGIONS. THIS NOTAM ANNOUNCES THE AVAILABILITY OF THE INITIAL TIS-B
AND FIS-B CAPABILITY WITH THE SAN ANTONIO INTERNATIONAL SAT AIRPORT
AIRSPACE. THE FAA IS DEVELOPING POLICY GUIDANCE MATERIAL ON AUTOMATIC
DEPENDENT SURVEILLANCE-BROADCAST (ADS-B), ESSENTIAL SERVICES TIS-B
AND FIS-B THAT WILL BE PUBLISHED IN TRADITIONAL SOURCE REFERENCES
SUCH AS THE AERONAUTICAL INFORMATION MANUAL (AIM). REPORTS OF TIS-B
AND FIS-B MALFUNCTIONS SHOULD BE REPORTED BY RADIO OR TELEPHONE TO
THE NEAREST FLIGHT SERVICE STATION (FSS) FACILITY.
Collapse Tabs
Operations
Operational
Public
Airport Traffic Control Tower

SAN ANGELO FSS (SJT)
Toll Free: 1-800-WX-BRIEF
SAT
Yes - Lighted
No

Clear-Green
SS-SR
100LL, A
Landing Rights Airport
NOT an Airport of Entry
CITY OF SAN ANTONIO
100 MILITARY PLAZA
SAN ANTONIO, TX 78207

Phone: 210-207-7253
FRANK R. MILLER
9800 AIRPORT BLVD
SAN ANTONIO, TX 78216

Phone: 210-207-3450
Collapse Tabs
Communication
Channel Frequency Code Notes
UNICOM 122.950 MHz
CTAF 0 MHz
Other - (APCH/P DEP/P CLASS C) 118.05 MHz APCH/P DEP/P CLASS C (141-270)
124.45 MHz APCH/P DEP/P CLASS C (360-090)
128.05 MHz APCH/P DEP/P CLASS C (091-140)
318.1 MHz APCH/P DEP/P CLASS C (091-140)
335.625 MHz APCH/P DEP/P CLASS C 360-090
353.5 MHz APCH/P DEP/P CLASS C (141-270)
Other - (APCH/P DEP/P CLASS C IC) 125.1 MHz APCH/P DEP/P CLASS C IC (271-359)
307 MHz APCH/P DEP/P CLASS C IC (271-359)
Other - (APCH/S DEP/S) 125.7 MHz APCH/S DEP/S
127.1 MHz APCH/S DEP/S
251.125 MHz APCH/S DEP/S
290.225 MHz APCH/S DEP/S
Other - (AS ASGND) 120.3 MHz AS ASGND
121.2 MHz AS ASGND
239.025 MHz AS ASGND
269.1 MHz AS ASGND
285.45 MHz AS ASGND
317.5 MHz AS ASGND
Other - (CD/P) 126.7 MHz CD/P
Other - (D-ATIS) 118.9 MHz D-ATIS
Other - (EMERG) 121.5 MHz EMERG
243 MHz EMERG
Other - (GND/P) 121.9 MHz GND/P
348.6 MHz GND/P
Other - (LCL/P) 119.8 MHz LCL/P
257.8 MHz LCL/P
Collapse Tabs
Documents
Collapse Tabs
Runways

Runway 04/22

8505 ft. x 150 ft.
CONC
Good
GRVD
HIGH
91 /R/B/W/T
95000 lbs
190000 lbs
270000 lbs
0 lbs
  Runway 04 Runway 22
Runway Heading 41° 221°
Traffic Pattern Left Left
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 29-31-23.6420N 29-32-27.3920N
Longitude 098-28-11.6565W 098-27-08.7710W
Elevation 786 ft. 754.2 ft.
Threshold Crossing Height 0 ft. AGL 85 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4R P4L
Approach Lights MALS
Centerline Lights Yes Yes
Runway End Identifier Lights Yes

Runway 12L/30R

5519 ft. x 100 ft.
ASPH
Fair

MED
61 /F/C/W/T
59000 lbs
120000 lbs
0 lbs
0 lbs
  Runway 12L Runway 30R
Runway Heading 132° 312°
Traffic Pattern Left Left
Markings NPI BSC
Markings Condition GOOD GOOD
Latitude 29-32-25.0745N 29-31-48.7836N
Longitude 098-28-39.7130W 098-27-53.0159W
Elevation 797.2 ft. 779.2 ft.
Threshold Crossing Height 40 ft. AGL 60 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes

Runway 12R/30L

8502 ft. x 150 ft.
CONC
Good
GRVD
HIGH
86 /R/B/W/T
95000 lbs
190000 lbs
270000 lbs
0 lbs
  Runway 12R Runway 30L
Runway Heading 132° 312°
Traffic Pattern Left Left
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 29-32-33.8851N 29-31-38.0044N
Longitude 098-29-07.9476W 098-27-55.9929W
Elevation 809.1 ft. 778.4 ft.
Threshold Crossing Height 75 ft. AGL 82 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights ALSF2 MALSR
Centerline Lights Yes Yes
Runway End Identifier Lights
Collapse Tabs
Remarks
  • A110-12 - GLIDER/SOARING OPNS APRXLY 17 MILES NW OF ARPT DURG VFR.
  • A110-14 - TWY D NON-MOVEMENT AREA FM TWY N TO 500 FT W OF TWY N.
  • A110-16 - NOISE SENSITIVE AREAS EXIST ON ALL SIDES OF THE ARPT: AT THE PILOT'S DISCRETION CLIMB AS QUICKLY & QUIETLY AS SAFELY POSSIBLE ON DEP & USE CONSIDERATION WHEN FLYING OVER POPULATED AREAS BY MINIMIZING FLIGHT & HIGH POWER SETTINGS. ENGINE-UPS ARE PERMITTED BTN 0600-2300.
  • A110-17 - ACFT TAXIING ON RY 04 NE BOUND LOOK FOR HOLD SHORT TO RY 30L.
  • A110-18 - ACFT TAXIING ON TWY N SW BOUND LOOK FOR HOLD SHORT TO RY 30R.
  • A110-19 - WORK IN PROGRESS SCHEDULED MAINTENANCE ON & ALONG TWYS AND RAMPS AREAS AT VARIOUS TIMES.
  • A110-20 - GROUND RUN-UP ENCLOSURE AVBL 24 HRS.
  • A110-21 - TERMINAL GATES A1 & A11 USE ONLY WITH PPR CALL OPNS 210-413-4928.
  • A110-24 - RY 12L/30R NOT AVBL FOR PART 121 ACR OPNS.
  • A110-25 - THE FOLLOWING TWYS ARE NOT AVBL FOR ACFT 59,000 LBS OR OVER: TWYS A & J NORTH OF RY 12R/30L; TWYS W, M, P, TWY H NE OF TWY Z AND TWY E EAST OF RY 04/22.
  • A110-26 - TWY Z CLSD TO ACFT WITH WINGSPAN GREATER THAN 118 FT.
  • A110-27 - C130 AND C141 TYPE ACFT SHALL PARK ON WEST RAMP TO CLEAR CUSTOMS.
  • A110-28 - GA ACFT CLEARING U.S. CUSTOMS AT TERMINAL A1 BE ALERT FOR PERSONNEL & EQUIPMENT WHILE TAXIING TO AND FROM THE ASSIGNED CUSTOMS CLEARANCE LOCATION.
  • A110-30 - TWY Q ENTRANCE/EXIT AT AIR CARGO EAST CLSD TO ACFT WITH WINGSPAN GREATER THAN 118 FT.
  • A110-31 - INNER RAMP TAXILANE NORTH & EAST OF TERMINAL A IS CLSD TO ACFT WITH WINGSPAN GREATER THAN 118 FT EXCEPT FOR ACFT CROSSING THE INNER RAMP TO GATES A12 TO A16.
  • A110-33 - PPR WITH ARPT OPNS FOR ACFT POWERING BACK FM TERMINAL GATES.
  • A110-34 - TWYS L & B CLSD TO ACFT WITH WINGSPANS GREATER THAN 118 FT EXITING RY 30L.
  • A110-35 - A BARRICADED PAVEMENT ELEVATION CHANGE EXISTS ALONG THE EASTERN SIDE OF THE WEST RAMP.
  • A110-36 - FREQUENT RUBBER ACCUMULATION NW 2500 RY 12R/30L
  • A110-38 - ACFT AT TERMINAL A & B CTC GND CTL PRIOR TO PUSH FOR ADVISORIES.
  • A110-4 - TWY L CLSD NORTHBOUND.
  • A110-7 - NUMEROUS FLOCKS OF BIRDS INVOF ARPT.
