19AK
ICY BAY
Private
PVT
73 miles NW of ICY BAY, AK
View on
Map
Status
Operational
Coordinates
59° 58' 08"N
141° 39' 42"W
Elevation
50' MSL
Pattern Alt
1050' MSL
Mag Variation
27E
Fuel
None Listed
FSS
JUNEAU (JNU)
Sectional
SEWARD
ARTCC
ANCHORAGE (ZAN)
Data Effective
5/16/24-6/13/24
PAYA (66nm)
MVFR
2:16 AM AKDT
RAW
Overcast 2,100'
Broken 1,300'
Viz
N/A
Temp
41°F
Dew
32°F
Pres
29.99"Hg
Wind
080° 10kts
RMK
AO2 T0050 PWINO TSNO RVRNO $
PAYA 201016Z AUTO 08010KT BKN013 OVC021 05/ A2999 RMK AO2 T0050 PWINO TSNO RVRNO $
Services
Frequencies & Documents
Freqs & Docs
TAF
NOTAM
Operations
Runways
Remarks
List Your Business
19AK FBOs, Flight Schools and Ground Support
No FBOs, flight schools or aircraft ground support businesses are listed for this airport.
19AK Ground Transportation (Taxi, Limo, Car Service)
No ground transportation services are listed for this airport.
19AK Hotels
No hotels are listed for this airport.
19AK Restaurants
No restaurants are listed for this airport.
19AK Other Airport-Related Businesses
No other airport-related businesses are listed for this airport.
X
Send Message to Airport Company
Enter your information and message below.
Your Information
Business
x
UNICOM
--
CTAF
--
No communication frequencies available for this airport.

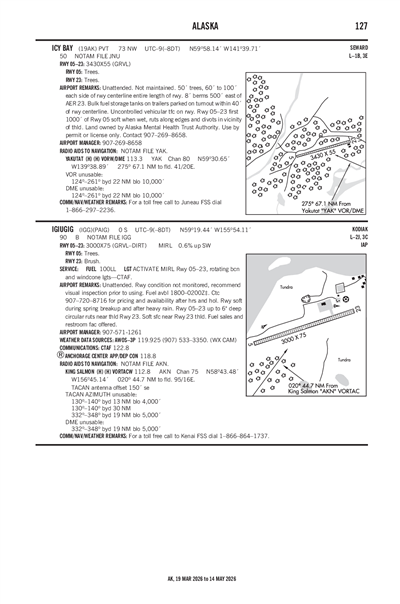

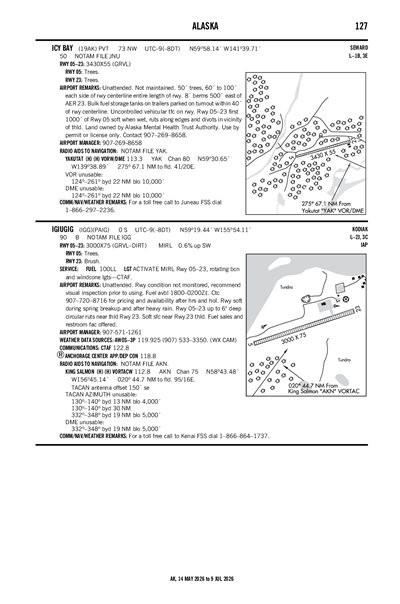

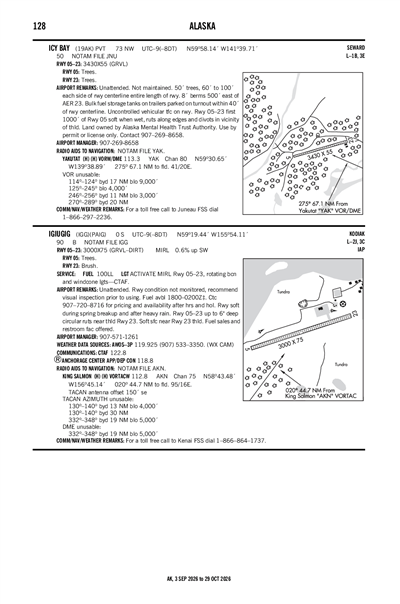

FAA A/FD Pages
FAA A/FD Page
Airport Diagrams
No Documents
Airport Minimums
No Documents
Departure Procedures
No Documents
Hotspot
No Documents
Standard Term. Arrival
No Documents
Instrument Approach
No Documents
Terminal Area Forecast
PAYA (66nm)
RAW
Reported
Sun, 5/19 9:20 PM AKDT
Valid
Sun, 5/19 10:00 PM AKDT - Mon, 5/20 10:00 PM AKDT
VFR
10:00 PM AKDT - 12:00 AM AKDT
Showers in vicinity
Overcast 5,000'
Broken 3,500'
Few 2,000'
Viz
6sm
Wind
110° 7kts
MVFR
12:00 AM AKDT - 6:00 PM AKDT
Light Showers and Rain
Overcast 1,500'
Viz
6sm
Wind
090° 9kts
VFR
6:00 PM AKDT - 10:00 PM AKDT
Overcast 5,000'
Viz
6sm
Wind
VRB° 6kts
PAYA 200520Z 2006/2106 11007KT P6SM VCSH FEW020 BKN035 OVC050
FM200800 09009KT P6SM -SHRA OVC015
FM210200 VRB06KT P6SM OVC050 AMD NOT SKED 2006/2015
19AK
No NOTAM Available
ATC Tower
No
Attendance
UNATNDD
Owner
ALASKA MENTAL HEALTH TRUST AUTH.
2600 CORDOVA ST., SUITE 100
ANCHORAGE, AK 99503
Phone: 907-269-8658
Manager
TRUST LAND OFFICE
2600 CORDOVA ST., SUITE 100
ANCHORAGE, AK 99503-3336
Phone: 907-269-8658
FSS
JUNEAU FSS (JNU)
Toll Free: 1-866-297-2236
NOTAM
JNU
Light Schedule
--
Lights
--
Beacon
N/A
Wind Indicator
No
Segmented Cir.
No
Landing Fee
No
Parking
None
Int'l Operations
NOT a Landing Rights Airport
NOT an Airport of Entry
# Single Engine
0
# Multi Engine
0
# Jets
0
# Helicopters
0
# Military
0
# Ultralights
0
Airframe Repair
None
Pwrplant Repair
None
Bottled Oxygen
None
Bulk Oxygen
None
Other Services
None
Runway 05/23
Dimensions
3430 ft. x 55 ft.
Surface Type
GRAVEL
Surface Cond
Fair
Treatment
NONE
Rwy Edge Lgts
Pavement Class
Single Wheel
--
Double Wheel
--
Double Tandem
--
Dual Dbl Tand
--
Runway 05
Runway 23
True Heading
Not Listed
Not Listed
Traffic Pattern
Left
Left
Markings
Markings Condition
Latitude
N/A
N/A
Longitude
N/A
N/A
Elevation
--
--
Threshold Crossing Height
--
--
Visual Glide Path Angle
--
--
Visual Slope Indicator
--
--
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-1
50 FT TREES; 60 FT TO 100 FT EACH SIDE OF RY CENTERLINE ENTIRE LENGTH OF RY.
A110-2
BULK FUEL STORAGE TANKS ON TRAILERS PARKED ON TURNOUT WITHIN 40 FT OF RY CENTERLINE.
A110-3
1 FT HIGH BERM & 2 FT DRAINAGE DITCH LENGTH OF RY EACH SIDE; 60 FT FROM CENTERLINE ON NORTH SIDE & 40 FT FROM CENTERLINE ON SOUTH SIDE.
A110-4
UNCONTROLLED VEHICULAR TRAFFIC ON RY.
A110-5
LAND OWNED BY ALASKA MENTAL HEALTH TRUST AUTHORITY. USE BY PERMIT OR LICENSE ONLY. CONTACT 907-269-8658.
A110-6
8 FT BERMS 500 FT E OF AER 23.
ICY BAY (IATA: 19AK) is a private airport located in ICY BAY, AK.
