MEDINA MUNI - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

1G5
MEDINA MUNI
PublicPUB

4 miles E of MEDINA, OH
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
41° 07' 53"N 81° 45' 54"W
1190' MSL
2190' MSL
07W
Jet A+, 100LL
CLEVELAND (CLE)
DETROIT
CLEVELAND (ZOB)
5/16/24-6/13/24
KAKR (15nm) VFR
12:54 AM EDT
Clear
7sm
65°F
58°F
30.00"Hg
Calm
AO2 SLP150 T01830144 402940106
KAKR 200454Z AUTO 00000KT 7SM CLR 18/14 A3000 RMK AO2 SLP150 T01830144 402940106
List Your Business

1G5 FBOs, Flight Schools and Ground Support

Promote Listing
Flight Services of Medina
Freq: 123.0
Phone: (330) 239-1606
No Rating Available
0 Reviews (Read | Sign In To Write)
EPIC
As of 5/4
 100LL Jet A Jet A+ Mogas UL94
Self Serve 5.97 5.50
Full Serve

1G5 Ground Transportation (Taxi, Limo, Car Service)

No ground transportation services are listed for this airport.

1G5 Hotels

No hotels are listed for this airport.

1G5 Restaurants

No restaurants are listed for this airport.

1G5 Other Airport-Related Businesses

No other airport-related businesses are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
123.0 123.0

No communication frequencies available for this airport.

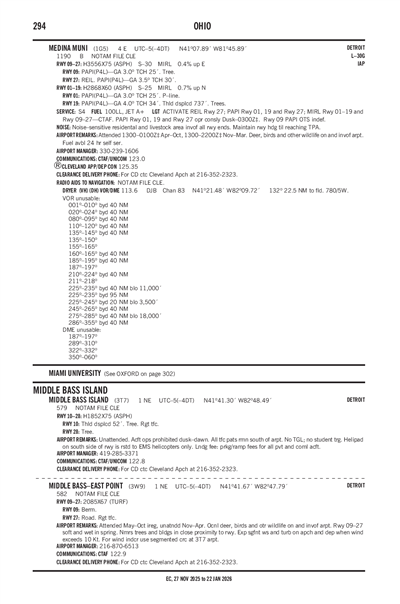

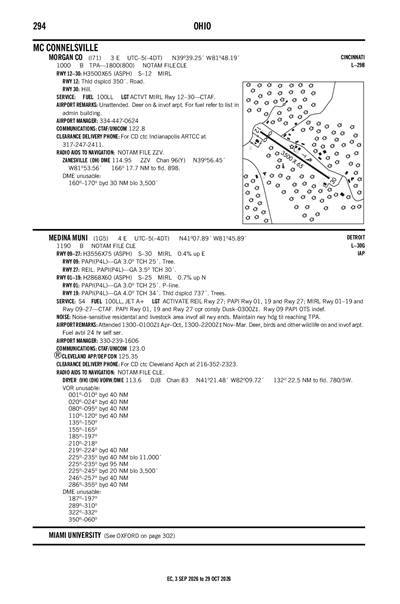

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KCLE (17nm)
Mon, 5/20 1:21 AM EDT
Mon, 5/20 2:00 AM EDT - Tue, 5/21 8:00 AM EDT
VFR
2:00 AM EDT - 3:00 PM EDT
Broken 25,000'
6sm
170° 5kts
VFR
3:00 PM EDT - 8:00 PM EDT
Showers in vicinity
Scattered 5,000'
6sm
220° 7kts
VFR
8:00 PM EDT - 8:00 AM EDT
Scattered 11,000'
6sm
180° 5kts
KCLE 200521Z 2006/2112 17005KT P6SM BKN250
   FM201900 22007KT P6SM VCSH SCT050
   FM210000 18005KT P6SM SCT110
1G5
Domestic
4/29/240819Z !CLE 04/709 1G5 OBST TOWER LGT (ASR 1019641) 410807.40N0814731.20W (1.2NM W 1G5) 1338.9FT (218.8FT AGL) U/S 2404290819-2408270819
4/21/240916Z !CLE 04/551 1G5 OBST TOWER LGT (ASR 1025435) 410806.00N0814453.00W (0.8NM ENE 1G5) 1281.8FT (149.9FT AGL) U/S 2404210916-2406050915
4/13/241855Z !CLE 04/389 1G5 OBST TOWER LGT (ASR 1015500) 411439.60N0814153.00W (7.5NM NNE 1G5) 1779.9FT (499.0FT AGL) U/S 2404131855-2408111855
No
APR-OCT 0800-2000
NOV-MAR 0800-1700
CITY OF MEDINA
PO BOX 703
MEDINA, OH 44258-0703
Phone: 330-725-8861
GREG HUBER
PO BOX 703
MEDINA, OH 44258-0703
Phone: 330-239-1606
CLEVELAND FSS (CLE)
Toll Free: 1-800-WX-BRIEF
CLE
--
ACTVT REIL RWY 27; PAPI RWY 01, 19, & 27; MIRL RWY 01/19 & 09/27 - CTAF. PAPI RWY 01, 19, & 27 OPR CONSLY DUSK-2200.
N/A
Yes - Lighted
Yes
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
49
3
0
2
0
0
Major
Major
None
None
Pilot Instruction
Aircraft Rental

Runway 01/19

2868 ft. x 60 ft.
ASPH
Fair
NONE
MED

25,000lbs
--
--
--
  Runway 01 Runway 19
True Heading 1°181°
Traffic Pattern Left Left
Markings BSC BSC
Markings Condition GOOD GOOD
Latitude 41° 07' 37"N 41° 08' 05"N
Longitude 81° 45' 43"W 81° 45' 42"W
Elevation 1,170' 1,190'
Threshold Crossing Height 25 ft. AGL 34 ft. AGL
Visual Glide Path Angle 3° 4°
Visual Slope Indicator P4L P4L
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway 09/27

3556 ft. x 75 ft.
ASPH
Good
NONE
MED

30,000lbs
--
--
--
  Runway 09 Runway 27
True Heading 84°264°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 41° 07' 53"N 41° 07' 57"N
Longitude 81° 46' 26"W 81° 45' 39"W
Elevation 1,169' 1,183'
Threshold Crossing Height 25 ft. AGL 30 ft. AGL
Visual Glide Path Angle 3° 3.5°
Visual Slope Indicator P4L P4L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes
A110-2DEER, BIRDS, & OTR WILDLIFE ON & INVOF ARPT.
A110-3FOR CD CTC CLEVELAND APCH AT 216-352-2323.
A110-4NOISE-SENSITIVE RES & LIVESTOCK AREA INVOF ARPT, DEPS RCMDD TO FLY RWY HDG TIL RCHG TPA.
MEDINA MUNI (IATA: 1G5) is a public airport located in MEDINA, OH.
