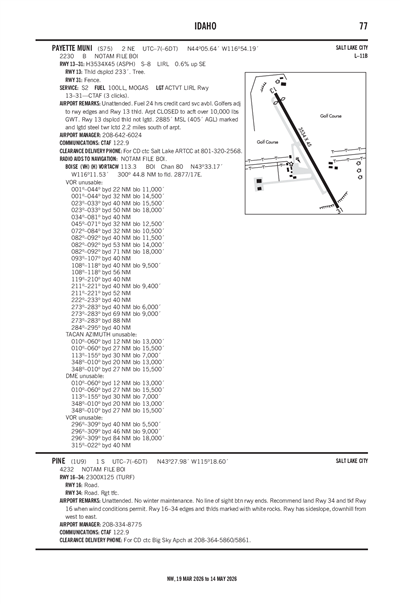

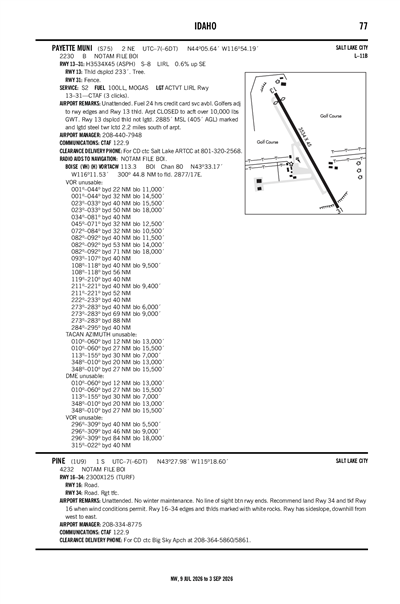

PINE - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

1U9
PINE
PublicPUB

1 miles S of PINE, ID
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
43° 27' 59"N 115° 18' 36"W
4232' MSL
5232' MSL
17E
None Listed
BOISE (BOI)
SALT LAKE CITY
SALT LAKE CITY (ZLC)
5/16/24-6/13/24
KMUO (36nm) VFR
4:55 AM MDT
Clear
8sm
41°F
27°F
29.98"Hg
290° 10kts
AO2A SLP149 T00511027 $
KMUO 201055Z 29010KT 8SM CLR 05/M03 A2998 RMK AO2A SLP149 T00511027 $
List Your Business

1U9 FBOs, Flight Schools and Ground Support

No FBOs, flight schools or aircraft ground support businesses are listed for this airport.

1U9 Ground Transportation (Taxi, Limo, Car Service)

No ground transportation services are listed for this airport.

1U9 Hotels

No hotels are listed for this airport.

1U9 Restaurants

No restaurants are listed for this airport.

1U9 Other Airport-Related Businesses

No other airport-related businesses are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
-- 122.9

No communication frequencies available for this airport.

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

  • No Documents

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

  • No Documents

Terminal Area Forecast

KMUO (36nm)
Mon, 5/20 4:00 AM MDT
Mon, 5/20 4:00 AM MDT - Tue, 5/21 10:00 AM MDT
VFR
4:00 AM MDT - 8:00 AM MDT
Scattered 11,000'
6sm
29.97"Hg
300° 10kts
Gusts 15kts
VFR
Temporary 4:00 AM MDT - 8:00 AM MDT
Broken 10,000'
N/A
300° 12kts
Gusts 20kts
VFR
Becoming 8:00 AM MDT - 2:00 PM MDT
Scattered 9,000'
6sm
29.94"Hg
300° 15kts
Gusts 25kts
Light Turbulence: up to 9,000'
VFR
Becoming 2:00 PM MDT - 3:00 AM MDT
Showers in vicinity
Scattered 12,000'
Few 10,000'
6sm
29.91"Hg
300° 20kts
Gusts 30kts
Light Turbulence: up to 9,000'
VFR
Becoming 3:00 AM MDT - 10:00 AM MDT
Few 9,000'
6sm
30.06"Hg
300° 10kts
Gusts 15kts
TAF KMUO 201000Z 2010/2116 30010G15KT 9999 SCT110 QNH2996INS
   TEMPO 2010/2014 30012G20KT BKN100
   BECMG 2014/2015 30015G25KT 9999 SCT090 510009 QNH2993INS
   BECMG 2020/2021 30020G30KT 9999 VCSH FEW100 SCT120 510009 QNH2991INS
   BECMG 2109/2110 30010G15KT 9999 NSW FEW090 QNH3005INS TX18/2023Z TN06/2012Z
1U9
No NOTAM Available
No
UNATNDD
STATE OF ID, ITD DIV OF AERO
P.O. BOX 7129
BOISE, ID 83707-1129
Phone: 208-334-8775
DIV ADMIN
P.O. BOX 7129
BOISE, ID 83707-1129
Phone: 208-334-8775
BOISE FSS (BOI)
Toll Free: 1-800-WX-BRIEF
BOI
--
--
N/A
Yes
Yes
No
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
0
0
0
0
0
0
None
None
None
None
None

Runway 16/34

2300 ft. x 125 ft.
TURF
Fair
NONE


--
--
--
--
  Runway 16 Runway 34
True Heading 176°356°
Traffic Pattern Left Right
Markings
Markings Condition
Latitude 43° 28' 10"N 43° 27' 47"N
Longitude 115° 18' 37"W 115° 18' 35"W
Elevation 4,222' 4,206'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-1NO WINTER MAINTENANCE.
A110-3NO LINE OF SIGHT BETWEEN RWY ENDS.
A110-4RECOMMEND LAND RY 34 & TAKEOFF R\Y 16 WHEN WIND CONDITIONS PERMIT.
A110-5RY HAS SIDESLOPE, DOWNHILL FM WEST TO EAST.
A110-6FOR CD CTC BIG SKY APCH AT 208-364-5860/5861.
PINE (IATA: 1U9) is a public airport located in PINE, ID.
