iFlightPlanner



...

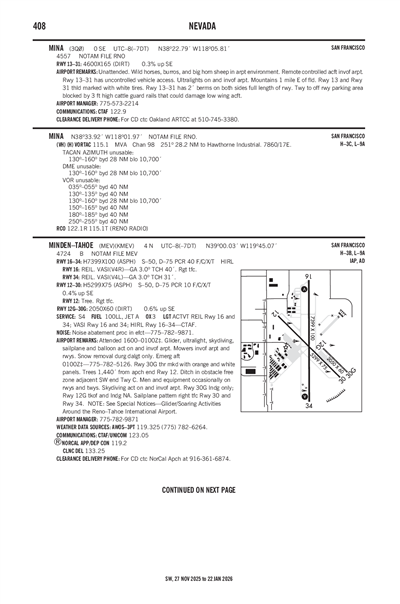

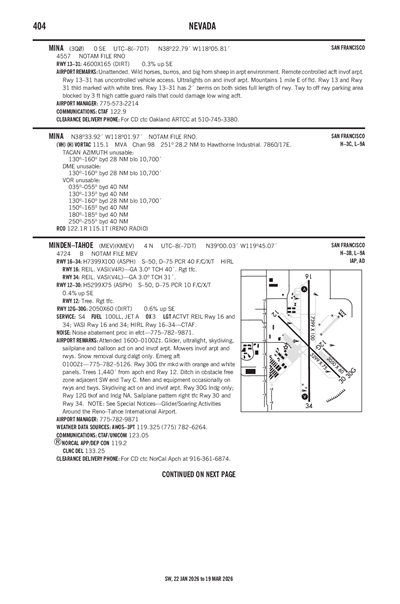

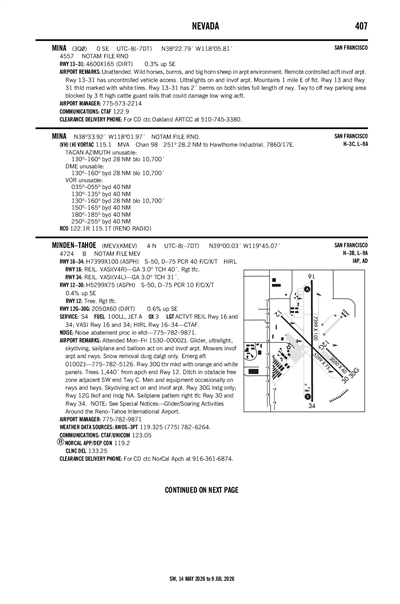

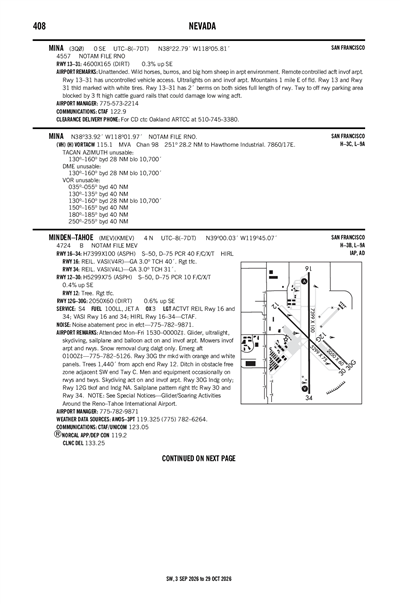

MINA - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

3Q0
MINA
PublicPUB

0 miles SE of MINA, NV
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
38° 22' 48"N 118° 05' 48"W
4557' MSL
5557' MSL
15E
None Listed
RENO (RNO)
SAN FRANCISCO
OAKLAND (ZOA)
5/16/24-6/13/24
KHTH (27nm) VFR
12:55 AM PDT
Clear
10sm
59°F
23°F
29.95"Hg
240° 7kts
A01
KHTH 200755Z AUTO 24007KT 10SM CLR 15/M05 A2995 RMK A01
List Your Business

3Q0 FBOs, Flight Schools and Ground Support

No FBOs, flight schools or aircraft ground support businesses are listed for this airport.

3Q0 Ground Transportation (Taxi, Limo, Car Service)

No ground transportation services are listed for this airport.

3Q0 Hotels

No hotels are listed for this airport.

3Q0 Restaurants

No restaurants are listed for this airport.

3Q0 Other Airport-Related Businesses

No other airport-related businesses are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
-- 122.9

No communication frequencies available for this airport.

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

  • No Documents

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

  • No Documents

Terminal Area Forecast

KTPH (51nm)
Sun, 5/19 10:20 PM PDT
Sun, 5/19 11:00 PM PDT - Mon, 5/20 11:00 PM PDT
VFR
11:00 PM PDT - 3:00 AM PDT
Broken 12,000'
6sm
320° 18kts
Gusts 28kts
VFR
3:00 AM PDT - 10:00 AM PDT
Scattered 12,000'
6sm
350° 14kts
VFR
10:00 AM PDT - 11:00 PM PDT
Broken 12,000'
Scattered 8,000'
6sm
330° 18kts
Gusts 28kts
KTPH 200520Z 2006/2106 32018G28KT P6SM BKN120
   FM201000 35014KT P6SM SCT120
   FM201700 33018G28KT P6SM SCT080 BKN120
3Q0
Domestic
5/16/240417Z !RNO 05/096 3Q0 OBST TOWER LGT (ASR 1272062) 380101.30N1174623.20W (26.49NM SE 3Q0) 5075FT (204FT AGL) U/S 2405160417-2405302359
No
UNATNDD
U S BLM
P.O. BOX 12000
RENO, NV 89520-0006
Phone: 775-861-6400
CHARLES FROST
BOX 407
MINA, NV 89422
Phone: 775-573-2214
RENO FSS (RNO)
Toll Free: 1-800-WX-BRIEF
RNO
--
--
N/A
Yes
Yes
No
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
2
0
0
0
0
1
None
None
None
None
None

Runway 13/31

4600 ft. x 165 ft.
DIRT
Good
NONE


--
--
--
--
  Runway 13 Runway 31
True Heading 152°332°
Traffic Pattern Left Left
Markings
Markings Condition
Latitude 38° 23' 08"N 38° 22' 27"N
Longitude 118° 06' 02"W 118° 05' 35"W
Elevation 4,542' 4,557'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights No No
Runway End Identifier Lights No No
A110-2RY 13/31 HAS 2 FT BERMS ON BOTH SIDES FULL LENGTH OF RY.
A110-3RY 13/31 HAS UNCONTROLLED VEHICLE ACCESS.
A110-4ULTRALIGHTS ON & INVOF ARPT.
A110-5REMOTE CONTROLLED AIRCRAFT INVOF ARPT.
A110-6WILD HORSES, BURROS, AND BIG HORN SHEEP IN AIRPORT ENVIRONMENT
A110-7TWY TO OFF RWY PRKG AREA BLOCKED BY 3 FT HIGH CATTLE GUARD RAILS THAT COULD DAMAGE LOW WING ACFT.
A110-8FOR CD CTC OAKLAND ARTCC AT 510-745-3380.
MINA (IATA: 3Q0) is a public airport located in MINA, NV.
